Fiatallis Ben 7.16 Crawler Loader Service Manual – PDF

Description

Fiatallis Ben 7.16 Crawler Loader Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis Ben 7.16 Crawler Loader Service Manual – PDF DOWNLOAD

FN 59825081

Language : English
Pages : 90
Downloadable : Yes
File Type : PDF

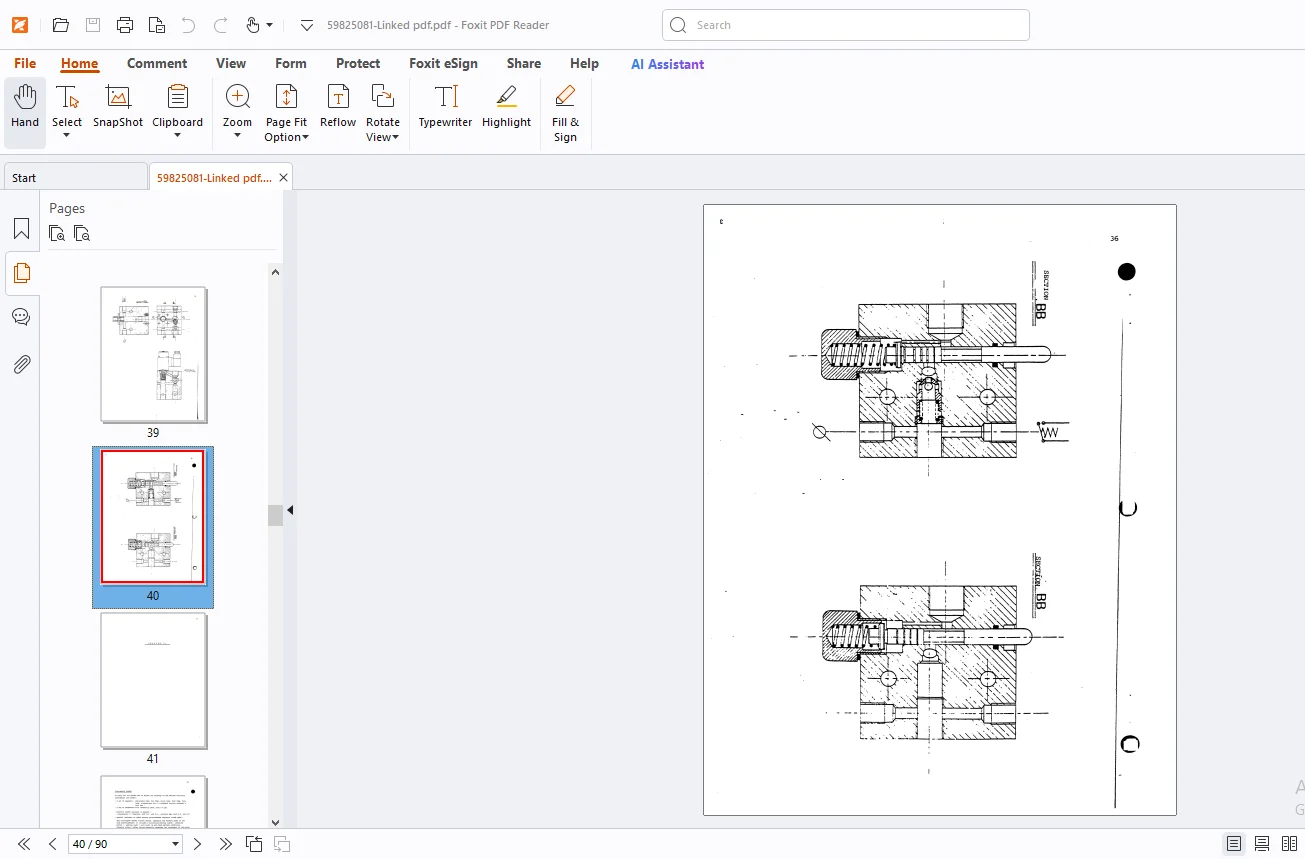

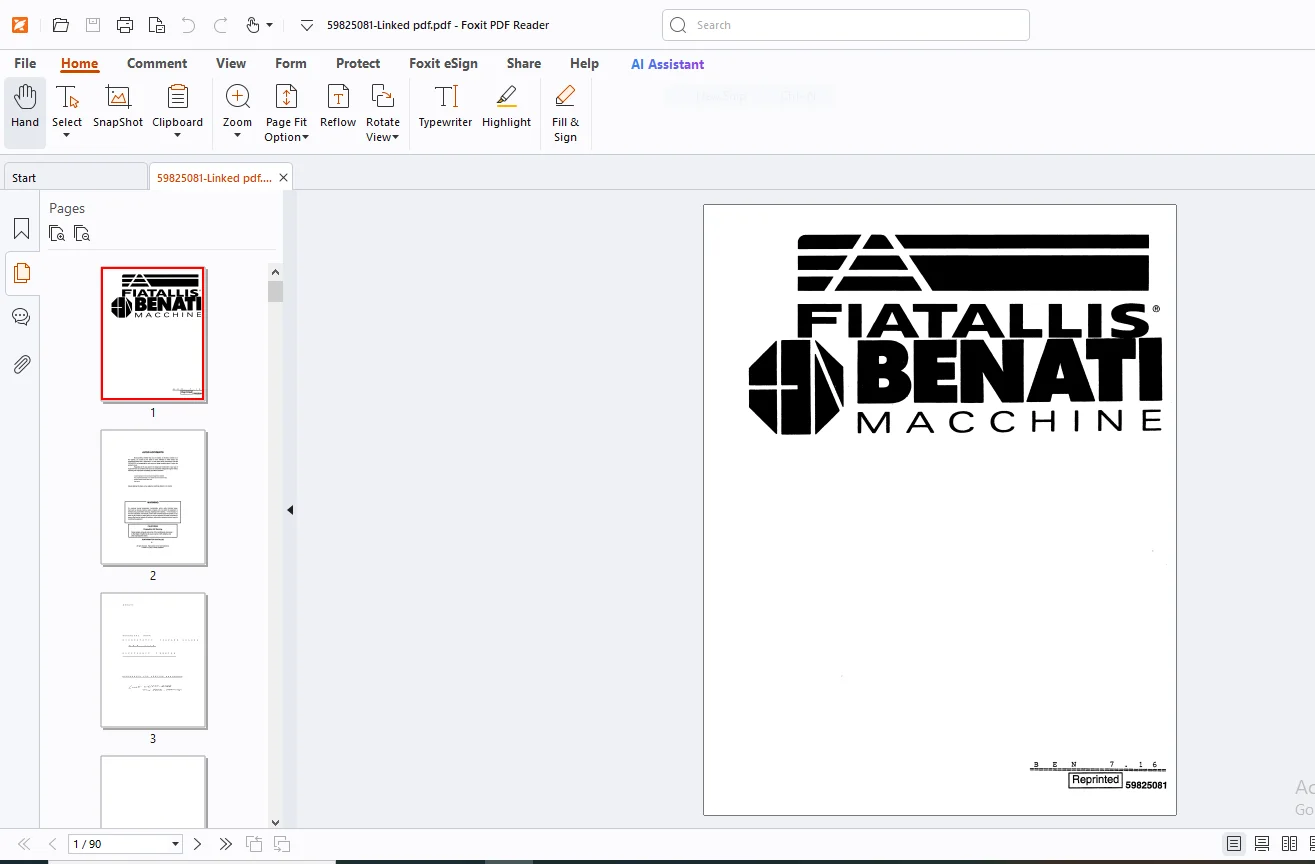

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis Ben 7.16 Crawler Loader Service Manual – PDF DOWNLOAD

FN 59825081

TABLE OF CONTENTS

• Some Electrotechnical Operating Principles
• Description and Working Principles
• Hydraulic System Diagram
• Electric System Diagram – Traction
• Components Description and Main Data

CHAPTER II

• Instruments Needed
  Page
  38
• Settings to be Checked Before Starting the Machine
  Page
  40
• Filling the Hydraulic System, First Starting, Safety Lever, and Brake Control Check
  Page
  43
• Minimum and Maximum Diesel Engine RPM Check
  Page
  44
• Table of Settings
  Page
  47
• Brake Assembly Test
  Page
  48

CHAPTER III

• Forward/Reverse Speed Check
  Page
  55
• Steering Control Check
  Page
  55
• Max Travel Speed Test
  Page
  56
• Electronic Control Test with Machine Digging
  Page
  57
• Travel Direction Check
  Page
  58

CHAPTER IV

• Instruments and Warning Lights
  Page
  66
• Engine/Travel Reduction Unit Assembly
  Page
  67
• Undercarriage Components Wear Limits and Tightening Torques
  Page
  68
• Filter and Battery Chart
  Page
  69
• Service Refill Capacities and Lubricants Chart
  Page
  70
• Perkins T6.354.4 Diesel Engine Data
  Page
  74
• Hydraulic Implements Circuit
  Page
  74
• Electric Diagram
  Page
  75

DESCRIPTION:

Fiatallis Ben 7.16 Crawler Loader Service Manual – PDF DOWNLOAD

FN 59825081

Forward:

•  Start Diesel engine, engage safety lever and accelerate slightly above idling speed.
• Progressively shift controller forward and make sure that the machine starts travelling forward.
• Progressively shift controller backward and make sure that the machine starts travelling in reverse direction. If the machine moves neither forward nor backward, repeat the operation with both steering pedals pressed down. If still the machine does not move there must be a wrong electric connection of the steering potentiometers. Disconnect the steering potentiometers and then try again.
• If the machine still does not move check and increase if necessary Diesel engine RPM sensor tension by tightening a quarter of a turn bolt M24 x 2 taking care not to exceed 50 v. A.C. at maximum RPM. This tension is measured between points V and X on the Black Box connector. If the tracks move, but in opposite direction to each other, disconnect the steering potentiometer connections and try again. If the defect remains interchange the electric connections on the pump that operates irregularly (i.e. the pump that makes the track rotate in opposite sense respect to the control actuated.).
• If by disconnecting the steering potentiometer connections the trouble disappears, this means that the potentiometer controlling the track is not correctly connected. Steering control check Part of the checks to be carried out has been detailed above. – Start Diesel engine, actuate safety lever, actuate forward speed
