Fiatallis 645 645-B Wheel Loader Service Manual – PDF

Description

Fiatallis 645 645-B Wheel Loader(Brakes & Air System)Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 645 645-B Wheel Loader(Brakes & Air System)Service Manual – PDF DOWNLOAD

FN 73057214

Language : English
Pages : 88
Downloadable : Yes
File Type : PDF

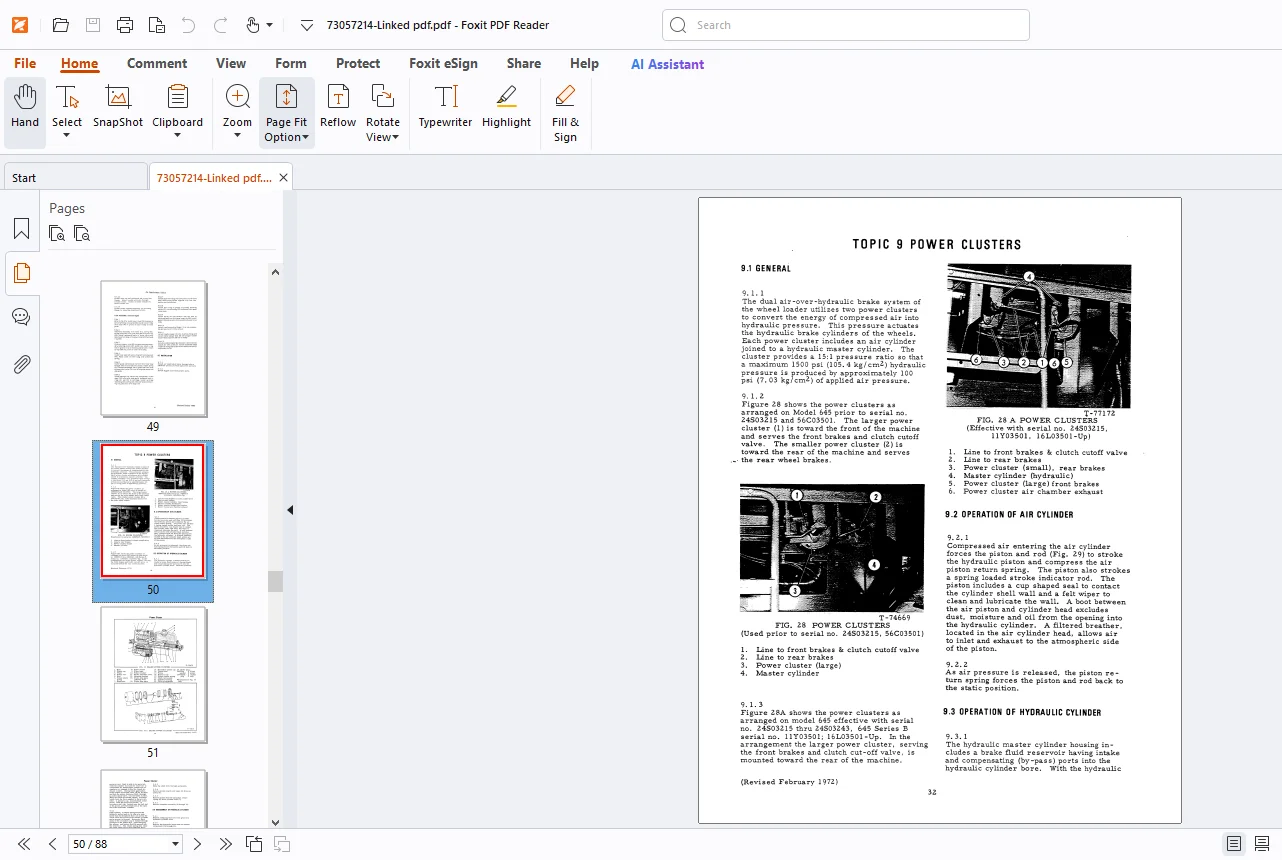

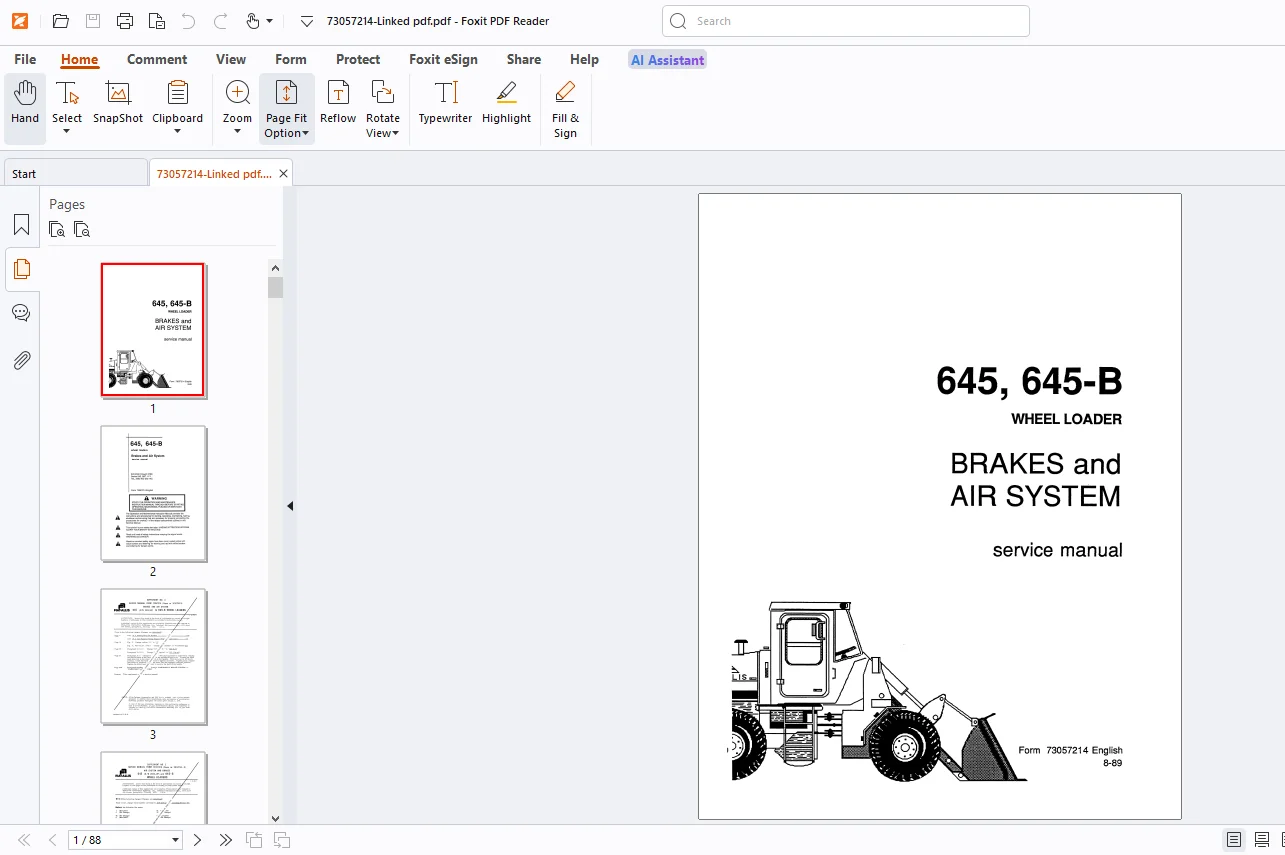

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 645 645-B Wheel Loader(Brakes & Air System)Service Manual – PDF DOWNLOAD

FN 73057214

Supplement No 3 Service Manual Form 73057214 ( Same as 3057214-3) Brakes and Air System 645 (S/N 2032-Up) & 645-B Wheel Loaders 3
Supplement No 2 Service Manual Form 73057214 ( Same as 3057214-3) Air System and Brakes 645 (S/N 2032-Up) & 645-B Wheel Loaders 4
Supplement No 1 Service Manual Form 3057214-3 Air System and Brakes 645 (S/N 56C02720-Up) 5
Safety Rules 7
Table of Contents 14
Topic 1 – General Description 17
Topic 2 – Trouble Shooting 23
Topic 3 – Air Compressor 27
Topic 4 – Governor 37
Topic 5 – Air Tank 40
Topic 6 – Air Tank Drain Cocks 41
Topic 7 – Air Tank Valve and Check Valves 42
Topic 8 – Air Application Valve 44
Topic 9 – Power Clusters 50
Topic 9A – Emergency Brake Control Valve 54
Topic 10 – Service Brakes 61
Topic 11 – Clutch-Off Valve 66
Topic 12 – Alcohol Injector 67
Topic 13 – Air Pressure Gauge 71
Topic 14 – Air Horn 72
Topic 15 – Low Air Pressure Switch 74
Topic 16 – Parking Brake 75
Topic 17 – Bleeding System 76
Topic 18 – Tests 78
Topic 19 – Miscellaneous 81
Index 84

DESCRIPTION:

Fiatallis 645 645-B Wheel Loader(Brakes & Air System)Service Manual – PDF DOWNLOAD

FN 73057214

GENERAL:

SAFETY RULES:

• Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling, or servicing machine.
• Read and head all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at alltimes to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine.
• Always check work area for dangerous features. The follow- ing are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop of’s be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.
• For your personal protection. Do not attempt to climb on or aff machine while machine is in motion.
  Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security, Heed all shut down procedures of the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason.
