Fiatallis 3500 3500 MKII 670 T Engines Service Manual – PDF

Description

Fiatallis 3500 3500 MKII 670 T Engines Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 3500 3500 MKII 670 T Engines Service Manual – PDF DOWNLOAD

FN 70650824

Language : English
Pages : 204
Downloadable : Yes
File Type : PDF

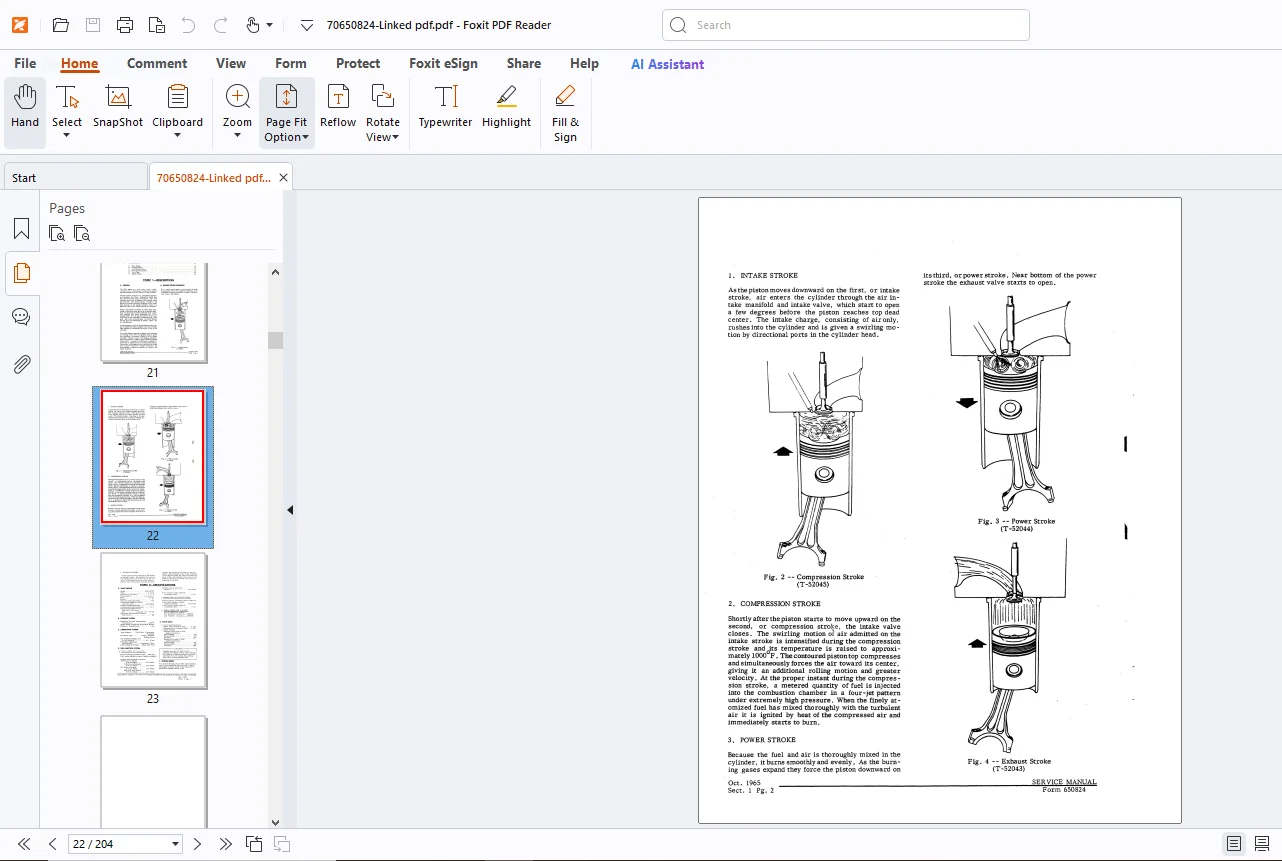

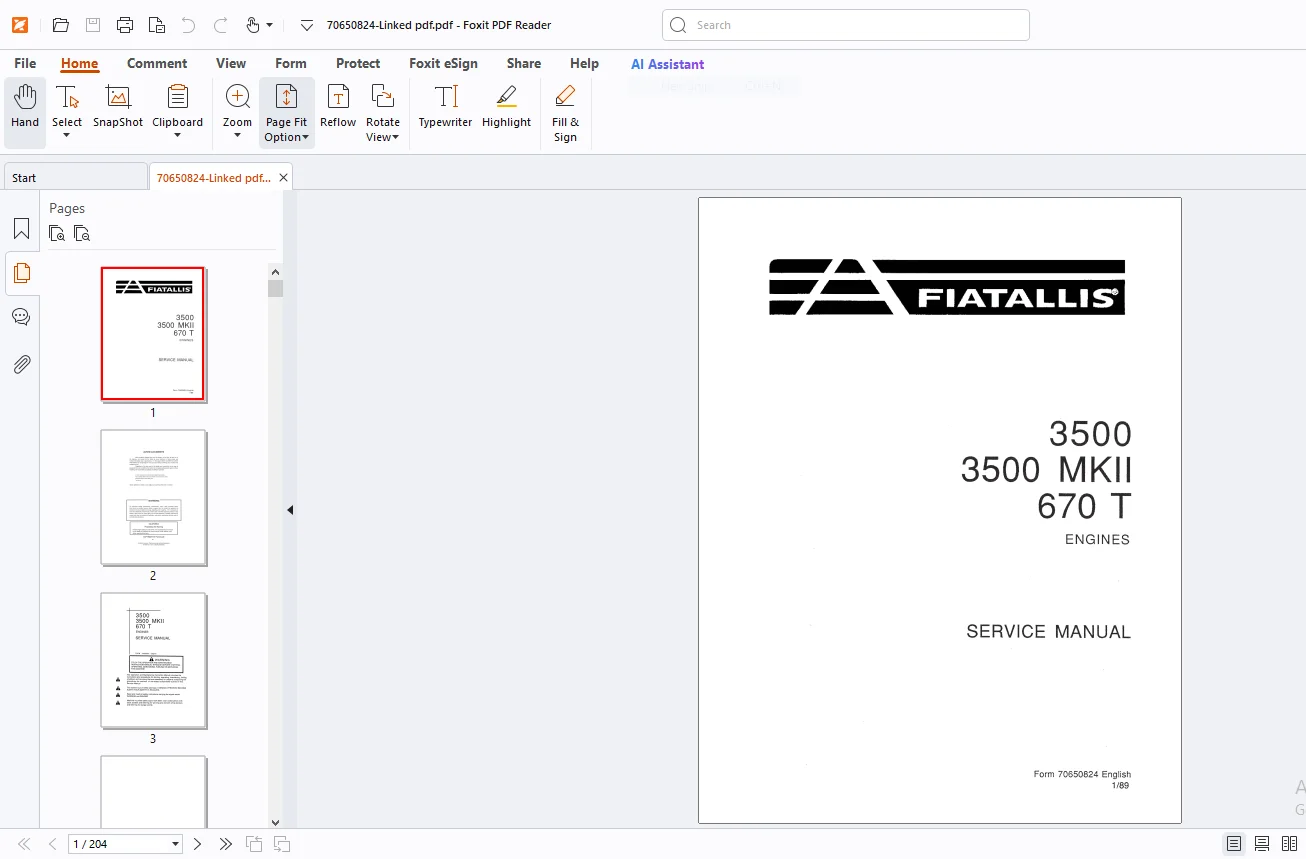

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 3500 3500 MKII 670 T Engines Service Manual – PDF DOWNLOAD

FN 70650824

Supplement No 5 Service Manual Form 70650824 3500, 3500 Mark II, 670T Engines 5
Supplement No 4 Service Manual Form 70650824 (English) 3500 and 3500 Mark II Engines 6
Supplement No 3 Service Manual Form 70650824-6 3500 Engine 7
Mailing No 2 Replacement Pages For 650824 (10-65) Service Manual 3500 Engines Construction Machinery Division 9
Mailing No 1 Replacement Pages For 650824 (10-65) Service Manual 3500 Engines Construction Machinery Division 10
Table of Contents 19
Section 1 – Description and Specifications 21
Section 2 – Cooling System 25
Section 3 – Electrical System 45
Section 4A – Fuel System (With Simms Fuel Injection Pump) 73
Section 5 – Air Cleaner and Intake Manifold 85
Section 6 – Exhaust Manifold and Turbocharger 89
Section 7 – Valves, Valve Operating Mechanism, and Cylinder Head 93
Section 8 – Front End and Gear Train 109
Section 9 – Flywheel, Ring Gear, Flex Plate Drive, Flywheel Housing, and Crankshaft Rear Oil Seal 119
Section 10 – Lubricating System 125
Section 11 – Camshaft and Camshaft Bearings 137
Section 12 – Pistons, Piston Rings, Connecting Rods, and Connecting Rod Bearings 145
Section 13 – Crankshaft and Crankshaft Gear, Main Bearings, and Main Bearing Caps 153
Section 14 – Cylinder Block and Cylinder Sleeves 161
Section 15 – Engine Removal and Installation 171
Section 16 – Engine Disassembly and Assembly 175
Section 17 – Fits and Tolerances, Torque Specifications, and Stud Gauge Heights 179
Section 18 – Trouble Shooting 189
Section 19 – Service Tools 199
Section 20 – Conversion Tables 201

DESCRIPTION:

Fiatallis 3500 3500 MKII 670 T Engines Service Manual – PDF DOWNLOAD

FN 70650824

GENERAL:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine.
• Read and had all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted salty signs have been color coded yellow with black border and lettering for WARNING and red with white border a or and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any posision other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartmentat alltimes to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine.
• Always check work area for dangerous features. The follow- ing are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. climb on or off machine while machine is in motion.
  Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Head all shut down procedures of the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason.
