Fiatallis 345-B Wheel Loader Service Manual – PDF

Description

Fiatallis 345-B Wheel Loader(Axles Brakes & Drive Shafts)Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 345-B Wheel Loader(Axles Brakes & Drive Shafts)Service Manual – PDF DOWNLOAD

FN 73067439

Language : English
Pages : 96
Downloadable : Yes
File Type : PDF

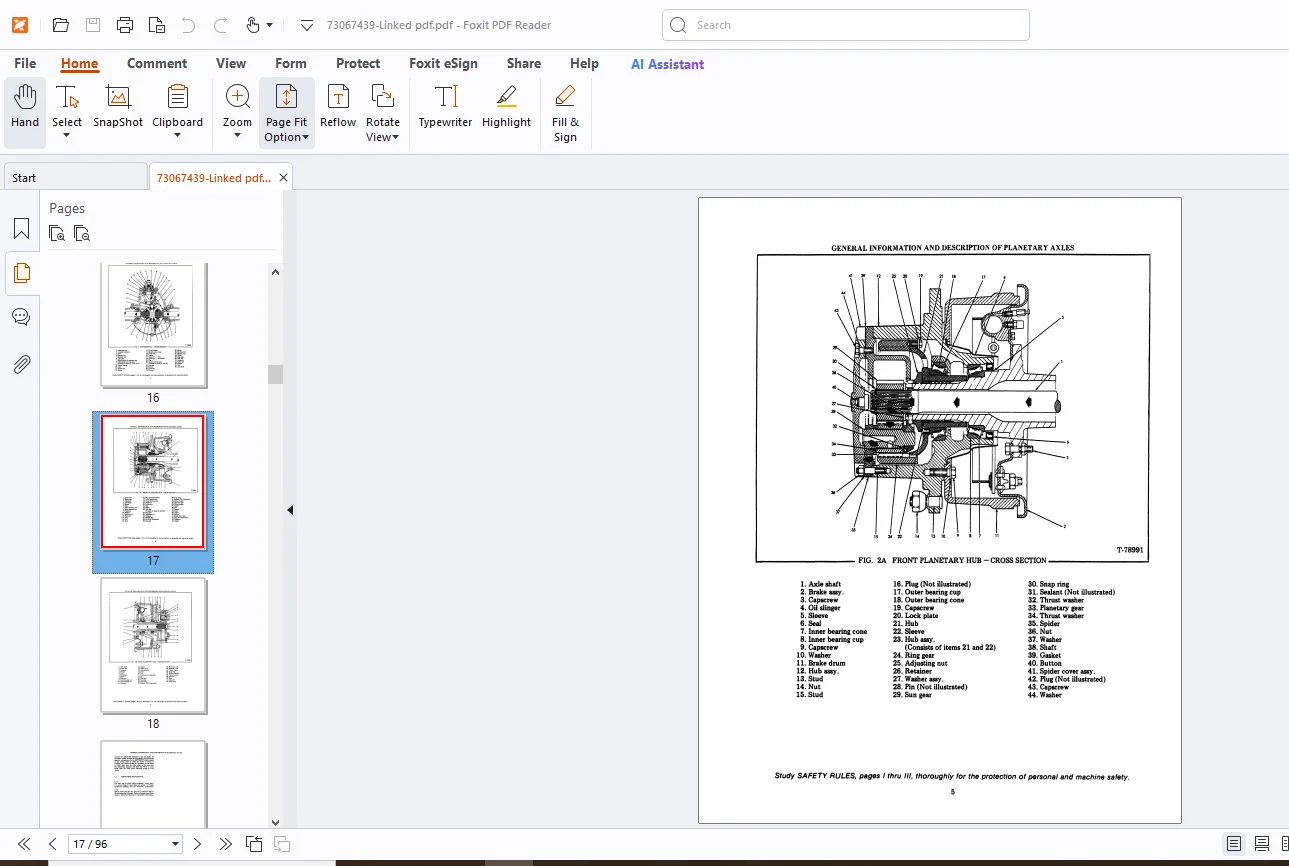

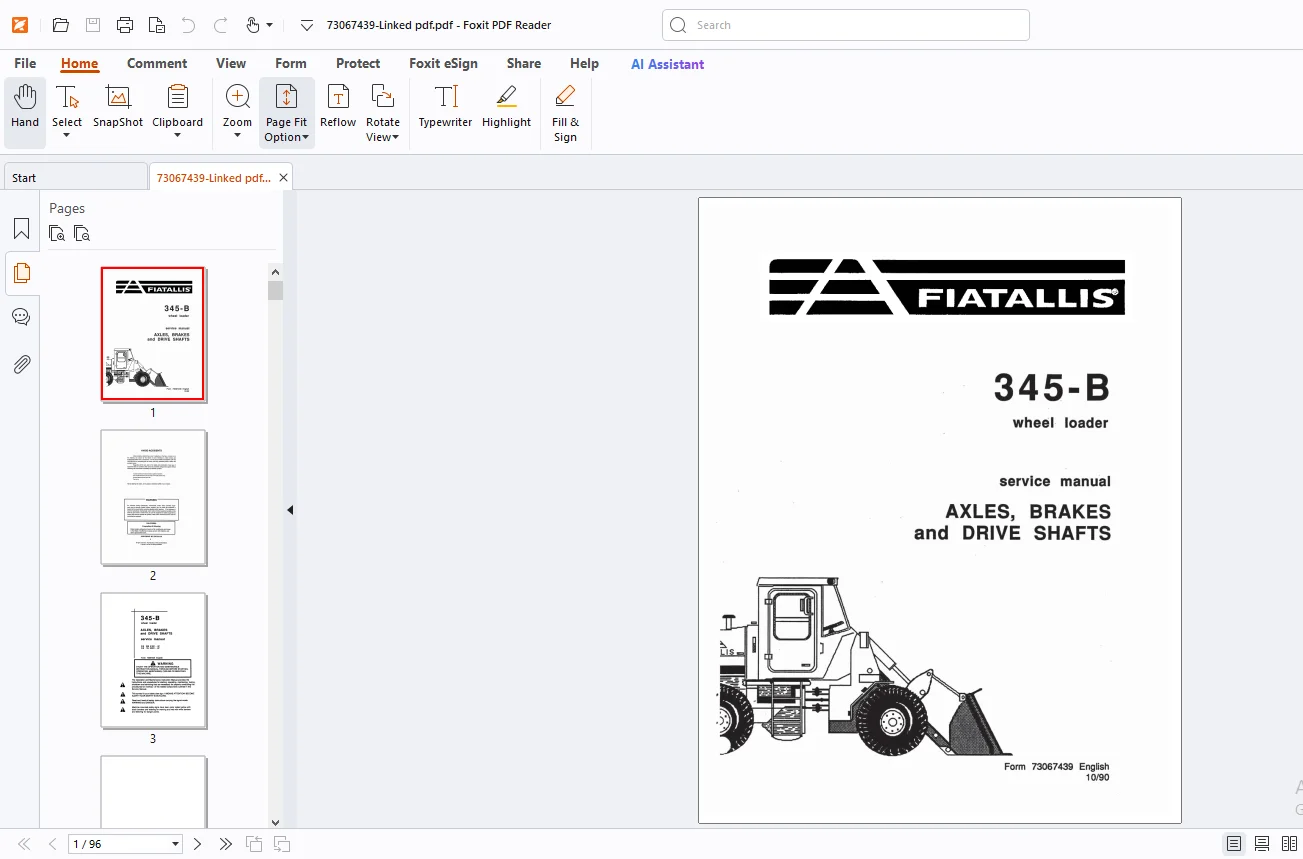

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 345-B Wheel Loader(Axles Brakes & Drive Shafts)Service Manual – PDF DOWNLOAD

FN 73067439

Foreword 13
Table of Contents 14
Topic 1 – General Information and Description of Planetary Axles 15
Topic 2 – Troubleshooting Axles, Planetary Hubs and Differentials 20
Topic 3 – Removal and Installation of Axle Assemblies 22
Topic 4 – Differential Removal and Disassembly 26
Topic 5 – Cleaning and Inspection of Differential 32
Topic 6 – Assembly of Differential 33
Topic 7 – Removal and Disassembly of Planetary Hubs 39
Topic 8 – Cleaning and Inspection of Planetary Hubs 45
Topic 9 – Assembly and Installation of Planetary Hubs 46
Topic 10 – Drive Shafts 51
Topic 11 – Torque Specifications 54
Topic 12 – Wheel and Tires 56
Topic 13 – General Description of Brake System 59
Topic 14 – Troubleshooting Brake System 63
Topic 15 – Service Brakes 65
Topic 16 – Clutch Cut-off Valve 69
Topic 17 – Bleeding of Brake System 71
Topic 18 – Parking Brake 73
Topic 19 – Master Cylinder and Power Cylinder 75
Topic 20 – Miscellaneous Brake System Service Tips 79
Topic 21 – NoSpin Differential Removal and Disassembly 82
Alphabetical Index 94
Conversion Tables 95

DESCRIPTION:

Fiatallis 345-B Wheel Loader(Axles Brakes & Drive Shafts)Service Manual – PDF DOWNLOAD

FN 73067439

GENERAL:

SAFETY:

• Study the Operation and Maintenance Instruction Manual be fore starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at alltimes to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of sippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
• Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason.
