Fiatallis 345-B Wheel Loader Service Manual – PDF

Description

Fiatallis 345-B Wheel Loader(Hydraulics & Power Steering)Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 345-B Wheel Loader(Hydraulics & Power Steering)Service Manual – PDF DOWNLOAD

FN 73067440

Language : English
Pages : 94
Downloadable : Yes
File Type : PDF

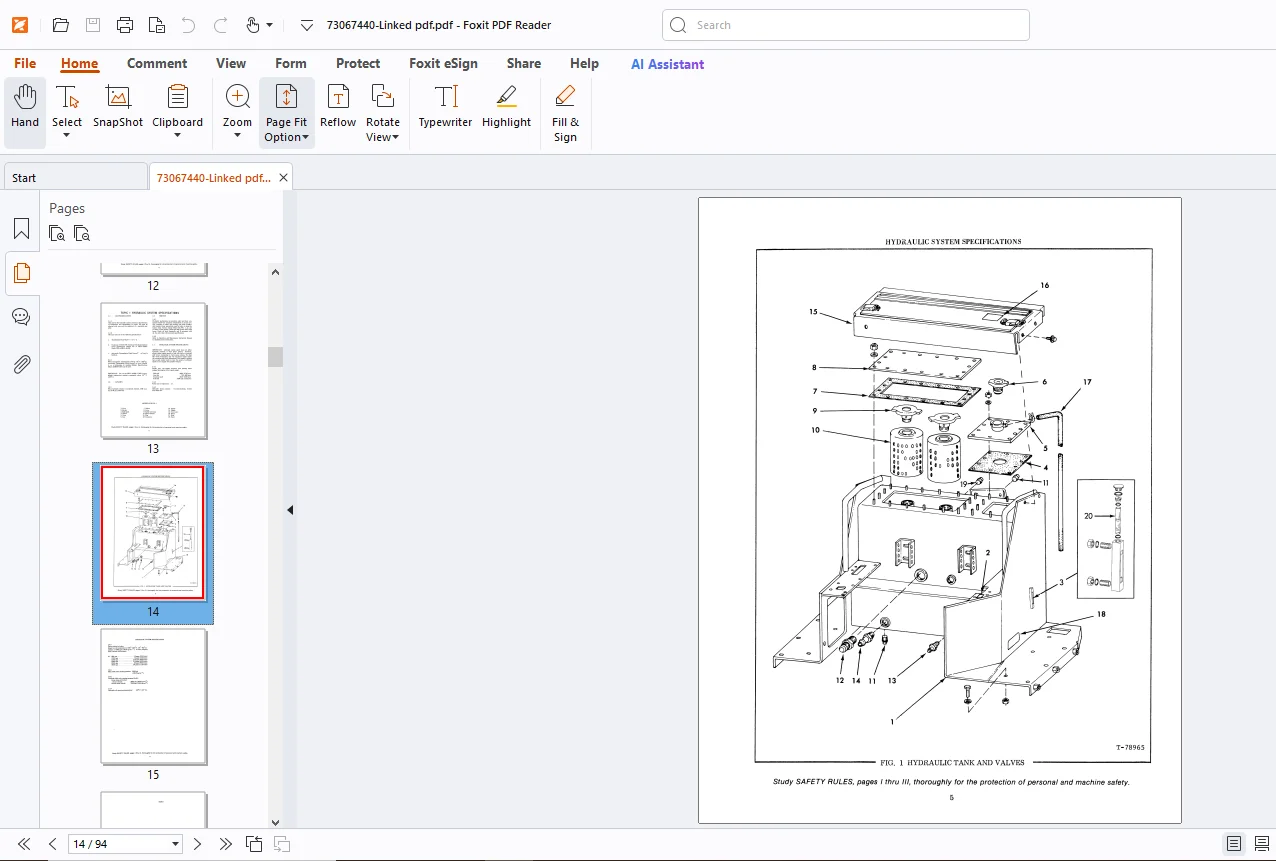

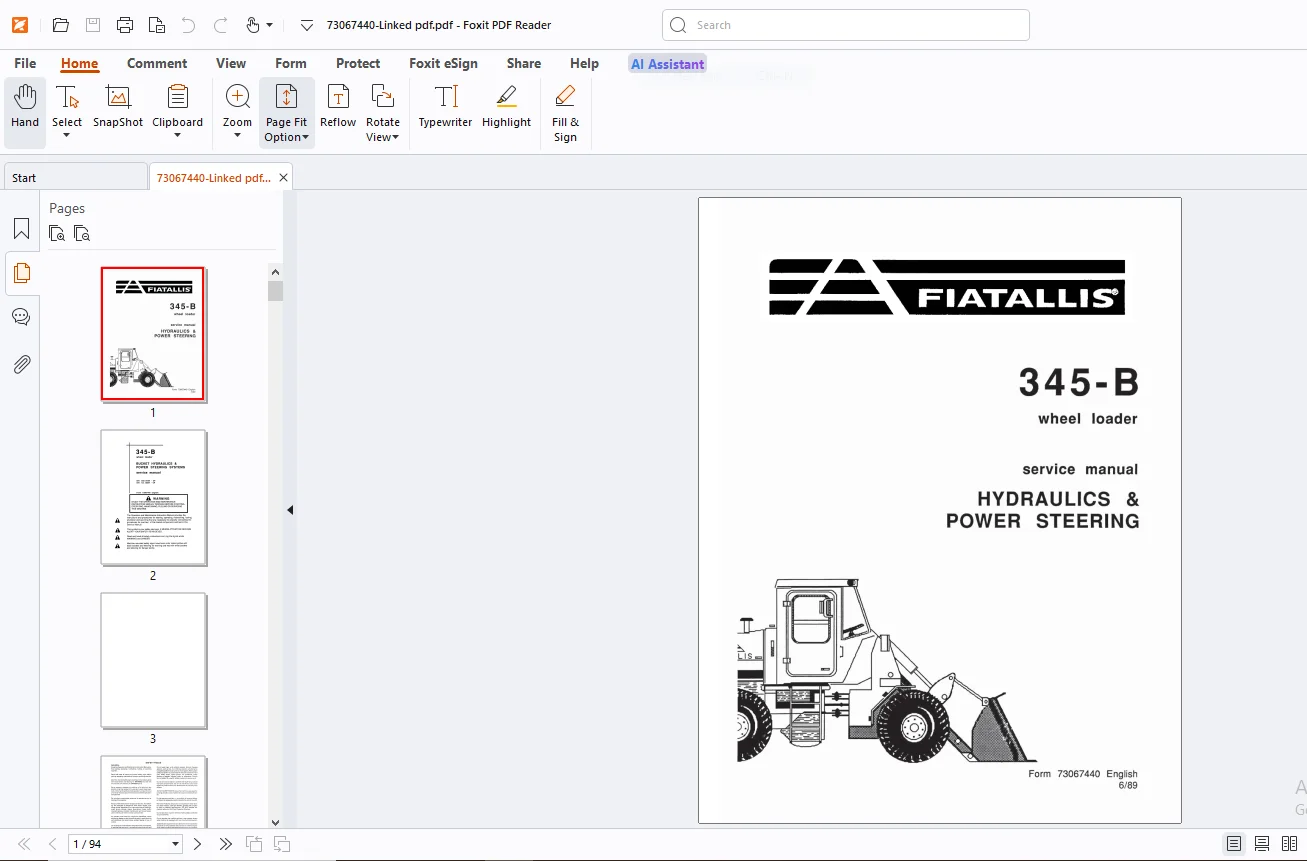

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 345-B Wheel Loader(Hydraulics & Power Steering)Service Manual – PDF DOWNLOAD

FN 73067440

Table of Contents 11
Topic 1 – Hydraulic System Specifications 13
Topic 2 – Hydraulic System Description and Operation 17
Topic 3 – Troubleshooting and Testing Hydraulic System 21
Topic 4 – Hydraulic Pump 33
Topic 5 – Hydraulic Control Valve 40
Topic 5A – Bucket Leveler and Boom Kickout 45
Topic 6 – Hydraulic Cylinders 49
Topic 7 – Power Steering System Description and Operation 54
Topic 8 – Troubleshooting and Testing The Power Steering System 55
Topic 9 – Power Steering Pump and Flow Divider 61
Topic 10 – Power Steering Control Valve 68
Topic 11 – Power Steering Cylinders 80
Topic 11A – Emergency Steering 83
Topic 12 – Pressure Lines, Fittings, Hoses and Tubing 85
Topic 13 – Torque Specifications 92
Alphabetical Index 93
Conversion Tables 94

DESCRIPTION:

Fiatallis 345-B Wheel Loader(Hydraulics & Power Steering)Service Manual – PDF DOWNLOAD

FN 73067440

GENERAL:

SAFETY RULES:

• Study the Operation and Maintenance Instruction Manual be fore starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at alltimes to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
• The follow ing are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas.
• Use extreme care when in areas such as these. An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine.
• Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
• Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grabrails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of sippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
• Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason.

G.B 26/03/25
