Fiatallis 260 260-A 260-B 262-B & 260E 260E-A 261-B 263-B Scrapers Service Manual PDF

Description

Fiatallis 260 260-A 260-B 262-B Tractor Scrapers 260E 260E-A 261-B 263-B Elevating Tractor Scrapers Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 260 260-A 260-B 262-B Tractor Scrapers 260E 260E-A 261-B 263-B Elevating Tractor Scrapers Service Manual – PDF DOWNLOAD

FN 73127732

Language : English
Pages : 38
Downloadable : Yes
File Type : PDF

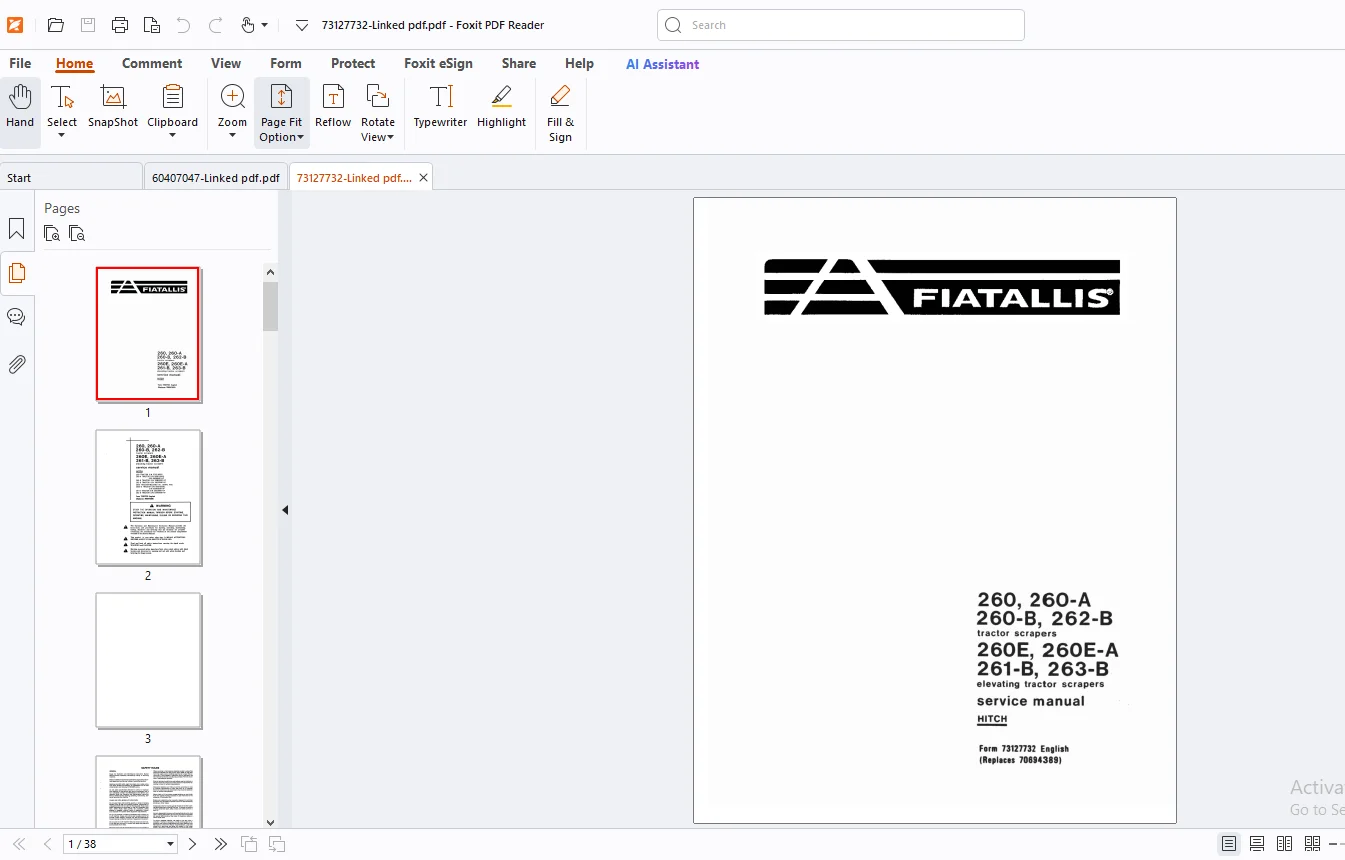

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 260 260-A 260-B 262-B Tractor Scrapers 260E 260E-A 261-B 263-B Elevating Tractor Scrapers Service Manual – PDF DOWNLOAD

FN 73127732

Safety Rules 4
Table of Contents 8
Topic 1 – General 11
Topic 2 – Disassembly of Scraper From Tractor 12
Topic 3 – Hitch Removal and Disassembly 18
Topic 4 – Disassembly of Link or Steering Cylinders From Swing Arm 23
Topic 5 – Assembly of Link or Steering Cylinders to Swing Arm 24
Topic 6 – Hitch Assembly and Installation 25
Topic 7 – Assembly of Scraper-To-Tractor 29
Topic 8 – Checks and Adjustments 30
Topic 9 – Weldments 34
Topic 10 – Service Tools 36

DESCRIPTION:

Fiatallis 260 260-A 260-B 262-B Tractor Scrapers 260E 260E-A 261-B 263-B Elevating Tractor Scrapers Service Manual – PDF DOWNLOAD

FN 73127732

GENERAL:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black borders and lettering for WARNING and red with white borders and lettering for DANGER points.
• Do not allow unauthorized personnel to service or maintain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting starting, operating, maintaining, fueling or servicing this machine. Always wear safety glasses with side shields.
• Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements.
• Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement. Do not jump on or off machine.
• Keep two hands and one foot, or two feet and one hand, in contact with stops and grab-rails and handrails at all times. Machine should not be serviced with anyone in the operator’s seat unless they are qualified to operate the machine and are assisting in the servicing.
• Keep operator’s compartment, stepping points, grab-rails and handles clean of foreign objects, oil, grease, mud or snow ac- cumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine. Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat. Keep operator’s compartment clear of loose objects.
• Always block with external support any linkage or part on machine that requires work under the raised linkage, parts, or machine per local or national requirements. Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking under raised blocked equipment unless you are assured of your safety.
• Never place head, body, limbs, fingers, feet or hands into an exposed portion between uncontrolled or unguarded scissor points of machine without first providing secure blocking.
• Never leave machine unattended with the engine running. Never lubricate, service or adjust a machine with the engine running, except as called for in the Operation and Maintenance Instruction Manuals. Do not wear loose clothing or jewelry near moving parts.
