Fiatallis 14-C Crawler Dozer Service Manual – PDF DOWNLOAD

Description

Fiatallis 14-C Crawler Dozer Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 14-C Crawler Dozer Service Manual – PDF DOWNLOAD

Language : English
Pages : 235
Downloadable : Yes
File Type : PDF

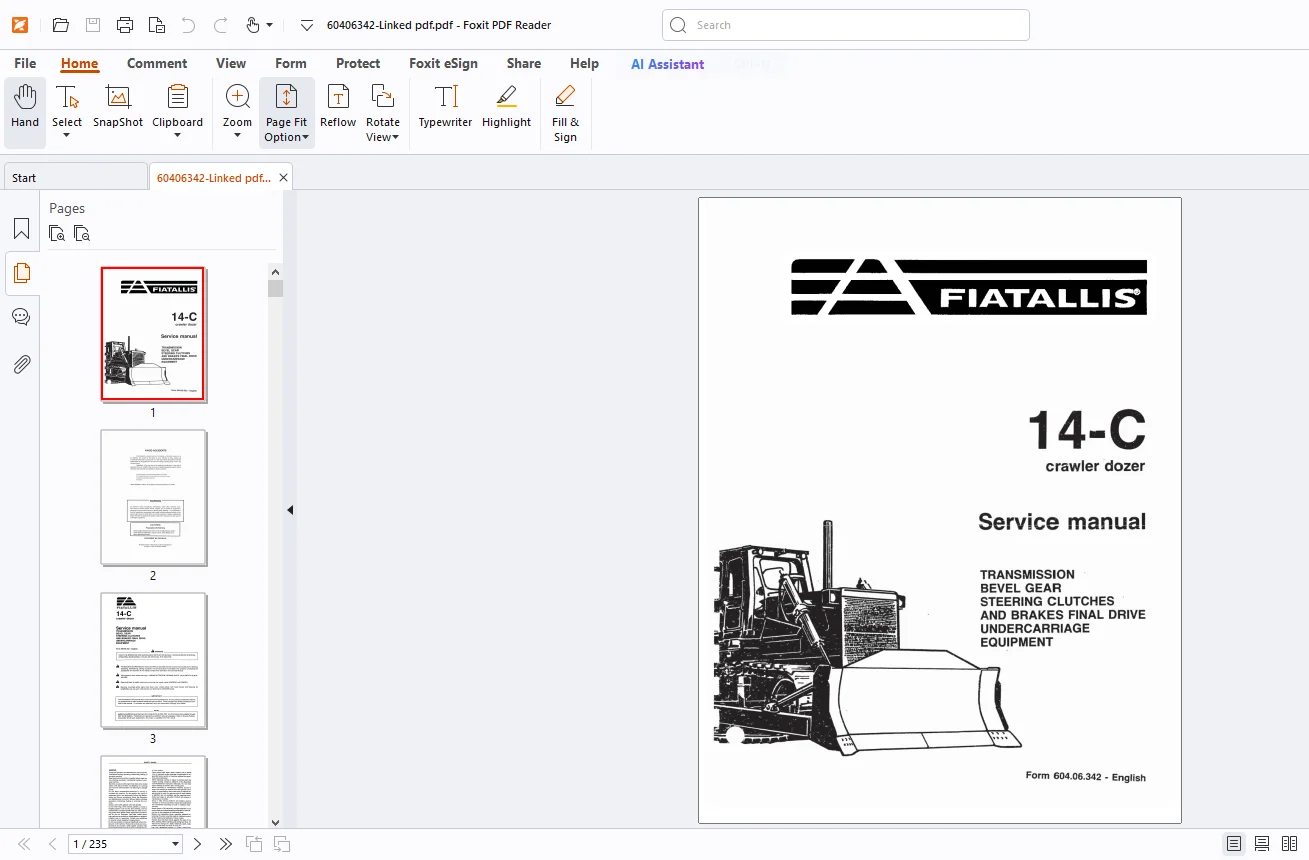

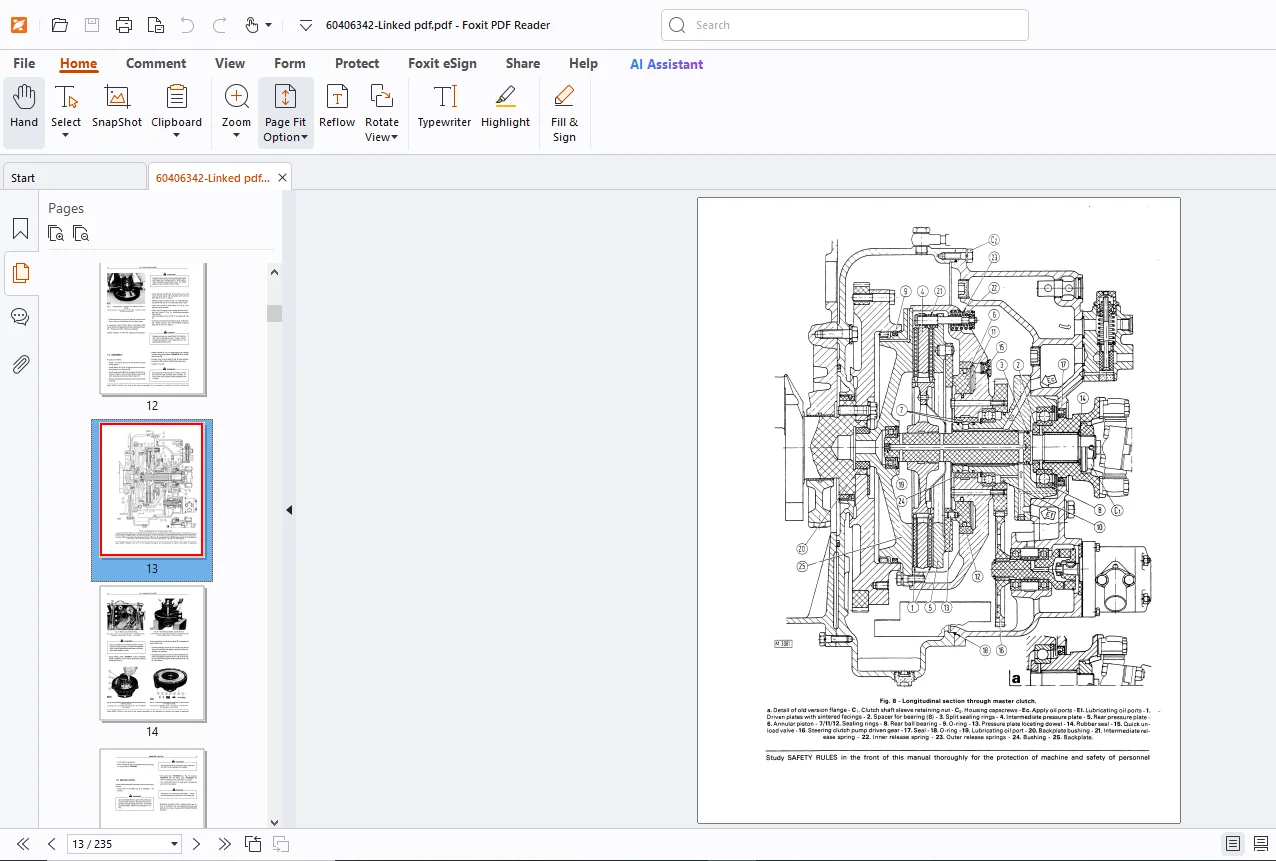

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 14-C Crawler Dozer Service Manual – PDF DOWNLOAD

Safety Rules 4
1 – Master Clutch 7
2 – Transmission 19
3 – Master Clutch/ Transmission Hydraulic System 35
Section 1 – Hydraulic Torque Converter 56
Section 2 – Transmission 66
Section 3 – Converter-Transmission Hydraulic System 84
1 Bevel Gear 109
2 Brakes and Steering Clutches 121
3 Steering Clutch and Brake Hydraulic System 135
4 Final Drives and Sprockets 149
1 Undercarriage 163
2 Dozer Equipment 195

DESCRIPTION:

Fiatallis 14-C Crawler Dozer Service Manual – PDF DOWNLOAD

SAFETY RULES:

GENERAL:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs be- fore starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points.
• Do not allow unauthorized personnel to service or maintain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting. operating, maintaining, fueling or servicing this ma- chine.
• Always wear safety glasses with side shields. Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts.
• Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vest, or respirators. Consult your employer for specific safety equipment requirements. Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
• Controls may also be inadvertently moved causing accidental machine or equipment movement. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times. Machine should not be serviced with anyone in the operator’s seat unless they are qualified to operate the machine and are assisting in the servicing.
• Keep operator’s compartment, stepping points, grab- rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
• Clean mud or grease from shoes before attempting to mount or operate the machine. Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat.
• Keep operator’s compartment clear of loose objects. If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat.
• Before starting machine or moving attachment or tool, make sure to set brakes, sound horn and call for an all clear. Raise attachment slowly. Always block with external support any linkage, parts, or machine according to local or national requirements.
• Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking un der raised blocked equipment unless you are assured
