Fiatallis 14-B 14-C 14-C 14-CTA 14-C-LGP FL14-B FL 14-C Fuel Injection Pump Service Instructions Manual 73132417 – PDF DOWNLOAD

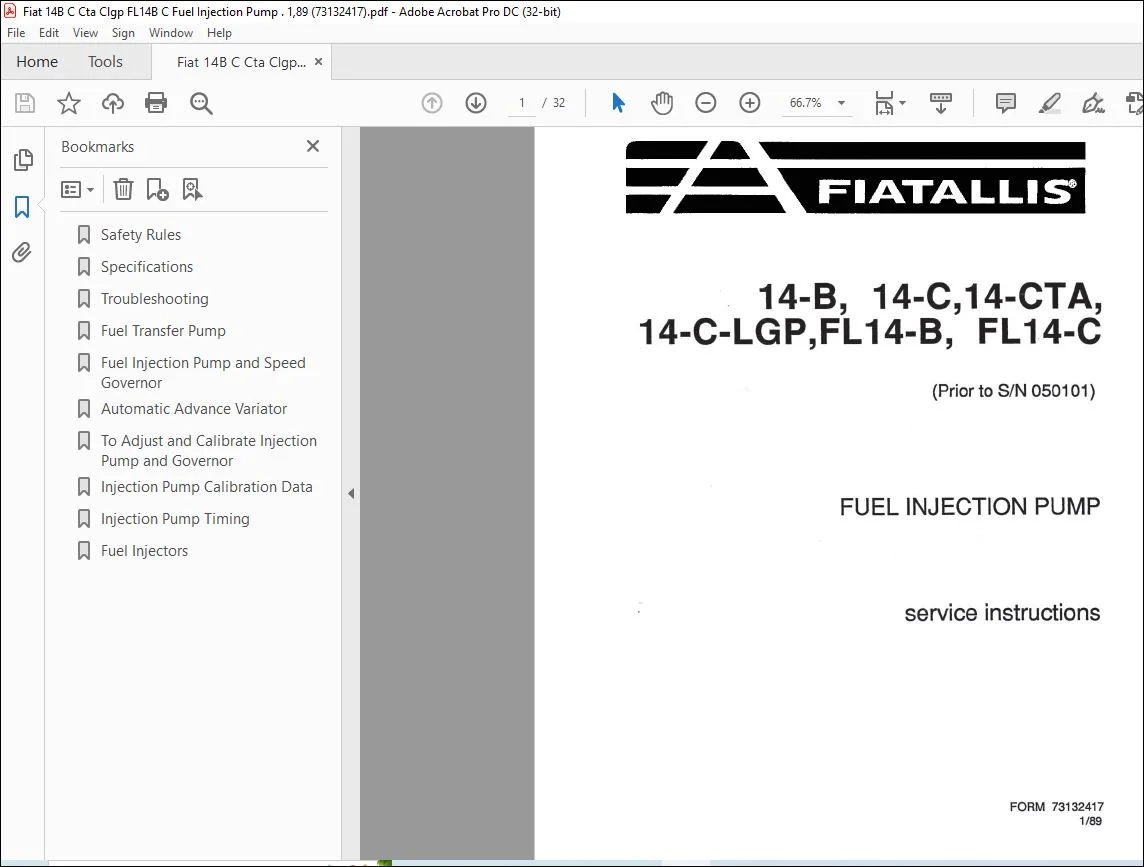

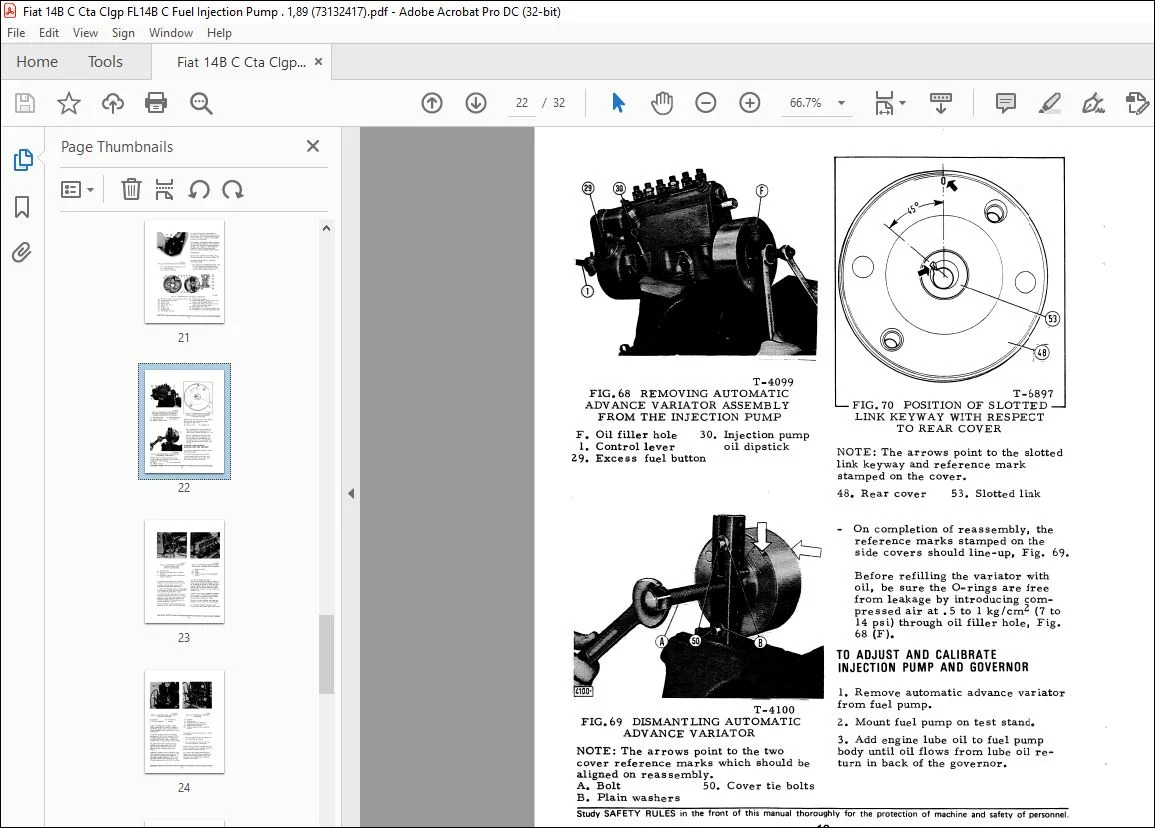

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Fiatallis 14-B 14-C 14-C 14-CTA 14-C-LGP FL14-B FL 14-C Fuel Injection Pump Service Instructions Manual 73132417 – PDF DOWNLOAD
SAFETY RULES:
GENERAL:
Study the Operation and Maintenance lnstrudion Manual before starting, operating, maintaining, fueling, or servicing machine. . Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
- Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
- Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine.
- Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas.
- Use extreme care when in areas such as these. An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert-to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine.
- Keep two hands and one foot, or two feet and one hand, in contad with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
- Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbfing. Clean mud or grease from shoes before attempting to mount or operate the machine.
TABLE OF CONTENTS:
Fiatallis 14-B 14-C 14-C 14-CTA 14-C-LGP FL14-B FL 14-C Fuel Injection Pump Service Instructions Manual 73132417 – PDF DOWNLOAD
- Safety Rules
- Specifications
- Troubleshooting
- Fuel Transfer Pump
- Fuel Injection Pump and Speed
- Governor
- Automatic Advance Variator
- To Adjust and Calibrate Injection
- Pump and Governor
- Injection Pump Calibration Data
- Injection Pump Timing
- Fuel Injectors
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.V
