Fiat Allis HD41 41B Crawler Tractors HYDRAULICS Service Manuals
FILE DETAILS:
Fiat Allis HD41 41B Crawler Tractors HYDRAULICS Service Manuals
Size : 54.5 MB
Format : PDF
Language : English
Brand: Fiat
Type of machine: Tractor
Type of document: Service Manual
Model: Fiat Allis HD41 41B Crawler Tractors
DESCRIPTION:
Fiat Allis HD41 41B Crawler Tractors HYDRAULICS Service Manuals
GENERAL INFORMATION:
- Study the Operation and Maintenance Instruction Manual before starling, operating, maintaining, fueling, or servic- ing machine Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yel- low with black borders and lettering for warning and red with white borders and lettering for danger points.
- No unauthorized personnel should be allowed to service or maintain this machine. Do not perform any work on equip- ment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting, operating, maintain- ing. fueling or servicing this machine. Always wear safety glasses with side shields Do not wear rings, wrist watches, jewelry, or loose or hang- ing apparel, such as ties, torn clothing, scarves, un- buttoned. or unzipped jackets that can catch on moving parts.
- Do wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equip- ment requirements. Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
- Controls may also be inadver- tently moved causing accidental machine or equipment movement. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times. Machine should not be serviced with anyone in the opera- tor’s seat unless they are qualified to operate the machine and are assisting in the servicing.
- Keep operator s compartment, stepping points, grab-rails and handles clean of foreign objects, oil. grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat.Keep operator’s compartment clear of loose objects. If movement of an attachment by means of the machine s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat. Before starting ma- chine or moving attachment or tool, make sure to set brakes, sound horn and call for an all clear
- Raise attach- ment slowly. Always block with external support any linkage or part on machine that requires work under the raised linkage, parts, or machine per OSHA requirements. Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking under raised blocked equipment unless you are assured of your safety.Never place head. body, limbs, f i ngers, feet or hands into an exposed portion between uncontrolled or unguarded scissor points of machine without first providing secure blocking.
- Never service or adjust a machine with theengine running, except as called for in the Operation and Maintenance Instruction Manuals. Do not wear loose clothing or jewely near moving parts. When servicing or maintenance requires access to areas that cannot be reached from the ground, use a ladder or step platform that meets OSHA requirements to reach the ser- vice pomt.
- If such ladders or platforms are not available, use the machine handholds and steps as provided. Perform all service or maintenance carefully. Shop or field se-vice platforms and ladders used to main- tain or service n-achinery should be constructed and main- tained according to OSHA requirements. Disconnect batteries and TAG all controls according to OSHA requirements to warn that work is in progress.
- Block the machine and all attachments that must be raised per OSHA requirements. Never check or fill fuel tanks, storage batteries or use starter fluid near ligh:ed smoking materialsor open flame due to the presence of flammable fluid. Brakes are inoperative when manually released for ser- vicing. Provision must be made to maintain control of the machine by blocking or other means.
- Always place the fuel nozzle against the side of the filler opening before starting and during fuel flow. To reduce the chance of a state electricity spark, keep contact until after fuel flow is shut off.
- Use only designated towing or pulling attachment points. Use care in making attachment. Be sure pins and locks as provided are secure before pulling Stay clear of drawbars, cables or chains under load.
- To move a disablsd machine, use a trailer or lowboy truck if available If towing is necessary, provide warning signals as required by local rules and regulations and follow opera- tion and maintenance instruction manual recommenda- tions Load and unload on a level area that gives full sup- port to the trailer wheels. Use ramps of adequate strength, low angle and proper height. Keep trailer bed clean of clay, oil and all materials that become slippery. Tie machine down securely to truck or trailer bed and block tracks
VIDEO PREVIEW OF THE MANUAL:

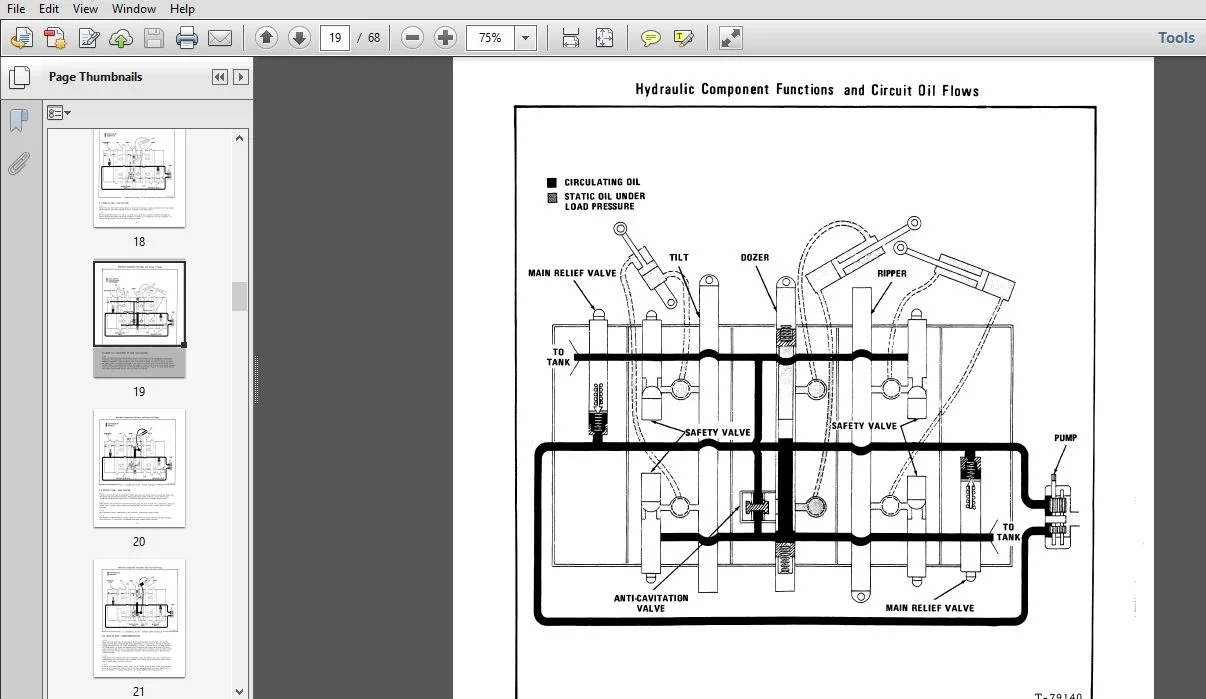

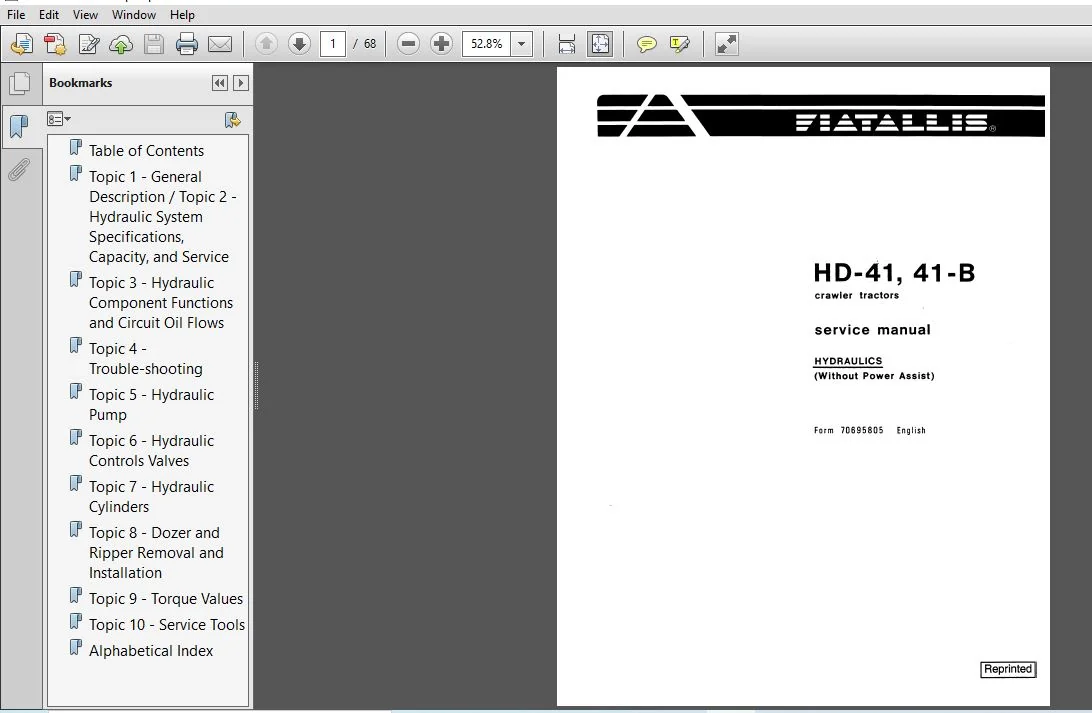

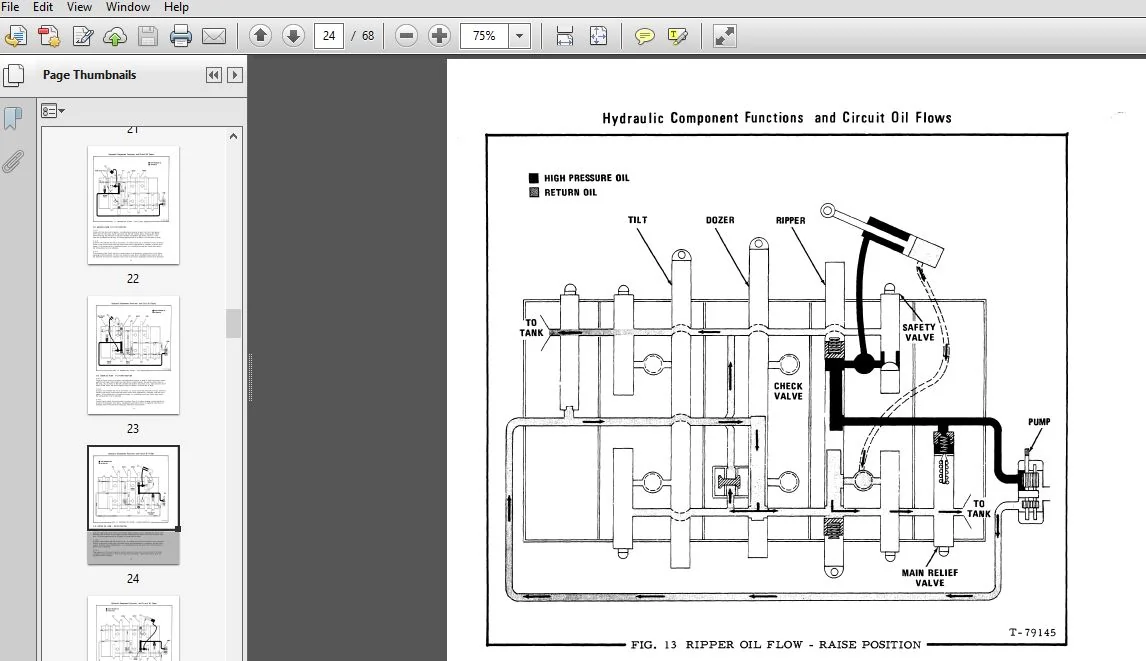

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Fiat Allis HD41 41B Crawler Tractors HYDRAULICS Service Manuals
Table of Contents 10
Topic 1 – General Description / Topic 2 – Hydraulic System Specifications, Capacity, and Service 11
Topic 3 – Hydraulic Component Functions and Circuit Oil Flows 14
Topic 4 – Trouble-shooting 26
Topic 5 – Hydraulic Pump 34
Topic 6 – Hydraulic Controls Valves 39
Topic 7 – Hydraulic Cylinders 45
Topic 8 – Dozer and Ripper Removal and Installation 58
Topic 9 – Torque Values 63
Topic 10 – Service Tools 64
Alphabetical Index 65
PLEASE NOTE:
⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
