Fiat Allis 262B 263B Tractor Scraper Air System Service Manual
FILE DETAILS:
Fiat Allis 262B 263B Tractor Scraper Air System Service Manual
Language : English
Pages : 142
Downloadable : YES
Format : PDF
Part No : 73113011
DESCRIPTION:
Fiat Allis 262B 263B Tractor Scraper Air System Service Manual
FOREWORD:
- This manual contains the Fiat-Allis approved procedures for overhaul of the Air System. All torque values given in this manual are for clean and lubricated threads. Assure best results and maintain original quality by always using Fiat-Allis parts. Always furnish dealer with Tractor Scraper Serial Number when ordering parts.
- Many equipment owners employ the Dealer’s service department for all work other than routine lubrication, adjustments, and minor service. This practice is encouraged, as our Dealers are well informed and equipped to render excellent service. This manual may not be reprinted or reproduced either in whole or in part, without written permission of Fiat-Allis.
GENERAL :
Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling. or servicing machine. – Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine~mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at alltirnes to reduce exposure to hazards outside the operator’s compartment.
- Do not allow unauthorized personnel to operate service or maintain this machine. Aiways check work area for dangerous features. The follow. ing are examples of dangerous work areas: slopes. over hangs, timber. demolitions. fire. high walls, drop off, back fills, rough terrain, ditches. ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine‘s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
- Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a send support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator‘s compartment, stepping points, grab-rails and handles clear of foreign objects, oil. grease. mud or snow accumulation to minimize the danger of sliping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
- Be careful of slippery conditions on stepping points, hand rails. and on the ground. Wear safety boots orshoes that have a high slip resistant sole material. ‘ Foryour personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always look up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance instruction Manual.
TABLE OF CONTENTS:
Fiat Allis 262B 263B Tractor Scraper Air System Service Manual
Supplement No 1 – Service Manual Form 73113011 Air Systems 262-B and 263-B Tractor Scrapers3
Supplement No 1 – Service Manual Form 73113011 Air Systems 262-B and 263-B Tractor Scrapers 23
Table of Contents 30
Topic 1 – General Description 31
Topic 2 – Troubleshooting 37
Topic 3 – Air Compressor 46
Topic 4 – Governor 55
Topic 5 – Tractor Air Lines and Reservoirs 59
Topic 6 – Air Reservoir Drain Cocks 62
Topic 7 – Relief and Check Valves 63
Topic 8 – Treadle Valve and Inversion Valves 67
Topic 9 – Scraper Brake Air Lines and Reservoir 75
Topic 10 – Scraper Air Start Tank and Valves 80
Topic 11 – Quick Release and Relay Emergency Valves 83
Topic 12 – Alcohol Injector (Special Equipment)86
Topic 13 – Wheel Brake Air Cylinder 89
Topic 14 – Air Horn 91
Topic 15 – Hand Brake Valve (Special Equipment)94
Topic 16 – Parking Brake Control 97
Topic 17 – Parking Brake Air Cylinder 101
Topic 18 – Parking Brake Valve 104

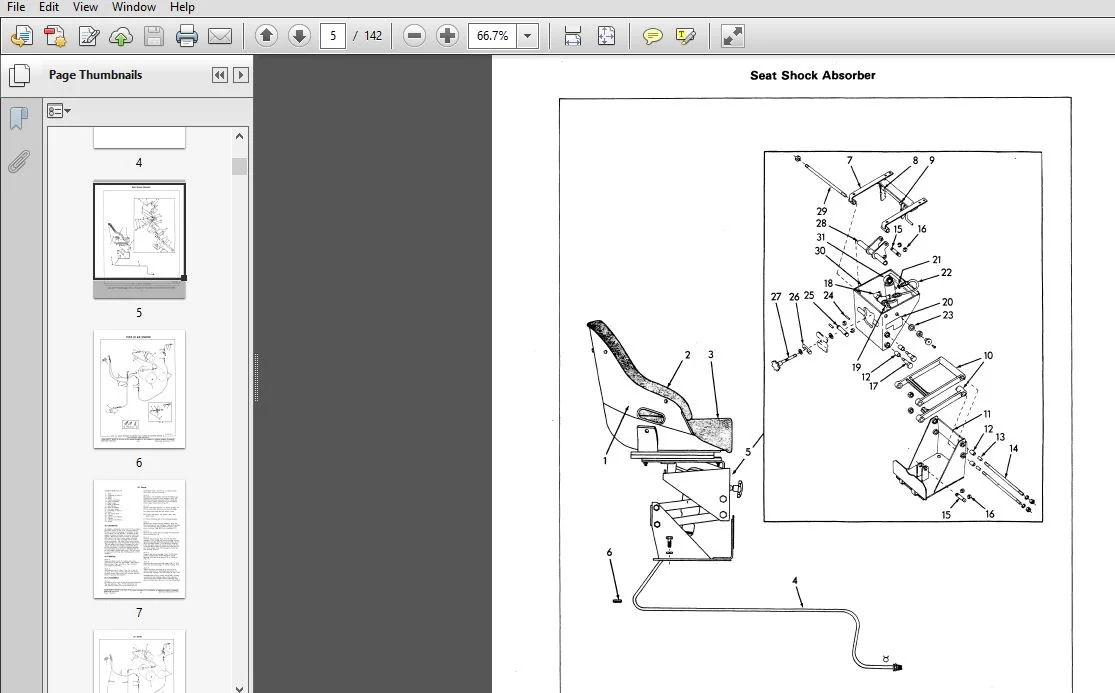

Topic 19 – Seat Shock Absorber 106

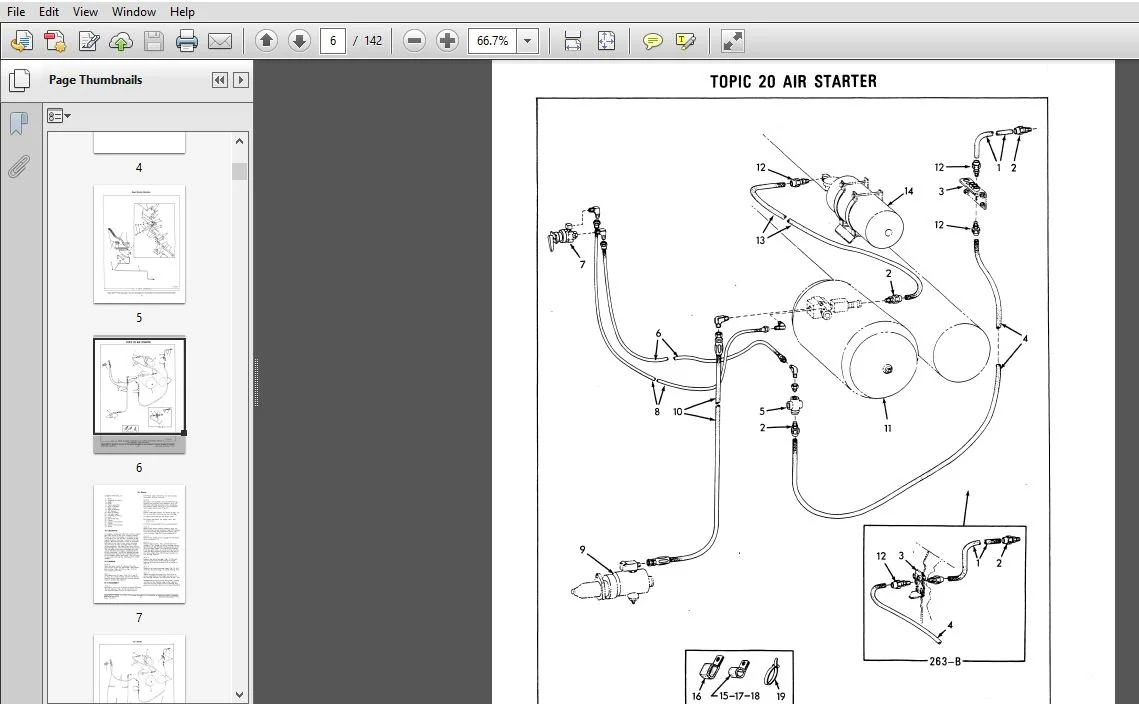

Topic 20 – Air Starter 108
Topic 21 – Rear Engine Throttle Control 124
Topic 22 – Air Dryer and Lines 129
Topic 23 – Tests 133
Topic 24 – Miscellaneous 135
Alphabetical Index 136
VIDEO PREVIEW OF THE MANUAL:

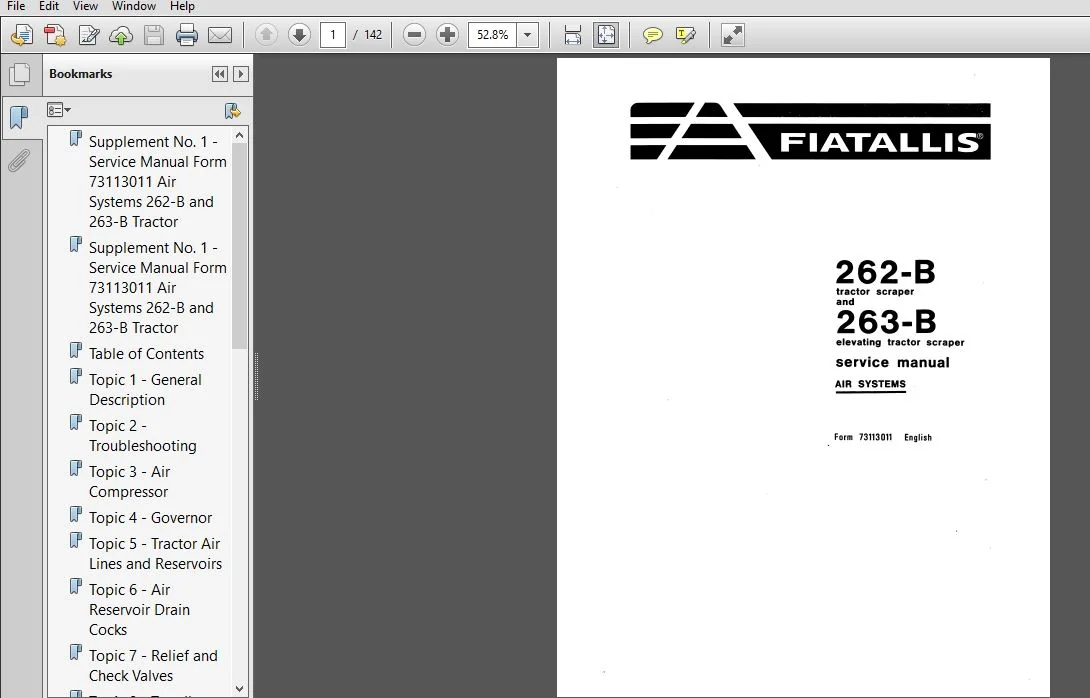

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
