Fiat Allis 161 Elevating Tractor Scraper Engine Related Components Service Manual
FILE DETAILS:
Fiat Allis 161 Elevating Tractor Scraper Engine Related Components Service Manual
Language : English
Pages : 38
Downloadable : YES
Format : PDF
Part No : 73114992
DESCRIPTION:
Fiat Allis 161 Elevating Tractor Scraper Engine Related Components Service Manual
FOREWORD:
This manual contains the Fiat-Allis approved procedures for removal of the Cummins engine and components. Assure best results and maintain original quality by always using Fiat-Allis parts. Always furnish Dealer with machine Serial Number when ordering parts. Many equipment owners employ Dealer‘s Service Department for all work other than routine lubrication, adjustments, and minor service. This practice is encouraged, as our Dealers are well informed and equipped to render excellent service. This manual may not be reprinted or re- produced, either in whole or in part, with- out written permission of Fiat-Allis.
GENERAL :
Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling. or servicing machine. – Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine~mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at alltirnes to reduce exposure to hazards outside the operator’s compartment.
- Do not allow unauthorized personnel to operate service or maintain this machine. Aiways check work area for dangerous features. The follow. ing are examples of dangerous work areas: slopes. over hangs, timber. demolitions. fire. high walls, drop off, back fills, rough terrain, ditches. ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine‘s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
- Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a send support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator‘s compartment, stepping points, grab-rails and handles clear of foreign objects, oil. grease. mud or snow accumulation to minimize the danger of sliping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
- Be careful of slippery conditions on stepping points, hand rails. and on the ground. Wear safety boots orshoes that have a high slip resistant sole material. ‘ Foryour personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always look up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance instruction Manual.
- Always set the parking brake when leaving the machine for any reason.Do not wear rings, wrist watches, jewelry. loose or hanging apparel. such as ties. torn clothing. scarves. unbuttoned or unzipped jackets that cen catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats. safety shoes. heavy gloves. ear protectors. safety glasses or goggles, reflector vests. or respirators.
TABLE OF CONTENTS:
Fiat Allis 161 Elevating Tractor Scraper Engine Related Components Service Manual
- Safety Rules
- Table of Contents
- Topic 1 — General Description

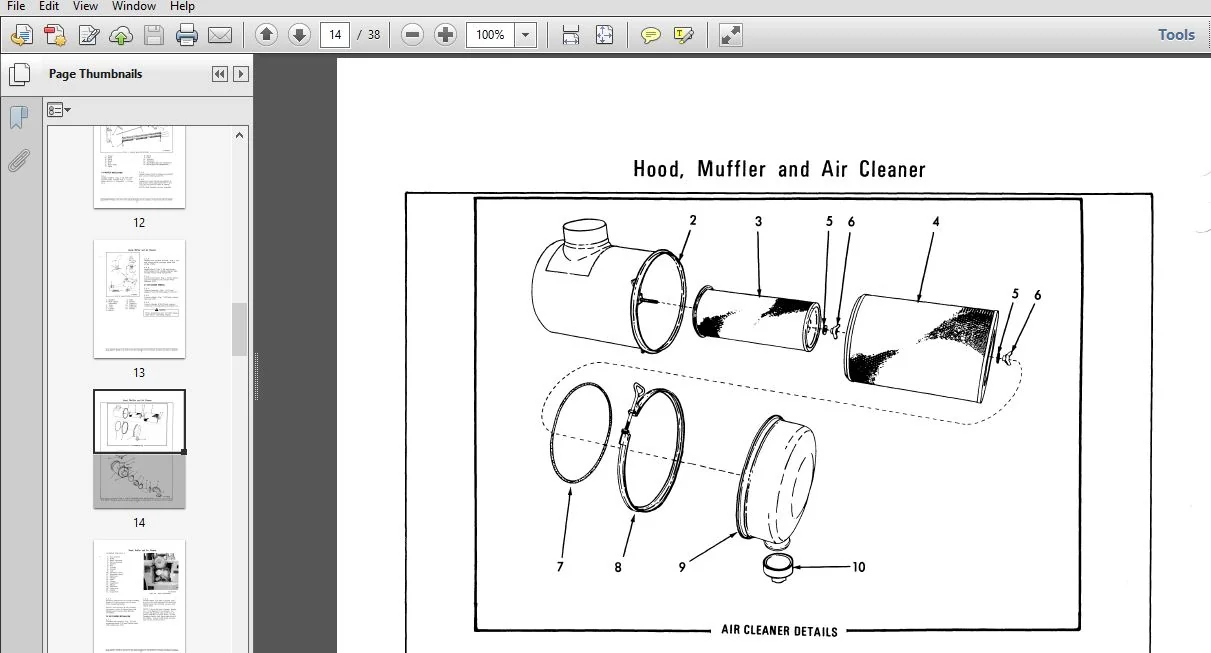

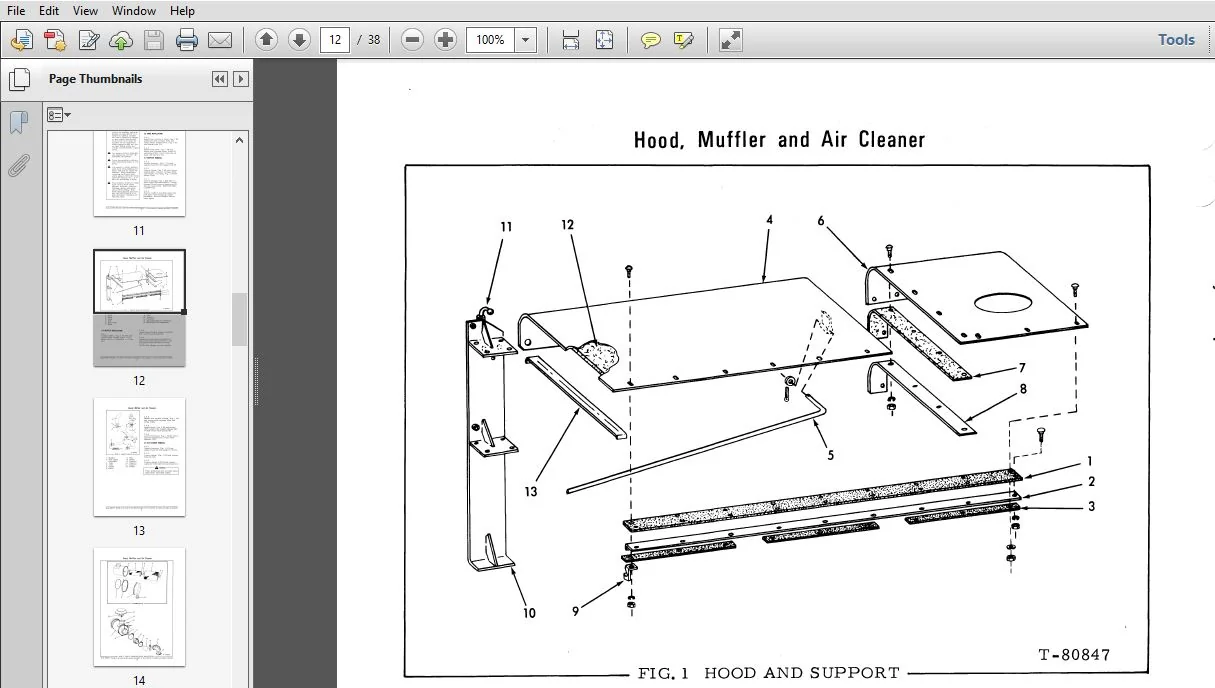

- Topic 2 — Hood, Muffler and Air Cleaner
- Topic 3 — Throttle Linkage
- Topic 4 — Coolant and Fuel Filters
- Topic 5 — Oil Filter and Lines
- Topic 6 — Radiator and Fan
- Topic 7 — Fan and Alternator Belts
- Topic 8 — Starter and Alternator
- Topic 9 — Engine
- Topic 10 — Torque Values
VIDEO PREVIEW OF THE MANUAL:

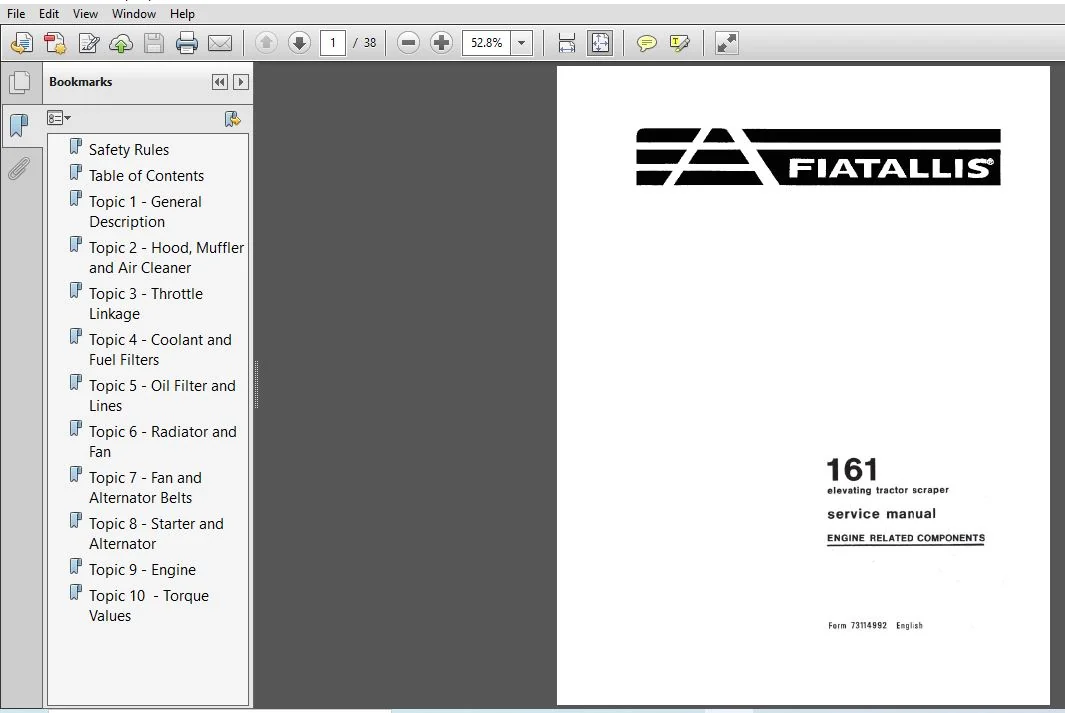

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
