Fermac 526 Skid Steer Operator’s Manual – PDF DOWNLOAD

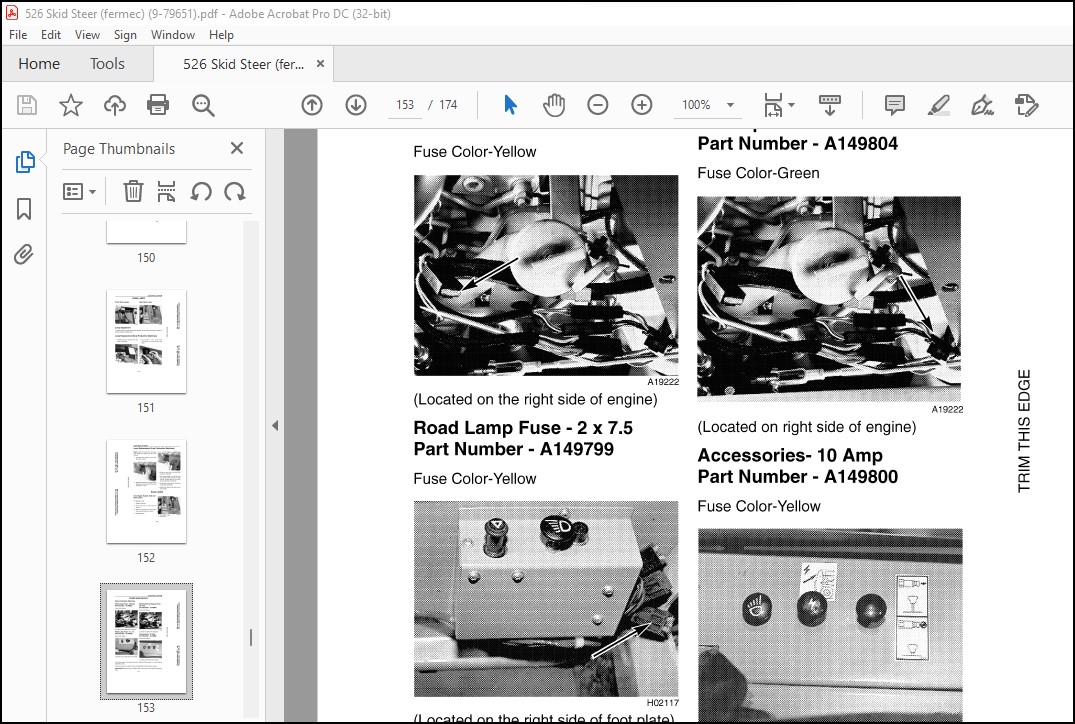

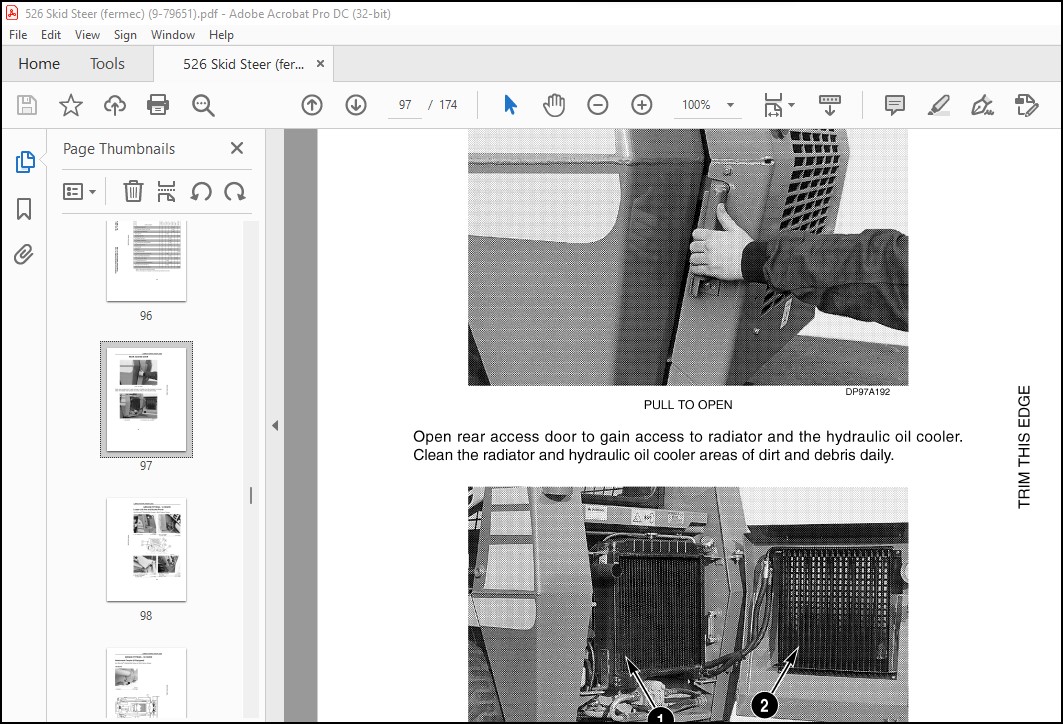

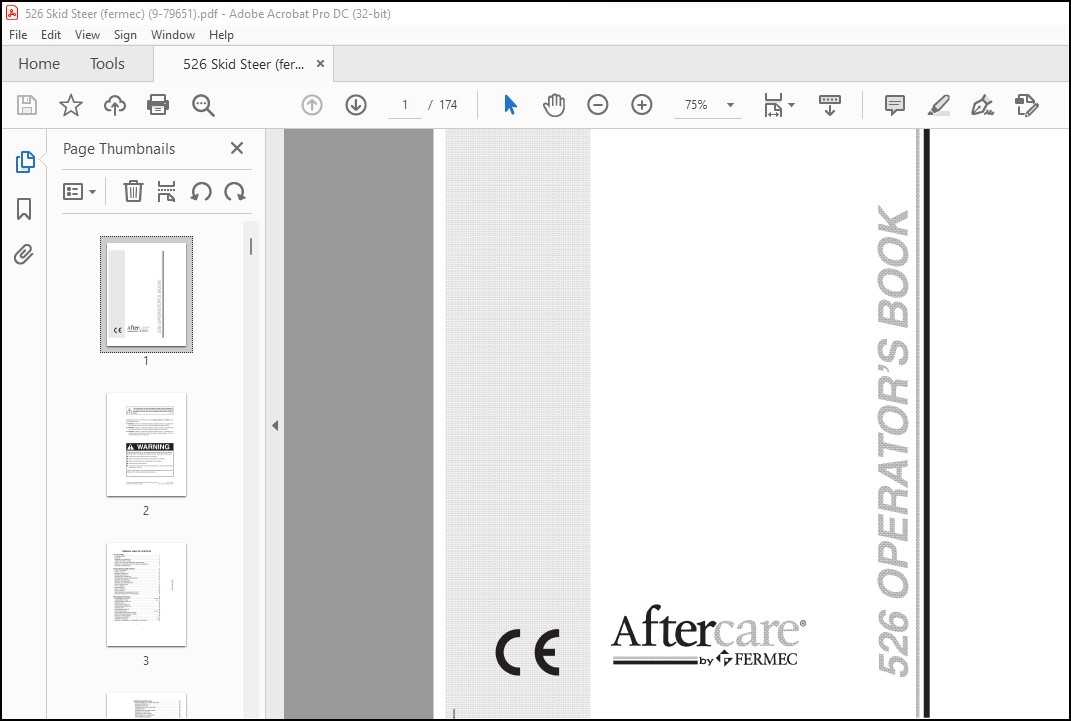

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Fermac 526 Skid Steer Operator’s Manual – PDF DOWNLOAD
TO THE OWNER :
- You are the owner of a Fermec skid steer that has been designed and built to
exact quality and safety standards. This skid steer conforms to current safety
regulations (see “Official Justifying Documents” on next page). However, this
does not exclude all risk of accidents, that is why it is essential to observe
elementary safety rules and precautions. - Read this manual carefully before operating the skid steer. Instructions concerning
safety, operation and maintenance, have been developed to permit safe service
and operation of the skid steer. Refer to the Detail Index at the end of this manual
for locating specific items about your machine. - This manual provides information essential to keeping your skid steer in a good
working condition providing a safe, reliable and durable machine. - The attachments and equipment available for use with the skid steer are intended
for general earth moving purposes, handling, boring, ditch digging, etc. If the skid
steer is to be used for handling loads then make sure the machine is suitably
equipped for this type of work. The skid steer must be fitted with safety valves and
an overload indicator and all legal requirement must be strictly observed. - Do not use the skid steer for any application or purpose other than those
described in this manual. If the skid steer is to be used for duties involving the
use of special attachments or equipment, other than those approved by Fermec, it
will invalidate the CE certification. Any person making unauthorized modifications
is responsible for their consequences.
TABLE OF CONTENTS:
Fermac 526 Skid Steer Operator’s Manual – PDF DOWNLOAD
TO THE OWNER 1
526 SKID STEER 1
CE MARK 2
GENERAL INFORMATION 4
AFTER DELIVERY CHECK 4
RIGHT, LEFT, FRONT AND REAR OF MACHINE 6
PRODUCT IDENTIFICATION AND SERIAL NUMBERS 7
MACHINE COMPONENTS 9
SAFETY/DECALS/HAND SIGNALS 11
SAFETY FEATURES 11
SAFETY RULES 12
BEFORE OPERATION 13
BURN PREVENTION 14
HAZARDOUS CHEMICALS 14
FIRE OR EXPLOSION PREVENTION 15
MACHINE OPERATION 16
PARKING THE MACHINE 17
WHEELS AND TIRES SAFETY 17
CAST DUCTILE IRON 17
UTILITY SAFETY 18
MAINTENANCE 19
SAFETY DECALS 20
HAND SIGNALS 28
REAR WINDOW – EMERGENCY EXIT 32
GETTING ON AND OFF THE MACHINE 32
INSTRUMENTS/CONTROLS 33
INSTRUMENT CLUSTER 33, 34, 35
INSTRUMENT PANEL 36 – 41
ENGINE HAND THROTTLE 42
HORN BUTTON 42
TURN SIGNAL SWITCH 42
ENGINE HAND THROTTLE 43
HORN BUTTON 43
TURN SIGNAL SWITCH 43
OPERATORS SEAT 44, 45, 46
OPERATOR RESTRAINT SYSTEM 48
OPERATORS PRESENCE SYSTEM 48
SEAT BELT PROCEDURE 50
STEERING CONTROLS 52
LOADER CONTROLS 53, 54
AUXILIARY HYDRAULIC ATTACHMENT CONTROLS 55
OPERATING INSTRUCTIONS 57
RUN-IN PERIOD OF A NEW MACHINE 57
ENGINE OPERATION 58
ROTATING BEACON 59
OPERATING IN COLD WEATHER 60
THERMOSTART 61
OPERATING IN HOT WEATHER 64
MACHINE OPERATION 65
OPERATING THE LOADER 66
REAR WINDOW (IF EQUIPPED) 68
ATTACHMENT COUPLER 69
BACKHOE OPERATION 70
HIGH FLOW HYDRAULIC SYSTEM 76
TRANSPORTING THE MACHINE 78
LIFTING THE MACHINE WITH A CRANE 79
MOVING A DISABLED MACHINE 80
WHEELS/TIRES 81
WHEELS AND TIRES 81
LUBRICATION/MAINTENANCE CHARTS 85
GENERAL SAFETY BEFORE YOU SERVICE 85
SUPPORT STRUT FOR LOADER LIFT ARMS 86
ENGINE HOURMETER 87
MAINTENANCE SCHEDULE 87
FLUIDS AND LUBRICANTS 88
LUBRICATION/FIL TE RS/FLUIDS 91
REAR ACCESS DOOR 91
GREASE FITTINGS – 10 HOURS 92, 93
GREASE FITTINGS – 250 HOURS 94, 95
ENGINE LUBRICATION 96
AIR FILTER SYSTEM 100
ENGINE COOLING SYSTEM 106
DIESEL FUEL SYSTEM 109
HYDRAULIC SYSTEM 114
DRIVE CHAIN COMPARTMENT 118
MAINTENANCE/ADJUSTMENTS 119
MOVING THE OPERATORS
COMPARTMENT FORWARD 119
MOVING THE OPERATORS COMPARTMENT
INTO THE OPERATING POSITION 122
TESTING THE SEAT BAR 124
DRIVE CHAINS 125
STEERING LEVER ADJUSTMENT 129
SPARK ARRESTER MUFFLER 130
ROLL-OVER PROTECTIVE STRUCTURE 131
MECHANICAL COUPLER 138
MAINTENANCE OF THE SEAT BELT 139
MACHINE CLEANING 139
PLASTIC AND RESIN PARTS 139
FAN BELT REPLACEMENT 139
THERMOSTART SYSTEM 140, 141
ELECTRICAL SYSTEM 143
BATTERY SERVICE 143
WORK LAMPS 145
ROAD LAMPS 146
FUSES AND RELAYS 147, 148
STORAGE 149
STORAGE 149
REMOVAL FROM STORAGE 150
SPECIFICATIONS 151
ENGINE 151
COOLING SYSTEM 151
HYDRAULIC SYSTEM 151
OPERATING WEIGHTS 152
POWER TRAIN 152
ELECTRICAL SYSTEM 153
OPERATING DATA AND DIMENSIONS 154
DETAIL INDEX 157
AFTER DELIVERY CHECK 163, 165
