EZGO ELECTRIC DCS TXT VEHICLES REPAIR AND SERVICE MANUAL
Video Preview:

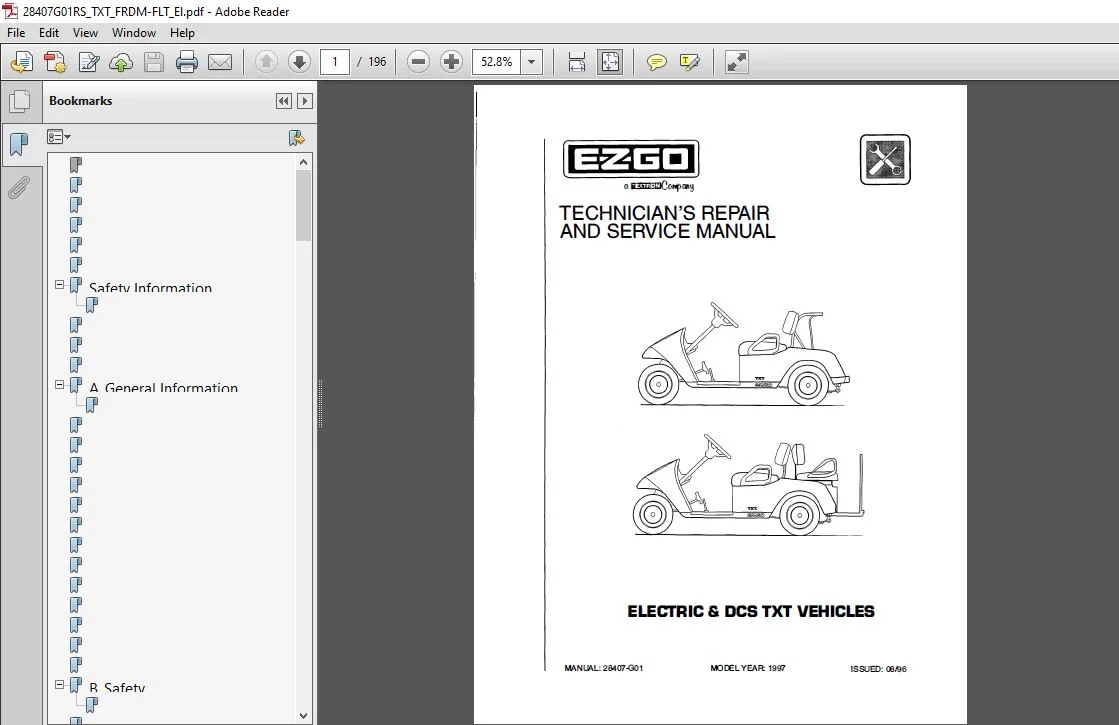

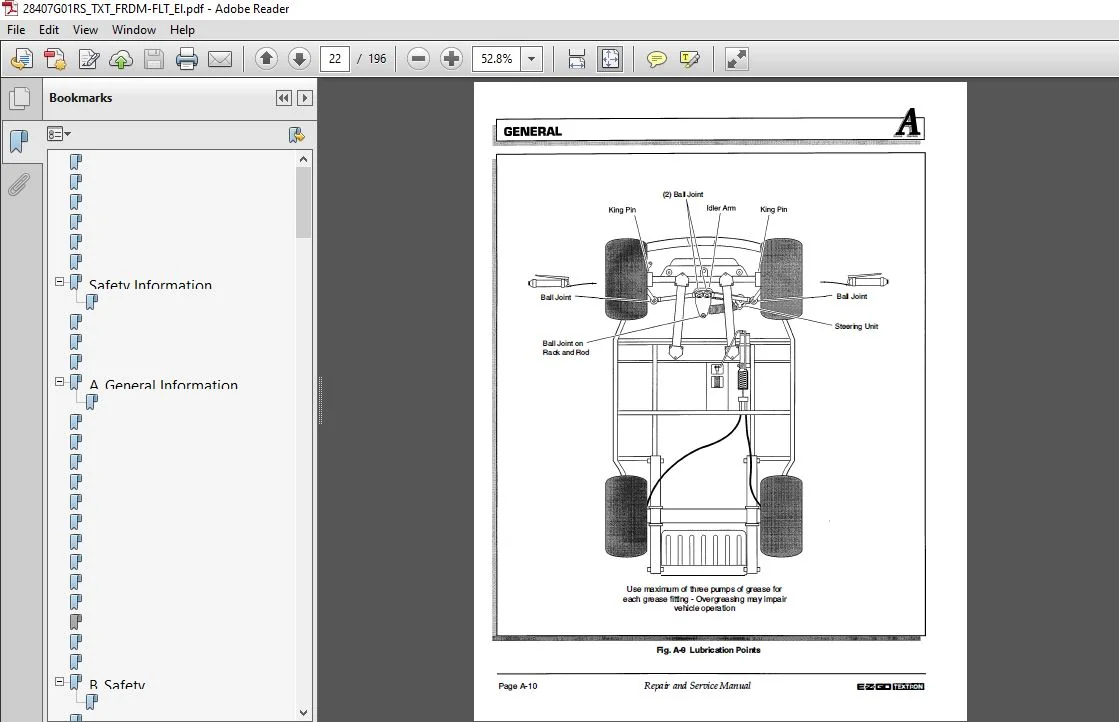

Image Preview:

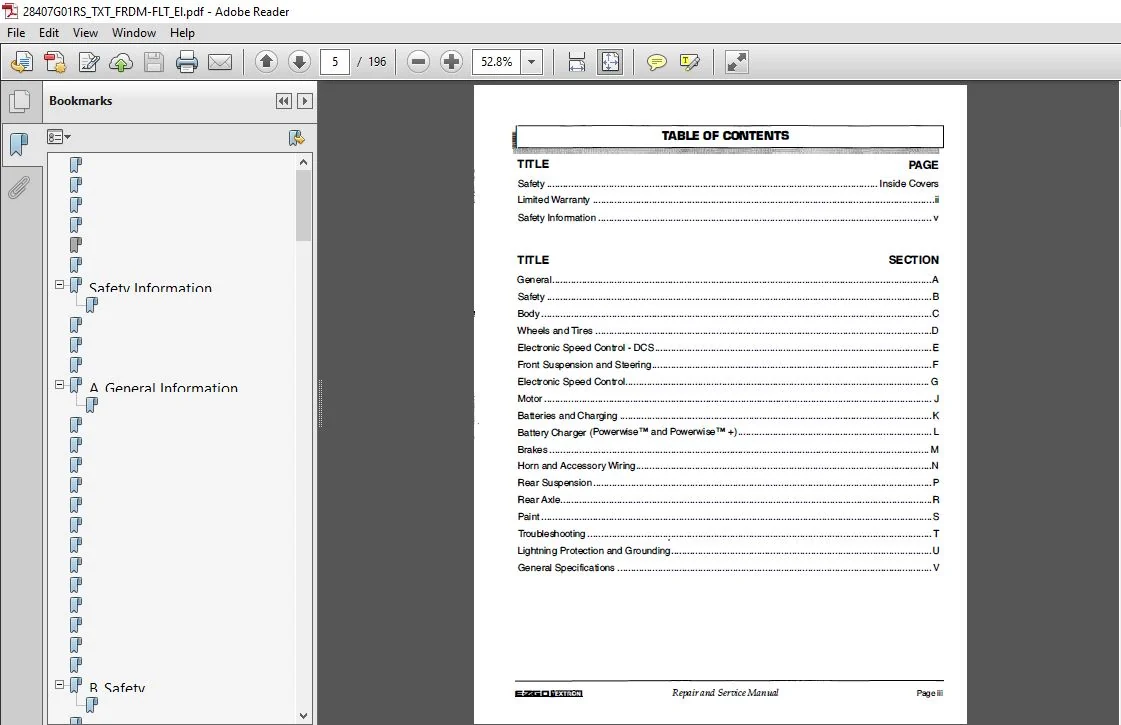

Table Of Contents:
EZGO ELECTRIC DCS TXT VEHICLES REPAIR AND SERVICE MANUAL
SECTION TITLE PAGE NO.
SERIAL NUMBER PLATE LOCATION A – 1
CONTROLS A -1
Key/Headlight Switch A – 1
Direction Selector..A – 1
Accelerator Pedal A – 2
Combination Brake and Park’ng (PARK) Brake Pedal A – 2
Run – Tow/Maintenance Switch (on 008 vehicles only) A – 2
FEATURES A- 2
DOS Veiicles A – 3
BEFORE ENTERING VEHICLE A – 3
BEFORE STARTING A – 3
ADDITIONAL WARNINGS AND CAUTIONS (APPLY TO DCS MODELS) A ~ 4
STARTING THE ELECTRIC VEHICLE A – 4
COASTING A ~ 5
TOWING A ~ 5
SERVICING THE ELECTRIC VEHICLE A – 5
SEATS A – 6
Preparation of Seats for Service “A – 6
ROUTINE MAINTENANCE A – 6
REAR AXLE A – 6
Check’ng the Lubricant Level “A – 6
GENERAL PREVENTATIVE MAINTENANCE A – 6
Daiy Check ListA – 6
Owner/Operatorcqu – 7
Mechanic ..A – 7
TIRES A – 7
CARE AND CLEANING OF THE VEHICLE A – 7
WINDSHIELD (IF EQUIPPED) _ A – 8
Tra‘ler‘ng…………………………..A – 8
TORQUE SPECIFICATIONS FOR UNSPECIFIED HARDWARE A – 9
Description:
EZGO ELECTRIC DCS TXT VEHICLES REPAIR AND SERVICE MANUAL
- Many vehicles are used for a variety of tasks beyond the original intended use of the vehicle; therefore it is impossible to anticipate and warn against every possible combination of circumstances that may occur. No warnings can take the place of good common sense and prudent driving practices.
- Good common sense and prudent driving practices do more to prevent accidents and injury than all of the warnings and instructions combined. E-Z-GO strongly suggests that the owner-operator read this entire manual paying particular attention to the CAUTIONS and WARNINGS contained therein. It is further recommended that employees and other operators be encouraged to do the same.
- If you have any questions, contact your closest E-Z-GO representative or write to the address on the back cover of this publication, Attention: Product Service Department. E-Z-GO Division of Textron reserves the right to make design changes without obligation to make these Changes on units previously sold and the information contained in this manual is subject to change without notice.
- E-Z-GO Division of Textron is not liable for errors in this manual or for incidental or consequential damages that result from the use of the material in this manual. This vehicle conforms to the current applicable standard for safety and performance requirements. These vehicles are designed and manufactured for off-road use.
- They do not conform to Federal Motor Vehicle Safety Standards and are not equipped for operation on public streets. Some communities may permit these vehicles to be operated on their streets on a limited basis and in accordance with local ordinances. Refer to GENERAL SPECIFICATIONS for vehicle seating capacity.
- Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease its stability or increase the speed beyond the factory specification. Such modifications can cause serious personal injury or death. Modifications that increase the speed and/or weight of the vehicle will extend the stopping distance and may reduce the stability of the vehicle.
- Do not make any such modifications or changes. E-Z-GO prohibits and disclaims responsibility for any such modifications or any other alteration which would adversely affect the safety of the vehicle. Vehicles that are capable of higher speeds must limit their speed to no more than the speed of other vehicles when used in a golf course environment.
- Additionally, speed should be further moderated by the environmental conditions, terrain and common sense.
Please Note:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
