Epson Stylus Pro Gs6000 Workshop Repair Manual
FILE DETAILS:
Epson Stylus Pro Gs6000 Workshop Repair Manual
Language : English
Pages : 285
Downloadable : YES
Format : PDF
Size : 36.5 MB
DESCRIPTION:
Epson Stylus Pro Gs6000 Workshop Repair Manual
Epson Stylus Pro GS6000 is a wide-format color Eco-Solvent ink jet printer that supports 64-inch roll paper. The features of this printer are;
High-speed output
The new type print head achieves high-speed output. It is compatible with paper up to 1,625 mm in width.
Wide variety of compatible paper
The head is adjustable to two levels of height and compatible with paper up to 1.3 mm in thickness.
Vibrant color reproduction
Eight colors of ink are used for printing in order to reproduce sharp and vivid colors. This printer uses 950 ml large-capacity ink cartridges. Use of variable dots can improve color reproduction.
Multi-heater
Heaters are installed at three locations (pre, platen, after) allowing solvent ink to fix better on paper and dry quickly.
Auto Take-Up Reel Unit
This automatically takes up printed paper, keeping it clean and free of creases. It is also convenient for storage and transportation.
Large-capacity (950 ml) ink cartridge
Epson provides the large-capacity (950 ml) ink cartridges for this printer that realize the high productivity required for professional work.
High speed USB 2.0 / Gigabit Ethernet
You can connect to a high-speed network (such as USB 2.0 or Ethernet 100/1000) and that improves the file transfer speed.
TABLE OF CONTENTS:
Epson Stylus Pro Gs6000 Workshop Repair Manual
Chapter 1 PRODUCT DESCRIPTION
1 1 Features 10
1 2 Basic Specifications 11
1 2 1 Printer Specifications 11
1 2 2 Durability 14
1 2 3 Paper size/Printable area 14
1 2 4 Print Mode / Print Resolution 15
1 3 Dimensions and Main Components 16
1 3 1 Dimensions and Weight 16
1 3 2 Part Names 17
1 4 Control Panel 18
1 4 1 Buttons and Indicators 18
1 4 2 Panel Settings 22
1 4 3 Maintenance Mode 30
1 4 4 Serviceman Mode 31
Chapter 2 OPERATING PRINCIPLES
2 1 Glossary 39
2 2 Ink System 40
2 3 Carriage Mechanism 41
2 4 Paper Feed Mechanism 42
2 5 Heater Mechanism 43
2 6 Boards 44
2 7 Sensors 45
2 8 Fans 46
Chapter 3 TROUBLE SHOOTING
3 1 Overview 48
3 1 1 Preliminary Check 48
3 1 2 Troubleshooting Procedure 48
3 2 Remedies for Error Messages 49
3 3 Remedies for Service Call Error 53
3 4 Remedies for Print Quality Troubles 58
Chapter 4 DISASSEMBLY & ASSEMBLY
4 1 Overview 62
4 1 1 Precautions 62
4 1 2 Orientation Definition 64
4 1 3 Recommended Tools 64
4 2 Parts Diagram 65
4 3 Disassembly Flowchart 74
4 4 Disassembly and Assembly Procedure 81
4 4 1 Basic Operations 81
4 4 2 Consumables/Accessories 82
4 4 3 Housing 83
4 4 4 Electric Components 97
4 4 5 Fans 99
4 4 6 Boards 107
4 4 7 Sensors 121
4 4 8 Heaters/Thermistors 135
4 4 9 Carriage Mechanism 140
4 4 10 Paper Feed Mechanism 150
4 4 11 Ink System Mechanism 153
4 4 12 Take-Up Reel Unit 172
Chapter 5 ADJUSTMENT
5 1 Overview 180
5 1 1 Precautions 180
5 1 2 Adjustment Items and the Order by Repaired Part 181
5 1 3 Description of Adjustments 184
http://www manuals4you com
Epson Stylus Pro GS6000 Revision B
8
Confidential
5 1 4 Tools for Adjustments 186
5 1 5 Service Program Basic Operations 187
5 1 6 Cautions and Preparation for Pattern Printing 192
5 2 NV-RAM BACKUP UTILITY 193
5 3 CR Related Adjustments 194
5 3 1 CR Belt Tension Adjustment 194
5 3 2 CR Reduction Belt Tension Adjustment 196
5 3 3 CR Height Adjustment 197
5 3 4 Media Side Margin Adjustment 199
5 4 Head Related Adjustments 200
5 4 1 Head Rank Input 200
5 4 2 Nozzle Check Pattern 201
5 4 3 Cleaning and Washing 202
5 4 4 Ink Discharge 203
5 4 5 Initial Ink Charge Flag 204
5 4 6 Head Slant and Alignment Adjustment 205
5 4 7 Head Nozzles Alignment Adjustment 211
5 4 8 Head Uni-D/Bi-D Low Gap Adjustment 212
5 5 PF Related Adjustments 215
5 5 1 PF Reduction Belt Tension Adjustment 215
5 5 2 Paper Feed Adjustment 216
5 6 Other Adjustments 217
5 6 1 RTC and USB ID 217
5 6 2 Firmware Update 218
5 6 3 Washing Sequence Flag 220
5 7 Clear Counters 221
5 8 Tests 222
5 8 1 Network Test 222
5 8 2 Skew Test 223
5 8 3 Electric Components Test 224
Chapter 6 MAINTENANCE
6 1 Overview 229
6 2 Setting up and Transportation 230
6 2 1 Setting up 230
6 2 2 Transportation 231
6 3 Maintenance 232
6 4 Cleaning 234
6 4 1 Cleaning Wiper 235
6 4 2 Around the Print head 237
6 4 3 Cleaning the Pressure Rollers and Platen 238
6 4 4 Cleaning and Lubricating the CR rail 240
6 5 Lubrication 241
Chapter 7 APPENDIX
7 1 Block Wiring Diagram 246
7 2 Panel Menu Map 247
7 3 Parts List 250
7 4 Exploded Diagram 255
VIDEO PREVIEW OF THE MANUAL:

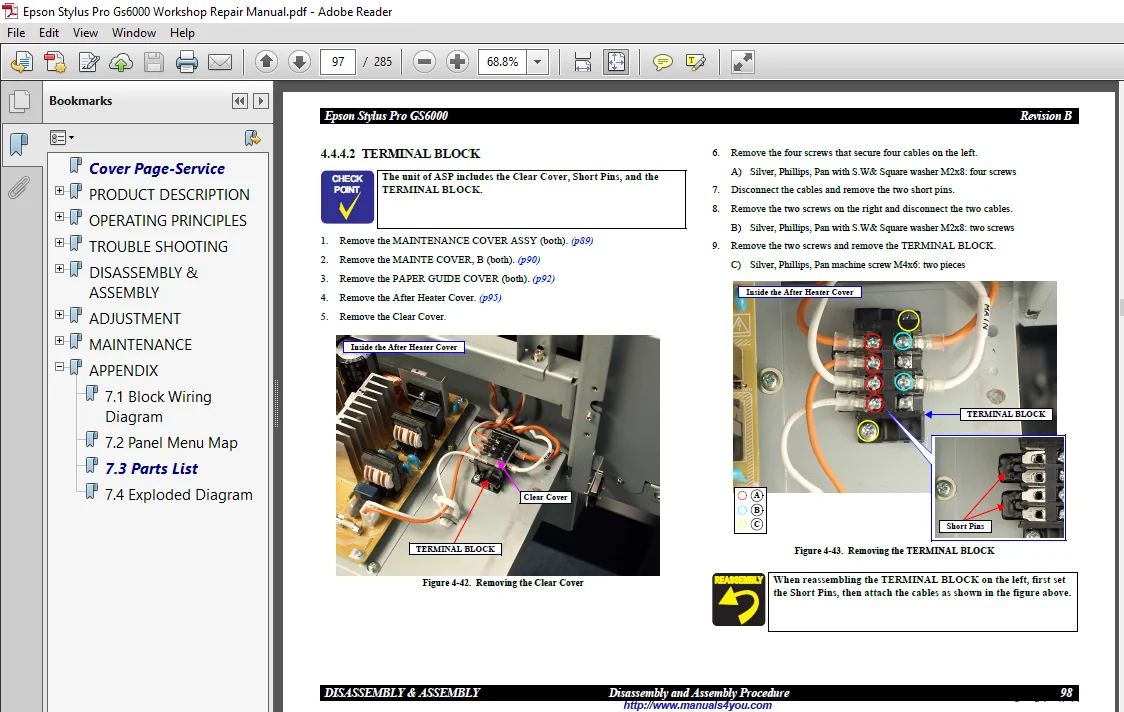

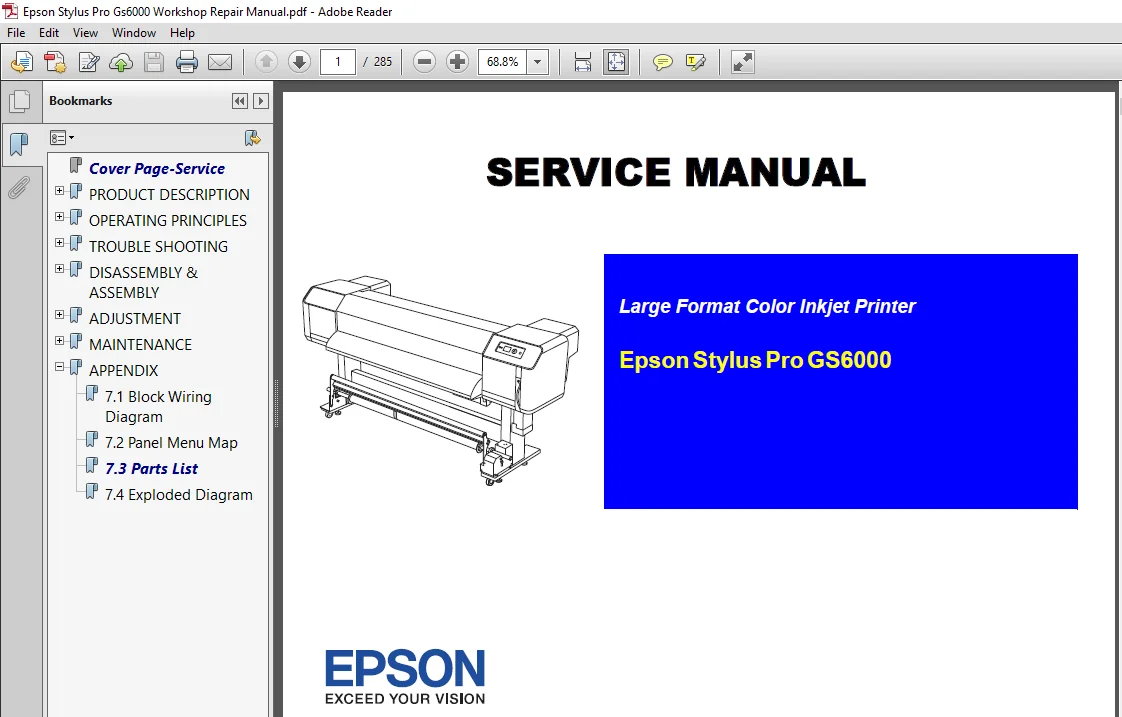

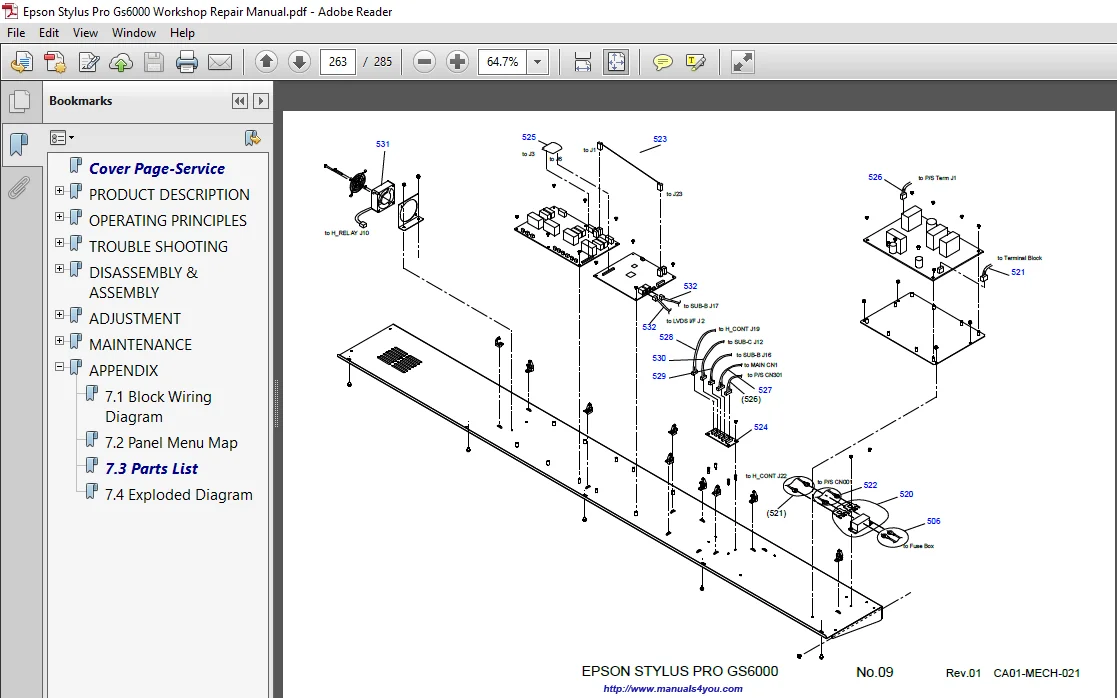

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
