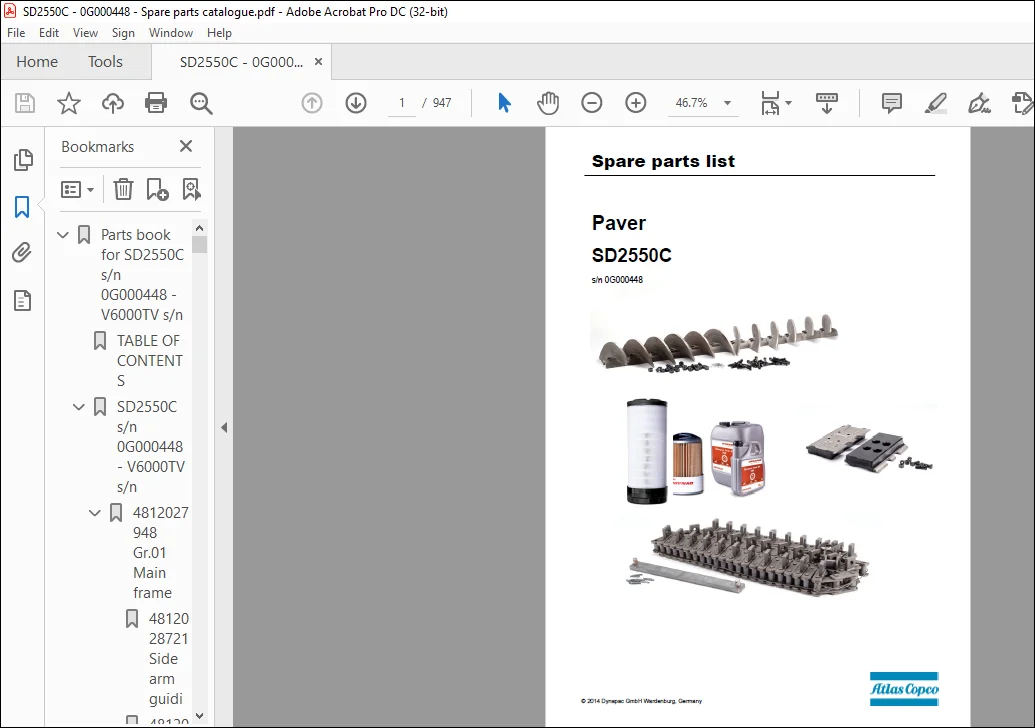

Dynapac Paver SD2550C Spare parts list Manual SN0G000448 – PDF DOWNLOAD
FILE DETAILS:
Dynapac Paver SD2550C Spare parts list Manual SN0G000448 – PDF DOWNLOAD
Language : English
Pages : 947
Downloadable : Yes
File Type : PDF
Size: 84.9 MB
TABLE OF CONTENTS:
Dynapac Paver SD2550C Spare parts list Manual SN0G000448 – PDF DOWNLOAD
Parts book for SD2550C s/n 0G000448 – V6000TV s/n 3100435 4
TABLE OF CONTENTS 4
SD2550C s/n 0G000448 – V6000TV s/n 3100435 32
4812027948 Gr 01 Main frame 38
4812028721 Side arm guiding 39
4812028725 Splash guard 40
4812036083 Steering guide 41
4812027763 Gr 02 Track group 42
4812027755 Track group, long, l h 43
4812035017 Drive gear box 46
4812035551 Wear part kit rubber plates 47
4812027756 Track group, long, r h 48
4812035017 Drive gear box 51
4812035551 Wear part kit rubber plates 52
4812028439 Track cleaner, cpl l h and r h 53
4812030910 Scraper, l h 54
4812030911 Scraper, r h 55
4812027435 Gr 03 Push roller 56
4812030492 Gr 03 Push roller, hydraulic 58
4812027642 Hydraulic, push roller 59
4812033247 Control block 61
Gr 04 Conveyor 62
4812027438 Conveyor drive 63
4812026817 Conveyor turn 64
4812026815 Tensioner 65
4812028402 Wear part kit conveyor plates 66
D635060800A Chain guide 67
4812028403 Wear part kit conveyor guide plates 68
4812035559 Gr 04 Conveyor, single no of bars 70
4812035563 Wear part kit conveyor chain 71
4812031231 Conveyor motor 72
4812029121 Hydraulic conveyor 73
4812029121A Hydraulic conveyor 74
4812030488 Conveyor limit switch, PLC 75
4812030488A Conveyor limit switch, PLC 76
4812044937 Conveyor limit switch, r h 77
4812044936 Conceyor limit switch, l h 78
4812035560 Gr 04 Conveyor, single no of bars, u-sonic 80
4812035563 Wear part kit conveyor chain 81
4812031231 Conveyor motor 82
4812029121 Hydraulic conveyor 83
4812029121A Hydraulic conveyor 84
4812031165 Ultrasonic sensor 85
4812031416 Ultrasonic sensor r h 86
4812031415 Ultrasonic sensor l h 87
4812035561 Gr 04 Conveyor, single no of bars, rev 88
4812035563 Wear part kit conveyor chain 89
4812031232 Conveyor motor, reversable 90
4812027604 Hydraulic conveyor, reversable 91
4812027604A Hydraulic conveyor, reversable 92
4812007901 Directional spool valve 93
4812030488 Conveyor limit switch, PLC 94
4812030488A Conveyor limit switch, PLC 95
4812044937 Conveyor limit switch, r h 96
4812044936 Conceyor limit switch, l h 97
4812035562 Gr 04 Conveyor, single no bars, rev , u-sonic 98
4812035563 Wear part kit conveyor chain 99
4812031232 Conveyor motor, reversable 100
4812027604 Hydraulic conveyor, reversable 101
4812027604A Hydraulic conveyor, reversable 102
4812007901 Directional spool valve 103
4812031165 Ultrasonic sensor 104
4812031416 Ultrasonic sensor r h 105
4812031415 Ultrasonic sensor l h 106
4812028401 Gr 04 Conveyor, double no of bars 108
4812028516 Wear part kit conveyor chain 109
4812031231 Conveyor motor 110
4812029121 Hydraulic conveyor 111
4812029121A Hydraulic conveyor 112
4812030488 Conveyor limit switch, PLC 113
4812030488A Conveyor limit switch, PLC 114
4812044937 Conveyor limit switch, r h 115
4812044936 Conceyor limit switch, l h 116
4812030494 Gr 04 Conveyor, double no of bars, u-sonic 118
4812028516 Wear part kit conveyor chain 119
4812031231 Conveyor motor 120
4812029121 Hydraulic conveyor 121
4812029121A Hydraulic conveyor 122
4812031165 Ultrasonic sensor 123
4812031416 Ultrasonic sensor r h 124
4812031415 Ultrasonic sensor l h 125
4812031237 Gr 04 Conveyor, double bars, rev 126
4812028516 Wear part kit conveyor chain 127
4812031232 Conveyor motor, reversable 128
4812027604 Hydraulic conveyor, reversable 129
4812027604A Hydraulic conveyor, reversable 130
4812007901 Directional spool valve 131
4812030488 Conveyor limit switch, PLC 132
4812030488A Conveyor limit switch, PLC 133
4812044937 Conveyor limit switch, r h 134
4812044936 Conceyor limit switch, l h 135
4812031238 Gr 04 Conveyor, double bars, rev , u-sonic 136
4812028516 Wear part kit conveyor chain 137
4812031232 Conveyor motor, reversable 138
4812027604 Hydraulic conveyor, reversable 139
4812027604A Hydraulic conveyor, reversable 140
4812007901 Directional spool valve 141
4812031165 Ultrasonic sensor 142
4812031416 Ultrasonic sensor r h 143
4812031415 Ultrasonic sensor l h 144
4812031995 Gr 05 Hopper 146
4812031998 Hopper, l h 147
4812029458 Hopper lock 148
4812031999 Hopper, r h 149
4812029458 Hopper lock 150
4812028563 Bulk material flap 151
4812029004 Gr 05 Hopper, hydraulic 152
4812029003 Hopper, l h 153
4812029458 Hopper lock 154
4812029037 Hopper, r h 155
4812029458 Hopper lock 156
4812028712 Front hopper, middle, long 157
4812027636 Hydraulic, front flap 158
4812027432 Front hopper, l h 159
4812027433 Front hopper, r h 160
4812027554 Gr 06 Side Screed arms, mech locked 162
4812029165 Side screed arm, l h 164
4720000097 Side arm guiding 166
4812029197 Side screed arm, r h 167
4720000097 Side arm guiding 169
4812029222 Locking, mechanical 170
4812027553 Gr 06 Side screed arms, hydr locked 172
4812029165 Side screed arm, l h 174
4720000097 Side arm guiding 176
4812029197 Side screed arm, r h 177
4720000097 Side arm guiding 179
4812029191 Locking, hydraulic 180
4812027609 Hydraulic 181
4812033247 Control block 182
4812032786 Gr 07 Drive 184
4812005952 Cable W12 185
4812039040 Combined cooler / air filter 188
4812038352 Combined cooler 191
4812030290 Fuel system 192
4812028928 Fuel tank 193
4812026687 Engine 195
4812030280 Engine support 196
4812030294 Attaching parts 197
4812030230 Muffler 199
4812037863 End pipe / push variant 200
4812037845 End pipe / rotary feedthrough 201
4812037585 Joint rod 202
Service parts 203
4812030461 Gr 08 Split gear 206
4812009002 Motor coupling 207
4812035281 Split gear 208
4812037847 Split gear 209
4812037689 Gear oil drain 212
4812039759 Gr 08 Split gear 214
4812038966 Split gear 215
4812009002 Motor coupling 218
4812037689 Gear oil drain 219
Gr 08 Split gear box 220
4812026127 Pump 222
4812026128 Pump 223
4812031533 Variable displacement pump 224
4812026146 Pump 225
4812026131 Pump 226
Gr 08 Split gear box, w suction 228
4812026127 Pump 230
4812026128 Pump 231
4812031533 Variable displacement pump 232
4812026146 Pump 233
4812026131 Pump 234
Gr 08 Split gear box 236
4812026127 Pump 238
4812026128 Pump 239
4812031533 Variable displacement pump 240
4812026146 Pump 241
4812026131 Pump 242
Gr 08 Split gear box, w suction 244
4812026127 Pump 246
4812026128 Pump 247
4812031533 Variable displacement pump 248
4812026146 Pump 249
4812026131 Pump 250
4812026579 Gr 09 Hydraulic 252
4812027654 Hydraulic, drive system 253
4812026146 Pump 256
4812026522 Manual pump 257
4812026131 Pump 258
4812027655 Hydraulic, auger 259
4812026128 Pump 261
4812027656 Hydraulic, conveyor 262
4812010974 Connecting plate 265
4812010925 Connecting plate 266
4812031533 Variable displacement pump 267
4812007012 Control block 268
4812027657 Hydraulic, tamper/vibration 269
4812026127 Pump 270
4812027658 Work hydraulic 271
4812026616 Control block 275
4812036359 Control block 276
4812036358 Control block 277
4812033967 Control block 278
D964006104 Filter 279
4812029598 Control block 280
4812027659 Hydraulic, fan 281
D964006104 Filter 283
4812032615 Hydraulic tank, collector 284
4812028192 Hydraulic tank, cpl 285
4812009435 Return suction filter 286
4812035052 Ganged valve support 287
4812030007 Hydrl coupling 288
4812037434 Hose package 616/617/R300 290
4812036309 Hose package screed R300 Verstell / variable 291
4812036353A Screed in / out 292
4812036364 Tamper / Vibration 293
4812037363 Hose package screed 616 / 617 295
4812036460 Screed in / out 296
Cylinder schema 297
4812038608 Gr 09 Hydraulic 300
4812027654 Hydraulic, drive system 302
4812026146 Pump 305
4812026522 Manual pump 306
4812026131 Pump 307
4812027655 Hydraulic, auger 308
4812026128 Pump 310
4812027656 Hydraulic, conveyor 311
4812010974 Connecting plate 314
4812010925 Connecting plate 315
4812031533 Variable displacement pump 316
4812007012 Control block 317
4812027657 Hydraulic, tamper/vibration 318
4812026127 Pump 319
4812046992 Hydraulic, tamper/vibration 320
4812026526 Control block 322
4812038622 Work hydraulic 323
4812026616 Control block 327
4812036359 Control block 328
4812036358 Control block 329
4812033967 Control block 330
D964006104 Filter 331
4812029598 Control block 332
4812027659 Hydraulic, fan 333
D964006104 Filter 335
4812032615 Hydraulic tank, collector 336
4812028192 Hydraulic tank, cpl 337
4812009435 Return suction filter 338
4812035052 Ganged valve support 339
4812035032A Hose package screed 616 / 617 340
4812036460 Screed in / out 341
4812035034A Tamper / Vibration 342
4812007545 Hose package screed R300 Konstant / constant 344
4812036353A Screed in / out 345
4812007542 Tamper / Vibration Konstant / constant 346
4812007541 Hose package screed R300 Konstant / constant 348
4812007509 Screed in / out R300 VT 349
4812007542 Tamper / Vibration Konstant / constant 350
4812037372 Hose package roof profile 616/617 352
4812037363A Hose package screed 616 / 617 353
4812036460 Screed in / out 354
4812036309 Hose package screed R300 Verstell / variable 355
4812036353A Screed in / out 356
4812036364 Tamper / Vibration 357
4812007508 Hose package screed R300 Verstell / variable 359
4812007509 Screed in / out R300 VT 360
4812036364 Tamper / Vibration 361
Cylinder schema 363
4812038539 Gr 10 Electric 366
4812029470 Electric, PLC 367
4812028945 Junction box 370
4812038534 Operator desk 375
4812038371 Vandalism protection 378
4812227674 Vandalism protection 379
4812029597 Cable W11 380
4812038540 Wiring 381
4812029580 Cable W1 391
4812029581 Cable W2 392
4812029589 Cable W3 393
4812038524 Cable W4 394
4812029590 Cable W5 395
4812038525 Cable W6 396
4812038526 Cable W7 397
4812038527 Cable W8 398
4812029595 Cable W9 399
4812029596 Cable W10 400
4812029858 Cable harness W13 401
4812029860 Cable harness W15 403
4812029861 Cable harness W16 405
4812029862 Cable harness W17 407
4812038555 Cable harness W19 408
4812038554 Cable W19 409
4812033060 Mounting parts W19 412
D977436121 Ground strap 413
4812029597 Cable W11 414
4812026356 Steering unit 415
4812038587 Remote control 416
4812009789 Remote control 417
4812033336 Gr 11 Op platf , moveable 418
4812030580 Operation platform, moveable 419
4812030610 Operation platform, moveable 420
4812040799 Console l h 423
4812040830 Seat retainer 424
4812041041 Console, r h 425
4812041042 Seat retainer 426
4812036917 Guiding, front 427
4812040752 Support operator desk, foldable 428
4812029859 Cable harness W14 430
4812041845 Safety bow 432
4812041017 Safety bow 433
4812027610 Hydraulic, operation platform 434
4812033247 Control block 435
4812033337 Gr 11 Op platf , moveable, roof, short 436
4812030582 Operation platform, moveable 437
4812030610 Operation platform, moveable 438
4812040799 Console l h 441
4812040830 Seat retainer 442
4812041041 Console, r h 443
4812041042 Seat retainer 444
4812036917 Guiding, front 445
4812040752 Support operator desk, foldable 446
4812029859 Cable harness W14 448
4812033253 Wiring roof 450
4812033224 Cable W25 451
4812030616 Roof frame 452
4812036948 Roof hydraulic 454
4812033253 Wiring roof 455
4812033224 Cable W25 456
4812037029 Roof, short 457
4812037524 Lamp holder 458
4812037029 Roof, short 459
4812041845 Safety bow 460
4812041017 Safety bow 461
4812027610 Hydraulic, operation platform 462
4812033247 Control block 463
4812033338 Gr 11 Op platf , moveable, house, short 464
4812030584 Operation platform, moveable 465
4812030610 Operation platform, moveable 466
4812040799 Console l h 469
4812040830 Seat retainer 470
4812041041 Console, r h 471
4812041042 Seat retainer 472
4812036917 Guiding, front 473
4812040752 Support operator desk, foldable 474
4812029859 Cable harness W14 476
4812033253 Wiring roof 478
4812033224 Cable W25 479
4812030617 Roof frame 480
4812036948 Roof hydraulic 482
4812033253 Wiring roof 483
4812033224 Cable W25 484
4812037029 Roof, short 485
4812037524 Lamp holder 486
4812037029 Roof, short 487
Weather protection house 488
4812041672 Window, cpl , r h 490
4812041671 Window, cpl , l h 492
4812041932 Wiper system cpl 494
4812043526 Wiper system 495
4812041845 Safety bow 496
4812041017 Safety bow 497
4812027610 Hydraulic, operation platform 498
4812033247 Control block 499
4812033340 Gr 11 Op platf , moveable, roof, long 500
4812030588 Operation platform, moveable 501
4812030610 Operation platform, moveable 502
4812040799 Console l h 505
4812040830 Seat retainer 506
4812041041 Console, r h 507
4812041042 Seat retainer 508
4812036917 Guiding, front 509
4812040752 Support operator desk, foldable 510
4812029859 Cable harness W14 512
4812033253 Wiring roof 514
4812033224 Cable W25 515
4812030619 Roof frame 516
4812036948 Roof hydraulic 518
4812033253 Wiring roof 519
4812033224 Cable W25 520
4812037026 Roof, long 521
4812037524 Lamp holder 522
4812037026 Roof, long 523
4812041845 Safety bow 524
4812041017 Safety bow 525
4812027610 Hydraulic, operation platform 526
4812033247 Control block 527
4812033341 Gr 11 Op platf , moveable, house, long 528
4812030590 Operation platform, moveable 529
4812030610 Operation platform, moveable 530
4812040799 Console l h 533
4812040830 Seat retainer 534
4812041041 Console, r h 535
4812041042 Seat retainer 536
4812036917 Guiding, front 537
4812040752 Support operator desk, foldable 538
4812029859 Cable harness W14 540
4812033253 Wiring roof 542
4812033224 Cable W25 543
4812030619 Roof frame 544
4812036948 Roof hydraulic 546
4812033253 Wiring roof 547
4812033224 Cable W25 548
4812037026 Roof, long 549
4812037524 Lamp holder 550
4812037026 Roof, long 551
Weather protection house 552
4812041672 Window, cpl , r h 554
4812041671 Window, cpl , l h 556
4812041932 Wiper system cpl 558
4812043526 Wiper system 559
4812041845 Safety bow 560
4812041017 Safety bow 561
4812027610 Hydraulic, operation platform 562
4812033247 Control block 563
4812030826 Gr 12 Covering 564
4812030755 Hood fastener 567
4812030891 Intermediate section 568
4812034712 Door 569
4812041407 Support rod 570
4812034765 Door 571
4812041407 Support rod 572
4812033167 Stop bolt 573
4812032211 Hood center part, r h 574
4812034713 Locking 575
4812032151 Hood center part, l h 576
4812034713 Locking 577
4812033243 Covering center part, l h 578
4812033244 Covering center part, r h 579
4812032307 Disc frame 580
4812034763 Support plate, l h 581
4812034767 Support plate, r h 582
4812034770 Air guide, l h 583
4812034771 Air guide, r h 584
4812034772 Air guide, rear 585
4812034776 Cover 586
4812034779 Retainer 587
4812034799 Bulk head 588
4812034849 Cover, l h 589
4812034891 Cover, r h 590
4812030781 Gr 12 Ascension 592
4812030757 Ascent, middle 593
4812033260 Ascent, l h 594
4812033262 Ascent, r h 595
4812036549 Box 596
4812039571 Gr 12 Ascension f Varioscreed / f Variobohle 598
4812039193 Ascent, middle 599
4812038797 Ascent, l h 600
4812039420 Ascent, r h 602
4812039563 Box 604
4812039573 Gr 12 Ascension für R- Bohlen 606
4812039568 Ascent, middle 607
4812038797 Ascent, l h 608
4812039420 Ascent, r h 610
4812039563 Box 612
4812031059 Auger Ø430mm, 2,50m 614
4812031822 Auger Ø430mm, basic width 615
4812027684 Auger box 616
4812026736 Outer support 618
4812004559 Auger support 620
4812027479 Mounting parts 621
4812027733 Wear part kit auger wing Ø430mm 622
4812027592 Auger gear 623
4812034819 Spare parts gear 624
4812045075 Auger gear 625
Gr 13 Auger extensions 626
4812030995 Auger extension, l h L: 320mm 630
4812030997 Auger extension, r h L: 320mm 631
4812030998 Auger extension, l h L: 640mm 632
4812031000 Auger extension, r h L: 640mm 633
4812031010 Auger extension, l h L: 960mm 634
4812031011 Auger extension, r h L: 960mm 635
4812028794 Material tunnel, cpl L:320mm 636
4812028792 Material tunnel, cpl L:640mm 637
4812030927 Material tunnel, cpl L:960mm 638
4812028782 Strut material duct, l h L:960mm 639
4812028787 Strut material duct, r h L:960mm 640
4812028789 Strut material duct L:960mm 641
4812032289 End support, plate 642
D439082200 End support 643
4812031804 Outer support 645
D438081200 End support 646
4812029259 Brace 648
4812028882 Cross struts 650
4812032472 Brace package wide 651
4812028882 Cross struts 655
4812032804 Protection cover L:320 mm 656
4812032803 Protection cover L:640mm 657
4812032802 Protection cover L:960 mm 658
4812032393 Auger wing Ø430mm, l h 659
4812032395 Auger wing Ø430mm, r h 660
4812032499 additional Extension parts 661
4812032500 additional Extension parts 662
4812032502 additional Extension parts 663
4812032504 additional Extension parts 664
4812031060 Auger Ø430mm, 3,14m 666
4812031953 Auger Ø430mm, 3,14m 667
4812031063 Auger Ø430mm, 3,78m 668
4812032281 Auger Ø430mm, 3,78m 669
4812032049 Auger Ø430mm, 4,42m 670
4812032357 Auger Ø430mm, 4,42m 671
4812031108 Auger Ø430mm, 5,06m 672
4812032363 Auger Ø430mm, 5,06m 673
4812032051 Auger Ø430mm, 5,70m 674
4812032383 Auger Ø430mm, 5,70m 675
4812032052 Auger Ø430mm, 6,34m 676
4812032399 Auger Ø430mm, 6,34m 677
4812032053 Auger Ø430mm, 6,98m 678
4812032410 Auger Ø430mm, 6,98m 679
4812032054 Auger Ø430mm, 7,62m 680
4812032413 Auger Ø430mm, 7,62m 681
4812032055 Auger Ø430mm, 8,26m 682
4812032419 Auger Ø430mm, 8,26m 684
4812032056 Auger Ø430mm, 8,90m 686
4812032430 Auger Ø430mm, 8,90m 687
4812032057 Auger Ø430mm, 9,54m 688
4812032435 Auger Ø430mm, 9,54m 689
4812032058 Auger Ø430mm, 10,18m 690
4812032437 Auger Ø430mm, 10,18m 691
4812032059 Auger Ø430mm, 10,82m 692
4812032439 Auger Ø430mm, 10,82m 693
Gr 14 Inscription, Tools, Accessories 694
4812036436 Decals tracked paver 695
Inscription 697
4812035048 Tools and accessories 698
4812009821 Tools and accessories 699
4812035580 Tools and accessories (Rus) 700
4812038453 Infrared thermometer 701
D978000024 Welding protection 702
4812005418 Test adapter 703
Replace key 704
4812035521 Drivers seat 706
4812028982 Refueling equipment 708
4812029968 Refueling equipment 709
4812035452 Drivers seat Grammer, beheizbar 710
4812030001 Seat heater 711
4812035458 Drivers seat Standard, Cobo, kpl 712
4812027698 Hydr hight adj auger 714
4812027603 Hydraulic, auger 715
4812027721 Mech hight adjustment auger 716
4812027720 Ratchet 717
4812031793 Auger limit switch ultrasonic 718
4812228334 Retainer 719
4812032431 Electric 720
4812030906 Auger level indicator 722
4812032415 Bio hydraulic oil / Panolin 724
4812027607 Hydr partial flow filter 725
D964013553 Partial flow filter 726
4812035023 Spot light for auger 728
4812028823 Spot light 729
4812034736 Powermoon, Halogen 730
4812032414 Powermoon 731
4812036596 cable cpl 732
4812046228 Lighting balloon 733
4812036192 Rotaflare light, PLC, with roof 734
4812029933 Electric rotaflare light 735
4812035837 Slip-on pipe 736
4812036227 Retainer 737
4812035432 Rotaflare light, PLC, without roof 738
4812029933 Electric rotaflare light 739
4812035837 Slip-on pipe 740
4812033636 Retainer 741
4812037881 Central lubrication 742
4812037776 Pump 743
4812037777 Pump 744
4812037782 Kit central lubrication f auger 746
4812030073 El option central lubrication 747
4812037018 Fire extinguisher 748
D654905800 Fire extinguisher 749
4812034226 Emulsion spray system 750
4812034614 Tank with pump 751
4812034147 Tank 753
4812034823 Hose package 754
4812029938 Electric emulsion spray system 755
4812034227 Emulsion spray system 758
4812034599 Hose reel 759
4812034614 Tank with pump 760
4812034147 Tank 762
4812029938 Electric emulsion spray system 763
4812034869 Gloria spraying device 766
4812002731 First-aid kit 768
4812027605 Crown adjustment 770
4812033247 Control block 771
4812046393 Control block 772
4812030959 Generator drive, crawler, 33kVA 774
4812034530 Electric / heating Serie 775
4812036663 Control box 776
4812039600 Vandalism protection 779
4812005418 Test adapter 780
4812033507 Generatorcable 781
4812034530A Electric / heating ab/from SN 3000547 782
4812033507 Generatorcable 783
4812040618 Control box 784
4812039600 Vandalism protection 790
4812005418 Test adapter 791
4812039600 Vandalism protection 792
4812031164 Generator drive, 80kVA 794
4812034537 Electric / heating Serie 795
4812036664 Control box 796
4812039600 Vandalism protection 798
4812005418 Test adapter 799
4812032103 Generatorcable 800
4812034537A Electric / heating 801
4812032103 Generatorcable 802
4812040619 Control box 803
4812039600 Vandalism protection 809
4812005418 Test adapter 810
4812039600 Vandalism protection 811
4812029934 Back-up alarm 812
4812035395 Spot light 814
4812033051 Option engine room lighting 816
4812029937 Engine room lighting, electric 817
4812032841 Lamp interior 818
4812030003 Cable W24 819
4812032889 Engine room lighting 820
4812028819 Spot light, Xenon 822
4812029936 12V installation 824
4812029971 Cable harness W23 825
4812038808 Emulsion spray system 826
4812038837 Tank with pump 827
4812042128 Hose package 829
4812039908 Electric emulsion spray system 830
4812038790 Emulsion spray system 832
4812038837 Tank with pump 833
4812042118 Hose reel 835
4812039908 Electric emulsion spray system 836
4812040056 Fire extinguisher 838
4812030495 500W Spot light 840
4812036650 Halogen spot light 841
D977900136 Halogen spot light 842
4812036596 cable cpl 843
Gr 16 Levelling 844
D900626011 Slope transmitter 846
4812038541 Sonic-Ski 848
4812038617 Digirotary Kit 850
4812038616 Ultrasonic sensor 852
4812038602 Sensor 853
4812011781 Box MOBA-Matic 854
4812038565 Big Ski 9 m 856
4812038564 Electric parts big ski 857
4812011781 Box MOBA-Matic 858
4812038559 Big Ski 9 m 859
4812038560 Side arm support 860
4812038566 Big Ski 13 m 862
4812038564 Electric parts big ski 863
4812011781 Box MOBA-Matic 864
4812038562 Big Ski 13 m 865
4812038560 Side arm support 866
D830031300 Trailing ski, 6m 868
4700688225 Trailing ski, 6m 869
4700691720 Mounting parts 871
D830031400 Trailing ski, 9m 872
4700688226 Trailing ski, 9m 873
4700691720 Mounting parts 875
4720000701 Wire tensioner cpl 876
Gr 17 Doku 878
DVD W-A-S 11 x (for service technicans) 889
Gr 18 Wear part and Inspection kits TIER 3 890
4812028402 Wear part kit conveyor plates 892
4812028403 Wear part kit conveyor guide plates 893
4812028516 Wear part kit conveyor chain 894
4812035552 Wear part kit conveyor drive 895
4812035553 Wear part kit reversing roller 896
4812027733 Wear part kit auger wing Ø430mm 897
4812035551 Wear part kit rubber plates 898
4700691229 Service kit 500 h TIER 3 899
4812041235 Service kit 1000 h TIER 3 900
4812046969 Service kit 1000 h TIER 3, stage 2 901
4812043983 Service kit 500 h Plus TIER 3 902
Lubricants and operating substances T3 903
4812045783 Hopper rubber kit, standard 905
4812007262 Hopper rubber kit, standard 906
4812045834 Hopper rubber kit, hydr front flap 907
4812007263 Hopper rubber kit, reinforced, hydr fr flap 908
4812011023 Hopper rubber kit, standard, hydr fr flap 909
NUMERICAL INDEX 910
IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.M
