Doosan DH280 Excavator Parts Manual SN 0001 and up – PDF DOWNLOAD
DESCRIPTION:
Doosan DH280 Excavator Parts Manual SN 0001 and up – PDF DOWNLOAD
- Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
- It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
- Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item. 2021-
2. HOW TO USE THIS PARTS LIST
- Key No. Part No. : It shows the reference no. on the illustration. : It shows the part number.
- Description : It shows the name of part. Components of an assembly part are shown with l•l marks and are shown on the line, or lines, below the assembly part. Also if the components with mark consists of further components part.
- these further components are shown by the marks [••J. Q’ty :It shows the quantity use for one machine. quantity of components show the quantity for one assembly part. Service code : Abbreviations in this column have their own meaning as show below.
- B : The parts with this abbreviation shows that the part requires some work on it before installing in the machine. D : The part with this abbreviation is a component of an assembly and is not available independently.
- The assembly part containing this part should be ordered. K : This means that the part is contained in the service part kit. M : This means that the part is available only with its mating parts altogether.
- R : The part with this abbreviation shows that the quantity of the part is changed depending on the machine, such as an adjusting shim etc. S : This part is specially provided as a service part, which was not provided in the machine before shipping from the factory.
- G : This part need grade control and should be requested as the same grade of counter part.
- OP : Optional parts. EX : Specific design parts. OS : Over-sized parts. US : Under-sized parts. (Part with abbreviation “OS” or “US” is described on the line below the standard sized part.) # : The part with this mark is newly added on that page of the equipment.
- Serial no. : Serial No. shows the machine serial number which the parts were applied. As to the engine serial No. shows only engine serial number which the parts were applied. Parts without any applicable serial number are used in every machine.
- ICA : ICA shows the interchangeability between the original and the improved parts. Abbreviations used in this column are as follows ; I : Part No. in the column of “Replaceable part” can be used instead of this part but not vice versa.
- P : This must not be used for machine.
- The part No. in the column “Replaceable part” should be used instead. T : Parts Nos. those in the column of “Replaceable part” can be used as an assembly instead of this part. Y : This part and the part in the column of “Replaceable part” are interchangeable with each other.
- BLANK : This part has no “Repleace part” Replaceable part : Interchangeable parts nos. and their required quantity are shown in this column. If interchangeable improved parts are provided for the parts which you may order, the improved parts classified as “I”, “P”, “T” or “Y” may be supplied. • When repairing, it is recommended to use our standard part. • Researching the assembling parts from part No., see the r Parts index of this parts list. (
TABLE OF CONTENTS:
Doosan DH280 Excavator Parts Manual SN 0001 and up – PDF DOWNLOAD
00ENGINE PARTS
001 CYLINDER BLOCK BLOC CYLINDRES 2
002 TIMING GEAR CASE CARTER DE DISTRIBUTION 6
003 BEARING CASE CARTER DE PAILER 8
004 FLY WHEEL HOUSING CARTER DE VOLANT MOTEUR 10
005 CRANK SHAFT ASSEMBLY ENSEMBLE VILEBREQUIN 12
006 PISTON ASSEMBLY ENSEMBLE PISTON 14
007 CYLINDER HEAD CULLASSE 16
008 ENGINE TIMING ARBRE A CAMES 20
009 OIL PUMP POMPE A HUILE 24
010 OIL PAN CARTER D’HUILE 26
011 OIL COOLER REFROIDISSEMENT DE L’HUILE 30
012 COOLING WATER PUMP POMPE A EAU, VENTILATEUR 34
013 COOLING SYSTEM SYSTEME DE VENTILATEUR 38
014 INTAKE, EXHAUST MANIFOLD TUBULURE ET COLLECTEUR 42
015 NOZZLE & HOLDER INJECTEUR ET PORTE-INJECTEUR 46
016 INJECTION PUMP POMPE D’INJECTION 48
017 INJECTION PIPE ALIMENTATION ET INJECTION 50
018 FUEL FILTER FILTRE A GAZOLE 52
019 ELECTRICAL PARTS EQUIPMENT ELECTRIQUE 54
020 AIR COMP. MOUNTING B’KT SUPPORT DE MONTAGE 56
e BODY PARTS
Fig. 1100 FRAME BATI PRINCIPAL 58
1110 ENGINE MOUTING(l) MOTEUR 60
1111 ENGINE MOUTING(2) MOTEUR 68
1115 RADIATOR RADIATE UR 74
1116 AIR CLEANER FILTRE A AIR 76
1120 SWING DEVICE( 1) SYSTEME D’ORIENTA-ION 78
1121 SWING DEVICE[2) SYSTEME D’ORIENTATION 80
1130 FUEL TANK(l) RESERVOIR A GAZOLE 82
1131 FUEL TANK(2) RESERVOIR A GAZOLE 84
1140 OIL TANK(l) RESERVOIR D’HUILE 86
1141 OIL TANK(2) RESERVOIR D’HUILE 90
1150 MAIN PIPING(l) CIRCUIT HYDRAULIQUE PRINCIPAL 94
1151 MAIN PIPING(2) CIRCUIT HYDRAULIQUE PRINCIPAL 100
1160 MAIN PIPING[3)-FOR D28 C/V CIRCUIT HYDRAULIQUE PRINCIPAL 106
1170 OIL COOLER PIPING(l) CIRCUIT REFROIDSSEMENT 110
1171 OIL COOLER PIPING(2) CIRCUIT REFROIDSSEMENT 116
1172 OIL COOLER PIPING(3) CIRCUIT REFROIDSSEMENT 122
1173 OIL COOLER PIPING(4) CIRCUIT REFROIDSSEMENT 126
1180 O1.L COOLER PIPING(5)-D28 C/V CIRCUIT REFROIDSSEMENT 130
1181 OIL COOLER PIPING(6)-D28 C/V CIRCUIT REFROIDISSEMENT 134
1190 PILOT PIPING(l) CIRCUIT PILOTE 140
1191 PILOT PIPING(2) CIRCUIT PILOTE 150
1200 PILOT PIPING(3) CIRCUIT PILOTE 160
1201 PILOT PIPING(4) CIRCUIT PILOTE 170
1210 PILOT PIPING(5)-FOR 028 C/V CIRCUIT PILOTE 178
1211 PILOT PIPING(6)-FOR 028 C/V CIRCUIT PILOTE 186
1220 COMPRESSOR PIPING CONDUITES DE COMMPRESSTEUR 196
1230 ENGINE CONTROL COMMANDE REGIME MOTEUR 198
1240 CONTROL STAND( 1) CONSOLE 202
1241 CONTROL STAND(2) CONSOLE 210
1250 CABIN(]) CABINE 218
1251 CABIN(2) CABINE 222
1260 CABIN PARTS{l) CABINE PIECES DET ACHEES 226
1261 CABIN P ARTS(2) CABINE PIECES DET ACHEES 238
1270 SUPPORT(l) SUPPORT 250
1271 SUPPORT(2) SUPPORT 254
1280 COVER(l) CAPOT 258
1281 COVER(l-1) CAPOT 262
1285 COVER(2) CAPOT 266
1286 COVER(2-1) CAPOT 270
1290 COVER(3)-FOR D28 C/V CAPOT 274
1291 COVER(3-1)-FOR 028 C/V CAPOT 278
1300 COVER(4) CAPOT 282
1301 COVER(4-l) CAPOT 286
1310 BATTERY BOX(]) CAPOT BATTERIES 290
1311 BATTERY BOX[2) CAPOT BATTERIES 294
1320 LUBRICATOR(l) LUBRIFICA TION 298
1330 LUBRICATOR(2) LUBRIF!CA TION 300
1340 ELECTRIC PARTS(l) EQUIPMENT ELECTRIQUE 302
1341 ‘ELECTRIC PARTS(l-1) EQUIPMENT ELECTRIQUE 310
1350 ELECTRIC PARTS(2) EQUIPMENT ELECTRIQUE 318
1351 ELECTRIC PARTS(2- l) EQUIPMENT ELECTRIQUE 326
1360 COOLER REFRIGERATION 334
1370 FUEL FILLER(l) POMPE A GAZOLE 338
1371 FUEL FILLER(2) POMPE A GAZOLE 340
1380 HEATER PIPING(l) CHAUFFAGE 342
1381 HEATER PIPING(2) CHAUFFAGE 344
e TRACK PARTS
Fig. 2100 TRACK(l) TRAIN DE ROULEMENT 346
2101 TRACK(2) TRAIN DE ROULEMENT 350
2110 PROPELLING DEVICE(l) SYSTEME DE TRANSLATION 354
(THIS PARTS BOOK IS FOR REFERENCE ONLY.
2111 PROPELLING DEVICE(2) SYSTEME DE TRANSLATION 356
2120 PROPELLING PIPING(l) CONDUITES DE TRANSLATION 358
2121 PROPELLING PIPING(2) CONDUITES DE TRANSLATION 360
2122 PROPELLING PIPING(3) CONDUITES DE TRANSLATION 362
2130 PROPELLING PIPING COVER COUVERCLE 364
2140 TRACK SHOE ASS’Y MAILLON DECHAINE 366
2150 IDLER BARBOTIN 368
2160 TRACK SPRING TENDEUR DE CHENILLE 370
2170 UPPER ROLLER GALET SUPERIEUR 372
2180 LOWER ROLLER( 1) GALET INFERIEUR 374
2181 LOWER ROLLER(2) GALET INFERIEUR 376
2190 CENTER JOINT JOINT TOURNANT 378
e FRONT PARTS
Fig. 3100 BOOM FLECHE 380
3105 BOOM FLECHE 382
3110 ARM BALANCIER 386
3115 ARM BALANCIER 388
3120 BUCKET(l)-l.1M3 GODET 392
3121 BUCKET[2)- l.1 M3 GODET 394
3125 BUCKET-SIDE PIN- l .15M3 GODET 396
3130 FRONT PIPING(l) CONDUITES FRONTALES 398
3131 FRONT PIPING(2) CONDUITES FRONT ALES 400
3140 FRONT LUBRICATOR CONDUITE DE LUBRIFICATION 402
e OTHER PARTS
Fig. 4100 NAME PLATE-EXPORT PLAQUE D’IDENTIFICATION 404
4105 NAME PLATE-DOMESTIC ~ B :;,:; 2.1 rr
__,_ “” c5″ 407-1
4110 TOOLS OUTILLAGE 408
4120 SPARE PARTS PIECES DE RECHANGE 412
e OPTION PARTS
Fig. 5100 CONDENSER FAN-OPTION VENTILATEUR 414
5105 CAB;WINDOW GUARD-U.S.A GARDE 416
5110 COVER-OPTION COUVERCLE 418
5120 BREAKER PIP1NG-OPTION CONDUITES AUXILIAIRES 420
5130 IDLE PULLEY ASS’Y-OPTION ROUE DENTEE FOLLE 424
5140 BUCKET-0.8M3 GODET 426
5150 BUCKET-l .OM 3 GODET 428
5160 BUCKET-l.3M3 GODET 430
5170 BUCKET- l .OM3 GODET 432
5180 BUCKET- l .3M3 GODET 434
5190 BUCKET-1.6M3 GODET 436
5200 BUCKET-1.9M3 GODET 438
5210 BU,CKE0tMf PARTS BOOK IS F~FERENCE ONLY. 440
5220 CABIN FRESH AIR ASS’Y FRAIS A AIR 442
5230 ARM-2.4M BALANCIER 444
5235 ARM-3.75M BALANCIER 448
5240 ARM-3.lM BALA NC I ER 452
5245 ARM-2.4M BALANCIER 456
5250 ARM-2.4M BALANCIER 460
5255 ARM-5.0M BALANCIER 464
e HYDRAULIC COMPONENTS
Fig. 6110 MAIN PUMP{l )-NV137-DT POMPE(l) 468
6120 REGULATOR(l J-NVI37-DT REGULATEUR 472
6130 NEGACON VAL VE-NVI 37-DT SOUPAPE NEGACON 476
6140 GEAR PUMP[l) POMPE A ENGRENAG 478
6150 MAIN PUMP(2)-K3Vl 400T POMPE 480
6160 REGULATOR [2)-K3Vl 40DT REGLLATEUR 484
6170 MAIN PUMP(3) POMPE 488
6180 REGULATOR(3) REGULATEUR 492
6190 GEAR PUMP CONTROL SPRING(l) POMPE A ENGRENAG 498
6192 MAIN PUMP(4) POMPE 500
6194 REGULATORl4) REGULATEUR 504
6196 GEAR PUMP CONTROL SPRING[2) POMPE A ENGRENAG 509
6210 SWING MOTOR(l) MOTEUR D’ORIENTATION 510
6211 SWING MOTOR(2) MOTEUR D’ORIENTATION 514
6220 CONTROL VAL VE FOR BRAKE SOUP APE DE COMMANDE 518
6230 REDUCTION DEVICE( l) BOITE REDUCTEUR 520
6231 REDUCTION DEVICE(2) BOITE REDUCTEUR 522
6240 SWING MOTOR(2) MOTEUR D’ORIENT ATION 524
6250 REDUCTION DEVICE ENSEMBLE D’ORIENTATION 528
6310 TRA YELLING MOTOR SYSTEME DE TRANSLATION 530
6320 TRAVEL REDUCTION DEVICE(]) D’ENTRAINMENT DES CHAINES 536
6330 TRAVEL REDUCTION DEVICE(2) D’ENTRAINMENT DES CHAINES 540
6410 CONTROL VAL VE(L.H) VANNE DE COMMANDE GAUCHE 550
6420 CONTROL VAL VE(R.H) VANNE DE COMMANDE DROITE 554
6430 SELECTOR VALVE(l) VANNE SELECTRICE 558
6431 SELECTOR V ALVE(2) VANNE SELECTRICE 560
6440 OPTION VAL VE V ANNE D’OPTION 562
6450 CONTROL VALVE VANNE COMMANDE 564
6510 REMOTE CONTROL VALVE(l) VANNE DE COMMANDE A DISTANCE 570
6511 REMOTE CONTROL VAL VE(2) VANNE DE COMMANDE A DISTANCE 574
6515 REMOTE CONTROL VALVE(2-l) V ANNE DE COMMANDE A DISTANCE 578
6520 REMOTE CONTROL VAL VE(3) V ANNE DE COMMANDE A DISTANCE 582
6521 REMOTE CONTROL VAL VE(3- l) V ANNE DE COMM AN DE A DISTANCE 584
6525 REMOTE CONTROL VALVE(3-2) VANNE DE COMMANDE A DISTANCE 586
6530 SHUTTLE VALVE BLOCK(l) BLOC DE CLAPET BALADEUR 588
6531 SHUTTLE VAL VE BLOCK( 1-1) BLOC DE CLAPET BALADEUR 590
6540 SHUTTLE VALVE BLOCK(2) BLOC DE CLAPET BALADEUR
6541 SHUTTLE VALVE BLOCK{2-1) BLOC DE CLAPET BALADEUR
6550 PILOT SELECTOR VAL VE( 1) VANNE PILOTE
6551 PILOT SELECTOR VALVE{l-1) V ANNE PILOTE
6560 PILOT SELECTOR VAL VE(2} V ANNE PILOTE
6570 CHECK VALVE CLAPET DE RETENUE
6580 SOLENOID VAL VE(l) VANNE SOLENOIDE
6581 SOLENOID VALVE(l 1) VAN NE SOLENOIDE
6590 SOLENOID VAL VE(2) VANNE SOLENOIDE
6591 SOLENOID VAL VE(2-1) VANNE SOLENOIDE
6595 SOLENOID VALVE(3) VAN NE SOLENOIDE
6596 SOLENOID VALVE(3-l) V ANNE SOLENOIDE
6610 BOOM CYLINDER(R.H) VERIN DE FLECHE DROIT
6620 BOOM CYLINDER(L.H) VERIN DE FLECHE GAUCHE
6630 ARM CYLINDER VERIN DE BALANCIER
6640 BUCKET CYLINDER VERIN DE GODET
6650 BOOM CYLINDER(LH.RH)-OPTION VERIN DE FLECHE
6660 ARM CYLINDER-OPTION VERIN DE BALANCIER
6670 BUCKET CYLINDER-OPTION VERIN DE GODET
e WORLDWIDE NETWORK
DH280
(THIS PARTS BOOK IS FOR REFERENCE ONLY.
PART NUMBERS AND SERAIL NUMBERS MAY BE
OUTDATED. ALWAYS USE THE ONLINE PARTS SYSTEM)
VIDEO PREVIEW OF THE MANUAL:

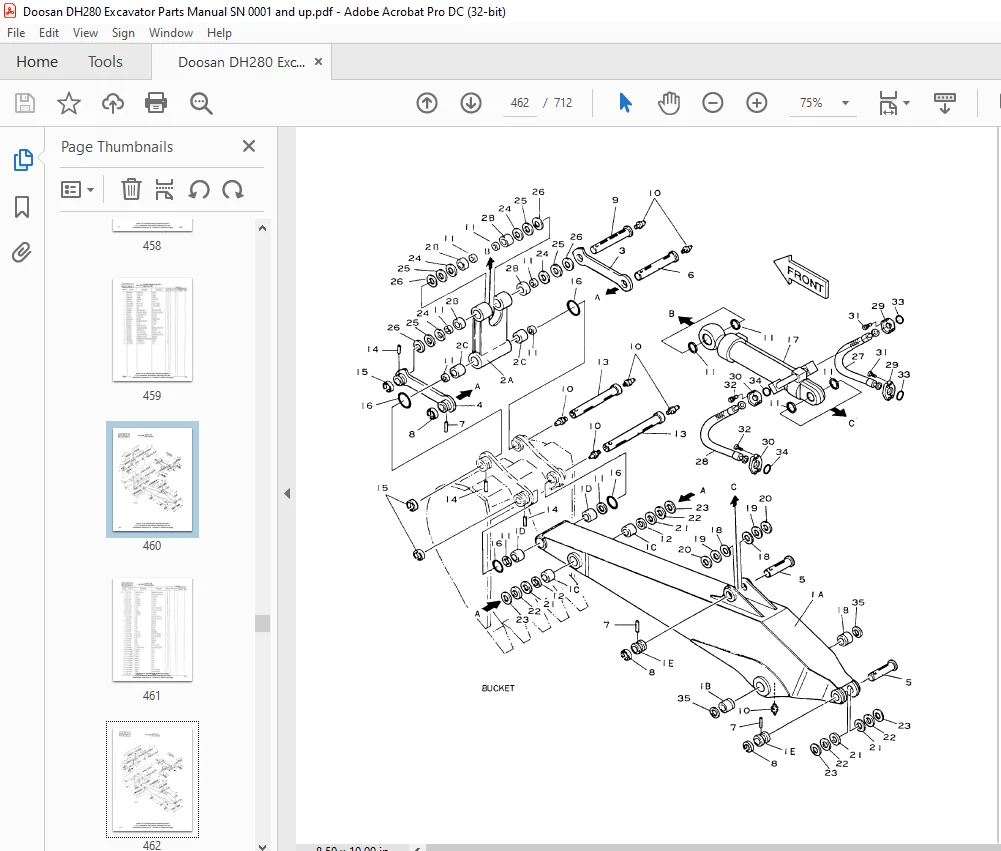

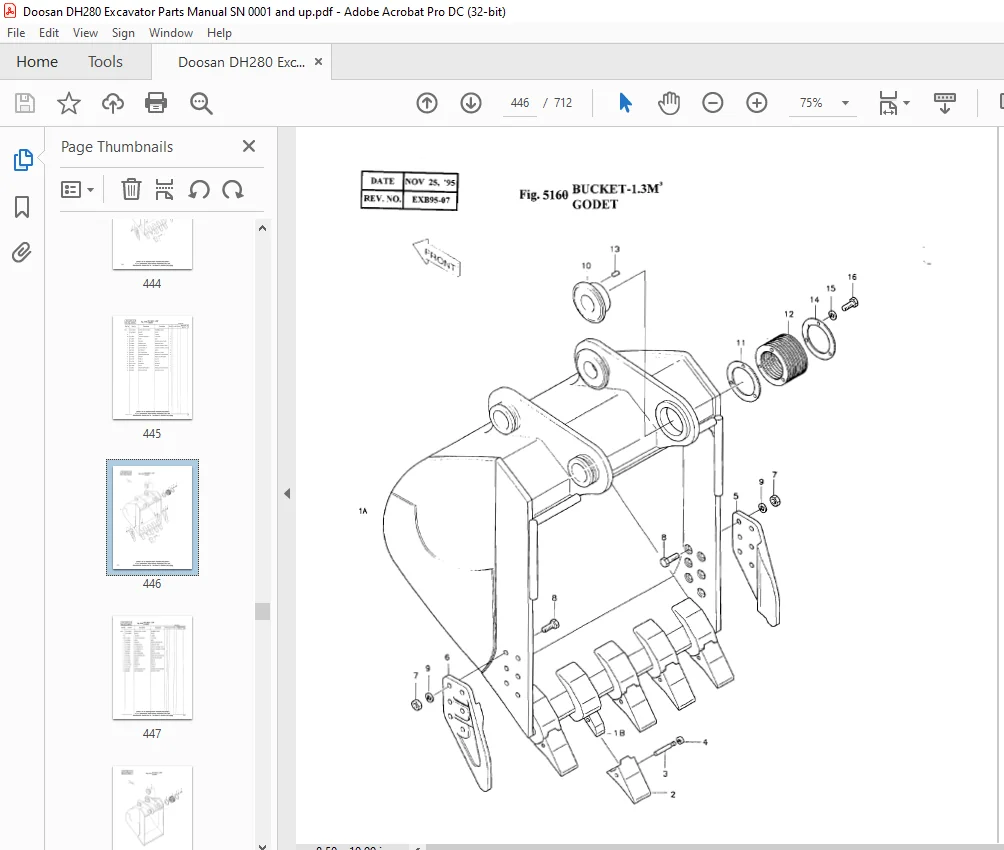

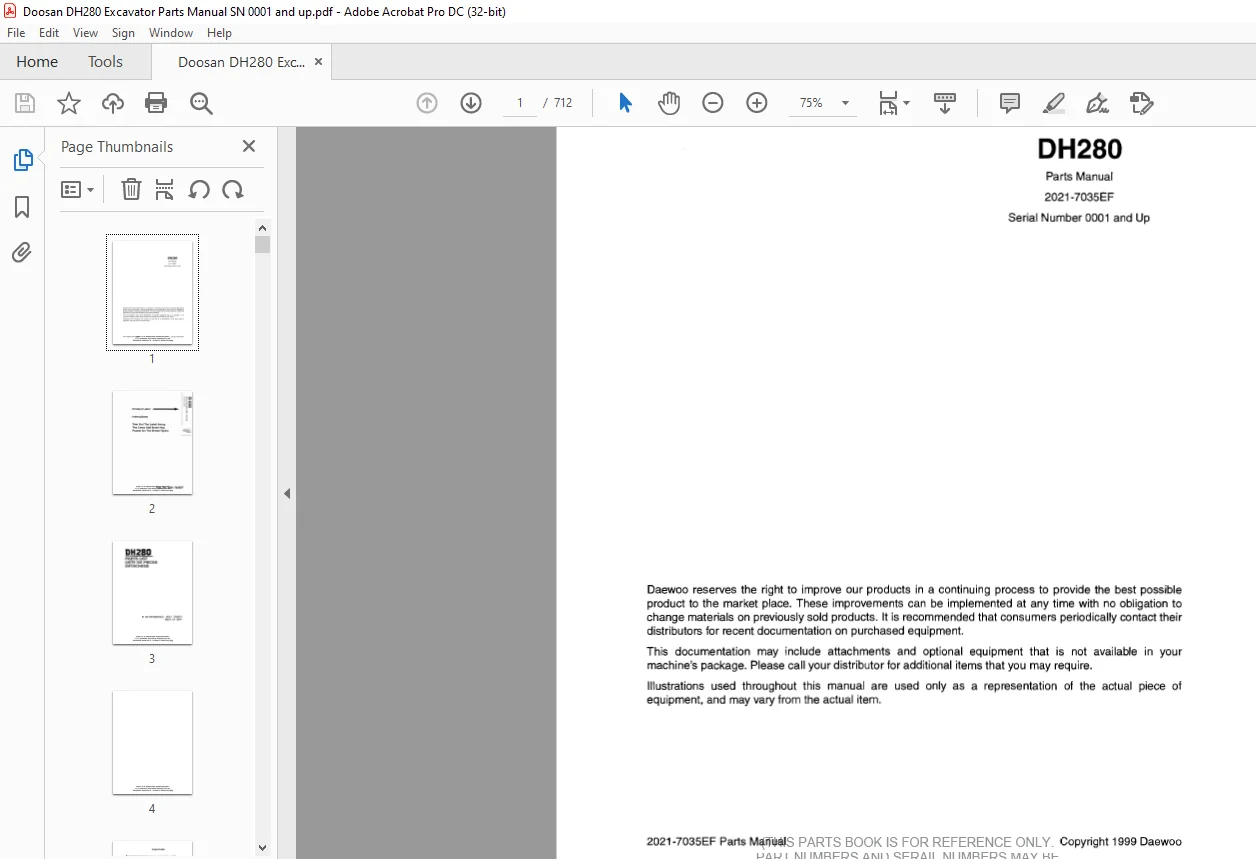

IMAGES PREVIEW OF THE MANUAL:
