Doosan DH200W Excavator Shop Manual – PDF DOWNLOAD
DESCRIPTION:
Doosan DH200W Excavator Shop Manual – PDF DOWNLOAD
- Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
- It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
- Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.
FOREWARD
- This maintenance manual is designed to serve as a reference for distributors of DHI.
- To maintain the excavator in optimum condition and retain maximum performance for a long time, CORRECT OPERT\.TION and PROPER MAINTENANCE are essential. This manual is in detail explained about Specifications, Operation Principle, Diassembly, and Reassembly, Troubleshooting and Maintenance Standard.
- Therefore, when the machine goes WRONG, repair the machine by correct procedure after reading this manual. If you have any question air or recommendation in connection with this manual, please do not hesitate to contact our overseas service department or branch office in your territory. DAEWOO HEAVY INDUSTRIES LTD.
1. GENERAL REPAIR INSTRUCTIONS
1. The use of proper tools and special tools where specified, is important to efficient and reliable service operation.
2. Use genuine Daewoo parts.
3. Used cotter pins, gaskets, O-rings, oil seals, lock washers and self lock nuts should be discarded and new ones should be prepared for installation as normal function of the . parts can not be maintained if these parts are reused.
4. To facilitate proper and smooth reassembly operation, keep dissembled parts neatly in group. Keeping fixing bolts and nuts separate is very important as they vary in hardness and design depending on position of installation.
5. Clean the parts before inspection or reassembly. Also clean oil ports, etc. using compressed air to make certain they are free from restrictions.
6. Lubricate rotating and sliding faces of the parts with oil or grease before installation.
7. When necessary, use a sealer on gaskets to prevent leakage.
8. Carefully observe all specifications for bolt and nut torques.
9. When service operation is completed, make a final check to be sure service has been done properly.
GENERAL DESCRIPTION
- Model Dll46 is 6-cylinder, 4-cycle, in-line, vertical type engines. It is water-cooled and used Toroidal combustion system. 2. 1 Engine Characteristics The engine operates according to the Toroidal combustion system developed by Daewoo Heavy Industrial Co. of Korea and A VL Co. of Austria.
- The main design features of this system are the combustion chamber arranged in the center of the piston and the swirling passage in the cylinder head. Due to the swirling passage, the air entering the cylinder through the helical port designed specially during intake stroke is imparted a strong rotary motion in the combustion chamber and the complicated turbulence motion created by the swirl produced
- during compression stroke and strong squish flow makes the fuel be mixed more sufficiently with air. During power stroke the fuel injected from a multi-orifice nozzle is mixed sufficiently with air for complete combustion, so that the improvement of performance is achieved. Engines with the Toroidal combustion system are characterized by their quiet running, high flexibility and very low specific fuel and oil consumption
TABLE OF CONTENTS:
Doosan DH200W Excavator Shop Manual – PDF DOWNLOAD
(ENGINE: D 1146)
SECTION 1 GENERAL INFORMATION 1
2 PREVENTIVE MAINTENANCE 7
3 MAJOR MAINTENANCE 17
4 COOLING SYSTEM 53
5 LUBRICATING SYSTEM 60
6 FUEL SYSTEM — 69
SUPPLEMENT
1 ENGINE TIGHTENING TORQUE 118
2 MAINTENANCE SPECIFICATION 119
(HYDRAULIC EXCAVATOR: DH200W)
SECTION 1 SPECIFICATION 137
2 OPERATION PRINCIPLE 143
3 UPPER STRUCTURE : 159
4 UNDERCARRIAGE 263
5 OTHERS 363
6 ELECTRICAL SYSTEM 381
•HYDRAULIC CIRCUIT DIAGRAM
• ELECTRIC CIRCUIT DIAGRAMCONTENTS
1 Servicing of Engine
1 1 General •;
1 2 Inspection and Maintenance Procedure
2 Troubleshooting
2 1 Hard-Starting
2 2 Engine Runs Rough
2 3 Engine Lacks Power
2 4 Engine Noisy
2 5 Fuel Consumption Excessive
2 6 Oil Consumption Excessive
2 7 Exhaust Smoke Excessive
CONTENTS
Gene ral Repair Ins truct ions •
General Description
2 1 Engine Characteristics
2 2 Main Specifications
2 3 Engine Performance Curve
External View of Engine
VIDEO PREVIEW OF THE MANUAL:

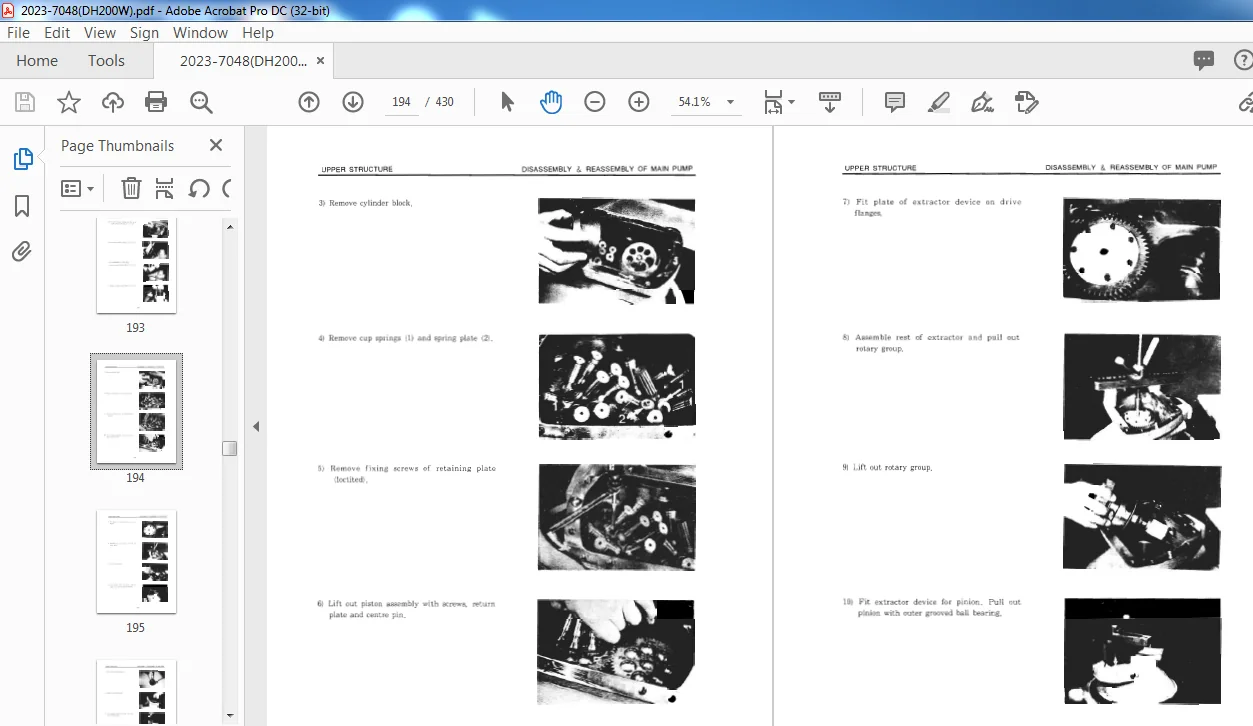

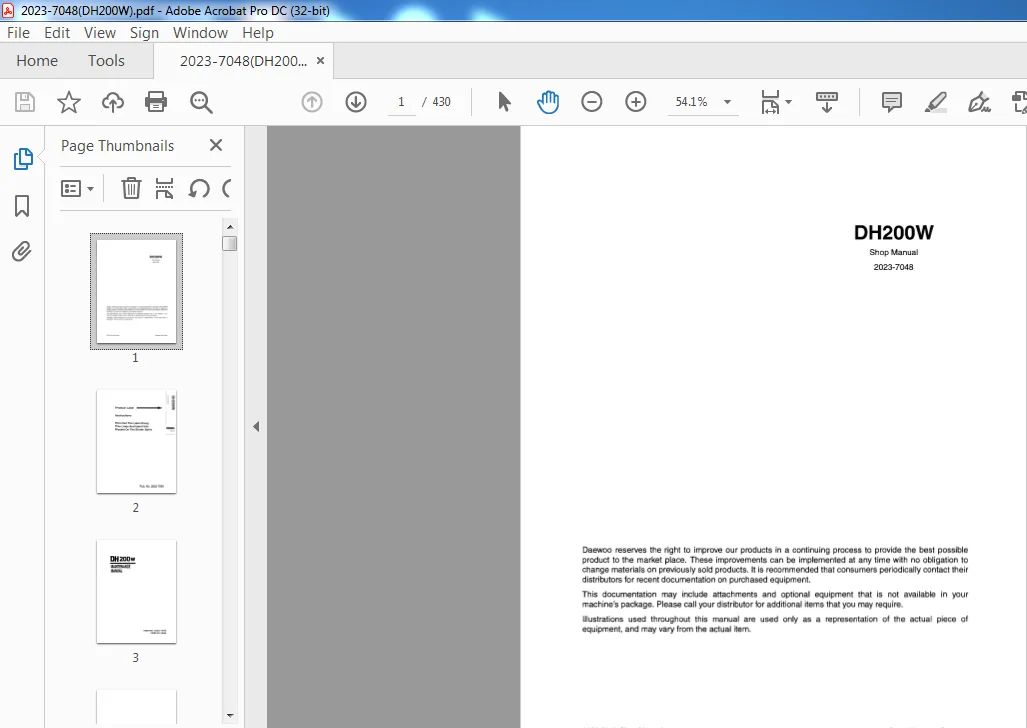

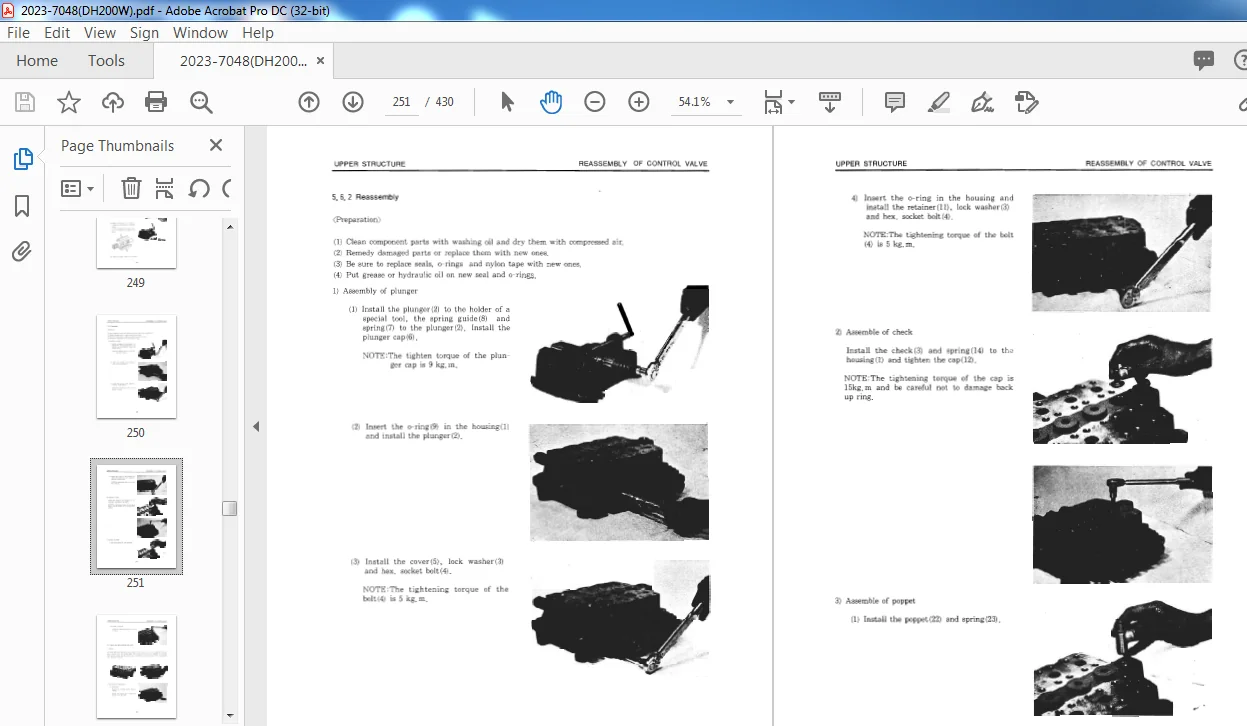

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
