DEUTZ-FAHR Hydraulic Inversor 80 105 HP Workshop Manual – PDF DOWNLOAD
FILE DETAILS:
DEUTZ-FAHR Hydraulic Inversor 80 105 HP Workshop Manual – PDF DOWNLOAD
Language : English
Pages : 112
Downloadable : Yes
File Type : PDF
Size: 2.96 MB

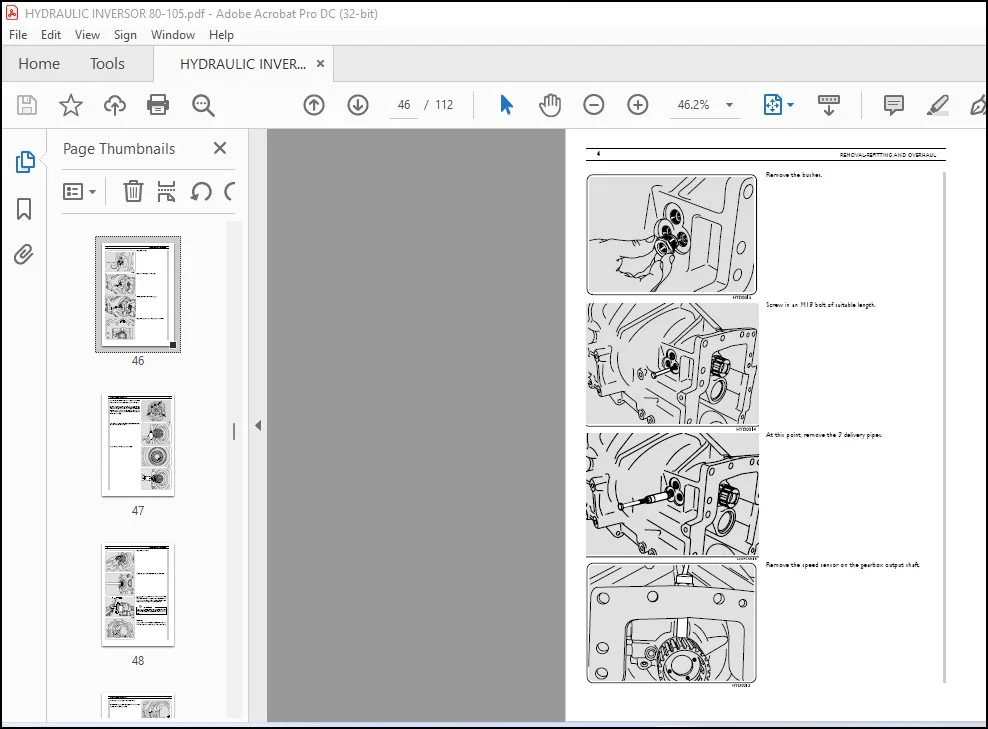

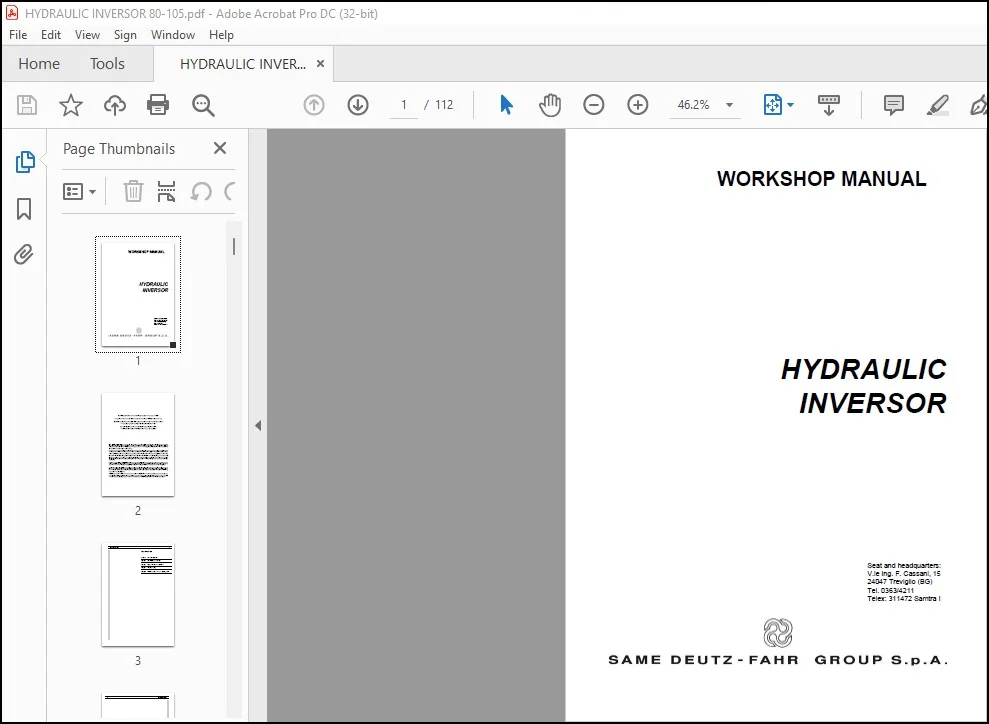

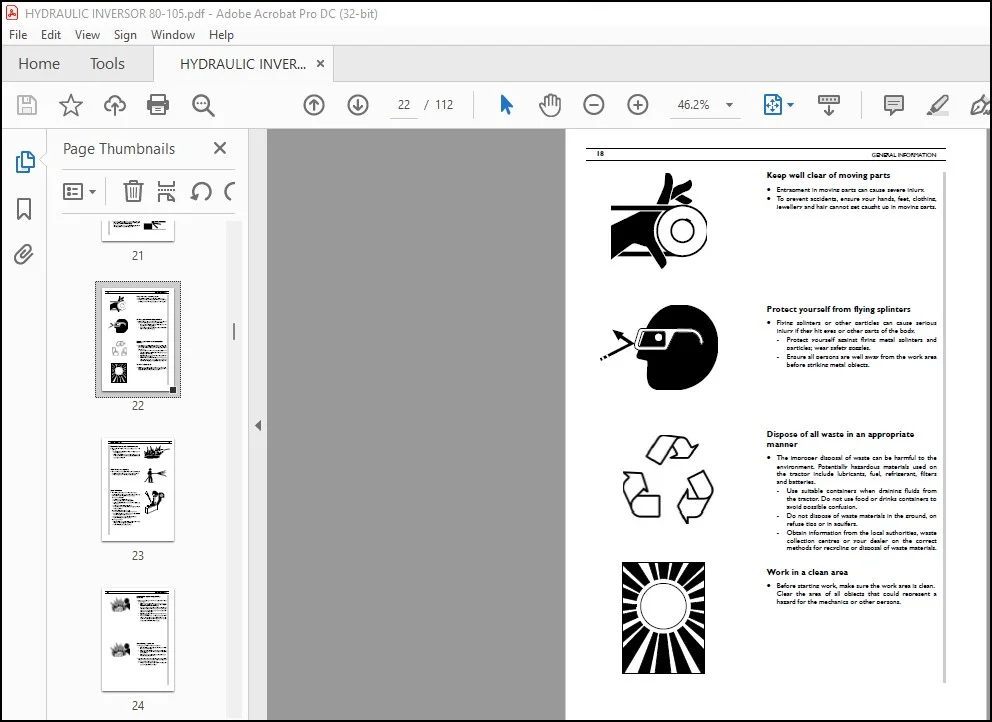

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
DESCRIPTION:
DEUTZ-FAHR Hydraulic Inversor 80 105 HP Workshop Manual – PDF DOWNLOAD
Safety rules:
General information:
Read the Use and Maintenance instruction manual carefully before starting the tractor and before carrying out any servicing, refuelling or other operations. Read carefully the explanations given for each safety plate on the tractor before starting the tractor and before carrying out any servicing, refuelling or other operations.
- It is essential that all operators who use the tractor understand the precise meaning of all the safety notices. This will significantly reduce the risk of accident and personal injury. Do not allow unauthorised persons to repair or service the tractor. Do not wear rings, wristwatches, jewellery, or any loose or dangling clothing, such as neckties, scarves, unbuttoned or unzipped jackets, that could get caught in the moving parts of the tractor.
- We recommend that you use approved protective clothing, for example: hard hat, shoes with non-slip soles, gloves, ear defenders, safety goggles, reflective jackets and respiratory protection when required. Ask your employer about the safety regulations and safety equipment. To reduce the risk of tripping or slipping, keep the operator station, the access steps, the handrails and the grab handles clean and free of foreign objects or traces of grease, oil, mud and snow at all times. Clean any mud or grease from the soles of your shoes before using the tractor.
- Do not jump on to or down from the tractor. Keep either both hands and one foot or both feet and one hand on the steps and handrails at all times. Do not use the controls or hoses as handholds: these components are not fixed and do not provide stable support. Moreover, accidental operation of a control could cause the tractor or implement to move.
- Never attempt to operate the tractor or use the attached implements from any position other than seated in the driving seat. In all circumstances, keep your head, body, limbs, hands and feet inside the driving compartment to avoid the risk of injury. Watch out for slippy access steps, handles and handrails, as well as slippy ground conditions around the tractor.
- Always wear safety boots or shoes with soles made from non-slip material. Wait until the tractor has come to complete stop before dismounting. Do not exceed the tractor’s lifting capacity.
TABLE OF CONTENTS:
DEUTZ-FAHR Hydraulic Inversor 80 105 HP Workshop Manual – PDF DOWNLOAD
307 1089 3 5 HYDRAULIC INVERSOR 80-105 HP 1
List of sections 3
SECTION 1 5
Safety rules 7
General information 7
Starting 7
Operation 8
Stopping 9
Maintenance 10
General information 10
Engine 12
Electrical system 13
Hydraulic system 13
Tyres and wheels 14
Recognise the safety warnings 15
Understand the safety terms 15
Protecting the environment 15
Follow the safety rules 16
Prepare for emergencies 16
Wear protective clothing 17
Protect yourself against noise 17
Inspect the tractor 17
Use the handholds and steps 18
Adjust the driver’s seat 18
Fasten the seat belts 18
Only operate the tractor from the driver’s seat 19
Never carry passengers on the tractor 19
Avoid accidents when reversing 20
Avoid accidents caused by movement of the tractor 20
Carry out maintenance in safe conditions 21
Warn others that maintenance work is in progress 21
Keep well clear of moving parts 22
Protect yourself from flying splinters 22
Dispose of all waste in an appropriate manner 22
Work in a clean area 22
Ensure the work area is well illuminated 23
Wash the tractor regularly 23
Avoid acid burns 23
Starting the engine using auxiliary batteries 24
Avoid battery explosions 24
Avoid burns 25
Keep the tractor clean 25
Be careful of fluids under pressure 26
Avoid the danger of bursting tyres 27
Handle fluids safely – Prevent fires 27
Prevent fires 28
Evacuation in case of fire 29
Exhaust gas 29
Use the proper tools 29
Do not apply heat near pressurised pipes 30
Do not heat pipes containing inflammable fluids 30
Remove paint before welding or heating parts 30
Tightening torques (in Nm) for bolts, nuts and studs 31
SECTION 2 33
Description and Operation 33
Inversor with electro-hydraulic control 35
Innovative features of the system 35
Operating principle 35
Electro-hydraulic inversor system 36
SECTION 3 43
Removal-Refitting and Overhaul 43
Removal/Refitting of the inversor from the intermediate transmission casing 45
Removal: 45
Refitting 48
Overhaul of the inversor assembly 52
Re-assembly 62
SECTION 4 65
Troubleshooting 65
General precautions for electronic components 66
Presentation screen 68
Main Menu 68
Clutch pedal 78
Joystick (direction change) 79
HML gear change 79
Enabling pushbutton 79
HYDRAULIC INVERSOR ALARMS LIST 85
Inversor control unit 67
Diagnosis with the ALL Round Tester 67
SECTION 5 87
Electrical system and electronic components 87
Circuit diagrams 87
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
