Daihatsu Terios Chassis Service Manual PN 9712-JE PDF DOWNLOAD

Description

 Daihatsu Terios Chassis Service Manual PN 9712-JE -PDF DOWNLOAD

FILE DETAILS:

Daihatsu Terios Chassis Service Manual PN 9712-JE -PDF DOWNLOAD

Language : English
Pages : 325
Downloadable : Yes
File Type : PDF

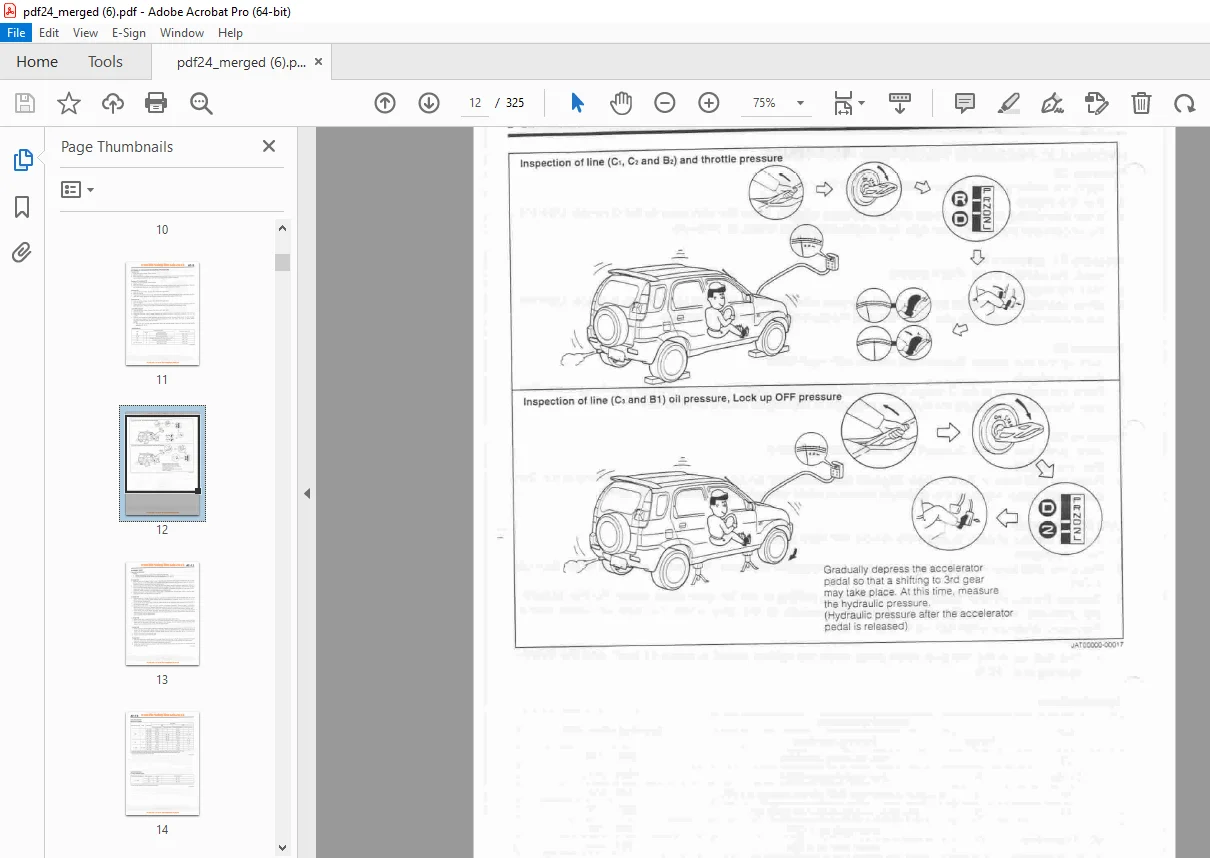

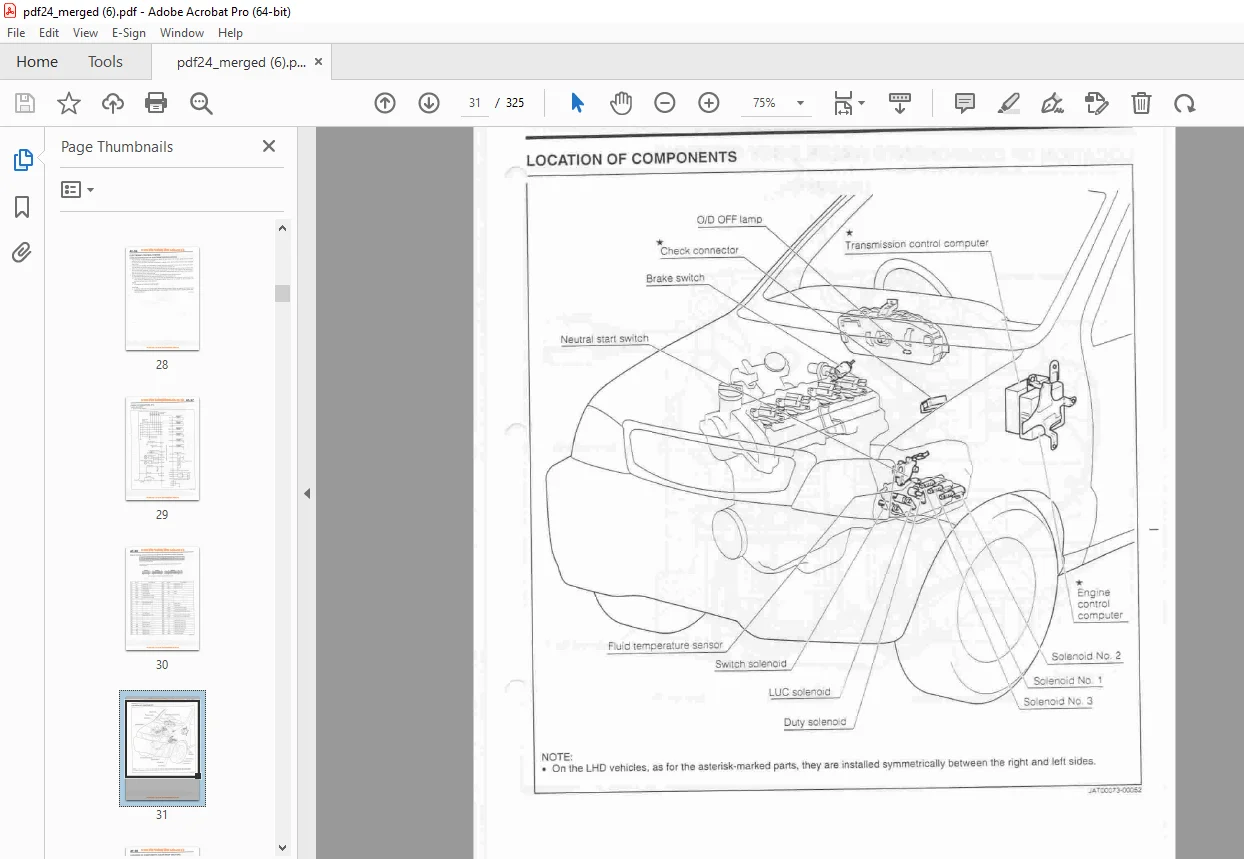

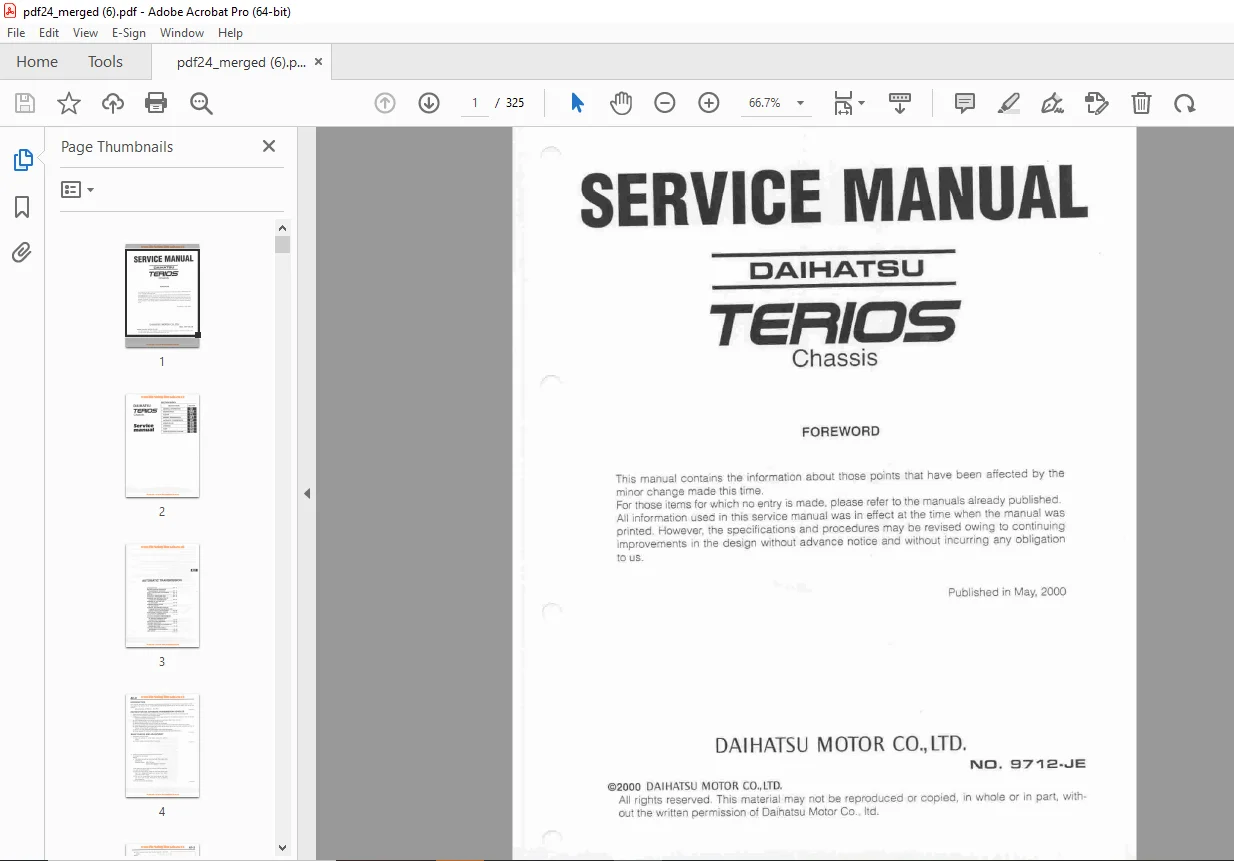

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Daihatsu Terios Chassis Service Manual PN 9712-JE -PDF DOWNLOAD

SECTION INDEX
SECTION NAME
GENERAL INFORMATION  GI
MAINTENANCE    MA
CLUTCH                CL
SECTION
MANUAL TRANSMISSION MT
AUTOMATIC TRANSMISSION AT
BRAKE (A.B.S) BR
STEERING SR
BODY BO
BODY ELECTRICAL SYSTEM BE

DESCRIPTION:

Daihatsu Terios Chassis Service Manual PN 9712-JE -PDF DOWNLOAD

FOREWORD:

• This manual contains the information about those points that have been affected by the minor change made this time.
  For those items for which no entry is made, please refer to the manuals already published.
• All information used in this service manual was in effect at the time when the manual was printed.
• However, the specifications and procedures may be revised owing to continuing improvements in the design without advance notice and without incurring any obligation
  to us.

INTRODUCTION:
This manual describes the checking and servicing procedures for the automatic transmission which i mounted on the vehicle. As for the checking and servicing procedures for the unit itself, refer to the unit section.
Service Manual Unit Section: No. 9738
INSTRUCTION ON AUTOMATIC TRANSMISSION VEHICLES:
1. When towing the automatic transmission vehicles with a wrecker, be sure to use a towing dolly. 2. Instruction on installation and removal of parts
(1) Remove completely sands and dirt which have adhered to the external surface so that no foreign matters can enter the transmission.
(2) The disassembling should ha performed at a clean place free of dust and dirt.
(3) When disassembling, do not use gloves or cloth.
(4) Before disassembling, be sure to check for oil leakage.
(5) Carefully consider the contents of malfunction so as to avoid unnecessary removing of parts.
(6) When disassembling connected parts, such as the case, lightly tap them with a plastic hammer or the like, not prying with a screwdriver.
(7) Be sure to apply automatic transmission fluid to sliding sections.
(8) When gaskets, O-rings, etc. have been removed, be sure to install new ones.
