Daihatsu Cuore Chassis Service Manual – PDF DOWNLOAD

Description

Daihatsu Cuore Chassis Service Manual – PDF DOWNLOAD

FILE DETAILS:

Daihatsu Cuore Chassis Service Manual – PDF DOWNLOAD

PN 9725-LE

Language : English
Pages : 426
Downloadable : Yes
File Type : PDF

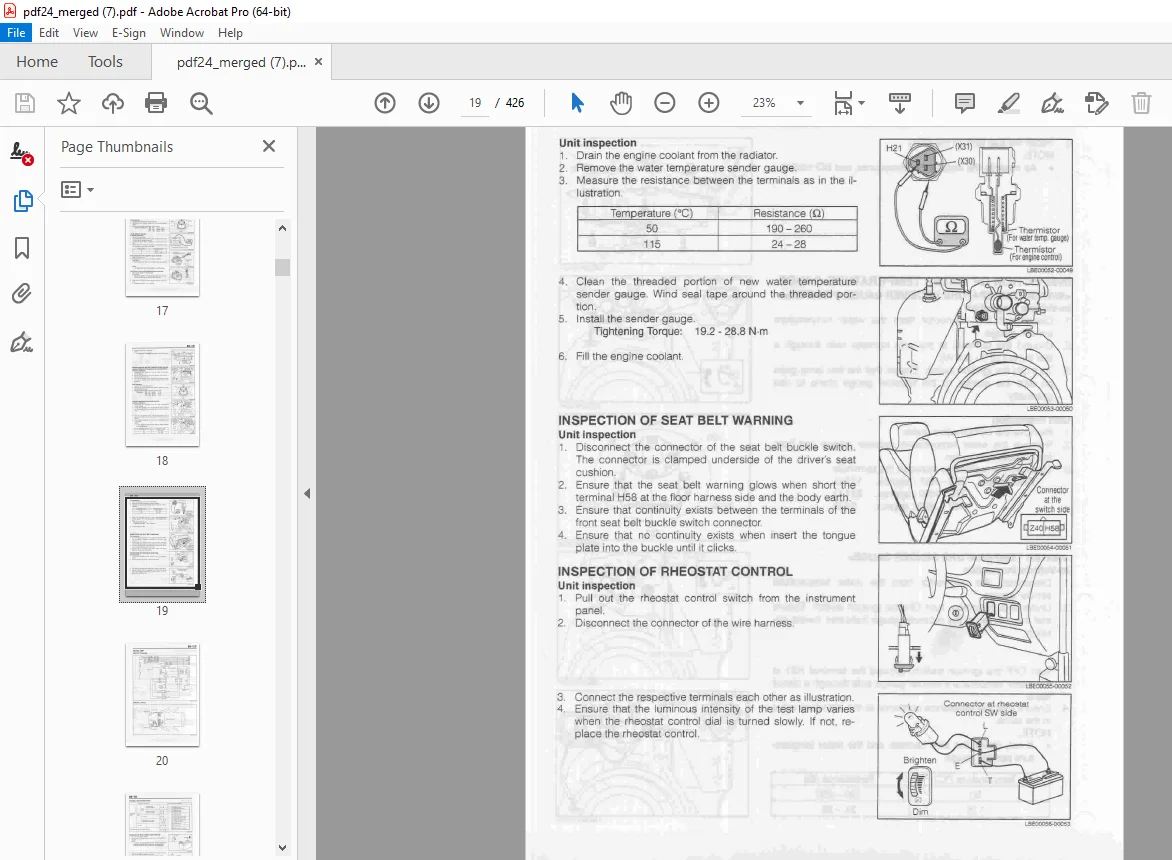

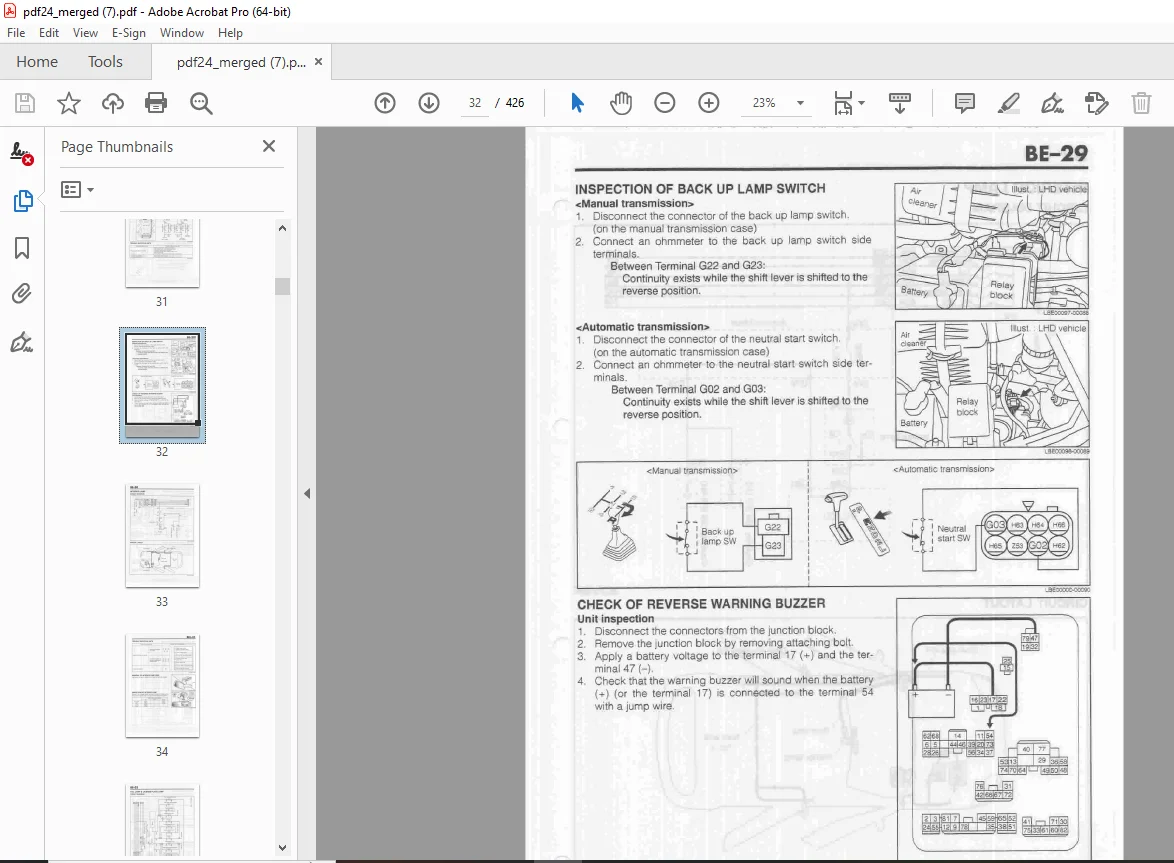

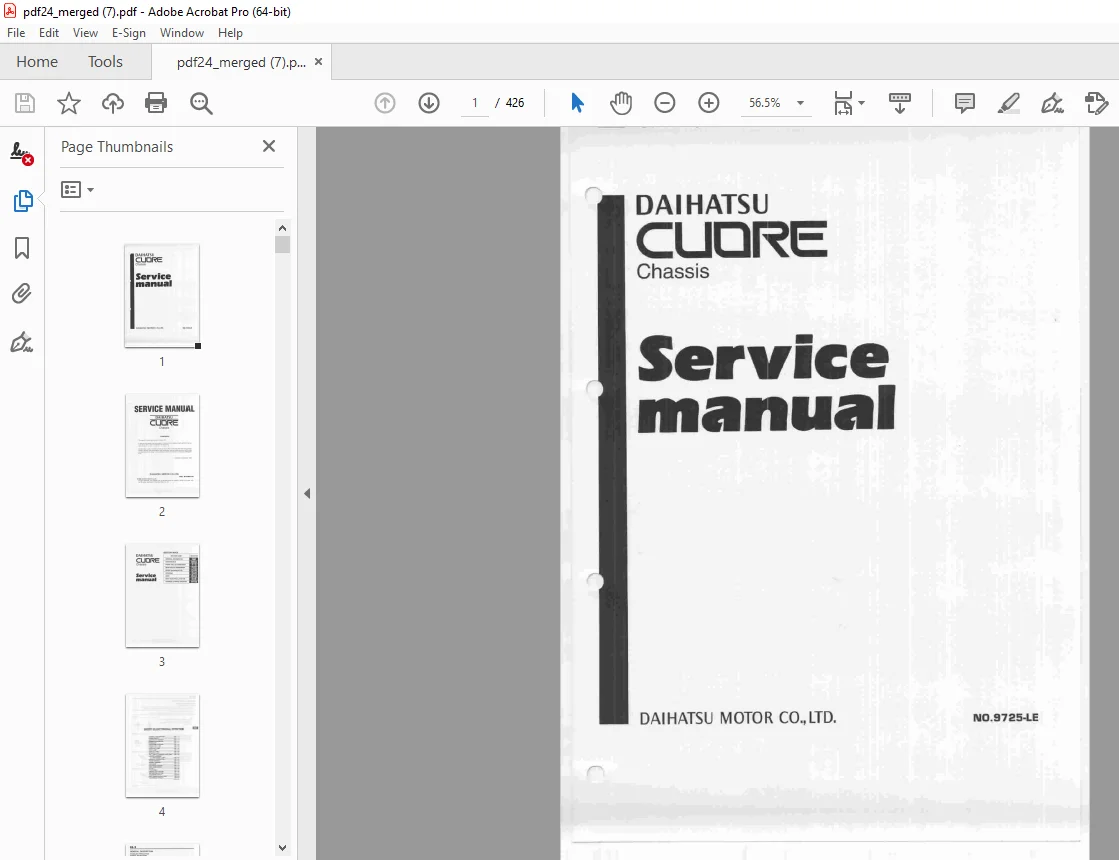

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Daihatsu Cuore Chassis Service Manual – PDF DOWNLOAD

PN 9725-LE

GENERAL INFORMATION
MAINTENANCE
FRONT AXLE & SUSPENSION
REAR AXLE & SUSPENSION
BRAKE (Including A.B.S)
STEERING
BODY
BODY ELECTRICAL SYSTEM
HARNESS & WIRING DIAGRAM

DESCRIPTION:

Daihatsu Cuore Chassis Service Manual – PDF DOWNLOAD

PN 9725-LE

FOREWORD:

•  This manual is a service manual for model L701.
• In this service manual, the entire portion is divided into 9 sections. Each section has an index along with a table of contents in the beginning.
• All information used in this service manual was in effect at the time when the manual was printed. However, the specifications and procedures may be revised owing to continuing improvements in the design without advance notice and without incurring any obligation
  to us.

HANDLING PRECAUTION:
GENERAL INSTRUCTIONS:
1. Never pull the connectors or step on them during the wire harness transport or assembly. (Prevention of pulling-out of terminals, connector cracks, deformation and so forth.)
2. Care must be exercised to ensure that no scratch is made to the wire harness by burrs or edges during the wire harness transport or assembly
(Prevention of scratches to the outer trim, electrical insulators and so forth.)
3. Clamping method. In the case of resin clamps, ensure that the clamp section is fitted in the body hole.

NOTE:

• Ensure that the clamp will not be detached when it is pulled lightly in the arrow-headed direction.
  (Prevention of interference due to the detachment of the clamp)
• In the case of metal sheet welded clamps, be sure to assemble the harness in such a way that the hamess will not come in contact with the welded surface. TH (Prevention of wire harness damage due to welding burrs) 3-30
• In case that the locating guide of the clamp position or the clamp mark is clamped, make sure that the clamp is located within the guide. As for the clamp at the clamp mark section, ensure that the clamping is made at a point within 10 mm.
  (Prevention of slackness or interference)
