DAEWOO DOOSAN WHEEL LOADER DL420-5 ROCO (NEW YORK BID-21CP) SHOP MANUAL 950106-01223EROCO – PDF DOWNLOAD
DESCRIPTION:
DAEWOO DOOSAN WHEEL LOADER DL420-5 ROCO (NEW YORK BID-21CP) SHOP MANUAL 950106-01223EROCO – PDF DOWNLOAD
GENERAL
- Safe Operation is Operator’s Responsibility Only trained and authorized personnel should operate and maintain the machine. Follow all safety rules, regulations and instructions when operating or performing maintenance on machine.
- • Do not operate machine if you are under the influence of drugs or alcohol. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate the machine.
- • When working with other personnel on a work site, be sure that all personnel know the nature of work and understand all hand signals that are to be used. • Be sure that all guards and shields are installed in their proper location. Have guards and shields repaired or replaced immediately if damaged.
- • Be sure that you understand the use and maintenance of all safety features such as pilot cutoff switch and seat belt. Use them always. • Never remove, modify or disable any safety features. Always keep them in good operating condition.
- • Always check for and know the location of underground and overhead utility lines before working. • Failure to use and maintain safety features according to instructions in this manual, Safety Manual and Shop Manual can result in death or serious injury.
Know Your Machine
Know how to operate your machine. Know the purpose of all controls, gauges, signals, indicators and monitor displays. Know the rated load capacity, speed range, braking and steering characteristics, turning radius and operating clearances. Keep in mind that rain, snow, ice, loose gravel, soft ground, slopes, etc., can change operating capabilities of your machine.
Proper Work Tools and Attachments
- Only use work tools and attachments that are recommended by DOOSAN for use on DOOSAN machines. When installing and using optional attachments, read instruction manual for attachment, and general information related to attachments in this manual. Because DOOSAN cannot anticipate, identify or test all attachments that owners may want to install on their machines, contact DOOSAN for written authorization and approval of attachments, and their compatibility with optional kits.
- Attachments and attachment control systems that are compatible with the machine are required for safe and reliable machine operation. Do not exceed maximum operating weight (machine weight plus attachment) that is listed on ROPS certification plate. Make sure that all guards and shields are in place on machine and on work tool.
- Depending on type or combination of work equipment, there is a potential that work equipment could interfere with the cabin or other parts of machine. Before using unfamiliar work equipment, check if there is any potential for interference, and operate with caution.
- While you are performing any maintenance, testing, or adjustments to attachments, stay clear of the following areas: cutting edges, pinch points, and crushing surfaces. Never use attachment as a work platform or manlift. Contact your DOOSAN distributor about auxiliary hydraulic kits for attachments installation. If you are in doubt about the compatibility of a particular attachment with the machine, consult your DOOSAN distributor.
Pressurized Fluids
- Pressurized air or fluids can cause debris and/or fluids to be blown out. This could result in death or serious injury. Immediately after operation is stopped, coolant, engine oil, and hydraulic oil are at their highest temperatures and the radiator and hydraulic tank are still under pressure. Always wait for temperature to cool down. Follow specified procedures when attempting to remove caps, drain oil or coolant, or replacing filters. Always wait for temperature to cool down, and follow specified procedures when performing these operations. Failure to do so can result in death or serious injury.
- When pressurized air and/or pressurized water is used for cleaning, wear protective clothing, protective shoes, and eye protection. Eye protection includes goggles or a protective face shield. Pressure can be trapped in a hydraulic system and must be relieved before maintenance is started. Releasing trapped pressure can cause sudden machine movement or attachment movement.
- Use caution if you disconnect hydraulic lines or fittings. High-pressure oil that is released can cause a hose to whip or oil to spray. Fluid penetration can result in death or serious injury. If fluid enters skin or eyes, get immediate medical attention from a physician familiar with this injury. Obey all local laws and regulations for disposal of liquids. To prevent hot coolant from spraying out, stop engine and wait for coolant to cool. Using gloves, slowly loosen cap to relieve pressur
TABLE OF CONTENTS:
DAEWOO DOOSAN WHEEL LOADER DL420-5 ROCO (NEW YORK BID-21CP) SHOP MANUAL 950106-01223EROCO – PDF DOWNLOAD
1 Wheel Loader Safety
2 Specifications 1 Specifications
3 General Maintenance 1 General Maintenance Instructions
2 Standard Torques
4 Engine 1 Engine
5 Drivetrain 1 Transmission and Torque Converter (4WG)
2 Transmission and Torque Converter (5WG) (Option)
3 Front Axle
4 Rear Axle
5 Driveshaft
6 Steering 1 Power Steering System
2 Steering Unit
3 Steering Pump
4 Flow Amplifier
5 Jerk Softener and Accumulator
7 Brake 1 Service Brake
2 Brake and Pilot Supply Valve
3 Charging Block
4 Parking Brake
5 Brake Pedal Valve
6 Accumulator
7 Brake Filter
1 Cooling System
2 Fan and Brake Pump
3 Fan Motor
4 Fan Control Valve
9 Hydraulic System 1 Main Pump
2 Main Control Valve
3 Pilot System
4 Hydraulic System
5 Hydraulic System Troubleshooting
10 Frame 1 Articulation Center
2 Cabin
3 Counterweight
4 Oil Tank
5 Fuel Tank
6 Cylinders
11 Electrical System 1 Electrical System
2 Air Conditioner
12 Options 1 Emergency Steering
2 Load Isolation System
3 3rd Control Valve
4 Auto Grease System
13 Schematic 1 Hydraulic Schematic/Electrical Schematic
VIDEO PREVIEW OF THE MANUAL:

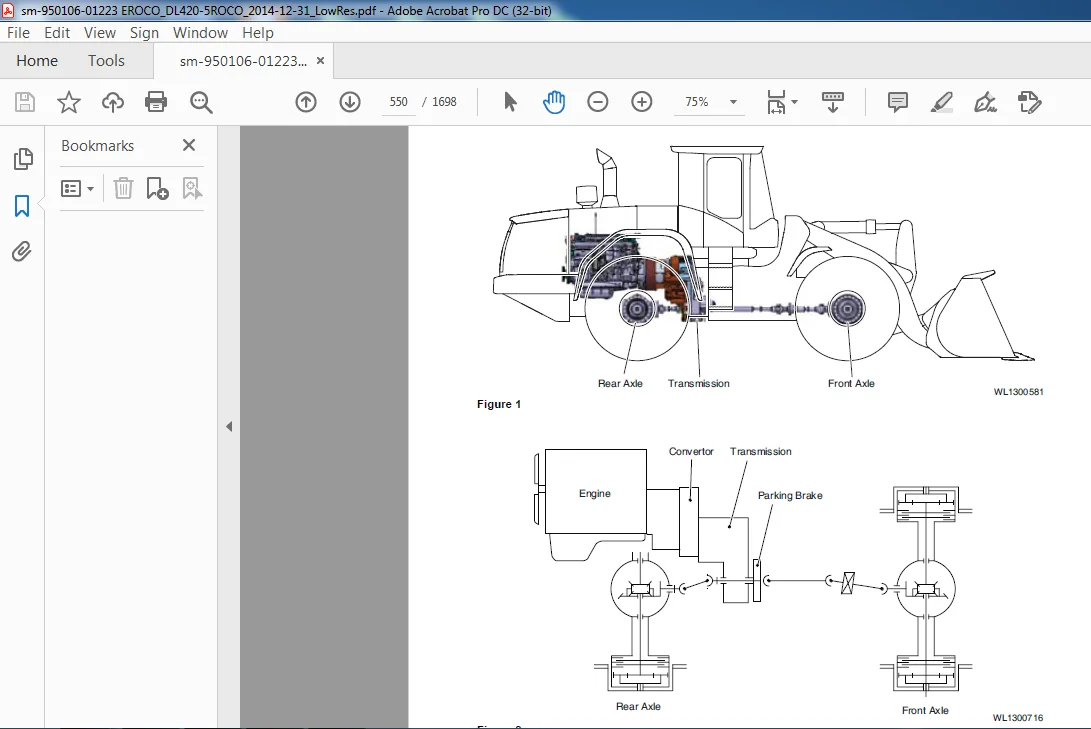

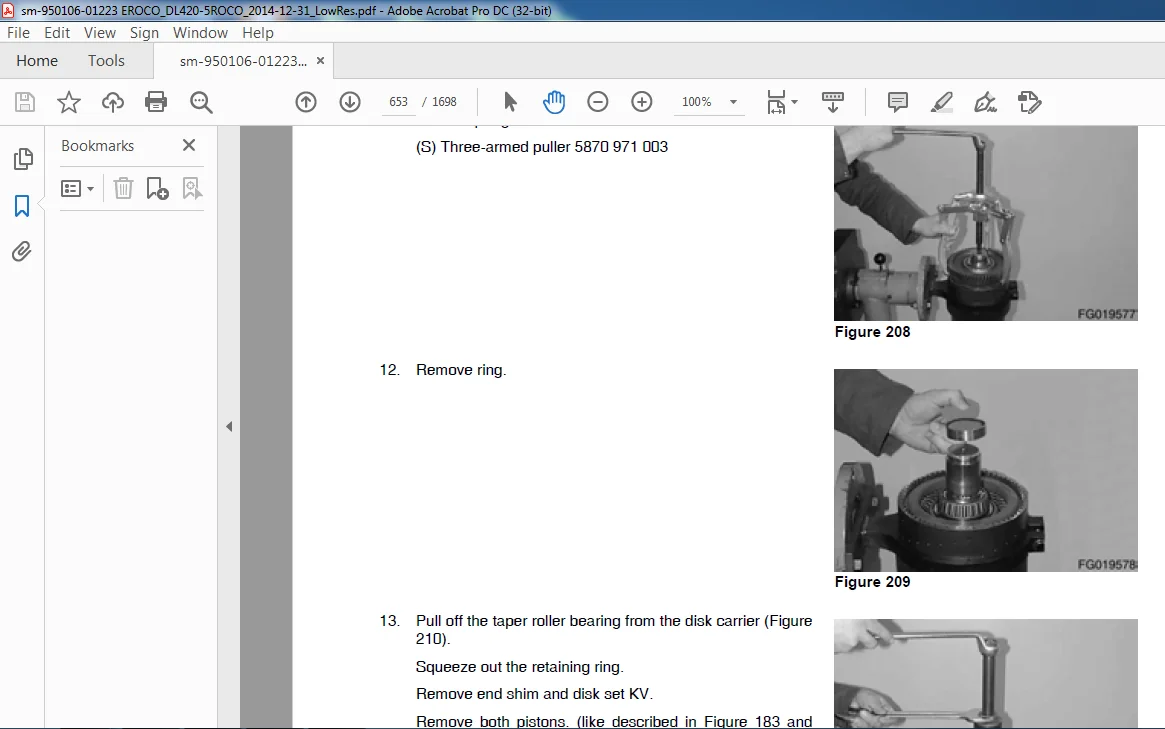

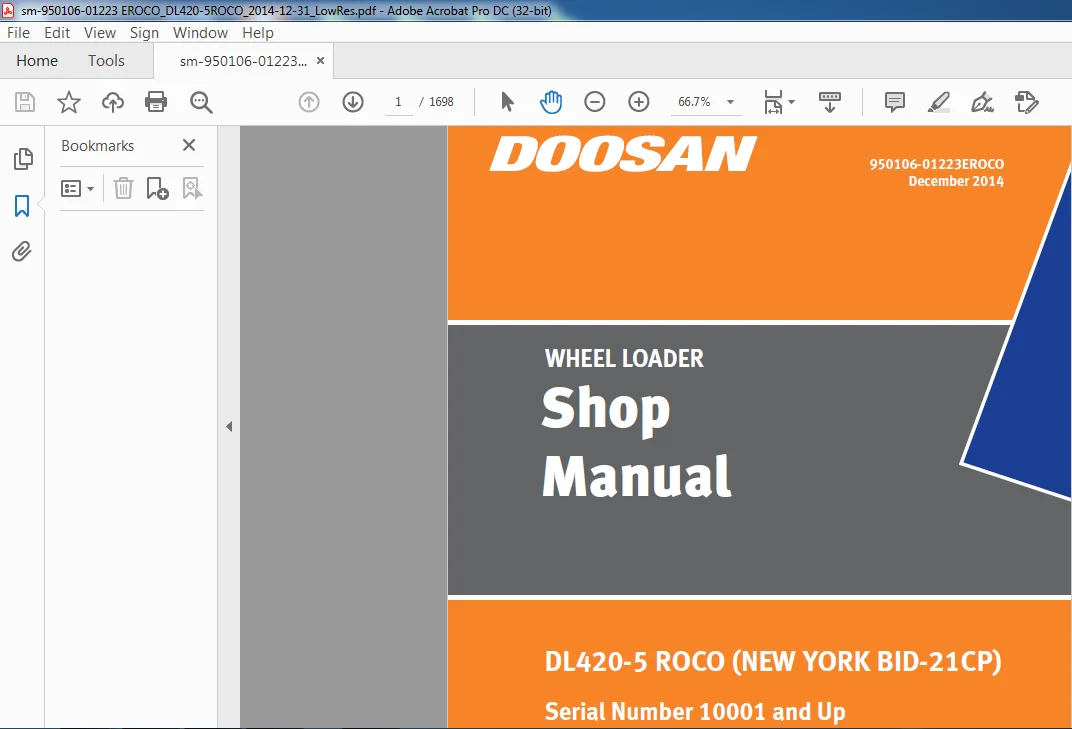

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
