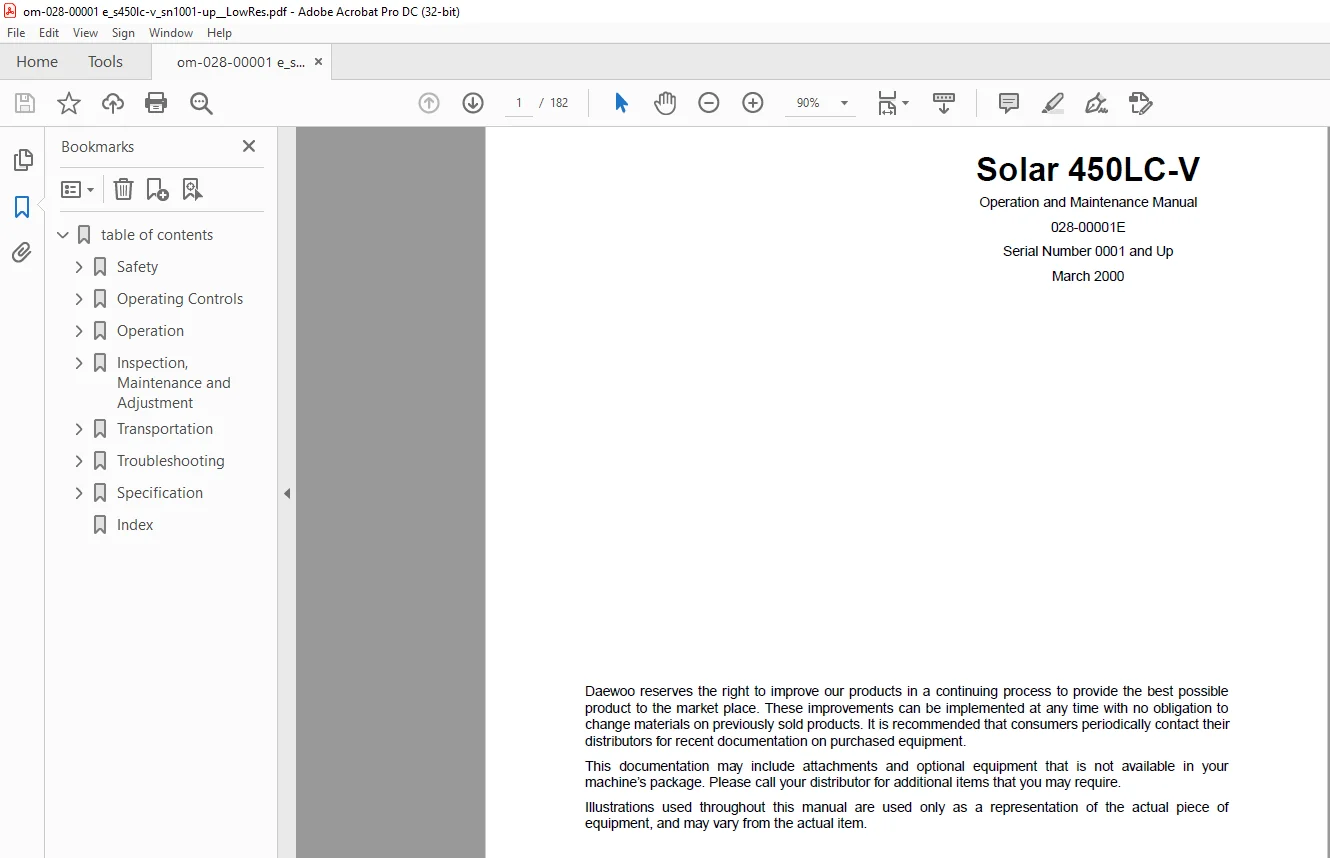

Serial Number 0001 and Up

$28.95 $80.00

  Happy to Help You :) Any queries / Requests? CLICK HERE to ask!

DAEWOO DOOSAN SOLAR 450LC V EXCAVATOR Operation and Maintenance Manual 028 00001E – PDF DOWNLOAD

DESCRIPTION:

DAEWOO DOOSAN SOLAR 450LC V EXCAVATOR Operation and Maintenance Manual 028 00001E – PDF DOWNLOAD

  • Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
  • It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
  • Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.

TO THE OPERATOR OF A DAEWOO EXCAVATOR

Unsafe use of the excavator could lead to serious injury or death. Operating procedures, maintenance and equipment practices or traveling or shipping methods that do not follow the safety guidelines on the following pages could cause serious, potentially fatal injuries or extensive damage to the machine or nearby property
Please respect the importance of taking responsibility for your own safety, and that of other people who may be affected by your actions.

The safety information on the following pages is organized into the following sections:

1. “General Safety Essentials” on page 1-3
2. “Location of Safety Labels” on page 1-4
3. “Summary of Safety Precautions for Lifting in Digging Mode” on page 1-10
4. “Work-site Precautions” on page 1-11
5. “Operation” on page 1-14
6. “Equipment” on page 1-19
7. “Maintenance” on page 1-23
8. “Shipping and Transportation” on page 1-25
9. “Excavator Rated Lift Capacity Tables” on page 1-26

  • Improper operation and maintenance of this machine can be hazardous and could result in serious injury or death. Operator and maintenance personnel should read this manual thoroughly before beginning operation or maintenance. Keep this manual in the storage compartment to the rear of the operator’s seat, and have all personnel involved in working on the machine read the manual periodically.
  • Some actions involved in operation and maintenance of the machine can cause a serious accident, if they are not done in a manner described in this manual. The procedures and precautions given in this manual apply only to intended uses of the machine. If you use your machine for any unintended uses that are not specifically prohibited, you must be sure that it is safe for any others.
  • In no event should you or others engage in prohibited uses or actions as described in this manual. Daewoo delivers machines that comply with all applicable regulations and standards of the country to which it has been shipped. If this machine has been purchased in another country or purchased from someone in another country, it may lack certain safety devices and specifications that are necessary for use in your country
  • . If there is any question about whether your product complies with the applicable standards and regulations of your country, consult Daewoo or your Daewoo distributor before operating the machine.

GENERAL SAFETY ESSENTIALS

ACCESSORY APPLICATIONS

The excavator has been primarily designed for moving earth with a bucket. For use as a grapple or for other object handling, contact Daewoo for proper installation and application. Lifting-work applications (unless restricted or prohibited by local regulations) are permitted in approved lift configuration, to rated capacity only, with no side-loading. DO NOT use the machine for activities for which it was not intended. DO NOT use the bucket for lifting work, unless lift slings are used in the approved configuration. Use of an accessory hydraulic hammer (breaker), work in rough terrain, demolition applications or other hazardous operation may require installation of additional protective structures to safeguard the operator.

LIFTING CAPACITY RATING CONFIGURATION

Lifting capacity ratings that are printed at the end of this safety section are based on the machine being level, on a firm supporting surface, with hooks and slings attached in approved configuration. Loads must be balanced and supported evenly. Use taglines to keep the load steady if wind conditions and large surface area are a problem. Work crew hand signals, individual tasks and safe procedures should all be universally understood before the lift is made.

LOCATION OF SAFETY LABELS

Location of safety labels (decals) can vary from unit to unit. Refer to appropriate Operation and Maintenance Manual, and parts manual for your unit. Always replace damaged or faded decals.

IMPORTANT

Before using the excavator to make lifts check municipal and regional regulations or statutes that could apply. Governing ordinances may require that all heavy lifting be done with single purpose equipment specifically designed for making lifts, or other local restrictions may apply. Making heavy lifts with a general purpose excavator that can be used for digging, loading, grading or other work may be expressly forbidden by a regional injunction or other legal prohibition. Always follow all of the other instructions, guidelines and restrictions for Safe Lifting in the Operation and Maintenance Manuals.

TABLE OF CONTENTS:

DAEWOO DOOSAN SOLAR 450LC V EXCAVATOR Operation and Maintenance Manual 028 00001E – PDF DOWNLOAD

Safety……………………………………………………………………………. 1-1
To the Operator of a Daewoo Excavator………………………………………1-1
General Safety Essentials………………………………………………………..1-3
Location of Safety Labels…………………………………………………………1-4
Summary of Safety Precautions for Lifting in Digging Mode………..1-10
Work-site Precautions……………………………………………………………1-11
Operation………………………………………………………………………………1-14
Equipment……………………………………………………………………………1-19
Maintenance………………………………………………………………………….1-23
Shipping and Transportation…………………………………………………….1-25
Excavator Rated Lift Capacity Tables……………………………………….1-26
Operating Controls………………………………………………………… 2-1
Component Locations……………………………………………………………..2-2

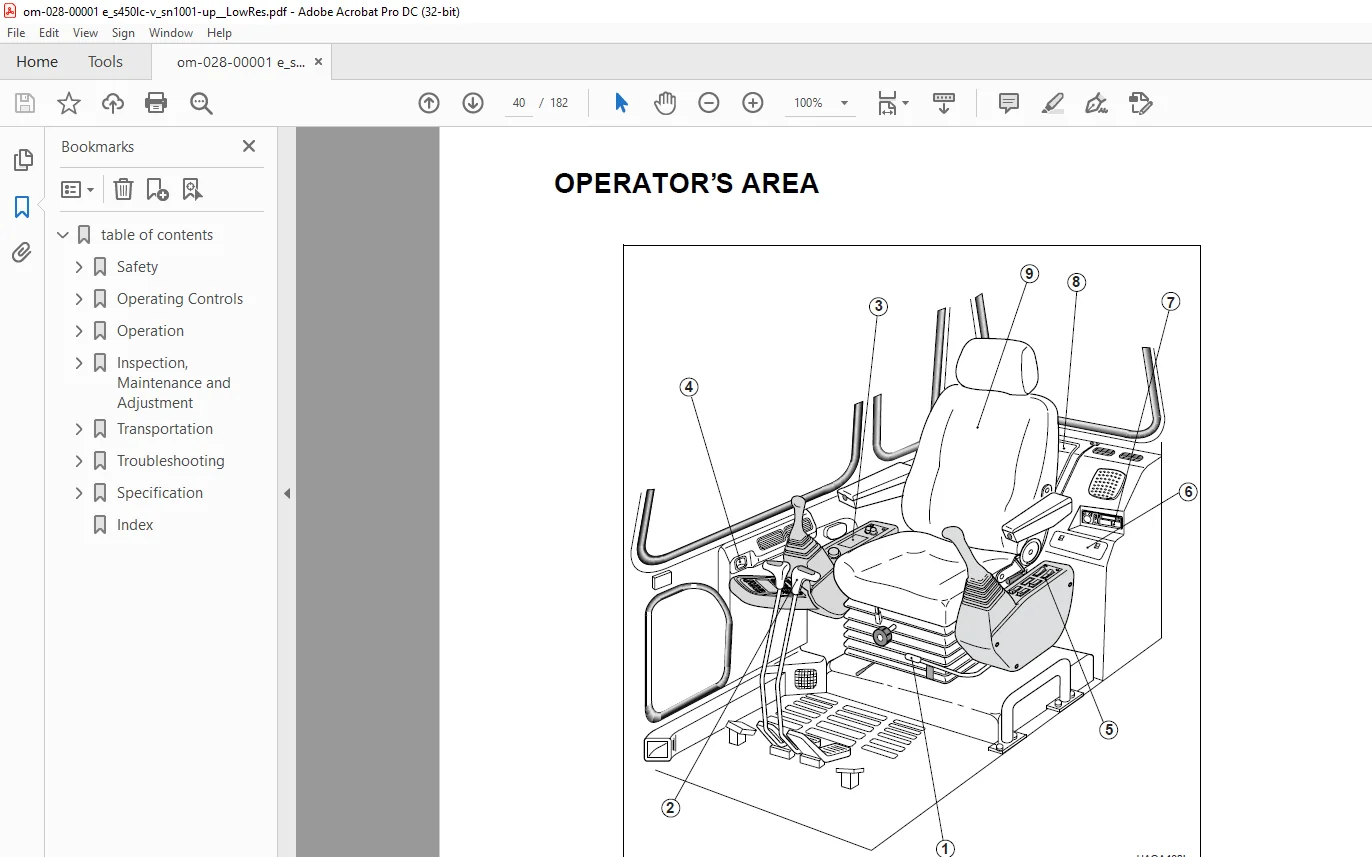

Operator’s Area………………………………………………………………………2-4
Operational Controls and Panels………………………………………………..2-5
Instrument Panel…………………………………………………………………..2-11
Mode Selection Switches……………………………………………………….2-16
Heater and Air Conditioning Control Panel…………………………………2-17
Stereo…………………………………………………………………………………..2-21
Miscellaneous Electrical Devices…………………………………………….2-25
Seat Adjustment……………………………………………………………………2-26
Seat Belt………………………………………………………………………………2-27
Ceiling Cover………………………………………………………………………..2-28
Front Windows……………………………………………………………………….2-29
Door Side Latch……………………………………………………………………..2-32
Miscellaneous Access Covers and Doors…………………………………2-33
Cab Storage Compartments…………………………………………………….2-34
Ashtray………………………………………………………………………………..2-34
Emergency Glass Breaking Tool……………………………………………..2-35
Operation………………………………………………………………………. 3-1
To Handle a New Excavator……………………………………………………..3-1
Starting and Stopping the Engine……………………………………………….3-2
Safety Lever…………………………………………………………………………..3-13
Travel…………………………………………………………………………………..3-14
Operating Instructions……………………………………………………………3-19
Operating Precautions…………………………………………………………….3-26
Parking Excavator…………………………………………………………………..3-31
Towing Procedure…………………………………………………………………..3-32
Hydraulic Breaker………………………………………………………………….3-33
Inspection, Maintenance and Adjustment……………………….. 4-1
Preliminary Work Machine Setup for Maintenance………………………4-2
Table of Recommended Lubricants……………………………………………4-4
Maintenance Intervals……………………………………………………………..4-6
10 Hour / Daily Service……………………………………………………………..4-8
50 Hour / Weekly Service……………………………………………………….4-15
150 Hour Service……………………………………………………………………4-19
250 Hour / Monthly Service…………………………………………………….4-21
500 Hour / 3 Month Service……………………………………………………..4-22
1000 Hour / 6 Month Service……………………………………………………4-29
2000 Hour / Yearly Service……………………………………………………..4-34
4000 Hour / Biennial Service……………………………………………………4-35
Venting and Priming Hydraulic System…………………………………….4-36
Handling of Accumulator………………………………………………………..4-38
Fuel Transfer Pump……………………………………………………………….4-39
Electrical System……………………………………………………………………4-41
Bucket…………………………………………………………………………………..4-45
Bucket Shimming Procedures…………………………………………………4-48
Track Tension…………………………………………………………………………4-49
Bolt and Nut Inspection………………………………………………………….4-51
Maintenance in Special Conditions………………………………………….4-52
Long Term Storage…………………………………………………………………4-53
028-00001E Operation and Maintenance Manual Table of Contents III
Transportation………………………………………………………………… 5-1
Loading and Unloading……………………………………………………………5-1
Troubleshooting…………………………………………………………….. 6-1
Engine…………………………………………………………………………………..6-1
Hydraulic System……………………………………………………………………..6-2
Swing System………………………………………………………………………….6-3
Electrical System……………………………………………………………………..6-4
Travel System…………………………………………………………………………6-5
Specification…………………………………………………………………… 7-1
Standard Specification…………………………………………………………….7-1

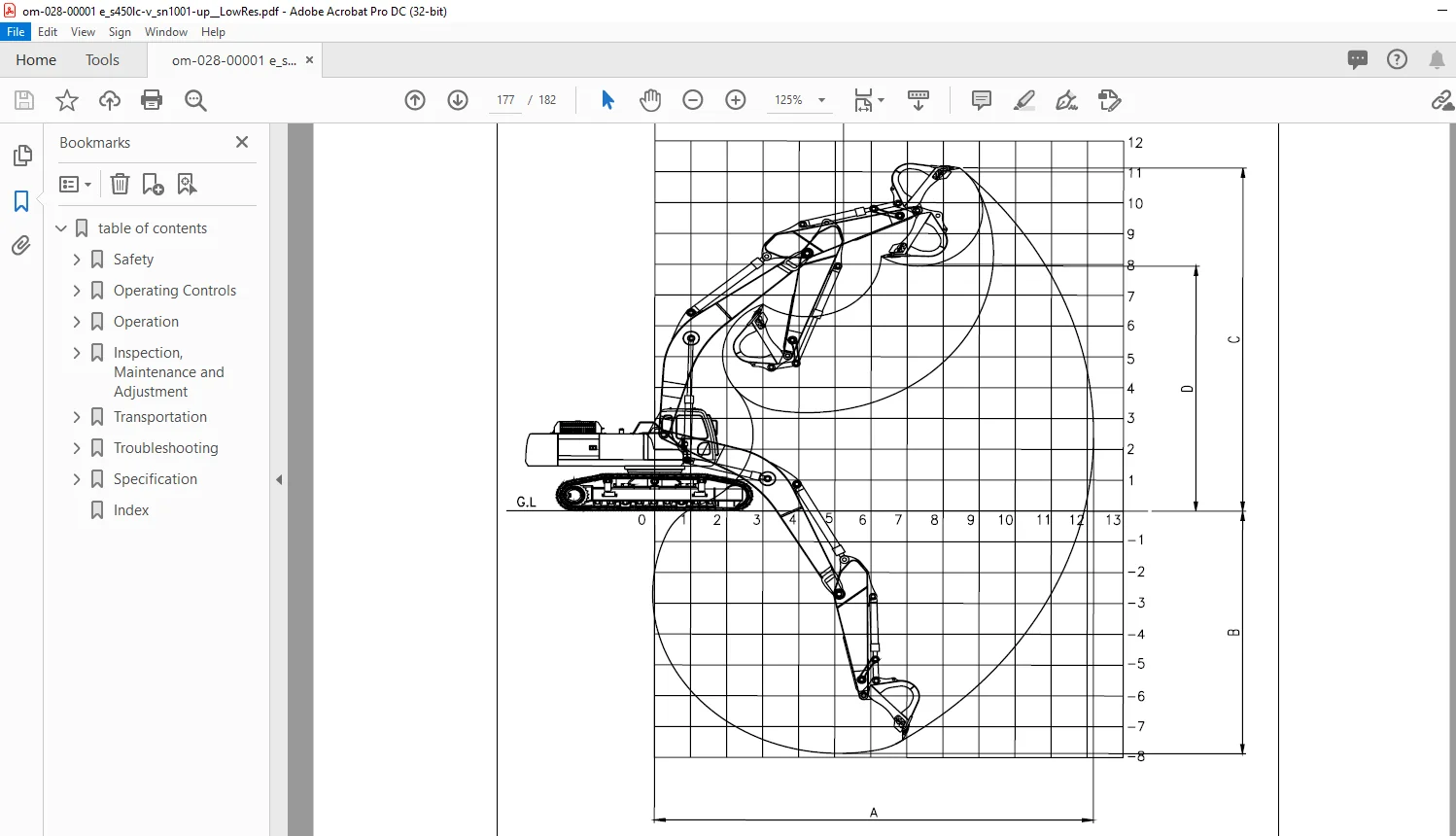

Working Range………………………………………………………………………..7-3
Index………………………………………………………………………………. 8-1
