DAEWOO DOOSAN Solar 180W—V EXCAVATOR Shop MANUAL 023 00068E – PDF DOWNLOAD
DESCRIPTION:
DAEWOO DOOSAN Solar 180W—V EXCAVATOR Shop MANUAL 023 00068E – PDF DOWNLOAD
- Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
- It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
- Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.
TO THE OPERATOR OF A DAEWOO EXCAVATOR
Unsafe use of the excavator could lead to serious injury or death. Operating procedures, maintenance and equipment practices or traveling or shipping methods that do not follow the safety guidelines on the following pages could cause serious, potentially fatal injuries or extensive damage to the machine or nearby property.
- Please respect the importance of taking responsibility for your own safety, and that of other people who may be affected by your actions.The safety information on the following pages is organized into the following sections:
1. “General Safety Essentials” on page 6
2. “Location of Safety Labels” on page 6
3. “Summary of Safety Precautions for Lifting in Digging Mode” on page 7
4. “Unauthorized Modifications” on page 8
5. “General Hazard Information” on page 8
6. “Before Starting Engine” on page 17
7. “Machine Operation” on page 20
8. “Maintenance” on page 25
9. “Battery” on page 33
10. “Towing” on page 35
11. “Shipping and Transportation” on page 36
12. “Lifting With Sling” on page 36
Improper operation and maintenance of this machine can be hazardous and could result in serious injury or death. Operator and maintenance personnel should read this manual thoroughly before beginning operation or maintenance. Keep this manual in the storage compartment to the rear of the operator’s seat, and have all personnel involved in working on the machine read the manual periodically. Some actions involved in operation and maintenance of the machine can cause a serious accident, if they are not done in a manner described in this manual. The procedures and precautions given in this manual apply only to intended uses of the machine. If you use your machine for any unintended uses that are not specifically prohibited, you must be sure that it is safe for any others. In no event should you or others engage in prohibited uses or actions as described in this manual. Daewoo delivers machines that comply with all applicable regulations and standards of the country to which it has been shipped. If this machine has been purchased in another country or purchased from someone in another country, it may lack certain safety devices and specifications that are necessary for use in your country. If there is any question about whether your product complies with the applicable standards and regulations of your country, consult Daewoo or your Daewoo distributor before operating the machine.
ACCESSORY APPLICATIONS
The excavator has been primarily designed for moving earth with a bucket. For use as a grapple or for other object handling, contact Daewoo for proper installation and application. Lifting-work applications (unless restricted or prohibited by local regulations) are permitted in approved lift configuration, to rated capacity only, with no side-loading. DO NOT use the machine for activities for which it was not intended. DO NOT use the bucket for lifting work, unless lift slings are used in the approved configuration. Use of an accessory hydraulic hammer (breaker), work in rough terrain, demolition applications or other hazardous operation may require installation of additional protective structures to safeguard the operator. LIFTING CAPACITY RATING CONFIGURATION Lifting capacity ratings that are printed at the end of this safety section are based on the machine being level, on a firm supporting surface, with hooks and slings attached in approved configuration. Loads must be balanced and supported evenly. Use taglines to keep the load steady if wind conditions and large surface area are a problem. Work crew hand signals, individual tasks and safe procedures should all be universally understood before the lift is made.
LOCATION OF SAFETY LABELS
Location of safety labels (decals) can vary from unit to unit. Refer to appropriate Operation and Maintenance Manual, and parts manual for your unit. Always replace damaged or faded decals.
IMPORTANT
Before using the excavator to make lifts check municipal and regional regulations or statutes that could apply. Governing ordinances may require that all heavy lifting be done with single purpose equipment specifically designed for making lifts, or other local restrictions may apply. Making heavy lifts with a general purpose excavator that can be used for digging, loading, grading or other work may be expressly forbidden by a regional injunction or other legal prohibition. Always follow all of the other instructions, guidelines and restrictions for Safe Lifting in the Operation and Maintenance Manuals.
TABLE OF CONTENTS:
DAEWOO DOOSAN Solar 180W—V EXCAVATOR Shop MANUAL 023 00068E – PDF DOWNLOAD
Safety
Wheel Excavator Safety S0102025K
Specifications
Specifications for Solar 180W-V S0202065K
General Maintenance
General Maintenance ProceduresS0302000
Standard TorquesS0309000
Upper Structure
Cab S0402040K
Counterweight S0403015K
Fuel Tank S0405105K
Fuel Transfer PumpS0405500
Swing BearingS0407010
Swing Reduction GearboxS0408050
Lower Structure and Chassis
Ram Lock Valve OperationS0503000
Engine and Drive Train
Front Axle (ZF-Axle) S0602120
Rear Axle (ZF-Axle) S0602130
Air-Conditioner S0605060K
Transmission (ZF 2HL-100)S0607050
Drive Coupling (Main Pump) S0609010K
Hydraulics
Hydraulic System Troubleshooting, Testing and Adjustment S0702155K
Table of Contents
Page II
Accumulator S0703010K
Center Joint (Swivel)S0704070
CylindersS0705000
Swing MotorS0707260
Travel Motor S0707351K
Main Pump S0708307K
Brake Supply Valve S0709220
Counterbalance Valve S0709300
Main Control Valve (Toshiba DX28) S0709440
Pilot Control Valve (Work Lever / Joystick) S0709451K
Steering Valve S0709710
Dozer Control Valve S0709905K
Hydraulic Schematic (SOLAR 180W-V) S0792142K
Electrical System
Electrical System S0802125K
Electrical Schematic (Solar 180W-V) S0892145K
Attachments
Boom and ArmS0902120
BucketS0904000
To the Operator of a Daewoo Excavator 3
General Safety Essentials 6
Location of Safety Labels 6
Summary of Safety Precautions for Lifting in Digging Mode 7
Unauthorized Modifications 8
General Hazard Information 8
Before Starting Engine 17
Machine Operation 20
Maintenance 25
Battery 33
Towing 35
Shipping and Transportation 36
Lifting With Sling
VIDEO PREVIEW OF THE MANUAL:

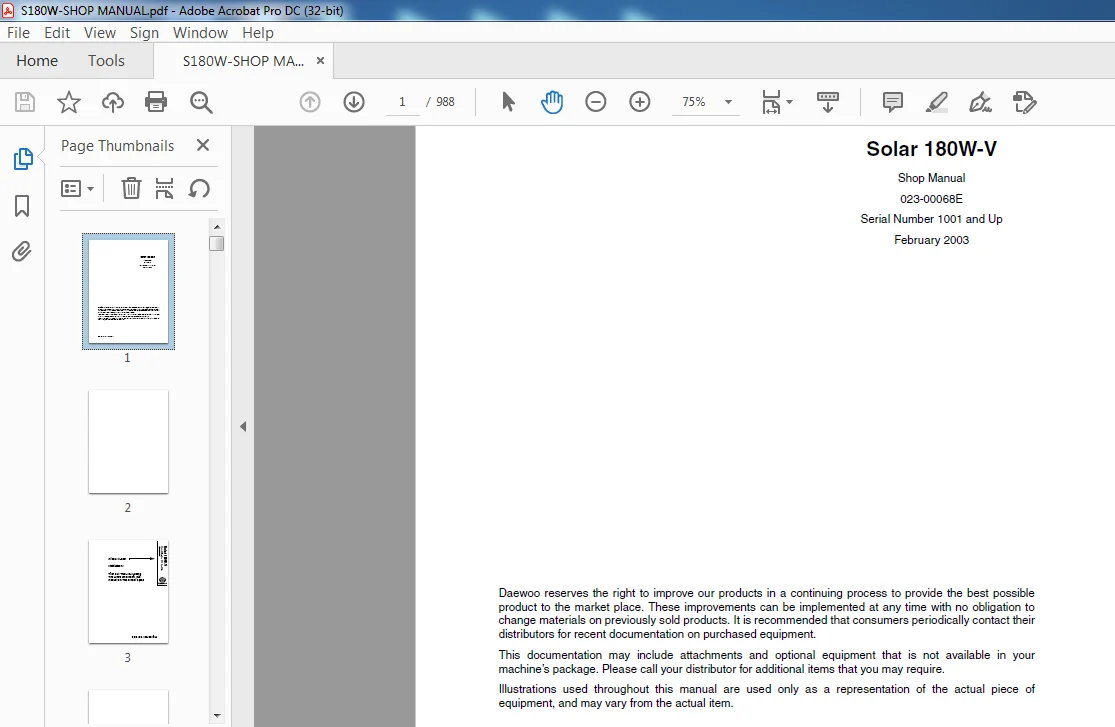

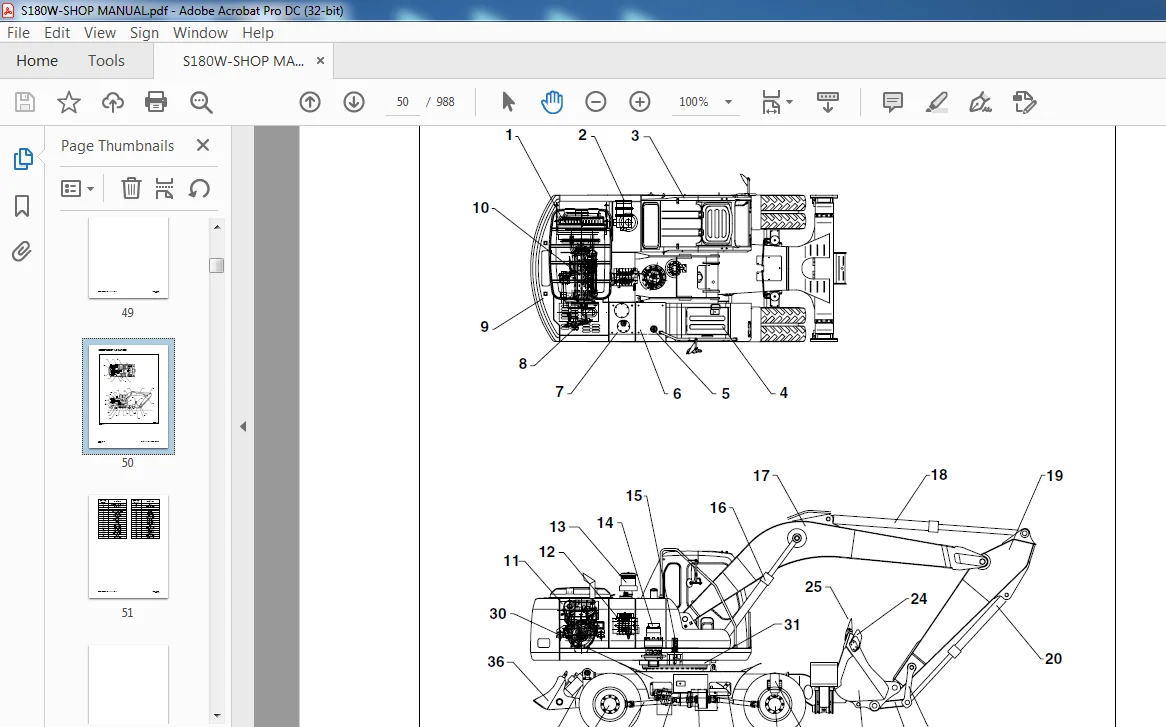

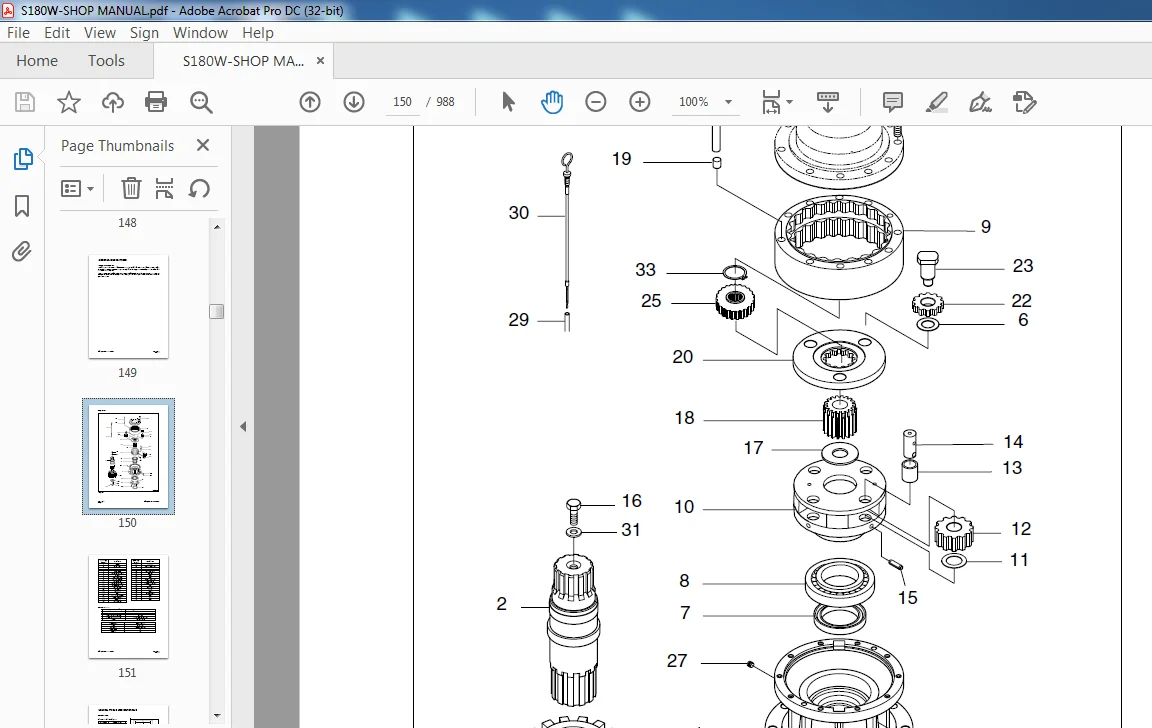

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.M
