Daewoo Doosan 1550XL(DSL702) 1760XL(DSL802-D430) 2060XL(DSL902) Skid Steer Loader Shop Manual

Daewoo Doosan 1550XL(DSL702) 1760XL(DSL802-D430) 2060XL(DSL902) Skid Steer Loader Shop Manual – PDF DOWNLOAD

DESCRIPTION:

Daewoo Doosan 1550XL(DSL702) 1760XL(DSL802-D430) 2060XL(DSL902) Skid Steer Loader Shop Manual

Shop Manual For Skid Steer Loaders
1550XL(DSL702)
1760XL(DSL802)
2060XL(DSL902)

• This manual provides information for servicing the 1760XL(DSL802) skid steer loader. All service procedures are broken down into detailed steps, listed in their recommended sequence. The manual uses both photographs and drawings to help locate and itemize components.
• The table of Contents on the preceding pages is your best tool for finding the service procedure you need. Be certain to observe all Safety information included in these pages.

General Precautions For Disassembly Preparations before disassembly :

• 1) Wash the machine before moving it to into the repair shop. Prior to moving the machine into the repair shop remove dust and dirt thoroughly by washing the machine. Dirt brought into the shop will degrade the cleanliness of the parts handled in the shop, will produce scratches, and can contaminate the inside of reassembled units.
• 2) Checking and inspection before disassembly. Before attempting to disassemble, check thoroughly to determine the cause of the problem, and record it. This will not only prevent needless disassembly and losses from needless replacement parts and manhour costs, but will also prevent repetition of the same problem. It is important to keep records of problems and replacements in order to advise serviceman how to prevent trouble. Items to be checked and recorded are as follows:
• Model, machine serial number and service meter readings.
• Reason for disassembly.
• Components replaced. Check for symptom, location and cause of problem. If necessary, try repeating the same problem.
• Amount of dirt in air cleaner elements and air leakage. •Oil levels in the engine oil pan and status of oil (viscosity, color and mixed impurities).
• Water mixed in the oil and oil leakage.
• Clogging of the oil filter element.
• Deviations from designated adjusting points.
• Damaged parts and loosening of tightening fittings.
• Maintenance conditions of the machine in service, if possible.
• 3) Preparation for disassembly To save unnecessary work, reserve the necessary facilities, tools, and parts racks as well as adequate floor space considering the extent of disassembly. Keep the area and facilities clean. Precautions For Disassembly
• 1) Removal of parts
• Proceed with the disassembly by confirming the fitting conditions of the relative parts, their positions fore-and aft, left-and-right, upper-and-lower, and the sequence of their removal.
• Confirm match marks for mating joints before separating parts and where necessary, punch match marks to clearly identify their relative position to prevent confusion during reassembly.
• For disassembly of certain designated parts, use specified special tools.
• When a part, after removal of fastening nuts and bolts, is still found to be unremovable, never force the part. Carefully check for the cause of the tightness and remove the cause.
• Keep the disassembled parts in an orderly condition. Take special care to identify similar parts by attaching tags or markings.
• See that standard parts such as bolts and nuts are stored in good order with reference to quantity and where they are to be used.
• 2) Checking and inspecting during disassembly.
• The cause of the actual trouble is often discovered in the course of disassembly. Thus careful checking of sliding surfaces for any signs of seizing or interference, and their mating conditions, is important.
• Measure and record during disassembly the various end clearances, backflashes and protrusions that are necessary to determine the trouble.


TABLE OF CONTENTS:

Daewoo Doosan 1550XL(DSL702) 1760XL(DSL802-D430) 2060XL(DSL902) Skid Steer Loader Shop Manual

TITLE  & FORM NUMBER
Service Manual Contents SB4032E00
FOREWORD
Safety & Foreword SB4033E00
ENGINE
D427 Diesel Engine (1550XL(DSL702)) SB4034E00
D430 Diesel Engine (1760XL(DSL802), 2060XL(DSL902)) SB4035E00
VEHICLE
Vehicle Systems SB4036E00
HYDRAULIC & HYDROSTATIC
Hydraulic & Hydrostatic Systems SB4037E00
ELECTRIC
Electric Systems SB4038E00
OPERATION & MAINTENANCE
Operation & Maintenance Manual SB2313E00
(1550XL(DSL702), 2060XL(DSL902))
Operation & Maintenance Manual SB2308E00

VIDEO PREVIEW OF THE MANUAL:

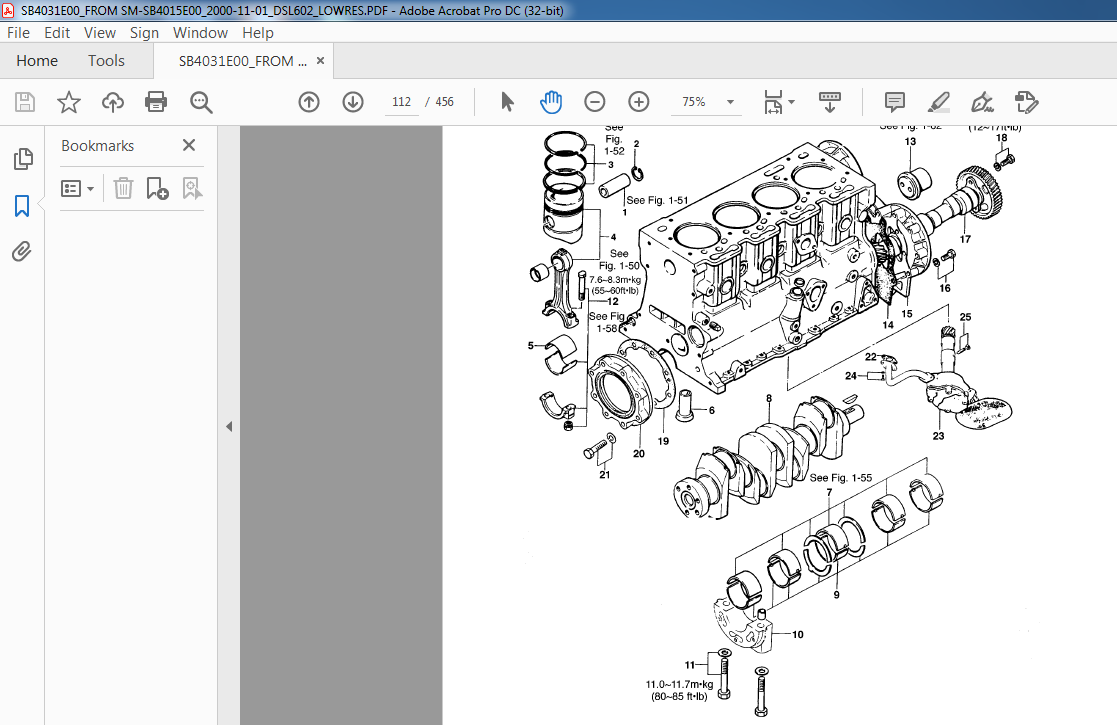

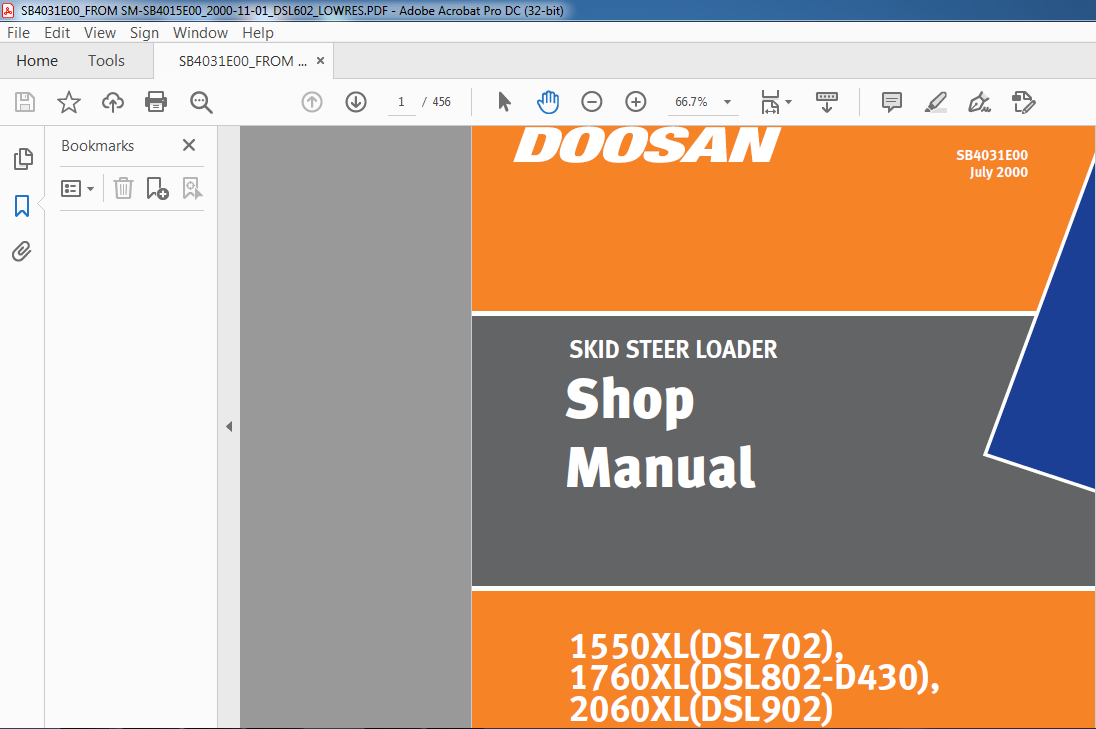

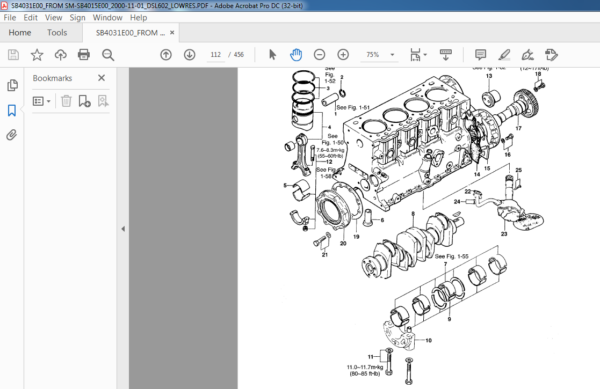

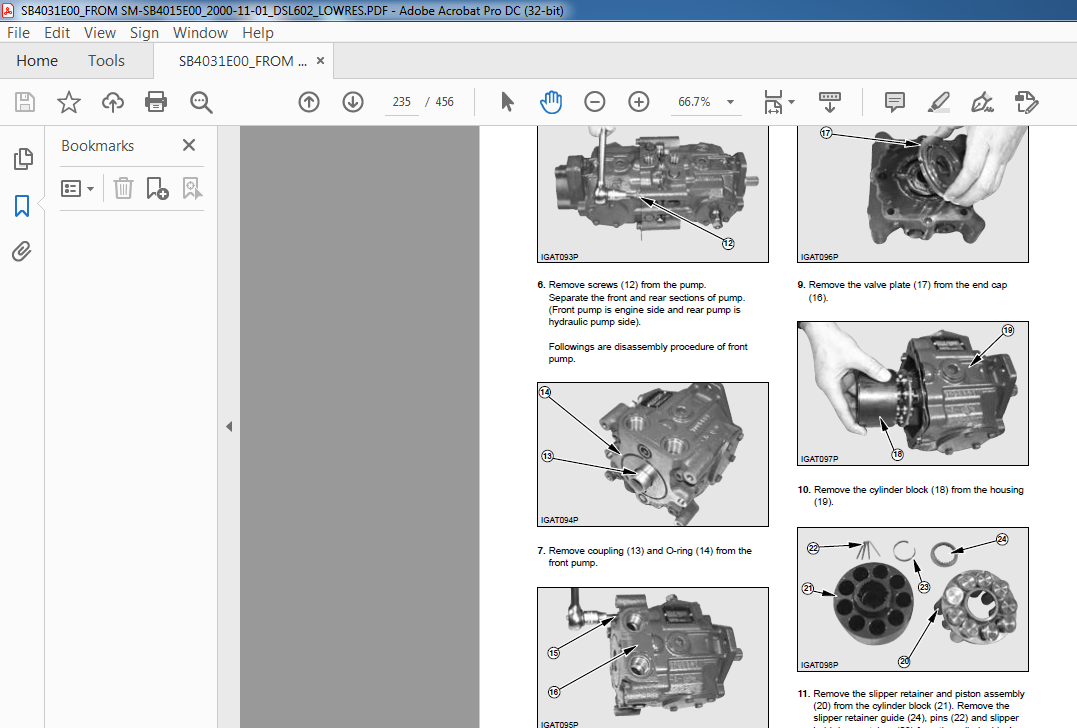

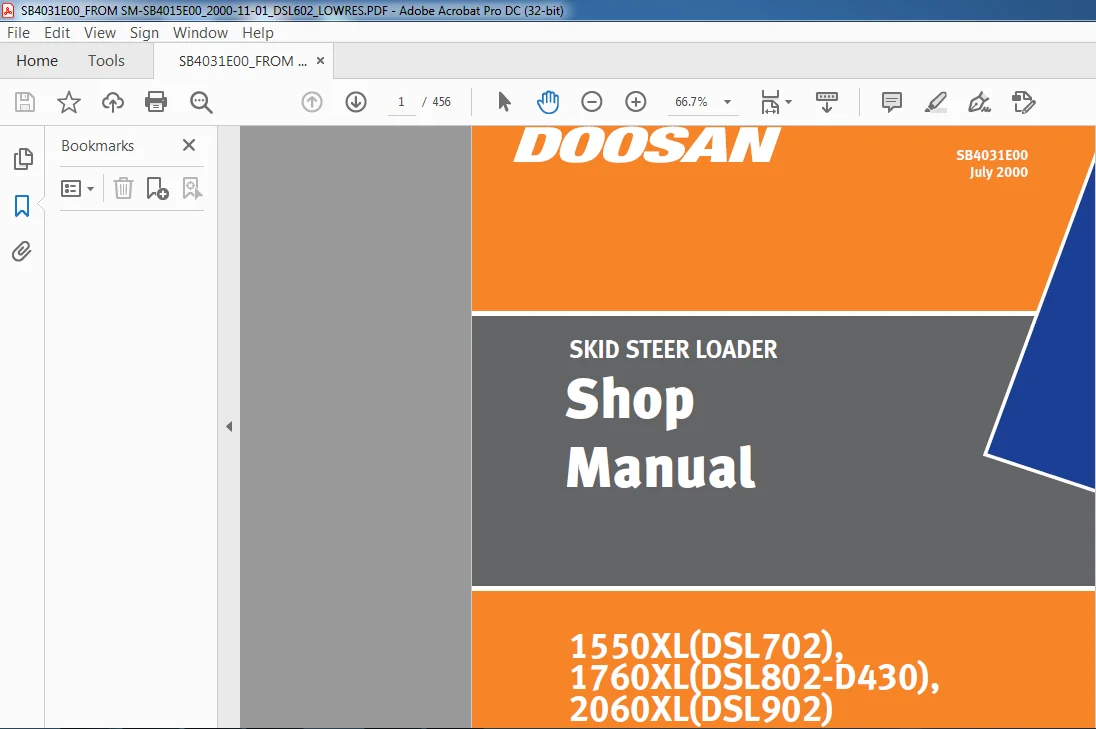

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

R.D
