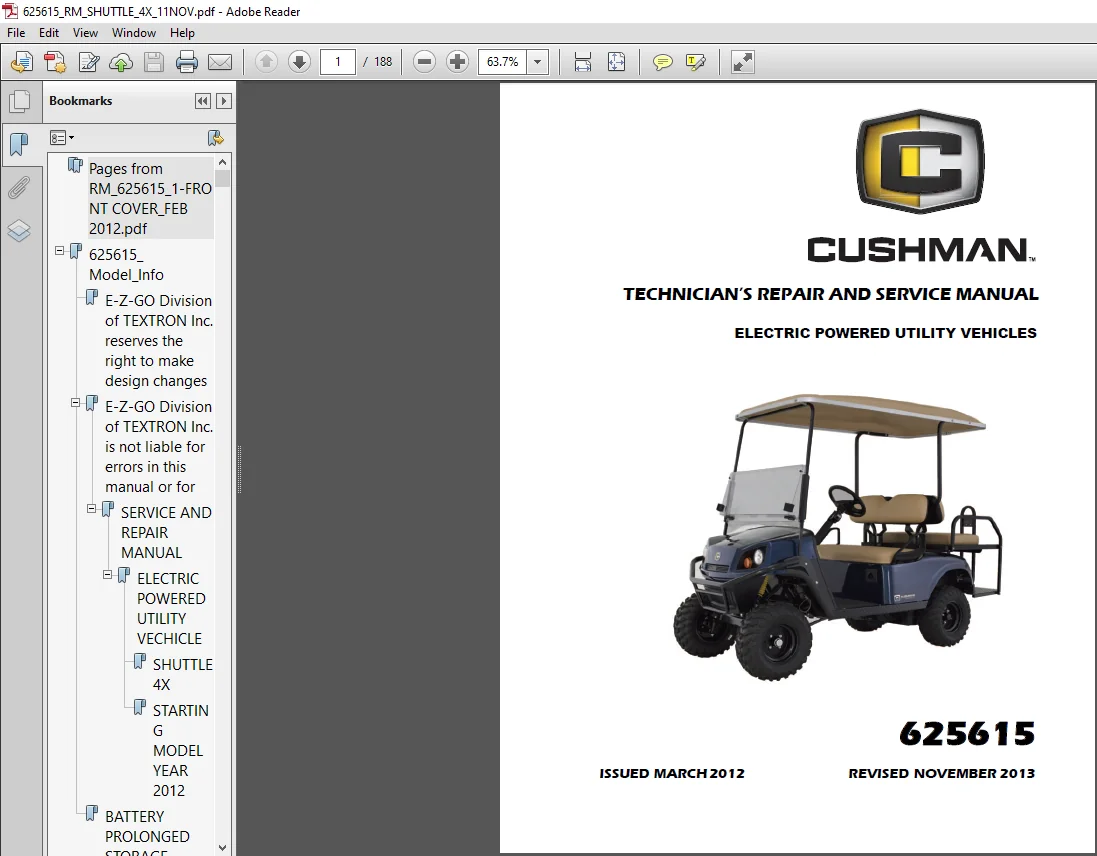

Cushman Shuttle 4x Technician Repair & Service Manual – PDF DOWNLOAD
DESCRIPTION:
Cushman Shuttle 4x Technician Repair & Service Manual – PDF DOWNLOAD
ELECTRIC POWERED
UTILITY VECHICLE
SHUTTLE 4X
GENERAL:
Many vehicles are used for a variety of tasks beyond the original intended use of the vehicle; therefore it is impossible to anticipate and warn against every possible combination of circumstances that may occur. No warnings can take the place of good common sense and prudent driving practices. Good common sense and prudent driving practices do more to prevent accidents and injury than all of the warnings and instructions combined. The manufacturer strongly suggests that the owner-operator read this entire manual paying particular attention to the CAUTIONS and WARNINGS contained therein.
- It is further recommended that employees and other operators be encouraged to do the same. If you have any questions, contact your closest representative or write to the address on the back cover of this publication, Attention: Customer Care Department. E-Z-GO Division of Textron reserves the right to make design changes without obligation to make these changes on units previously sold and the information contained in this manual is subject to change without notice.
- E-Z-GO Division of Textron is not liable for errors in this manual or for incidental or consequential damages that result from the use of the material in this manual. This vehicle conforms to the current applicable standard for safety and performance requirements. These vehicles are designed and manufactured for off-road use.
- They do not conform to Federal Motor Vehicle Safety Standards and are not equipped for operation on public streets. Some communities may permit these vehicles to be operated on their streets on a limited basis and in accordance with local ordinances. With electric powered vehicles, be sure that all electrical accessories are grounded directly to the battery (-) post. Never use the chassis or body as a ground connection. Refer to GENERAL SPECIFICATIONS for vehicle seating capacity.
GENERAL OPERATION
ALWAYS:
- use the vehicle in a responsible manner and maintain the vehicle in safe operating condition.
- read and observe all warnings and operation instruction labels affixed to the vehicle.
- follow all safety rules established in the area where the vehicle is being operated.
- reduce speed to compensate for poor terrain or conditions.
- apply service brake to control speed on steep grades.
- maintain adequate distance between vehicles.
- reduce speed in wet areas.
- use extreme caution when approaching sharp or blind turns.
- use extreme caution when driving over loose terrain.
- use extreme caution in areas where pedestrians are present.

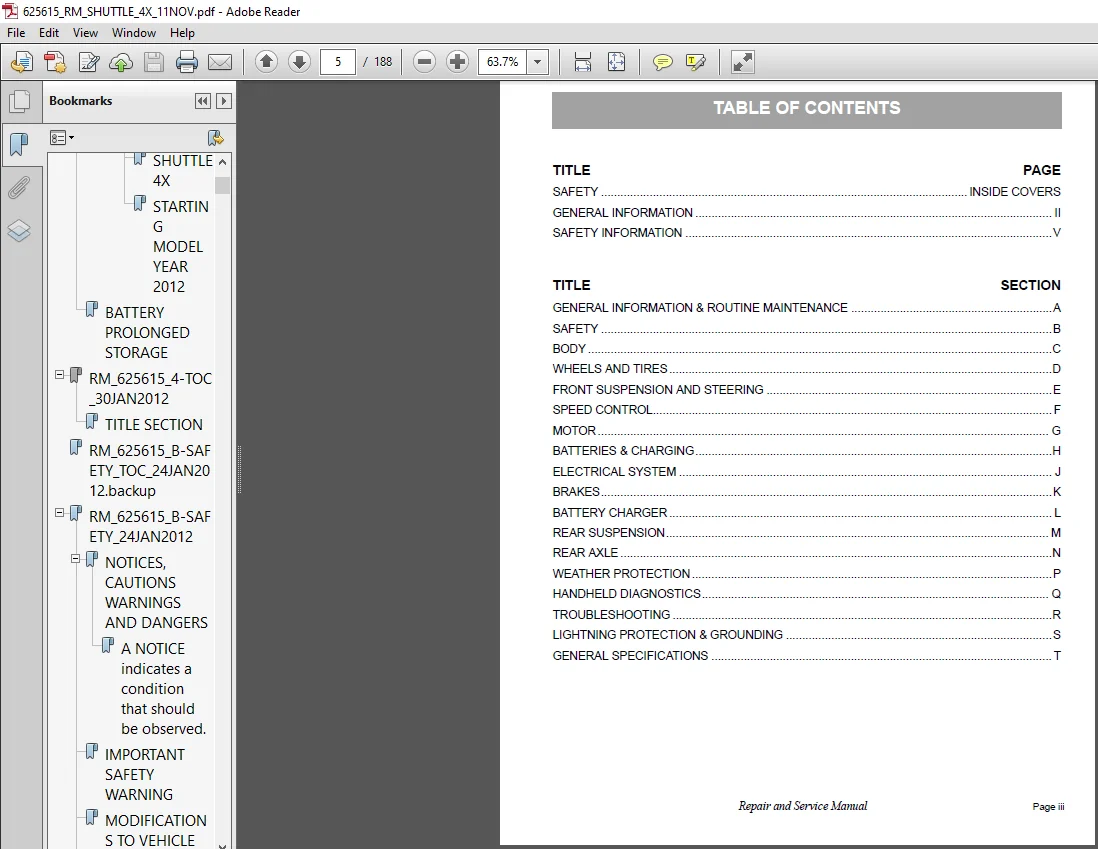

TABLE OF CONTENTS:
Cushman Shuttle 4x Technician Repair & Service Manual – PDF DOWNLOAD
TITLE PAGE
TABLE OF CONTENTS
SAFETY INSIDE COVERS
GENERAL INFORMATION II
SAFETY INFORMATION V
TITLE SECTION
GENERAL INFORMATION & ROUTINE MAINTENANCE A
SAFETY B
BODYC
WHEELS AND TIRESD
FRONT SUSPENSION AND STEERING E
SPEED CONTROLF
MOTOR G
BATTERIES & CHARGINGH
ELECTRICAL SYSTEM J
BRAKESK
BATTERY CHARGER L
REAR SUSPENSION M
REAR AXLE N
WEATHER PROTECTIONP
HANDHELD DIAGNOSTICS Q
TROUBLESHOOTING R
LIGHTNING PROTECTION & GROUNDING S
GENERAL SPECIFICATIONS T
