Cummins ISC, ISCe, QSC8.3, ISL, ISLe3, ISLe4, QSL9 Engines Troubleshooting & Repair Manual
TABLE OF CONTENTS:
Cummins ISC, ISCe, QSC8.3, ISL, ISLe3, ISLe4, QSL9 Engines Troubleshooting & Repair Manual
Introduction i
Engine and System Identification E
Familiarization F
Troubleshooting Symptoms TS
Troubleshooting Symptoms (New Format) TT
Product – Group 00 0
Cylinder Block – Group 01 1
Cylinder Head – Group 02 2
Rocker Levers – Group 03 3
Cam Followers/Tappets – Group 04 4
Back back
DESCRIPTION:
Cummins ISC, ISCe, QSC8.3, ISL, ISLe3, ISLe4, QSL9 Engines Troubleshooting & Repair Manual
FOREWORD:
This manual provides instructions for troubleshooting and repairing this engine in the chassis. Component and assembly rebuild procedures are provided in the engine shop manual. Refer to Section i – Introduction for instructions on how to use this manual. Read and follow all safety instructions. Refer to the WARNING in the General Safety Instructions in Section i – Introduction. The manual is organized to guide a service technician through the logical steps of identifying and correcting problems related to the engine. This manual does not cover vehicle or equipment problems. Consult the vehicle or equipment manufacturer for repair procedures. A series of specific service manuals (for example: Shop, Specifications, and Alternative Repair) are available and can be ordered by Contacting your local area Cummins Regional office. A Cummins Regional office listing is located in Service Literature (Section L). The repair procedures used in this manual are recommended by Cummins Inc. Some service procedures require the use of special service tools. Use the correct tools as described.
About the Manual:
General Information:
- This Troubleshooting and Repair Manual is intended to aid in determining the cause of engine related problems and to provide recommended repair procedures. The manual is divided into sections. Each section is equivalent to a group used in Cummins’ filmcard system.
- Some sections contain reference numbers and procedure numbers. Reference numbers provide general information, specifications, diagrams, and service tools where applicable. Procedure numbers are used to identify and reference specific repair procedures for correcting the problem.
- This manual does not contain fuel systems electronic troubleshooting. Use the troubleshooting trees in this manual, if there are no electronic fault codes. This manual is designed so the troubleshooting trees are used to locate the cause of an engine problem.
- The troubleshooting trees then direct the user to the correct repair procedure. The repair procedures within a section are in numerical order. However, the repair steps within a given procedure are organized in the order the repair must be performed regardless of the numerical order of the steps. The user must use the contents pages or the index at the back of the manual to locate specific topics when not using the troubleshooting trees.
VIDEO PREVIEW OF THE MANUAL:

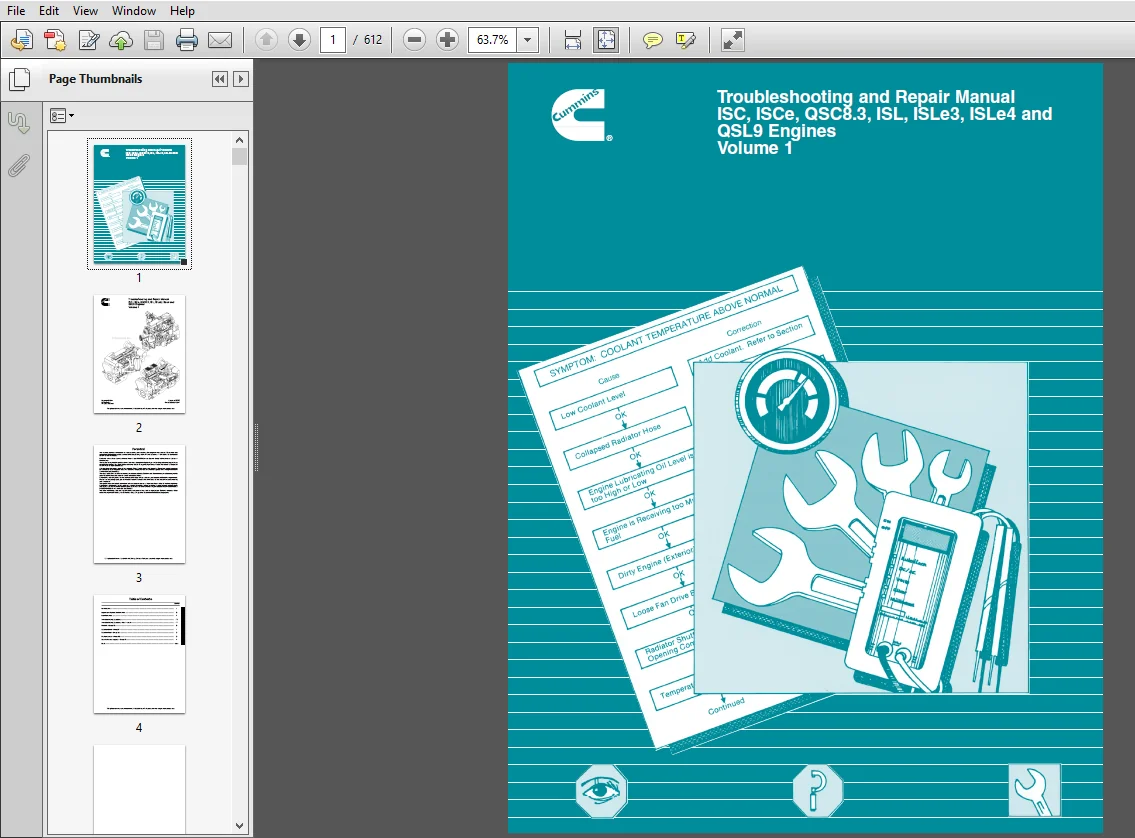

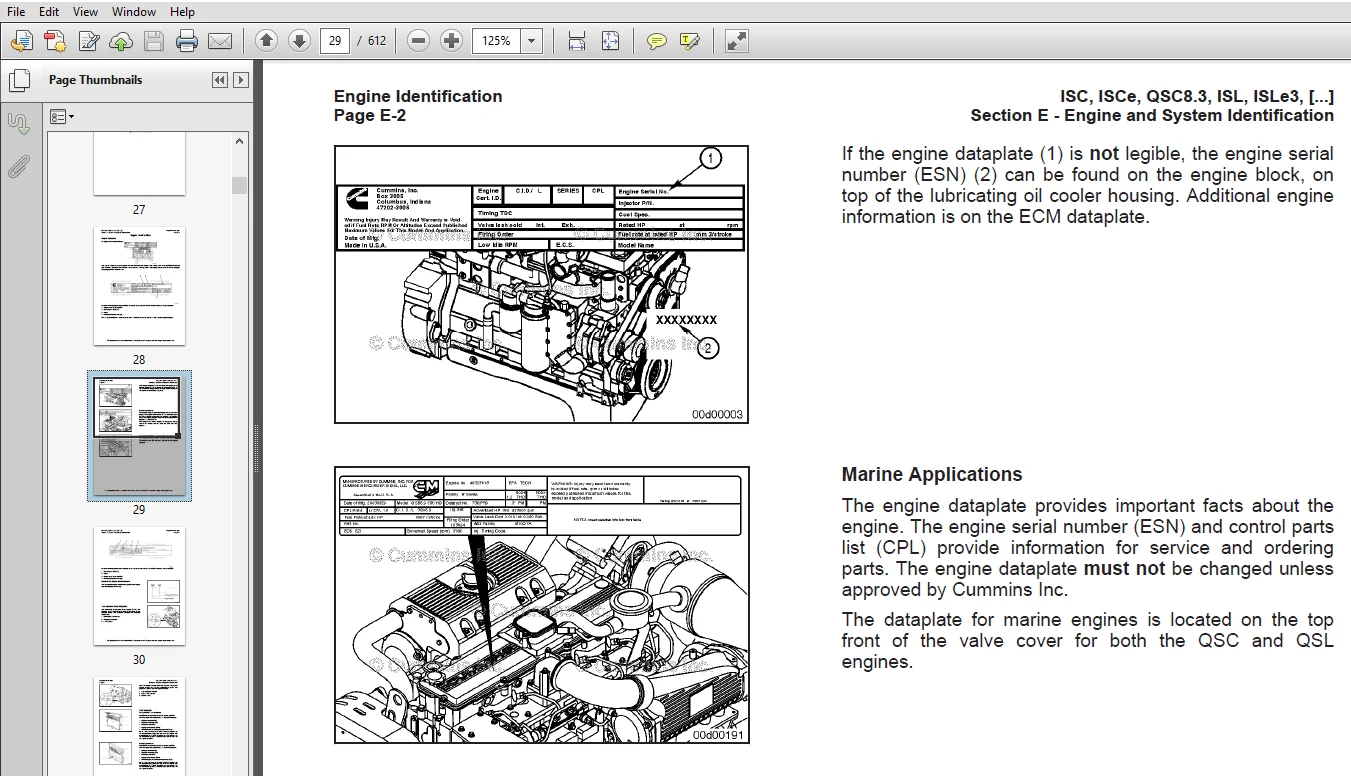

IMAGES PREVIEW OF THE MANUAL:
