Condor 40, 48, 50, 56, 58, 68, & 76 Operation Maintenance & Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Condor 40, 48, 50, 56, 58, 68, & 76 Operation Maintenance & Parts Manual – PDF DOWNLOAD
Format: PDF
Language: English
Brand: Condor
DESCRIPTION:
Condor 40, 48, 50, 56, 58, 68, & 76 Operation Maintenance & Parts Manual – PDF DOWNLOAD
INTRODUCTION:
- The function of the Parts and Maintenance Manual is to first provide the Customer with a complete and up-to-date Parts Manual covering all models presently in production and second, to aid in ordering the correct parts. If used properly, it will provide the Customer with a source of informa-tion that will aid in solving quickly and inexpensively the bulk of maintenance problems.
- Under the various sections called out in the index, Calavar has included all the specification sheets from the manufacturers of component parts that make up the Condor, as well as a general troubleshooting guide directed solely to the Condor as a completed unit. Throughout this manual reference is made to “unit serial numbers”, and the use of this number when ordering parts will assist our Parts Department in giving you prompt and accurate service.
- The use of correct serial numbers and part numbers will also expedite completion of warranty claims sent to Calavar. Serial numbers should also be used at all times in phone conversations to Calavar’s Service Personnel. This manual has been produced as a valuable tool for our Customers. It is in your best interest that time be spent to read and understand all the sections in this manual. Calavar has included a special section that deals with the safe operation of the self-propelled Condor, as well as information about certain items that must be inspected periodically to ensure a safe operating unit.
VIDEO PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Condor 40, 48, 50, 56, 58, 68, & 76 Operation Maintenance & Parts Manual – PDF DOWNLOAD
SECTION 1 – CALAVAR Page #
Unloading Instructions 1
Factory Recommended Tie-Down and Transportation Diagram 3
Check-Out Instructions 4
Calavar Warranty 6
Conversion Table, Degrees to Percentages 7
General Information:
Hydraulic System 8
Table 1: Hydraulic System Data 12
Electrical System 13
Mechanical and Electrical Cable Adjustment 15
Spare Parts List 16
Lubrication Chart 17
Hydraulic Oil Specifications 20
Troubleshooting Guide
Part 1 – Wisconsin Engine 21
Part II – Electrical 22
Part III – Hydraulic 22
Part IV – Drive 23
Part V – Boom Operation 24
Part VI – Turret 24
Preventive Maintenance 25
General Specifications and Information 27
SECTION II
Waterman
Racine
Michigan Fluid Power
SECTION III
W.S.I. Drive Motor Torque Hub
Braden Gear Box
Hydra Power Actuator
SECTION IV
White Motor
Hunter Hydro Throttle Control
Series VIII SPC9-81
SECTION V
Rotary Coupling Synchro Start
SECTION VI
John Deere
SECTION VII
Bertea
Honeywell Control Console Honeywell Multi-Axis Alarm
SECTION VIII
Wisconsin Engine
SECTION IX
Parts Breakdown SECTION X
Wiring Schematic Hydraulic SChematic
SECTION XI
Condor Operation and Safety

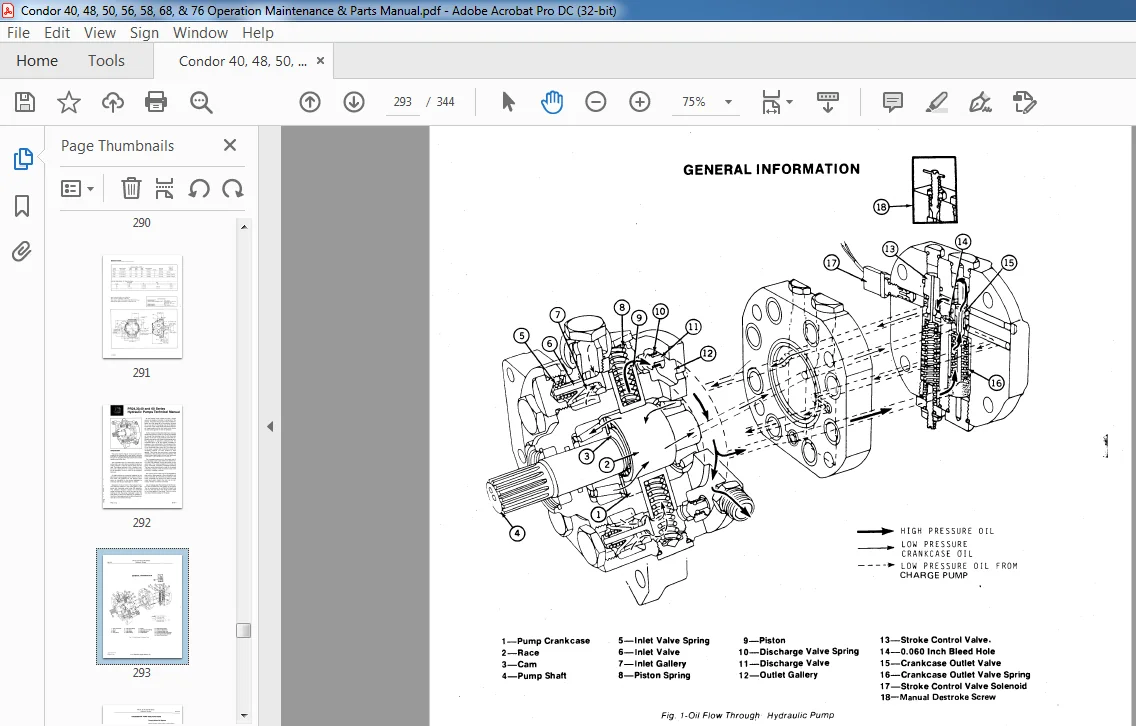

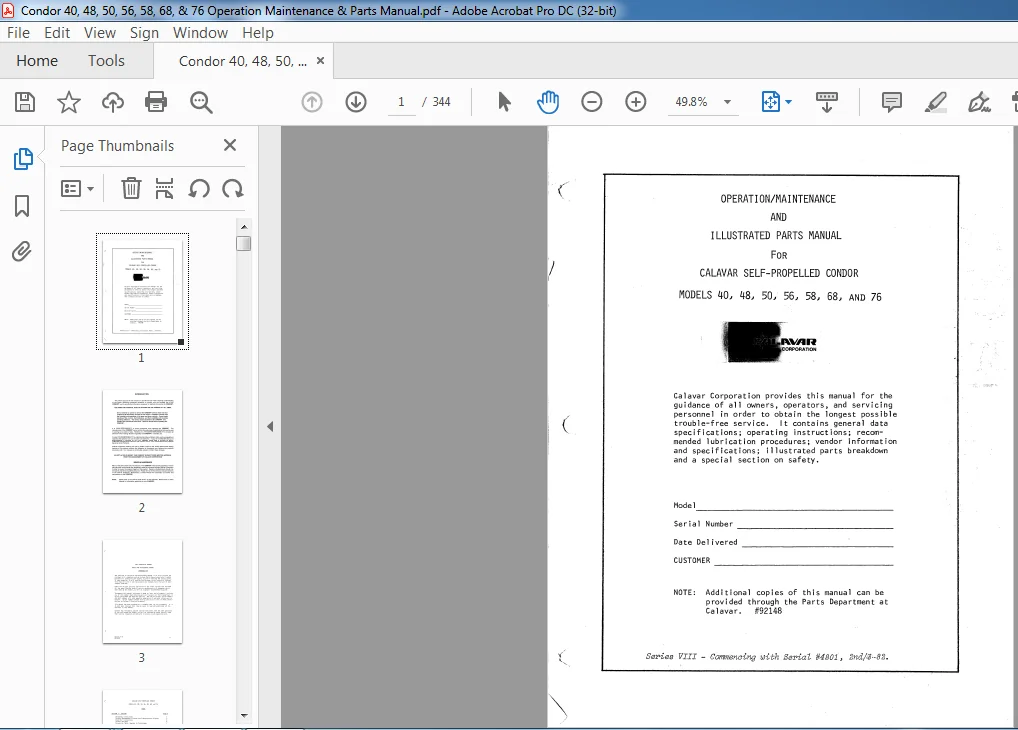

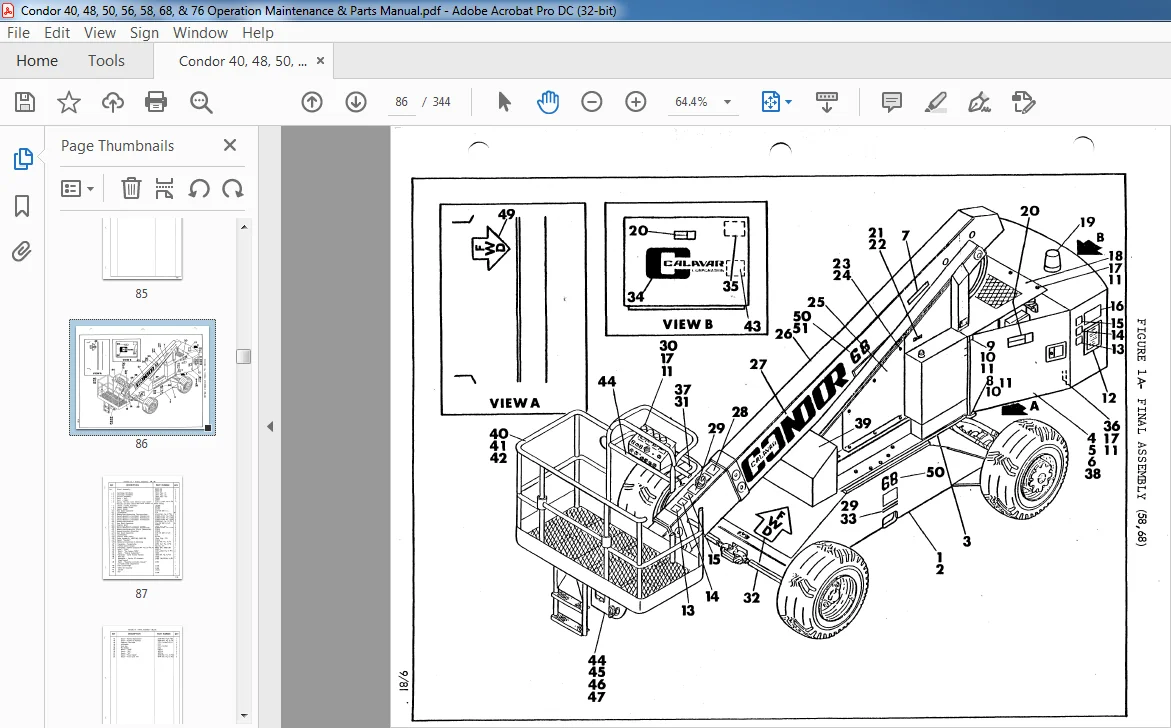

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
Devin Prince –
Worked for what i needed
