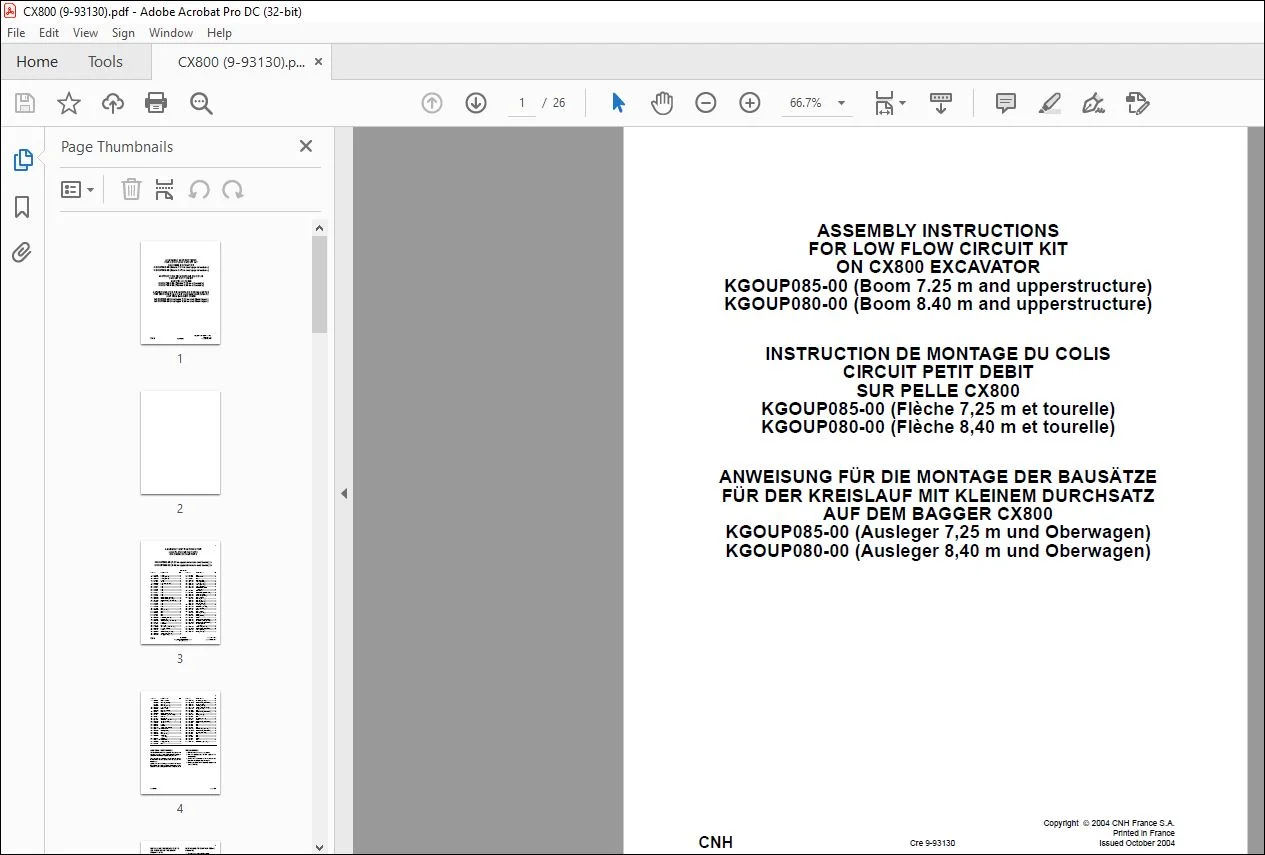

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
CNH CX800 Excavator Low Flow Circuit Kit Assembly Instructions Manual 9-93130 EN_FR_DE – PDF DOWNLOAD
ASSEMBLY INSTRUCTIONS
FOR LOW FLOW CIRCUIT KIT
ON CX800 EXCAVATOR
KGOUP085-00 (Boom 7.25 m and upperstructure)
KGOUP080-00 (Boom 8.40 m and upperstructure)
GENERAL INFORMATION:
The illustrations for these assembly instructions will
be found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and let ters in these
instructions are the same as those used in the
illustrations.
Special torque set t ings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION:
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and
lower it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).
TABLE OF CONTENTS:
CNH CX800 Excavator Low Flow Circuit Kit Assembly Instructions Manual 9-93130 EN_FR_DE – PDF DOWNLOAD
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
1. KUV0347 Bracket ……………………………………………..2
2a. 163304A1 Bracket (KLV0189) ……………………………..6
2b. 163304A1 Bracket (KLV0189) ……………………………..8
3a. KUV0367 Bracket ……………………………………………..2
4. KHJ1284 Adaptor……………………………………………..4
5. 168970A1 Flow limiter (KHJ0623)………………………..2
6a. KUV0370 Pipe………………………………………………….2
6b. KUV0339 Pipe………………………………………………….2
7a. KUV0371 Pipe………………………………………………….1
7b. KUV0340 Pipe………………………………………………….1
8a. KUV0372 Pipe………………………………………………….1
8b. KUV0341 Pipe………………………………………………….1
9a. KUV0373 Pipe………………………………………………….1
9b. KUV0342 Pipe………………………………………………….1
10. 151486A1 Retaining clamp (KRV0548)…………………9
11. 152085A1 Retaining clamp (KRJ0727) …………………7
12. 167183A1 Screw M12x60 (105R010Y060R) ……….14
13a. KUV0374 Pipe………………………………………………….2
13b. KUV0343 Pipe………………………………………………….2
14a. KUV0375 Pipe………………………………………………….1
14b. KUV0344 Pipe………………………………………………….1
15. KMJ1976 Hose…………………………………………………2
16. 163520A1 Hose (KSJ2472)…………………………………1
17a. KUV0376 Hose…………………………………………………2
17b. KUJ0445 Hose…………………………………………………2
18a. KUV0377 Hose…………………………………………………1
18b. KSJ1633 Hose…………………………………………………1
19. 150496A1 Plastic clip (KHH0142) ………………………10
20. KRJ5864 Control pedal……………………………………..1
21. 166052A1 Screw M10x25 (105R010Y025R) …………4
22. KHJ2186 Bracket ……………………………………………..1
23. KHJ1933 Floor carpet ……………………………………….1
24. KHJ2187 Pedal stop …………………………………………1
25. 116497A1 Shaft 12×30 (705S012A0030)………………1
26. 160372A1 Pin (330-030S020R) …………………………..1
27. KHJ2188 Bracket ……………………………………………..1
28. 165404A1 Screw M10x20 (KHJ1104) ………………….2
29. 150604A1 Washer W10 (KHJ0183) ……………………..4
30. 156653A1 Spring (AWJ0728)………………………………1
31. KHJ1629 Pedal ………………………………………………. 1
32. KHJ1820 Screw M10x25………………………………….. 2
33. KHP1511 Decal ………………………………………………. 1
34. 161841A1 Union (CNA0584) ……………………………… 1
35. 152127A1 Adaptor (KNJ0758)……………………………. 5
36. 167321A1 T-piece (KHJ1382)…………………………….. 2
37. 161704A1 Adaptor (KRJ1185) ……………………………. 2
38. 152191A1 Adaptor (KNJ0788)……………………………. 2
39. 159899A1 Pressure contact switch
(KHR1493) ………………………………….. 2
40. KHJ1973 Shuttle block …………………………………….. 1
41. 827-8050 Screw M8x50 (102R008Y050R)………….. 2
42. 153081A1 Washer M8 (KAJ1500) ………………………. 8
43. 150913A1 Elbow union (KHJ0341)……………………… 8
44. KUJ0442 Batch of 4 hoses
163418A1 Hose Y6 (KTJ1621) …………………………… 1
164238A1 Hose Y7 (KTJ1841) …………………………… 1
151872A1 Hose P6 (KTJ0672) …………………………… 1
151872A1 Hose T6 (KTJ0672) …………………………… 1
45. 159497A1 T-piece (KHJ0869)…………………………….. 2
46. 158186A1 Shuttle block (KHJ0579)…………………….. 1
47. 162654A1 Adaptor (KHJ0882)……………………………. 1
48. KHJ1178 Elbow………………………………………………. 1
49. KUJ0447 Batch of 1 hose
157243A1 Hose P7 (MPJ5071) ………………………….. 1
50. KUJ0427 Bracket ……………………………………………. 1
51. 152718A1 Screw (KHN1079)……………………………… 9
52. KUJ0432 Bracket ……………………………………………. 1
53. 166352A1 Screw M12x30 (105R012Y030R)………… 4
54. 168709A1 Option control valve (KRJ5560)…………… 1
55. 862-10035 Screw M10x35 (108R010Y035R)………… 3
56. 153296A1 Load holding valve
(KSJ1834) …………………………………… 1
57. 150409A1 Washer M10 (KEH0114)…………………….. 2
58. 827-10080 Screw M10x80 (102R010Y080R)………… 6
59. 153378A1 Adaptor (KAJ2176) ……………………………. 1
60. 159366A1 Elbow (KHJ0516)………………………………. 1
2
Cre 9-93130 Issued 10-04
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
61. KUJ0443 Batch of 3 hoses
152276A1 Hose Y8 (KTJ0807)…………………………….1
KHJ1575 Hose P8 ……………………………………………1
165343A1 Hose Y9 (KRJ4105) ……………………………1
62. 159085A1 Plug (BRJ0190)………………………………….1
63. KUJ0444 Batch of 1 hose
161293A1 Hose T7 (KSJ2209)…………………………….1
64. KHR3352 Harness…………………………………………….1
65. 150860A1 Retaining clamp (KHR0319) ………………..3
66. 840-168 Screw M6x8 (145T006S008R)……………..3
67. KHR3353 Harness…………………………………………….1
68. KHJ1951 Hose partition …………………………………….3
69. 627-8012 Screw M8x12 (102R008Y012R) …………..6
70. 158759A1 Adaptor (KAA0709) …………………………….2
71. KNJ0836 Adaptor……………………………………………..2
72. KUJ0428 Bracket ……………………………………………..1
73. KUJ0434 Manifold…………………………………………….1
74. 150811A1 Washer W12 (KHN0296)……………………12
75. 102R012Y130R Screw M12x130 …………………………………2
76. 157580A1 Elbow (KHJ0344) ……………………………….3
77. KUJ0438 Hose…………………………………………………1
78. 162299A1 Hose (KRJ4542)…………………………………1
79. 162656A1 Safety valve
(KSJ2292)…………………………………….1
80. KUJ0433 Manifold…………………………………………….1
81. 108R014Y110R Screw M14x110………………………………….4
82. 164450A1 O-ring (LBQ5222)……………………………….2
83. KSJ2718 Hose…………………………………………………1
84. 153459A1 Half-clamp (KRJ2682) ……………………….. 8
85. 862-10025 Screw M10x25 (108R010Y025R)………. 20
86. 155211A1 O-ring (LBQ6219) ……………………………… 4
87. 162674A1 Manifold (KSJ2265) …………………………… 1
88. 892-11010 Washer SW10 (183-110VR) ……………….. 8
89. 154548A1 O-ring (LBQ0352) ……………………………… 2
90. KUJ0450 Pipe ………………………………………………… 1
91. 827-10065 Screw M10x65 (102R010Y065R)………… 4
92. KUJ0451 Hose ……………………………………………….. 1
93. 157582A1 Elbow (KHJ0346)………………………………. 1
94. KUJ0436 Hose ……………………………………………….. 1
95. 157856A1 Half-clamp (KRJ4117)………………………… 2
96. KUJ0431 Bracket ……………………………………………. 1
97. 827-12065 Screw M12x35 (102R012Y035R)………… 2
98. KUJ0430 Bracket ……………………………………………. 1
99. KUJ0423 Pipe ………………………………………………… 1
100. KUJ0424 Pipe ………………………………………………… 1
101. KUJ0425 Pipe ………………………………………………… 1
102. 152742A1 Retaining clamp (KNJ1101) ………………… 2
103. 627-12035 Screw M12x65 (102R012Y065R)………… 4
104. 829-1412 Nut M12 (162R012VR) ………………………. 4
105. KUJ0437 Hose ……………………………………………….. 1
106. KUV0330 Hose ……………………………………………….. 1
107. KNJ2036 Hose ……………………………………………….. 1
108. KUJ0429 Bracket ……………………………………………. 1
109. KHJ2451 Clip …………………………………………………. 2
110. 159602A1 Screw M6x16 (KHR1253) …………………… 1
