CNH CX75SR Tier3 EXCAVATOR LOW FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84133115 EN_DE_FR_IT_ES – PDF DOWNLOAD
ASSEMBLY INSTRUCTIONS
FOR LOW FLOW CIRCUIT KIT
ON CX75SR Tier3 EXCAVATOR
KG0AP658-00-00 (1.71 m Dipper)
KG0AP668-00-00 (2.12 m Dipper)
KG0AP813-00-00 (Mono boom and upperstructure)
GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

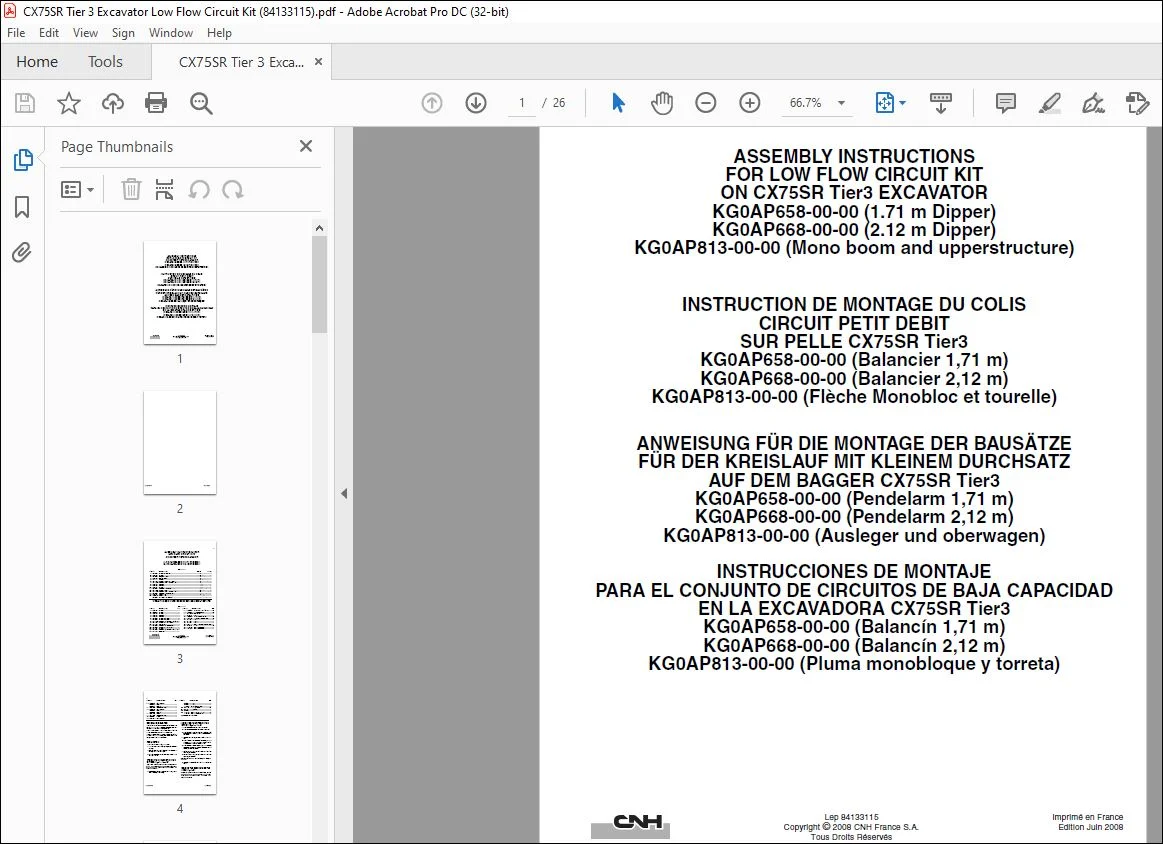

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
CNH CX75SR Tier3 EXCAVATOR LOW FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84133115 EN_DE_FR_IT_ES – PDF DOWNLOAD
ITEMP/N DESCRIPTION Qty (a) Qty (b)
1. 168627A1 Bracket (KHV0345) ……………………………………………………………………………..3 ……………………. 3
2. KAV2531 Bracket………………………………………………………………………………………………2 ……………………. 2
3. 159085A1 Plug (BRJ0190) ………………………………………………………………………………….3 ……………………. 3
4. KHV10670 Shut-off valve……………………………………………………………………………………..3 ……………………. 3
5. KHJ1940 Adaptor ……………………………………………………………………………………………..3 ……………………. 3
6. 892-11010 Washer SW10 (183-110VR) …………………………………………………………………6 ……………………. 6
7. 827-10050 Screw M10x50 (102R010Y050R) ………………………………………………………….6 ……………………. 6
8. KAV2524 RH pipe……………………………………………………………………………………………..1 ……………………. 1
9. KAV2525 RH pipe……………………………………………………………………………………………..1 ……………………. 1
10. KAV2526 LH pipe ……………………………………………………………………………………………..1 ……………………. 1
11. 168551A1 Retaining clamp (KAV1627)………………………………………………………………….1 ……………………. 1
12. 183-112VR Washer SW12…………………………………………………………………………………….2 ……………………. 2
13. 827-12050 Screw M12x50 (102R012Y050R) ………………………………………………………….2 ……………………. 2
14. 169149A1 Retaining clamp (KAV1844)………………………………………………………………….1 ……………………. 1
15. KAV2530 Hose L=650 ……………………………………………………………………………………….3 …………………….. –
16. KMV2302 Hose L=1050 ………………………………………………………………………………………- ……………………. 3
153591A1 Loctite 262 (KRC5007) ………………………………………………………………………..1 ……………………. 1
KG0AP813-00-00 (Monobloc boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KAV2330 Bracket…………………………………….. 8
2. KHB0271 Bracket…………………………………….. 2
3. KAV2529 LH pipe ……………………………………. 1
4. KAV2528 RH pipe……………………………………. 1
5. KAV2527 RH pipe……………………………………. 1
6. 168551A1 Bracket (KAV1627) ……………………. 5
7. 169149A1 Bracket (KAV1844) ……………………. 5
8. 827-12050 Screw M12 x 50 (102R012Y050R) 10
9. 150811A1 Washer W12 (KHN0296) ………….. 10
10. KHJ1994 Control pedal ……………………………. 1
11. 150548A1 Screw M10 x 20 (KHJ0161) ………… 2
12. 150604A1 Washer W10 (KHJ0183) …………….. 2
13. KHJ2568 Bracket…………………………………….. 1
14. 166346A1 Screw M10 x 16 (105R010Y016R) . 6
15. KHJ2231 Pedal bolt …………………………………. 1
16. 157558A1 Washer WW8 (KHN0518) ……………2
17. 157770A1 Nut M8 (KHR0086) ……………………..2
18. KHJ18730 Floor carpet ……………………………….1
19. KHJ2229 Pedal ………………………………………..1
20. 159500A1 Washer W8 (KHN0420)……………….2
21. 162571A1 Screw M8 x 16 (KHN1642)…………..2
22. KHP1510 Decal ………………………………………..1
23. KHP1511 Decal ………………………………………..1
24. KHP1821 Decal ………………………………………..1
25. KAJ10010 Control valve section (KAJ4882) …..1
26. KHJ2130 T-piece………………………………………2
27. 161841A1 Adaptor (CNA0584) …………………….1
28. 152127A1 Adaptor (KNJ0758)……………………..4
2
Lep 84133115 Issued 06-08
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
29. KAJ4733 Set of 2 hoses
KHJ2035 Hose P9 …………………………………… 1
KHJ2035 Hose T9 …………………………………… 1
30. 150933A1 Elbow (KHJ0348) ………………………. 1
31. KAJ4740 Set of 2 hoses
KHJ2029 Hose Y6 …………………………………… 1
KHJ2162 Hose Y7 …………………………………… 1
32. KHJ1043 Elbow ………………………………………. 1
33. 157935A1 Elbow (KHJ0641) ………………………. 1
34. KHJ2234 T-piece …………………………………….. 1
35. KAJ11440 Set of 3 hoses
KAJ5049 Hose Y6…………………………………….1
KAJ5048 Hose Y7…………………………………….1
159217A1 Hose Y8 (KRJ4134)…………………….1
36. KHJ2414 Retaining clamp………………………….2
37. KHJ2289 Hose clamp………………………………..1
38. KAJ5002 Belt …………………………………………..1
39. 150496A1 Plastic clips (KHH0142)…………….. xx
153591A1 Loctite 262 (KRC5007) ………………..1
xx According to requirement
