ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX75SR EXCAVATOR
KG0AP657-00 (1.71 m Dipper)
KG0AP613-00 (1.75 m Dipper)
KG0AP666-00 (2.12 m Dipper)
KG0TP641-00 (Monobloc boom and upperstructure)
KG0AP645-00-08 (Offset boom and upperstructure)
GENERAL INFORMATION
The illustrations for these assembly instructions will
be found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and let ters in these
instructions are the same as those used in the
illustrations.
Special torque settings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and
lower it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

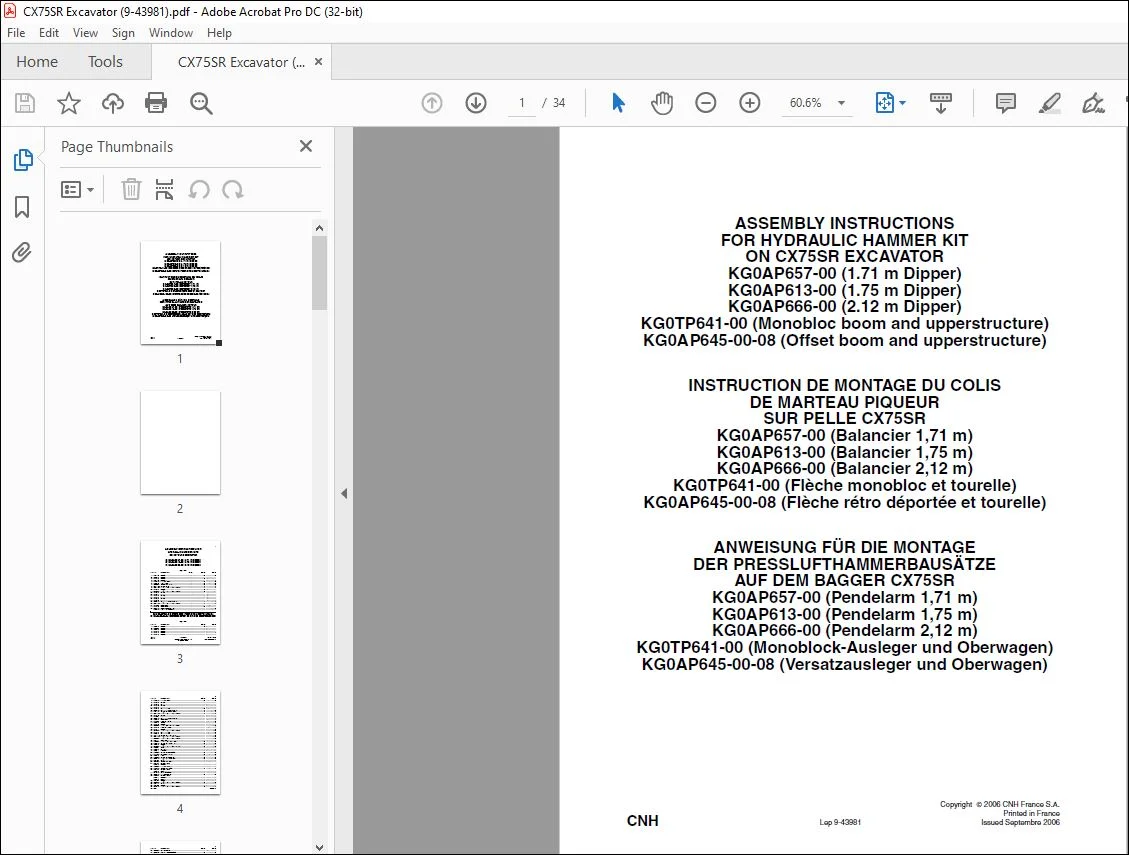

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
CNH CX75SR EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 9-43981 EN_DE_FR – PDF DOWNLOAD
ITEMP/N DESCRIPTION Qty (a) Qty (b) Qty (c)
1. KNV1158 Bracket ………………………………………………………………. 2 …………………………2 …………………….2
2. KHB0268 Bracket ………………………………………………………………. 4 ………………………… – ……………………..-
3. KAV2186 Bracket ………………………………………………………………..- …………………………4 ……………………..-
4. KAV1655 Bracket ………………………………………………………………..- ………………………… – …………………….4
5. 152924A1 Plug (BRJ1286)…………………………………………………… 2 …………………………2 …………………….2
6. KHV0453 Shut-off valve ……………………………………………………… 2 …………………………2 …………………….2
7. 167248A1 Adaptor (KAJ3910) ……………………………………………… 2 …………………………2 …………………….2
8. 183-112VR Washer SW12 …………………………………………………….. 8 …………………………8 …………………….8
9. 827-12070 Screw M12x70 (102R012Y070R) ………………………….. 4 …………………………4 …………………….4
10. KAV2566 Bracket ………………………………………………………………..- …………………………4 ……………………..-
11. 166352A1 Screw M12x30 (105R012Y030R) ……………………………- …………………………4 ……………………..-
12. KAV2520 RH pipe ……………………………………………………………… 1 ………………………… – ……………………..-
13. KAV2521 LH pipe………………………………………………………………. 1 ………………………… – ……………………..-
14. KAV2607 RH pipe ……………………………………………………………….- …………………………1 ……………………..-
15. KAV2608 LH pipe………………………………………………………………..- …………………………1 ……………………..-
16. KAV2557 RH pipe ……………………………………………………………….- ………………………… – …………………….1
17. KAV2558 LH pipe………………………………………………………………..- ………………………… – …………………….1
18. 166401A1 Retaining clamp (KAV0792) ………………………………….. 4 …………………………4 …………………….4
19. 827-12060 Screw M12x60 (102R012Y060R) ………………………….. 4 …………………………4 …………………….4
20. KAV2642 Hose L=920………………………………………………………… 2 ………………………… – ……………………..-
21. KAV2364 Hose L=2250………………………………………………………..- …………………………2 ……………………..-
22. 167831A1 Hose L=900 (KAV1464) …………………………………………- ………………………… – …………………….2
153591A1 Loctite 262 (KRC5007) ………………………………………… 1 …………………………1 …………………….1
a; KG0AP641-00 (monobloc boom and upperstructure)
b; KG0AP645-08 (backhoe-offset boom and upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty (a) Qty (b)
1. KHB0268 Bracket ………………………………………………………………………………………………5 ……………………..-
2. KHB0270 Bracket ………………………………………………………………………………………………1 ……………………..-
3. KHB0269 Bracket ………………………………………………………………………………………………1 ……………………..-
4. KAV2166 Bracket ………………………………………………………………………………………………1 ……………………..-
5. KAV2330 Bracket ……………………………………………………………………………………………… – …………………….4
6. KAV2188 Bracket ……………………………………………………………………………………………… – …………………….1
2
Lep 9-43981 Issued 09-06
ITEMP/N DESCRIPTION Qty (a) Qty (b)
7. 152924A1 Plug (BRJ1286)…………………………………………………………………………………..2 …………………….2
8. KAV2522 RH pipe ……………………………………………………………………………………………..1 ……………………..-
9. KAV2523 LH pipe………………………………………………………………………………………………1 ……………………..-
10. KAV2205 RH pipe …………………………………………………………………………………………….. – …………………….1
11. KAV2206 LH pipe……………………………………………………………………………………………… – …………………… 1
12. KAV0486 Retaining clamp ………………………………………………………………………………….2 ……………………..-
13. 166401A1 Retaining clamp (KAV0792) ………………………………………………………………….6 …………………….2
14. 150811A1 Washer SW12 (KHN0296) ……………………………………………………………………8 …………………….6
15. 827-12060 Screw M12x60 (102R012Y060R) ………………………………………………………….8 …………………….6
16. KAV2204 RH pipe …………………………………………………………………………………………….. – …………………….1
17. KAV2711 LH pipe……………………………………………………………………………………………… – …………………….1
18. 167824A1 Retaining clamp (KAV0921) …………………………………………………………………. – …………………….4
19. KMJ2323 Hose L=920……………………………………………………………………………………….. – …………………….4
20. KAV2642 Protective sheath ……………………………………………………………………………….. – …………………….2
21. KHJ0508 Adaptor ……………………………………………………………………………………………..1 …………………….3
22. KAV2199 Bracket ……………………………………………………………………………………………… – …………………….1
23. 167182A1 Screw M8x25 (105R008Y025R) …………………………………………………………… – …………………….2
24. KAV2202 Protective housing………………………………………………………………………………. – …………………….1
25. KAV2331 Bracket ……………………………………………………………………………………………… – …………………….2
26. 166352A1 Screw M12x30 (105R012Y030R) …………………………………………………………. – …………………….2
27. KAV2329 Retaining clamp …………………………………………………………………………………. – …………………….2
28. KHJ2023 Retaining clamp ………………………………………………………………………………….1 …………………….3
29. 896-11012 Washer W12 (182-012SR)…………………………………………………………………… – …………………….2
30. 827-12080 Screw M12x80 (102R012Y080R) …………………………………………………………. – …………………….2
31. 167183A1 Screw M12x60 (105R012Y060R) …………………………………………………………. – …………………….2
32. KHJ1994 Control pedal………………………………………………………………………………………1 …………………….1
33. 150548A1 Screw M10x20 (KHJ0161) ……………………………………………………………………2 …………………….2
34. 150604A1 Washer W10 (KHJ0183) ………………………………………………………………………2 …………………….2
35. KHJ2568 Bracket ………………………………………………………………………………………………1 …………………….1
36. 166346A1 Screw M10x16 (105R010Y016R) ………………………………………………………….2 …………………….2
37. KHJ2571 Cover…………………………………………………………………………………………………1 …………………….1
38. KHJ2120 Floor carpet………………………………………………………………………………………..1 …………………….1
39. KHJ2231 Pedal bolt …………………………………………………………………………………………..1 …………………….1
40. 157558A1 Washer WW8 (KHN0518) …………………………………………………………………….2 …………………….2
41. 157770A1 Nut M8 (KHR0086) ……………………………………………………………………………..2 …………………….2
42. KHJ2229 Pedal ………………………………………………………………………………………………..1 …………………….1
43. 159500A1 Washer W8 (KHN0420) ……………………………………………………………………….2 …………………….2
44. 162571A1 Screw M8x16 (KHN1642) …………………………………………………………………….2 …………………….2
45. KHJ1178 Elbow ……………………………………………………………………………………………….1 …………………….1
46. 167666A1 Adaptor (KAJ3807) ……………………………………………………………………………..1 …………………….1
47. KAJ4925 Batch of 1 hose
KHJ2309 Hose D7 …………………………………………………………………………………………….1 …………………….1
48. 159002A1 Plug (KHJ0363)…………………………………………………………………………………..1 …………………….1
49. 152127A1 Adaptor (KNJ0758) ……………………………………………………………………………..3 …………………….3
50. KAJ4863 Batch of 1 hose
KHJ2312 Hose Y1 …………………………………………………………………………………………….1 …………………….1
51. 161841A1 Union (CNA0584)………………………………………………………………………………..1 …………………….1
52. 163694A1 T-piece (KNJ2130) ………………………………………………………………………………2 …………………….2
53. KAJ4736 Batch of 2 hoses
KHJ2084 Hose P5 …………………………………………………………………………………………….1 …………………….1
KHJ2238 Hose T5 …………………………………………………………………………………………….1 …………………….1
54. KAJ5023 Bracket ………………………………………………………………………………………………1 …………………….1
55. 166052A1 Screw M10x25 (105R010Y025R) ………………………………………………………….2 …………………….2
56. KHJ1515 Elbow ………………………………………………………………………………………………..1 …………………….1
57. KAJ5046 Bracket ………………………………………………………………………………………………1 …………………….1
58. 166351A1 Screw M10x20 (105R010Y020R) ………………………………………………………….4 …………………….4
3
Lep 9-43981 Issued 09-06
ITEMP/N DESCRIPTION Qty (a) Qty (b)
59. 163278A1 Filter (KHJ0778) ………………………………………………………………………………….1 …………………….1
60. 163275A1 Hydraulic clamp (KLJ0275) …………………………………………………………………..2 …………………….2
61. 154569A1 O-ring (LBQ0403) ……………………………………………………………………………….2 …………………….2
62. 862-8035 Screw M8x35 (108R008Y035R) ……………………………………………………………8 …………………….8
63. KAJ4919 Bracket ………………………………………………………………………………………………1 …………………….1
64. 150409A1 Washer M10 (KEH0114) ………………………………………………………………………2 …………………….2
65. 627-10035 Screw M10x35 (102R010Y035R) ………………………………………………………….2 …………………….2
66. 157580A1 Elbow union (KHJ0344) ……………………………………………………………………….2 …………………….2
67. KAJ5032 Batch of 2 hoses
KAJ5024 Hose Y1 …………………………………………………………………………………………….1 …………………….1
KAJ5027 Hose Y2 …………………………………………………………………………………………….1 …………………….1
68. KAJ2974 Adaptor ……………………………………………………………………………………………..1 …………………….1
69. 150498A1 Clip L=300 (KHH0143)…………………………………………………………………………1 …………………….1
70. 157586A1 Elbow union (KHJ0351) ……………………………………………………………………….1 …………………….1
71. KAJ5028 Hose………………………………………………………………………………………………….1 …………………….1
72. 150496A1 Clip L=250 (KHH0142)…………………………………………………………………………4 …………………….4
73. KHJ2022 Retaining clamp ………………………………………………………………………………….1 …………………….1
74. KAJ5040 Batch of 2 hoses
KAJ5037 Hose Y1 …………………………………………………………………………………………….1 …………………….1
KAJ5037 Hose Y2 …………………………………………………………………………………………….1 …………………….1
75. KAJ4877 Secondary relief ………………………………………………………………………………….1 …………………….1
153591A1 Loctite 262 (KRC5007) ………………………………………………………………………..1 …………………….1
76. KHP1741 Decals ………………………………………………………………………………………………. – …………………….1
77. KHP1821 Decals ………………………………………………………………………………………………. – …………………….1
78. KAV2712 Low bar …………………………………………………………………………………………….. – …………………….1
79. KAV2640 Protective decals………………………………………………………………………………… – …………………….5
PLEASE NOTE:
