CNH CX470B EXCAVATOR BREAKER OR HIGH FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84197166 – PDF DOWNLOAD
DESCRIPTION:
CNH CX470B EXCAVATOR BREAKER OR HIGH FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84197166 – PDF DOWNLOAD
ASSEMBLY INSTRUCTIONS
FOR BREAKER OR HIGH FLOW CIRCUIT KIT
ON CX470B EXCAVATOR
KG0TP389-00-00 (3.38m Dipper)
KG0TP390-00-00 (2.53m Dipper)
KG0TP388-00-00 (Standard boom)
KG0TP383-00-00 (Upperstructure)
GENERAL INFORMATION:
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to consult
the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION:
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

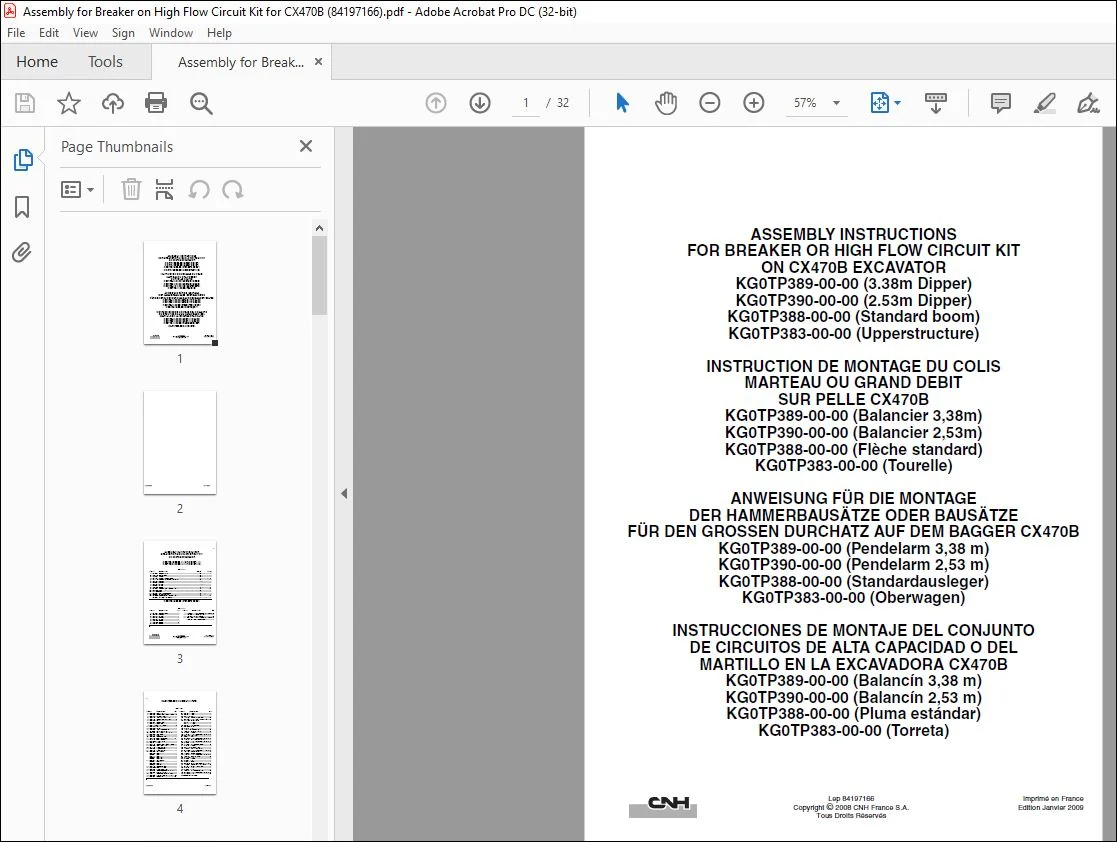

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
CNH CX470B EXCAVATOR BREAKER OR HIGH FLOW CIRCUIT KIT ASSEMBLY INSTRUCTIONS MANUAL 84197166 – PDF DOWNLOAD
ITEMP/N DESCRIPTION Qty (a) Qty (b)
1. 162335A1 Plug (CAJ3912) ………………………………………………………………………………….2 ……………………. 2
2. KHV11100 Shut-off valve……………………………………………………………………………………..2 ……………………. 2
3. KHV0451 Adaptor ……………………………………………………………………………………………..2 ……………………. 2
4. 150811A1 Washer SW12 (KHN0296)……………………………………………………………………4 ……………………. 4
5. 827-12100 Screw M12x100 (102R012Y100R) ………………………………………………………..2 ……………………. 2
6. KTV13060 RH pipe……………………………………………………………………………………………..1 …………………….. –
6. KTV14580 RH pipe………………………………………………………………………………………………- ……………………. 1
7. KTV13070 LH pipe ……………………………………………………………………………………………..1 …………………….. –
7. KTV14590 LH pipe ………………………………………………………………………………………………- ……………………. 1
8. KHV11060 Clamp ……………………………………………………………………………………………….8 ……………………. 4
9. 166352A1 Screw M12x30 (105R012Y030R) ………………………………………………………….8 ……………………. 4
10. KBV15980 Hose …………………………………………………………………………………………………2 …………………….. –
10. KWV11490 Hose ………………………………………………………………………………………………….- ……………………. 2
11. 150124A1 Half-clamp (KTJ0029)………………………………………………………………………..12 ………………….. 12
12. 164450A1 O-ring (LBQ5222) ……………………………………………………………………………….6 ……………………. 6
13. 862-14050 Screw M14x50 (108R014Y050R) ………………………………………………………..24 ………………….. 24
153591A1 Loctite 262 (KRC5007) ………………………………………………………………………..1 ……………………. 1
KG0TP388-00-00 (Standard boom)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286) ………………………… 3
2. KTV13020 RH pipe……………………………………. 1
3. KTV13030 LH pipe ……………………………………. 1
4. KTV15000 RH pipe……………………………………. 1
5. KTV15010 LH pipe ……………………………………. 1
6. KHV11200 Clamp ……………………………………… 8
7. KHV11060 Clamp ……………………………………… 4
8. KHV11070 Clamp ……………………………………… 2
9. 166352A1 Screw M12x30 (105R012Y030R)..16
10. 150124A1 Half-clamp (KTJ0029) …………………4
11. 164450A1 O-ring (LBQ5222)……………………….2
12. 862-14050 Screw M14x50 (108R014Y050R)….8
153591A1 Loctite 262 (KRC5007)………………..1
2
Lep 84197166 Issued 01-09
KG0TP383-00-00 (Upperstructure)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KHJ10450 Control pedal…………………………….. 1
2. 166052A1 Screw M10x25 (105R010Y025R) … 2
3. KHJ10691 RH pedal bracket ………………………. 1
4. 150604A1 Washer W10 (KHJ0183) …………….. 6
5. 165404A1 Screw M10x20 (KHJ1104) …………. 2
6. KHJ13850 Pedal ……………………………………….. 1
7. KHJ1820 Screw M10x25 ………………………….. 2
8. KHJ10711 Lock bracket……………………………… 1
9. 108R010Y016RScrew M10x16 ………………………. 2
10. KHJ10701 Pedal stop ………………………………… 1
11. KHJ10721 Spring ……………………………………… 1
12. 159500A1 Washer W8 (KHN0420) ……………… 1
13. 157740A1 Nut M8 (KHJ0091) …………………….. 1
14. 163782A1 Pedal protection (KHP0912) ……….. 1
15. KHJ15020 Floor carpet………………………………. 1
16. KHP1484 Decal……………………………………….. 1
17. 150913A1 Elbow (KHJ0341) ………………………. 4
18. 152127A1 Adaptor (KNJ0758) ……………………. 9
19. 161841A1 Adaptor (CNA0584) …………………… 1
20. KHR10820 Pressure switch…………………………. 1
21. KHJ11510 Bracket …………………………………….. 1
22. 166351A1 Screw M10x20 (105R010Y020R) … 4
23. KHJ14780 Solenoid valve block ………………….. 1
24. 167321A1 T-piece (KHJ1382) …………………….. 1
25. 159002A1 Plug (KHJ0363)…………………………. 1
26. 159497A1 T-piece (KHJ0869) …………………….. 1
27. KTJ11860 Set of 5 hoses
KHJ13660 Hose Y1 …………………………………… 1
KHJ2244 Hose Y3 …………………………………… 1
KHJ15170 Hose Y2 ………………………………….. 1
KHJ2085 Hose YP5…………………………………. 1
KHJ2194 Hose YT5…………………………………. 1
28. KTJ11870 Set of 3 hoses
KHJ2047 Hose P5 …………………………………… 1
KHJ14790 Hose Y5 …………………………………… 1
KHJ2086 Hose T5 ………………………………….. 1
29. 156554A1 Elbow (KHJ0640) ………………………. 2
30. KHR15960 Electrical harness ……………………… 1
31. 158962A1 Bracket (KHR1317) ……………………. 4
32. 166345A1 Screw M8x16 (105R008Y016R) ….. 4
33. 150860A1 Base (KHR0319)……………………….. 7
34. 840-168 Screw M6x8 (145N006S008R) ……. 7
35. 150496A1 Plastic clip L250 (KHH0142) ……….xx
36. KTJ2129 Safety valve………………………………. 2
37. KHR14450 Switch……………………………………….1
38. KHR14460 Switch……………………………………….1
39. KHJ11730 Manifold …………………………………….1
40. 153081A1 Washer W8 (KAJ1500) ………………..2
41. 827-8055 Screw M8x55 (102R008Y055R)……2
42. KTJ11770 Set of 2 hoses
KHJ2238 Hose F1 …………………………………….1
KHJ2142 Hose F2 ……………………………………1
43. KHR14470 Pressure switch ………………………….1
44. KHP13320 Decal ………………………………………..1
45. KTJ2133 Pipe ………………………………………….1
46. 108R014Y045RScrew M14x45………………………40
47. 164450A1 O-ring (LBQ5222) ……………………..12
48. KTJ2220 Bracket………………………………………1
49. 165929A1 Screw M16x50 (105R016Y050R)….8
50. KHJ17370 Shut-off valve……………………………..1
51. KSJ2740 Manifold …………………………………….1
52. 862-16030 Screw M16x30 (108R016Y030R)….4
53. 162656A1 Safety valve (KSJ2292) ……………….1
54. 166373A1 Screw M16x40 (105R016Y040R)….4
55. KTJ2219 Hose …………………………………………1
56. 150124A1 Half-clamp (KTJ0029)………………..16
57. KTJ2135 Bracket………………………………………1
58. KHJ17380 Directional valve …………………………1
59. 162667A1 Manifold (KSJ2372) …………………….1
60. 862-14090 Screw M14x90 (108R014Y090R)….4
61. 184-014VR Washer size 14…………………………..4
62. 159047A1 Adaptor (BDJ0218)……………………..1
63. 166352A1 Screw M12x30 (105R012Y030R)….6
64. 157582A1 Elbow (KHJ0346)………………………..2
65. KTJ11880 Hose …………………………………………1
66. KTJ2222 Bracket………………………………………1
67. KTJ2221 Pipe ………………………………………….1
68. KTV1209 Clamp ………………………………………1
69. 827-16110 Screw M16x110 (102R016Y110R)..1
70. 150814A1 Washer size 16 (KHN0297) ………….2
71. 829-1416 Nut M16 (162R016VR)………………..1
72. KTJ2140 Hose …………………………………………1
73. KTJ2223 Hose …………………………………………1
74. 157856A1 Half-clamp (KRJ4117) …………………2
75. 862-10030 Screw M10x30 (108R010Y030R)….4
76. KTJ12390 Hose …………………………………………2
xx According to requirement
