CNH CX460 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 9-36921 – PDF DOWNLOAD
DESCRIPTION:
CNH CX460 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 9-36921 – PDF DOWNLOAD
ASSEMBLY INSTRUCTIONS
FOR HYDRAULIC HAMMER KIT
ON CX460 EXCAVATOR
KGOTP225-00 (2.53 M Dipper)
KGOTP224-00 (3.38 M Dipper)
KGOTP223-00 (Boom and upperstructure)
GENERAL INFORMATION
The illustrations for these assembly instructions will
be found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and let ters in these
instructions are the same as those used in the
illustrations.
Special torque set t ings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and
lower it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).

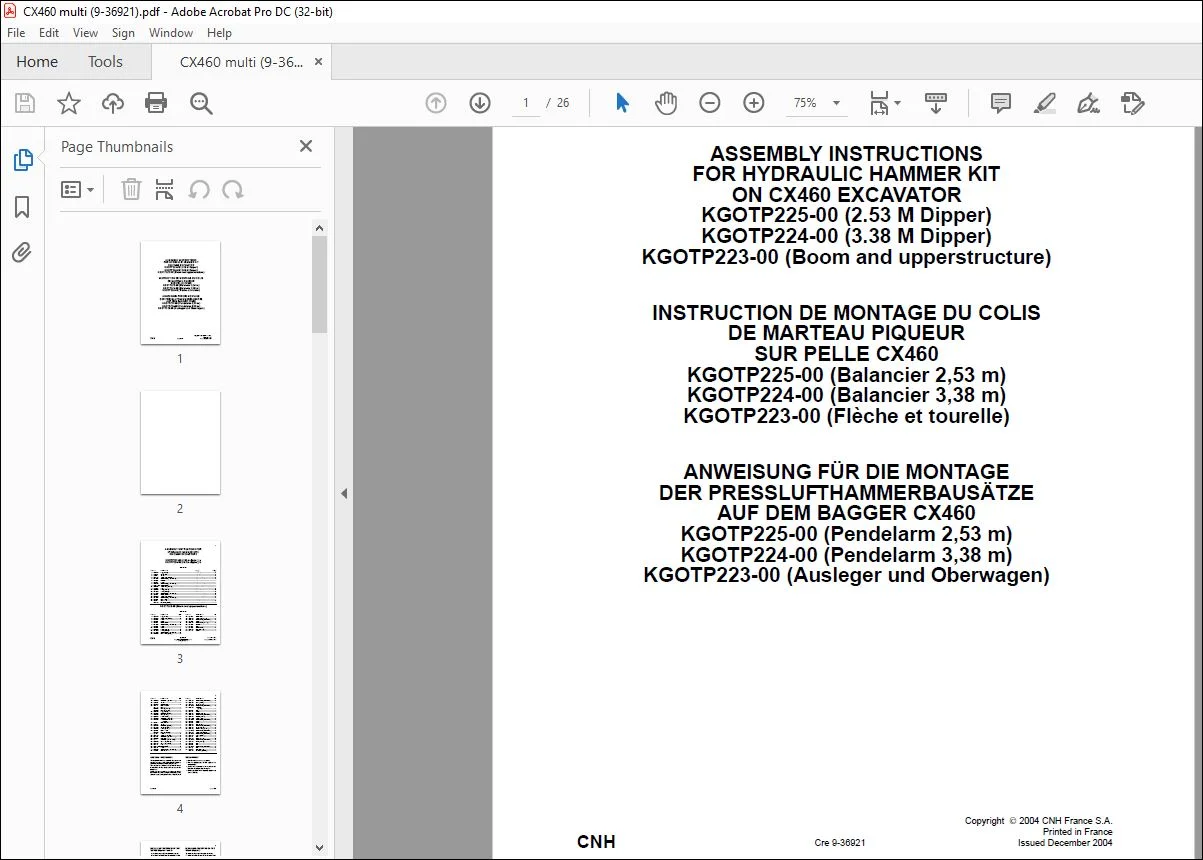

IMAGES PREVIEW OF THE MANUAL:\
TABLE OF CONTENTS:
CNH CX460 EXCAVATOR HYDRAULIC HAMMER KIT ASSEMBLY INSTRUCTIONS MANUAL 9-36921 – PDF DOWNLOAD
ITEM P/N DESCRIPTION Qty (a) Qty (b)
1. 162335A1 Plug (CAJ3912)………………………………………………………………………………….. 2 ………………………………………………… 2
2. KHV0389 Shut-off valve …………………………………………………………………………………….. 2 ………………………………………………… 2
3. KHV0451 Adaptor……………………………………………………………………………………………… 2 ………………………………………………… 2
4. 150811A1 Washer W12 (KHN0296)……………………………………………………………………… 4 ………………………………………………… 4
5. 827-12080 Screw M12x80 (102R012Y080R) …………………………………………………………. 4 ………………………………………………… 4
6. KRV3226 Manifold…………………………………………………………………………………………….. 2 …………………………………………………. –
7. KRV3227 Bracket ……………………………………………………………………………………………… 2 …………………………………………………. –
8. 166373A1 Screw M16x40 (105R016Y040R) …………………………………………………………. 2 …………………………………………………. –
9. 108R014Y045R Screw M14x45 …………………………………………………………………………………. 20 …………………………………………………. –
10. 150418A1 Washer M14 (KEH0116) ……………………………………………………………………… 4 …………………………………………………. –
11. KSV1436 Pipe……………………………………………………………………………………………………- ………………………………………………… 2
12. 164450A1 O-ring (LBQ5222)……………………………………………………………………………….. 6 ………………………………………………… 6
13. 150124A1 Clamp (KTJ0029) ……………………………………………………………………………… 12 ………………………………………………. 12
14. 862-14050 Screw M14x50 (108R014Y050R) …………………………………………………………. 8 ………………………………………………. 24
15. KTV1209 Retaining clamp …………………………………………………………………………………..- ………………………………………………… 4
16. 150814A1 Washer W16 (KHN0297)……………………………………………………………………….- ………………………………………………… 4
17. 827-16080 Screw M16x80 (102R016Y080R) …………………………………………………………..- ………………………………………………… 4
18. KTV1340 Hose L=2350……………………………………………………………………………………… 2 …………………………………………………. –
18. KTV1211 Hose L=2150……………………………………………………………………………………….- ………………………………………………… 2
153591A1 Loctite 262 (KRC5007)………………………………………………………………………… 1 ………………………………………………… 1
KGOTP223-00 (Boom and upperstructure)
PARTS LIST
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
1. 152924A1 Plug (BRJ1286)………………………………….3
3. 150814A1 Washer W16 (KHN0297)……………………20
5. KTV1217 RH pipe ……………………………………………1
6. KTV1216 LH pipe……………………………………………..1
7. KTV1209 Retaining clamp ……………………………….12
8. 827-16080 Screw M16x80 (102R016Y080R) ……….12
9. KTV1213 RH pipe ……………………………………………1
10. KTV1214 LH pipe……………………………………………..1
11. 164450A1 O-ring (LBQ5222)……………………………..15
12. 150124A1 Clamp (KTJ0029) ……………………………..20
13. 862-14050 Screw M14x50 (108R014Y050R) ……….16
14. 162610A1 Hose L=1300 (KTV0866) …………………….2
15. KRJ5864 Control pedal ……………………………………. 1
16. 150604A1 Washer W10 (KHJ0183)…………………….. 4
17. 166052A1 Screw M10x25 (105R010Y025R)………… 2
18. KHJ1643 Bracket ……………………………………………. 1
19. 165404A1 Screw M10x20 (KHJ1104) …………………. 2
20. KHJ1614 Floor carpet ……………………………………… 1
21. KHJ1629 Pedal ………………………………………………. 1
22. KHJ1820 Screw M10x25………………………………….. 2
23. 169357A1 Decal (KHP1465)………………………………. 1
24. KHJ2127 Bracket ……………………………………………. 1
2
Cre 9-36921 Issued 12-04
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
25. 166345A1 Screw M8x16 (105R008Y016R) …………..2
26. KHJ0652 Adaptor……………………………………………..1
27. 156554A1 Elbow (KHJ0640) ……………………………….2
28. KTJ2236 Batch of 3 hoses
KTJ1674 Hose Y1 ……………………………………………1
164236A1 Hose P5 (KAJ3183) ……………………………1
159019A1 Hose D5 (KNJ1699) ……………………………1
29. 159002A1 Plug (KHJ0363)………………………………….1
30. 150913A1 Elbow union (KHJ0341) ………………………1
31. 161483A1 Hose (KBJ2346)…………………………………1
32. 165405A1 Bracket KHR1957) ……………………………..1
33. 156559A1 Screw M6x12 (KHR1252) ……………………1
34. 159899A1 Pressure contact switch
(KHR1493)……………………………………1
35. KHR3350 Electrical harness……………………………….1
36. KHJ0994 Adaptor……………………………………………..1
37. 150933A1 Elbow union (KHJ0348) ………………………1
38. 152127A1 Adaptor (KNJ0758) …………………………….2
39. 159497A1 T-piece (KHJ0869) ……………………………..1
40. KTV2243 Batch of 1 hose
157852A1 Hose Y2 (KTJ0908)…………………………….1
41. KHJ1951 Clamp……………………………………………….3
42. 153081A1 Washer M8 (KAJ1500)………………………..6
43. 627-8012 Screw M8x12 (102R008Y012R) …………..6
44. 150860A1 Base (KHR0319)………………………………..6
45. 840-168 Screw M6x8 (145T006S008R)……………..6
46. 150496A1 Clip L=250 (KHH0142)………………………..6
47. 150071A1 Clip L=380 (KAR0017) ………………………..2
48. KTJ2133 Pipe………………………………………………….1
49. 108R014Y045RScrew M14x45 …………………………………28
50. KTJ2220 Bracket ……………………………………………..1
51. 165929A1 Screw M16x50 (105R016Y050R) …………8
52. KSJ2740 Selector block…………………………………….1
53. 166373A1 Screw M16x40 (105R016Y040R)………… 4
54. 163435A1 Cover (KSJ2363) ………………………………. 1
55. 154640A1 O-ring (LBQ0602) ……………………………… 1
56. 862-16030 Screw M16x30 (108R016Y030R)………… 4
57. 162656A1 Safety valve
(KSJ2292) …………………………………… 1
58. KTJ2219 Hose ……………………………………………….. 1
59. KTJ2135 Bracket ……………………………………………. 1
60. 163436A1 Manifold (KSJ2362) …………………………… 1
61. 166352A1 Screw M12x30 (105R012Y030R)………… 8
62. 162667A1 Manifold (KSJ2372) …………………………… 1
63. 184-014VR Washer SW14…………………………………… 4
64. 862-14090 Screw M14x90 (108R014Y090R)………… 4
65. KTJ2225 Bracket ……………………………………………. 1
66. KTJ2224 Bracket ……………………………………………. 1
67. 168028A1 Filter (KTJ1731)………………………………… 1
68. 166052A1 Screw M10x25 (105R010Y025R)………… 4
69. 167059A1 O-ring (KSJ0220)………………………………. 2
70. 168031A1 Hydraulic clamp (KTJ1812) ………………… 2
71. 861-12025 Screw M12x25 (108R012Y025R)………… 8
72. 150811A1 Washer M12 (KHN0296) ……………………. 4
73. 627-12035 Screw M12x35 (102R012Y035R)………… 4
74. 159047A1 Adaptor (BDJ0218)……………………………. 1
75. KTJ2142 Hose ……………………………………………….. 1
76. 157856A1 Clamp (KRJ4117) ……………………………… 6
77. 862-10025 Screw M10x25 (108R010Y025R)………… 8
78. 157582A1 Elbow (KHJ0346)………………………………. 2
79. KTJ2226 Hose ……………………………………………….. 1
80. KTJ2223 Hose ……………………………………………….. 1
81. 862-10030 Screw M10x30 (108R010Y030R)………… 4
82. KTJ2138 Hose ……………………………………………….. 2
83. KHR3353 Electrical harness ……………………………… 1
153591A1 Loctite 262 (KRC5007) ………………………. 1
