CNH Crawlers Excavators CX75SR Clamshell-Offset-Boom ASSEMBLY INSTRUCTIONS Manual 87681921A – PDF DOWNLOAD (EN-IT-ES-DE-FR-PT-NL-DAN-AR)

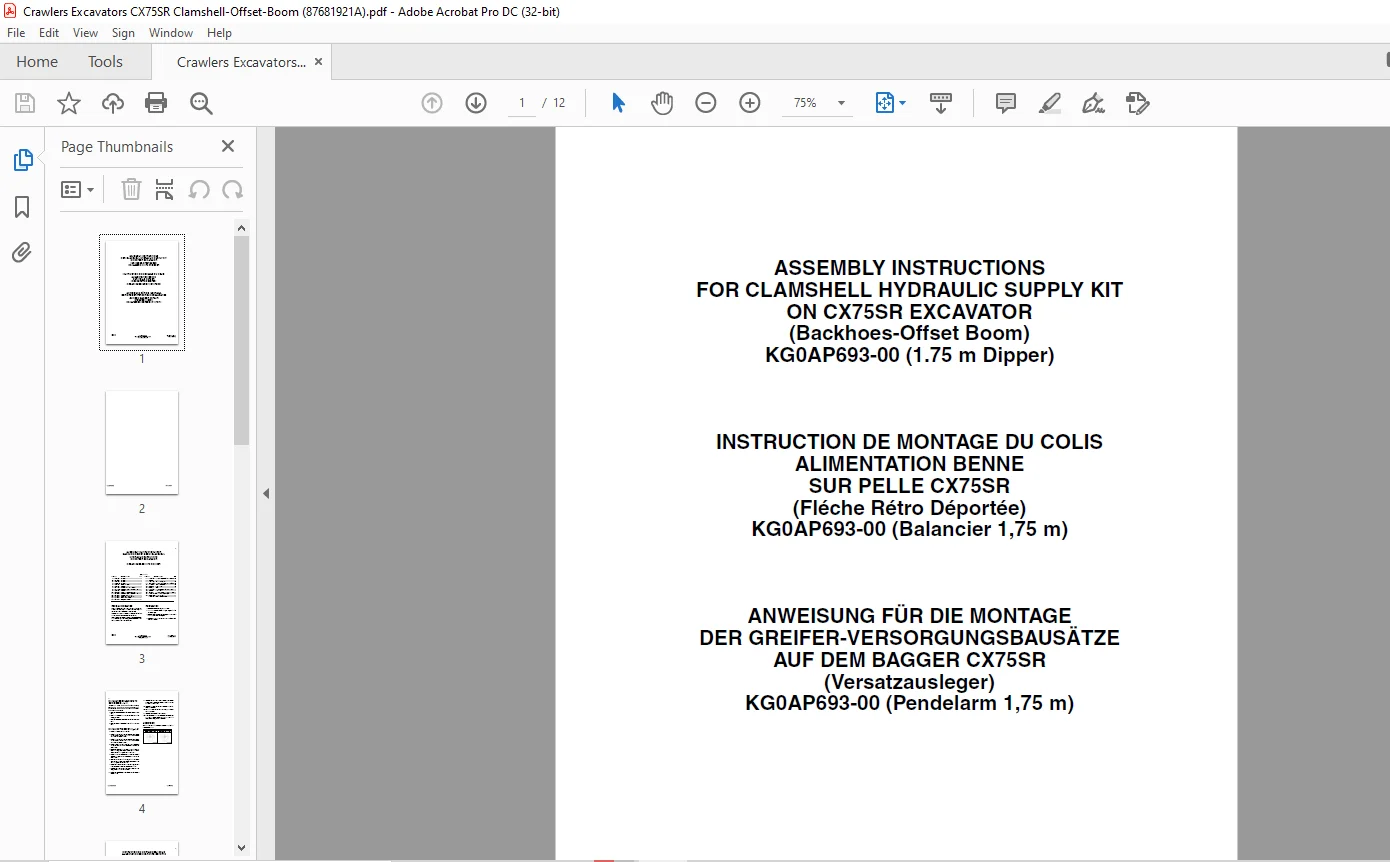

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
CNH Crawlers Excavators CX75SR Clamshell-Offset-Boom ASSEMBLY INSTRUCTIONS Manual 87681921A – PDF DOWNLOAD (EN-IT-ES-DE-FR-PT-NL-DAN-AR)
GENERAL INFORMATION
The illustrations for these assembly instructions will be
found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and letters in these instructions
are the same as those used in the illustrations.
Special torque settings are shown in these instructions.
If a torque setting is not shown, use the standard torque
setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and lower it
to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).
TABLE OF CONTENTS:
CNH Crawlers Excavators CX75SR Clamshell-Offset-Boom ASSEMBLY INSTRUCTIONS Manual 87681921A – PDF DOWNLOAD (EN-IT-ES-DE-FR-PT-NL-DAN-AR)
PARTS LIST
ITEMP/N DESCRIPTION Qty ITEMP/N DESCRIPTION Qty
1. KAV2682 Bracket…………………………………….. 1
2. 162054A1 Bracket…………………………………….. 1
3. KAV2561 Bracket…………………………………….. 1
4. KMV2256 Bracket…………………………………….. 2
5. KAV2680 Bucket cylinder………………………….. 1
6. KAV2682 Support plate ……………………………. 1
7. 150811A1 Washer W12 (KHN0296) ……………. 8
8. 627-12030 Screw M12x30 (102R012Y030R) … 6
9. KAV2552 Support plate ……………………………. 1
10. 159748A1 Selector valve (KHJ0777) …………… 2
11. 166052A1 Screw M12x25 (105R010Y025R) … 2
12. 168988A1 Adaptor (KHJ1778) ……………………. 3
13. 157936A1 Right-angle (KHJ0642) ………………. 1
14. 157586A1 Elbow (KHJ0351) ………………………. 2
15. 153683A1 Plug (KHJ0481) ………………………… 2
16. 166351A1 Screw M10x20 (105R010Y020R)….2
17. KAV2601 Pipe ………………………………………….1
18. 166401A1 Clamp (KAV0792)……………………….2
19. 827-12055 Screw M12x55 (102R012Y055R)….2
20. 151650A1 Adaptor (KNJ0604)……………………..2
21. KAV2678 Hose L=700……………………………….2
22. KHV0471 Clip …………………………………………..1
23. 166345A1 Screw M8x16 (105R008Y016R)……1
24. KAV2551 Support arm ………………………………1
25. 514-861 Screw M12x100 (132R012Y100R)..1
26. 132R012Y130RScrew M12x1.25×130 …………….1
27. 172R012VRNut M12x1.25 …………………………….4
153591A1 Loctite 262 (KRC5007)………………..1
