Description:

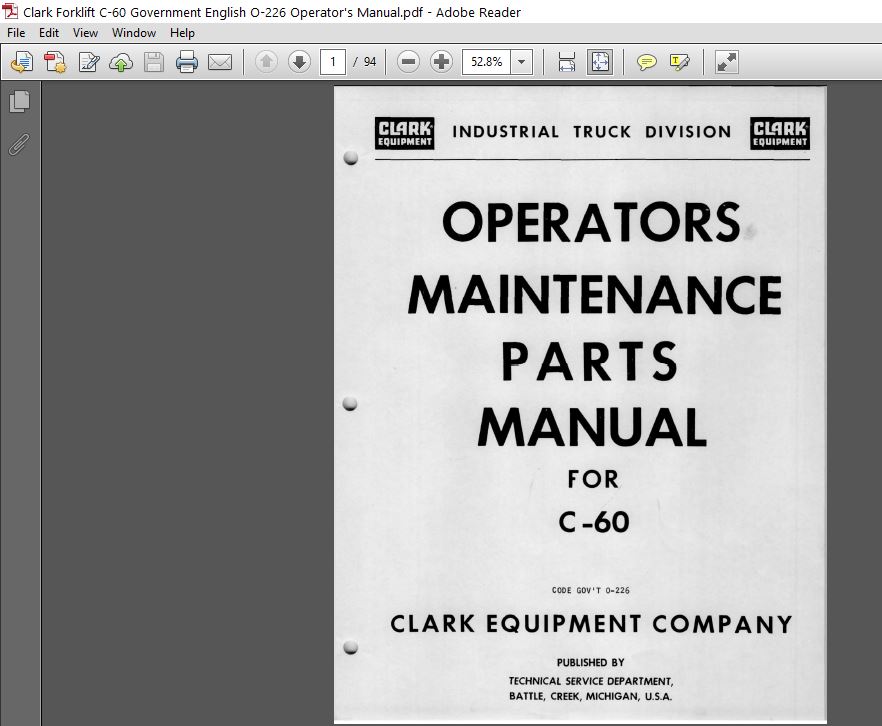

Clark Forklift C-60 Government English O-226 Operator’s Manual
- SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facilities, personnel and procedures should be provided.
- Maintenance and inspection of all powered industrial trucks should be performed in conformance with the recommendation in this manual and the following practices. 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed.
- 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. 3. Before Leaving The Truck: A. Stop truck. B. Fully lower the load engaging means.
- c. Place directional controls in neutral. D. Apply the parking brake. E. Stop the engine or turn off power. F. Lock the control or ignition circuit. G. Block the wheels if truck is on a ramp, or being worked on
- . 4. Before Working On Tr uck: A. Raise wheels free of floor or disconnect power source. B. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them.
- Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve is closed. Before working on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system is depleted and engine stops running.
- Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area. 5, Before StartingT o Operate TheT ruck: A. Be in operating position.
- B. Depress clutch (or brake pedal on automatic transmission and electric trucks). C. Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of 1 ift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.
Table Of Contents:
Clark Forklift C-60 Government English O-226 Operator’s Manual
Description

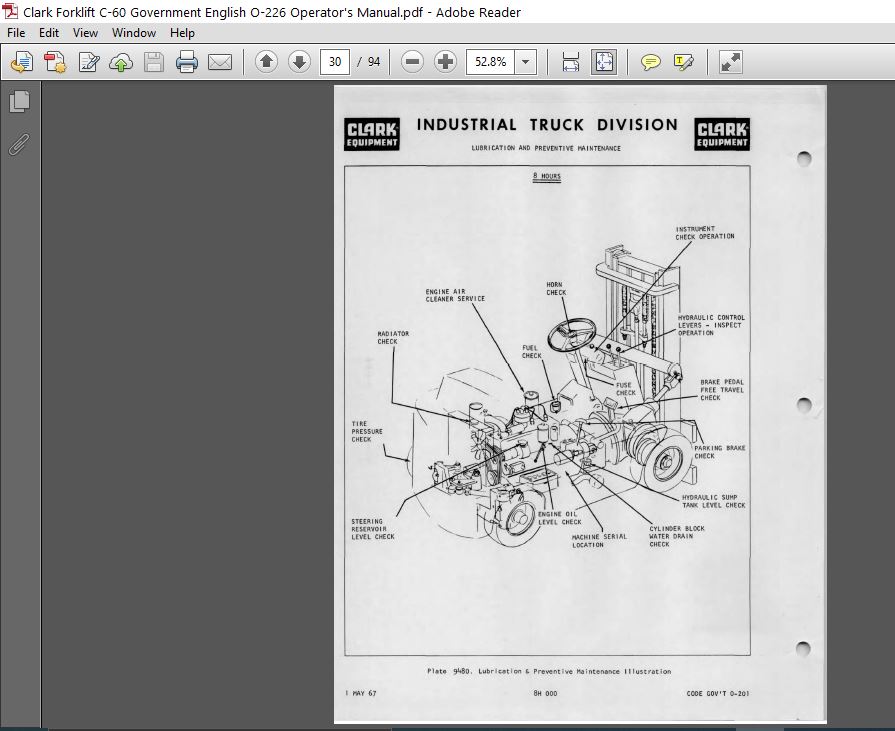

Lubrication and preventive maintenance illustration
Fuel Pump Filter Check
Transmission oi 1 filter, screen, and level check
Axle adapter & transmission drain plugs
Hydraulic sump tank and filter check
Steering gear adjust
Steering gear adjust
Steering axle and linkage adjustments
Steering axle and linkage adjustments
Mani fo 1 ds check
Lubrication and Preventive Maintenance I 1 lustration
Engine Tune up
Cylinder head, manifolds, crankcase, and valves adjustments
Valve adjustment
Compression test
D istributer Adjustments
Distributor adjustments
Distributor adjustments and timing
Timing
Vacuum Test
Governor adjustment
Governor adjustment
Starting motor
Starting motor
Generator adjustment
Generator adjustment
Steer wheel bearings lubrication
Axle ends lubrication
Brake bleeding procedure
Brake Bleeding procedure
Brakes service
Hand Brake adjustment
Cooling System inspect and clean
Cooling System inspect and clean
Hydraulic system check
Hydraulic system check
Hydraulic system check
Hydraulic system check
Transmission stall and pressure checks
Transmission stall and pressure checks
Battery check
Neutral starting switch
Lift and upright adjustments
Roller adjustments
Upright roller adjustments
Upright roller adjustments
Lift carriage roller adjustments
Upright roller lubrication
