CDS 500-600 FORKLIFT & BUCKMASTER PARTS CATALOG MANUAL 1012401 – PDF DOWNLOAD
FILE DETAILS:
CDS 500-600 FORKLIFT & BUCKMASTER PARTS CATALOG MANUAL 1012401 – PDF DOWNLOAD
Size: 12.7 MB
Pages :281
Format: PDF
Language: English
Brand: CDS
Format: PDF
Language: English
Brand: CDS
DESCRIPTION:
CDS 500-600 FORKLIFT & BUCKMASTER PARTS CATALOG MANUAL 1012401 – PDF DOWNLOAD
500-600
FORKLIFTS &BUCKMASTER
- The parts in this catalog are listed in alphabetical order and are located at the front of this catalog. Except for some common hardware all parts are identified with an item number. Common hard-ware not identified such as bolts, nuts, cotter pins and lubrication fittings, are listed in the text under the part which they attach or fit into. Note particularly that the quantity of hardware listed is always the quantity required for one part.
- Common attaching hardware listed under a part is not included in the assembly or included with the part unless specified. Example: (Incl. Bolt, Lock-washer and Nut). “Assembly or Packaged Parts” indicates if an individual part is one of many in a large assembly or one of several kinds in a package. All numbers are listed in the second last section of this catalog showing the quantity and description of the various parts that make up the assembly or package. The last section of this catalog contains a part number index to indicate on which page or pages a part number appears.
- All illustrations will be found to follow the text of each group or section of which it is a part. For any additional copies of this catalog there will be a supplementing service charge of three dollars. Refer any requests to your Branch House or office under which you operate.Order all parts for this machine from your local ALLIS-CHALMERS Dealer.
- When ordering parts for this unit, supply the following information:
- 1. The tractor and engine serial numbers.
- 2. The model or name of the unit and its serial number.
- 3. State the common name of the part you wish to order, or a description of the part and its location on the unit, or bring in old part.
- 4. Always print your name and post office address, where parts are to be shipped; also specify whether material is to be shipped by freight, express or parcel post.
- 5. When ordering parts always determine right hand and left hand from a position in the operators seat facing the direction of forward travel.
- On Backhoe Units Right and Left is determined by facing the Backhoe from the operator seat. IMPORTANT Unless claims for shortages or errors are made immediately upon receipt of goods, they will not be considered.
- When broken goods are received, a full description of the damage should be made by the carrier agent on the freight bill. If this description is insisted upon full damage can always be collected from the transportation company. No responsiblity is assumed for delay or damage to merchandise while in transit. Our responsibility ceases upon delivery of shipment to the trans-portation company, from whom a receipt is re-ceived showing that shipment was in good condi-tion .
- when delivered to them; therefore claims (if any) should be filed with the transportation company and not with Allis-Chalmers Manufac-turing Cbmpany. The right is reserved to change the construction or material of any parts where it seems desirable to do so, without incurring the obligation of in-stalling such changes on units already delivered.
VIDEO PREVIEW OF THE MANUAL:

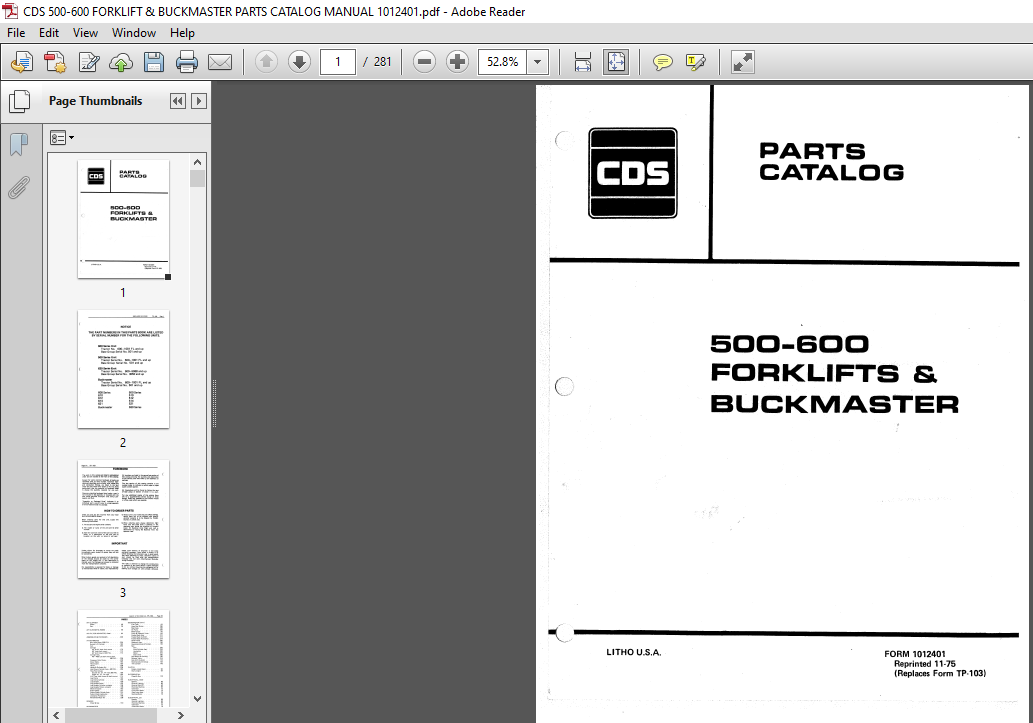

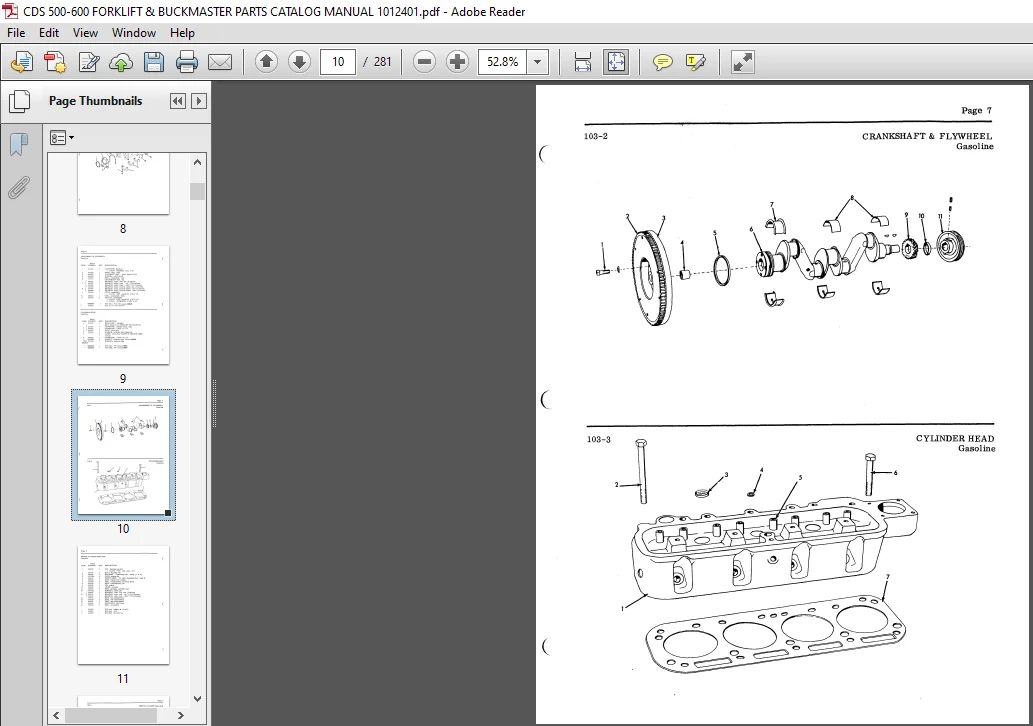

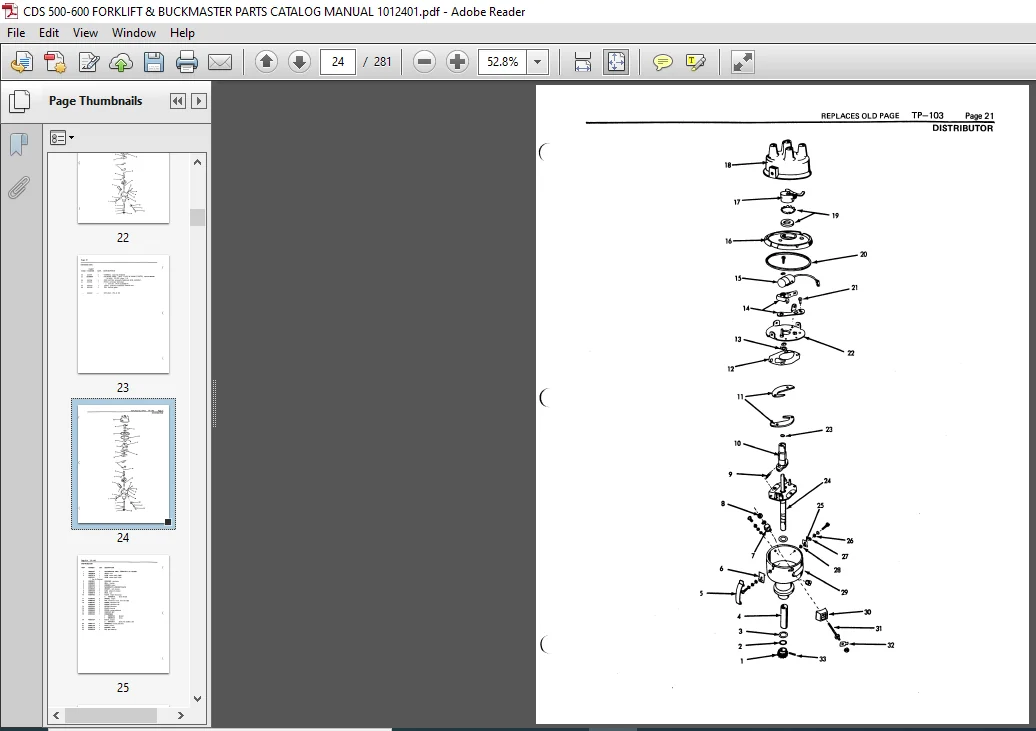

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
