CAT Hagglunds Compact Motors Installation & Maintenance Manual – PDF DOWNLOAD
$14.95
CAT Hagglunds Compact Motors Installation & Maintenance Manual – PDF DOWNLOADย
Description
CAT Hagglunds Compact Motors Installation & Maintenance Manual – PDF DOWNLOAD
FILE DETAILS:
CAT Hagglunds Compact Motors Installation & Maintenance Manual – PDF DOWNLOADย
Language : English
Pages : 45
Downloadable : Yes
File Type : PDF

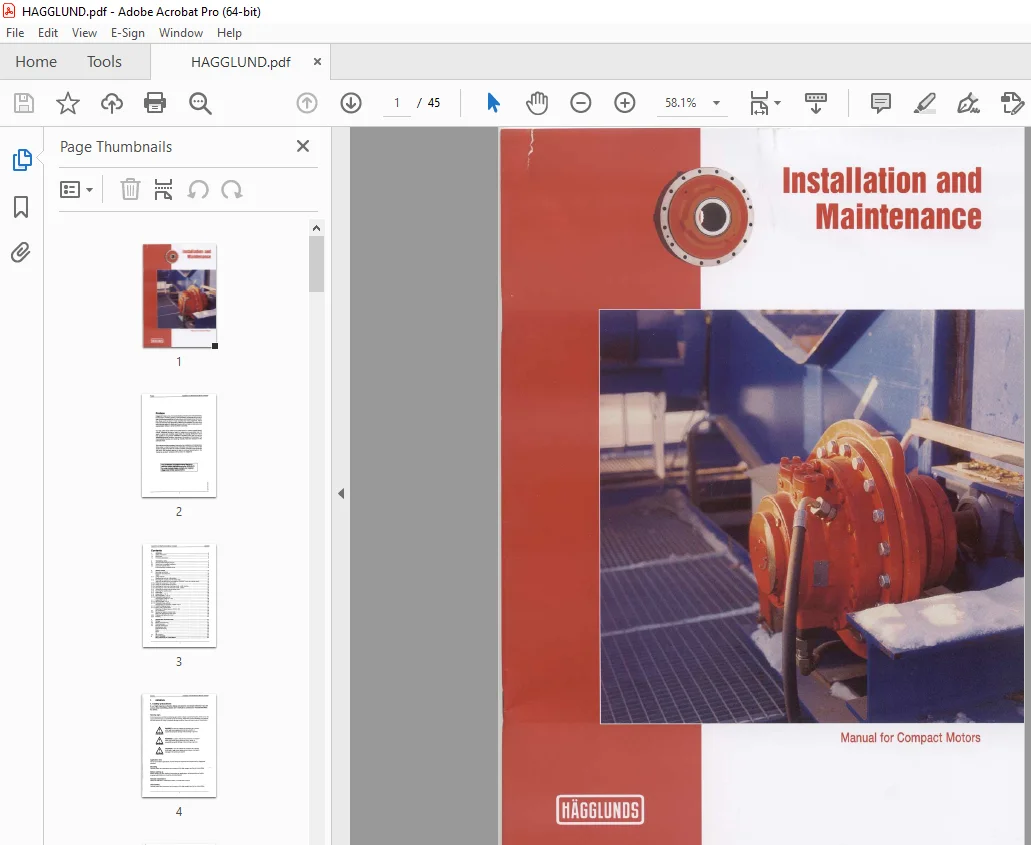

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
CAT Hagglunds Compact Motors Installation & Maintenance Manual – PDF DOWNLOADย
GENERAL 4
Safety precautions 4
Motor data 5
Functional description 6
TECHNICAL DATA 7
Recommended charge pressure 7
Sound from a complete installation 8
Choice of hydraulic fluid 9
Environmentally acceptable fluids 10
INSTALLATION 11
Mounting instructions 11
Thread for mounting tool 12 ~
Lilting methods 13
Standing the motor on a flat surface โฆ 15
Mounting the coupling onto the motor shaft 16
Instruction to follow when mounting the COMPACT motor on a driven shaftย 16
Fitting the torque arm to the motor 18
Fitting the double ended torque arm 19
Mounting the motor onto the driven shaft – shaft coupling 20
Mounting the motor onto the driven shaft – splines 22
Removing the motor from the driven shaft 24
Mounting the reaction point 25
Brake MDA 26
Draining of brake cylinder 27
Disassembly of MDA 5, 7 &10 28
Disassembly and assembly of MDA 14 & 21 31
Control of braking torque 31
Motors with 2-speed valve 32
Mounting of 2-speed valve on CA 50 – 210 32
Oil connections 33
Direction of rotation of motor shaft ไธ 35
Motor with displacement shift valve
Flushing 37
OPERATING INSTRUCTIONS 37
Storage 37
Before commissioning 37
Axial thrust bearing 39
Oil 40
Oil inspection 40
FAULT FINDING 42
DECLARATION OF CONFORMITY 44
S.V 30/03/2025ย
