CAT Dresser 204-M MARION Programmable System for Shovel Control & Fault Annunciation Manual 2150 PDF

Description

CAT Dresser 204-M MARION Programmable System for Shovel Control & Fault Annunciation Manual 2150 – PDF DOWNLOAD

FILE DETAILS:

CAT Dresser 204-M MARION Programmable System for Shovel Control & Fault Annunciation Manual 2150 – PDF DOWNLOAD

Language : English
Pages : 190
Downloadable : Yes
File Type : PDF

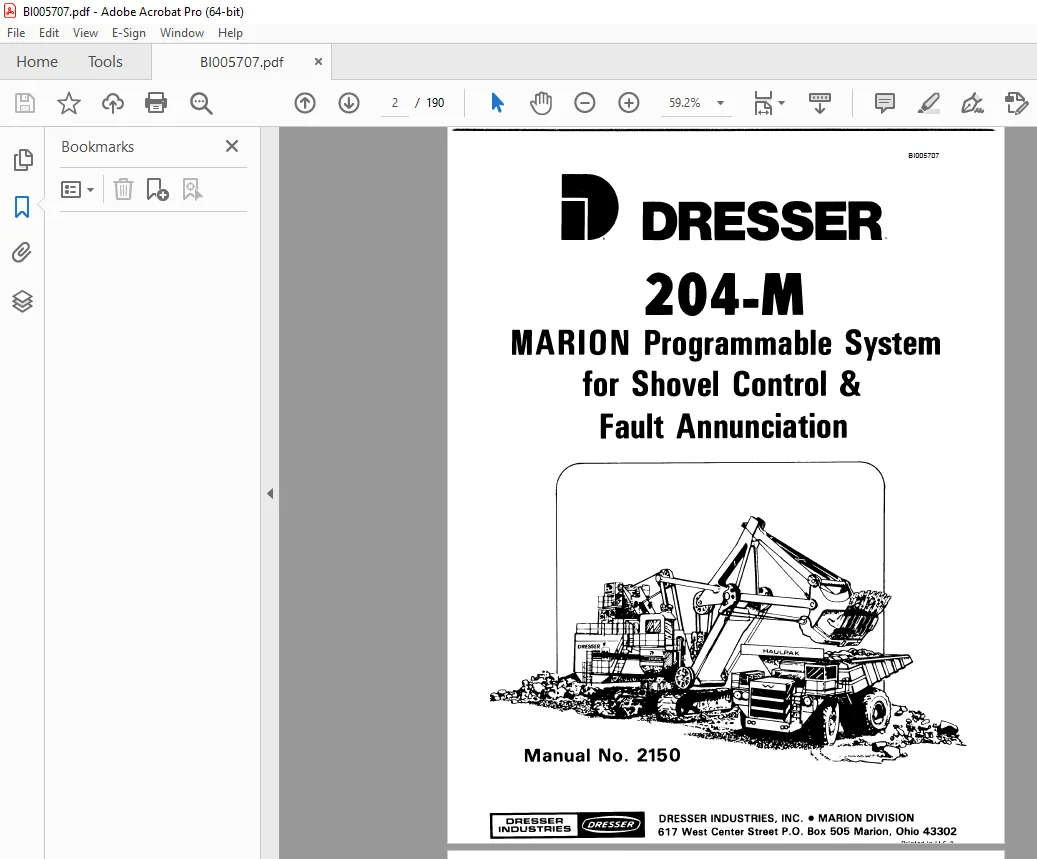

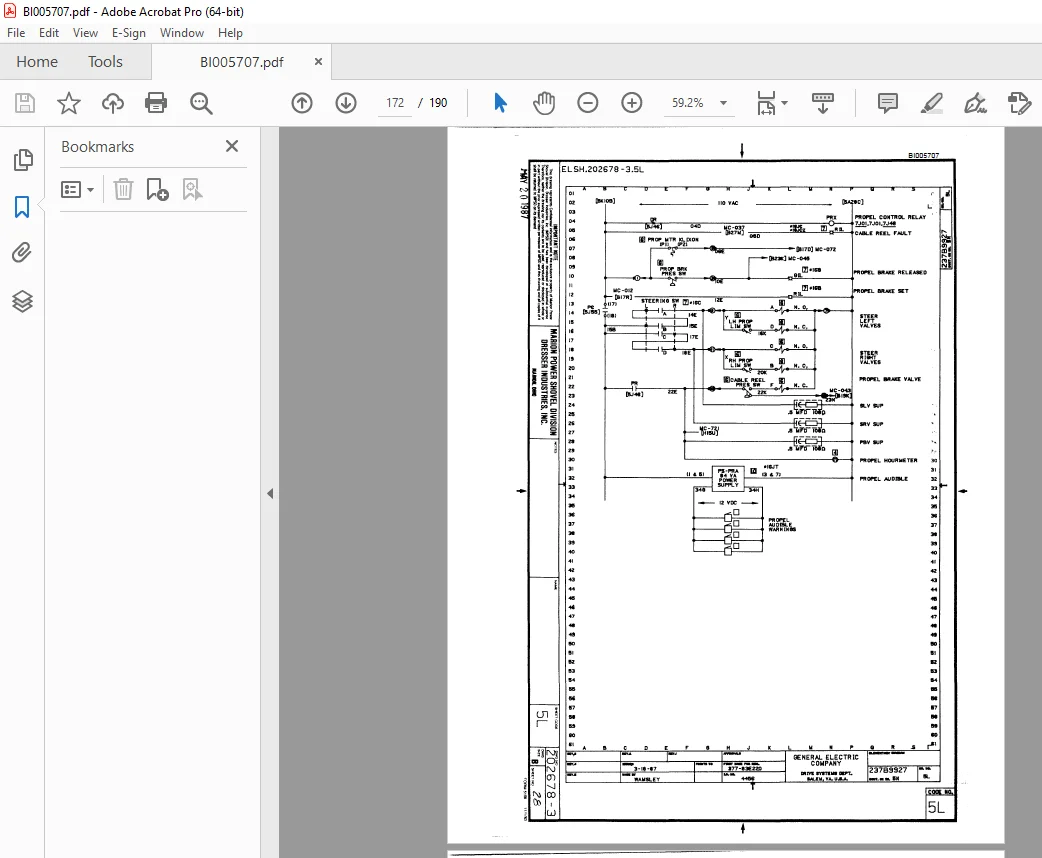

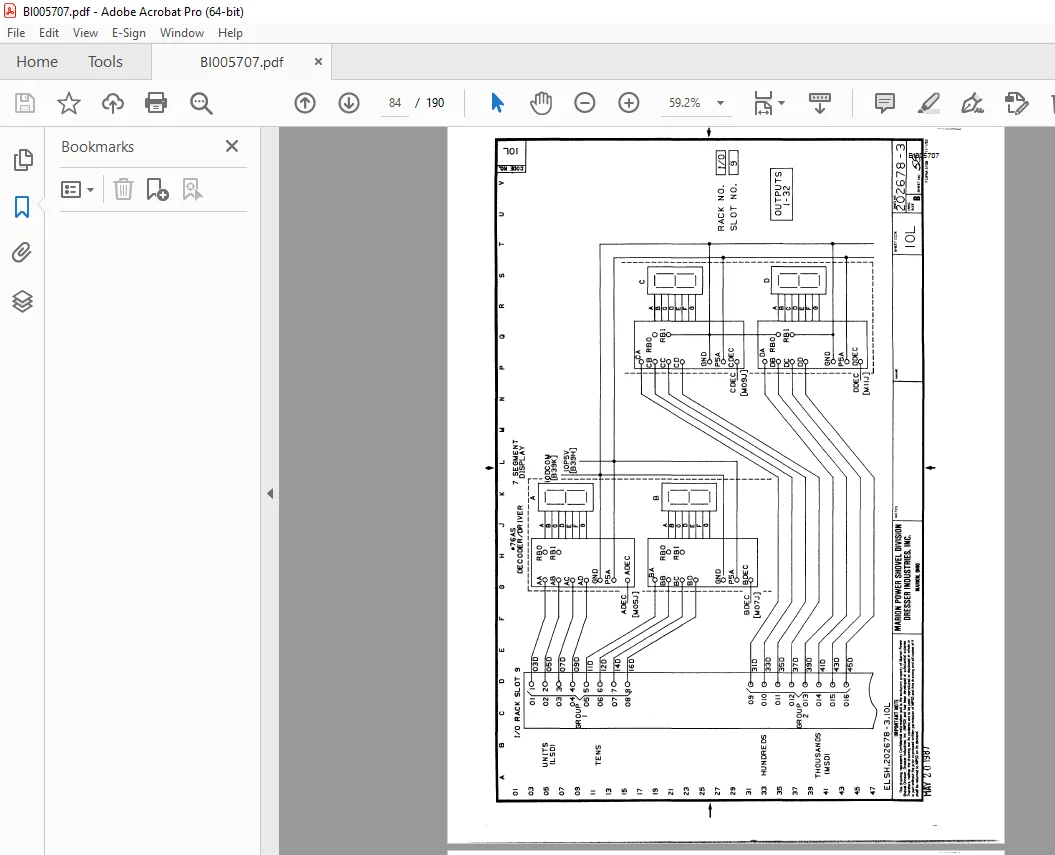

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

CAT Dresser 204-M MARION Programmable System for Shovel Control & Fault Annunciation Manual 2150 – PDF DOWNLOAD

1 0 INTRODUCTION ,
2 0 GENERAL DESCRIPTION 4
SYSTEMSFEATURES
POSITION SENSORS
5 0 MONITOR PANEL 17
5 1 DATA DISPLAY 17
5 2 SET POINT ENTRY 20
5 3 ZERO POSITION CALIBRATION 20
5 4 NORMAL – BYPASS 21
5 5 FAULT MONITORING 21
5 6 TEST POINTS 23
6 0 FUNCTIONAL DESCRIPTION ” 25
6 1 HOIST AND CROWD LIMITS 25
6 2 HOIST REFERENCE TAPER 25
6 3 LOWERING REFERENCE TAPER 27
6 4 LOWERING LIMIT CONTROL 29
6 5 DIG RANGE LIMIT 29
6 6 ByPASS 32
6 7 ENCODER CALIBRATION 32
6 8 DIAGNOSTICS 32
7 0 START-UP PROCEDURE 33
7 1 BEFORE ENERGIZING 33
7 2 INITIAL ENERGIZATION 34
7 3 HOIST LIMIT 36
7 4 CROWD LIMIT 38
7 5 VERIFYING DIAGNOSTICS 39
8 0 OPERATIONAL TESTS 41
8 1 SET POINTS 41
8 2 ZERO POSITION CALIBRATION ” 46
8 3 HOIST LIMIT TEST 46
8 4 CROWD LIMIT TEST 47
8 5 “FLAT PASS” ADJUSTMENT 47
8 6 LOWERING TESTS 48
8 7 “DIG RANGE LIMIT” TESTS 50
BI005707
MOTION LIMIT CONTROL SYSTEM
INDEX
SECTION
9 0 DATA SHEETS
10 0 CHANGING ROPES
11 0 MASTER CONTROLLER SYSTEM
11 1 INTRODUCTION
11 2 FUNCTIONAL DESCRIPTION
12 0 FAULT ANNUNCIATION SYSTEMS 57
12 1 INTRODUCTION 57
12 2 FUNCTIONAL DESCRIPTION 57
12 3 ELECTRICAL OPERATION CHECI< POINTS 57
APPENDIX
ELECTRICAL SCHEMATIC DIAC;RAMS
LADDER DIAGRAMS
SERIES ONE PROGRAMMABLE CONTROLLER USER’S MANUAL
G E PUBLICATION GEl< 25375
SERIES SIX PROGRAMMABLE CONTROLLER USER’S MANUAL
G E PUBLICATION GEl< 25361

DESCRIPTION:

CAT Dresser 204-M MARION Programmable System for Shovel Control & Fault Annunciation Manual 2150 – PDF DOWNLOAD

INTRODUCTION:

• This manual contains component equipment descriptions, start-up procedures
  and maintenance information for the Master Controller and Motion Limit Control
  Systems for the Model 204M Mining Shovel. These systems are programmable
  controller (“PC”) based digital control systems. They have been designed for
  accuracy and dependability. Use of the PC provides extremely flexible management
  of control/warning devices and enhances diagnostics capabilities for easy
  maintenance. Each system is designed to assist the operator in being the most
  productive with the SuperFront geometry. All control features performed by
  the system are covered in the following pages.
• Knowing when and how to readjust or make changes in each system is simply a
  matter of becoming familiar with the programs, how the hardware works and
  what the system limitations are. This section is intended to provide that
  knowledge.
• Keep in mind that each system is basically a small computer that
  communicates to the outside world through input and output hardware signal
  conditioners (1/0 Racks and Cards). All system hardware and software allows
  the flexibility of custom modifications based on customer preference, with no
  hardware changes in most cases.

CAT DRESSER 204-M MARION PROGRAMMABLE SYSTEM FOR SHOVEL CONTROL & FAULT ANNUNCIATION MANUAL 2150 PDF:
