Cat Bucyrus Terex Mining RH200081 Technical Manual BI636660 – PDF DOWNLOAD
$21.95
Cat Bucyrus Terex Mining RH200081 Technical Manual BI636660 – PDF DOWNLOAD
Description
Cat Bucyrus Terex Mining RH200081 Technical Manual BI636660 – PDF DOWNLOAD
FILE DETAILS:
Cat Bucyrus Terex Mining RH200081 Technical Manual BI636660 – PDF DOWNLOAD
Language : English
Pages : 71
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Cat Bucyrus Terex Mining RH200081 Technical Manual BI636660 – PDF DOWNLOAD
1 1 A090397 PLATFORM
2 1 A090398 PLATFORM MOUNTING PLATE
3 1 A090399 PLATFORM BRACE
4 1 A090400 BRACE MOUNTING PLATE
5 1 A090401 BRACE PACKER
6 1 A090402 PLATFORM HANDRAIL
7 1 A090403 PLATFORM REAR HANDRAIL
8 1 A060054 HYDRAULIC CYLINDER
9 1 A090404 RADIUS ARM
10 2 A090405 LINK
11 1 A090406 UPPER STAIRS
12 – A090407 UPPER STAIRS HANDRAIL
13 2 A020096 BUFFER CUP
14 1 A090408 LOWER STAIRS
15 2 A090409 LOWER STAIRS HANDRAIL
16 2 A070562 BUFFER CONE
17 2 A080237 STAIRWAY ROPE ASSEMBLY
18 1 A070563 RADIUS ARM AXIS PIN ร30 x 668
19 1 A070564 LOWER STAIRS AXIS PIN ร30 x 704
20 1 A070565 UPPER STAIRS AXIS PIN ร38 x 720
21 2 A070566 LINK AXIS PIN ร38 x 766
22 4 A070567 30 DIA BRONZE BUSH
23 6 A070568 38 DIA BRONZE BUSH
24 4 A070569 32 DIA SPACER WASHER
25 6 A070570 40 DIA SPACER WASHER
26 9 0010593 LUBRICATION FITTING
27 6 A070571 PULLEY PIN
28 2 A070572 TOP TURNBUCKLE PIN
29 4 A070573 PULLEY ASSEMBLY
30 4 A070574 PULLEY SPACER
31 8 A080238 R-CLIP
32 1 A090410 ACCUMULATOR BRACKET
33 1 A090411 CONTROL VALVE BRACKET
34 1 A090412 PROXIMITY SWITCH BRACKET
35 1 A080251 PULL WIRE ASSEMBLY
36 1 A060055 CONTROL VALVE
37 1 A060056 ACCUMULATOR
38 1 A060057 CHECK VALVE
39 1 A080240 PACKING CASE
40 1 2700439 PROXIMITY SWITCH
41 1 A080241 BOLT LIST

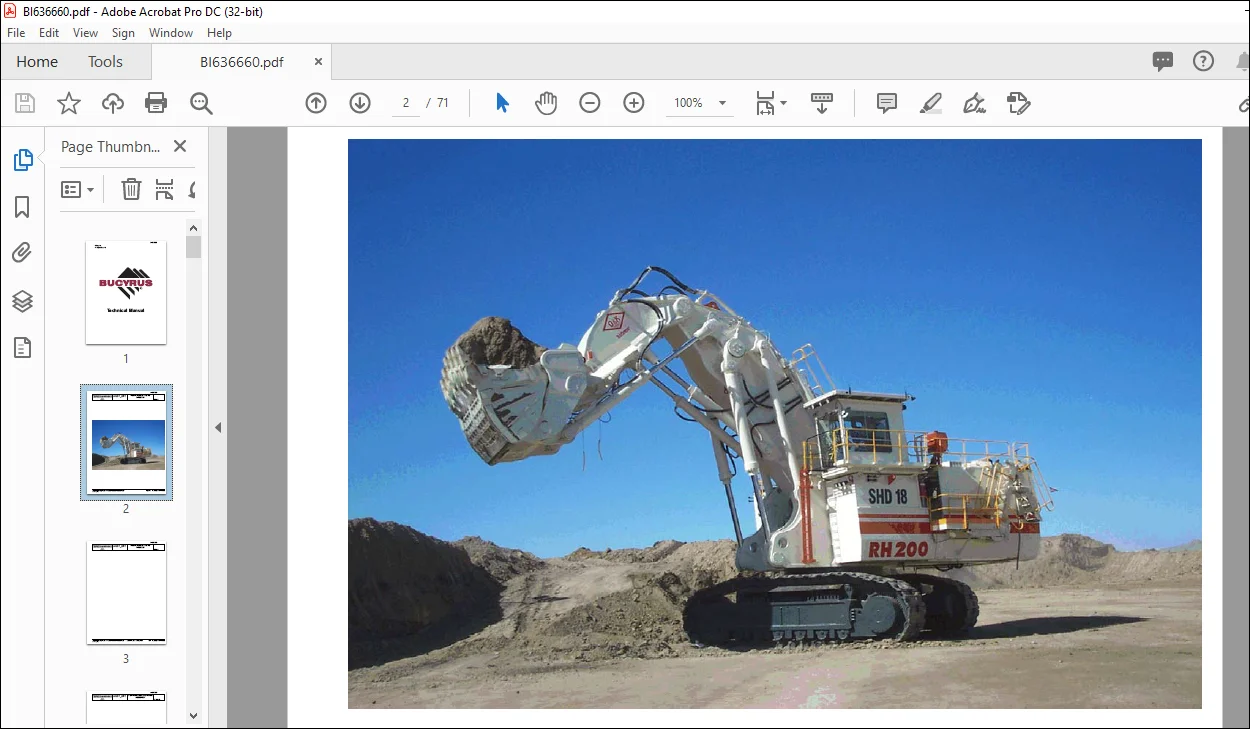

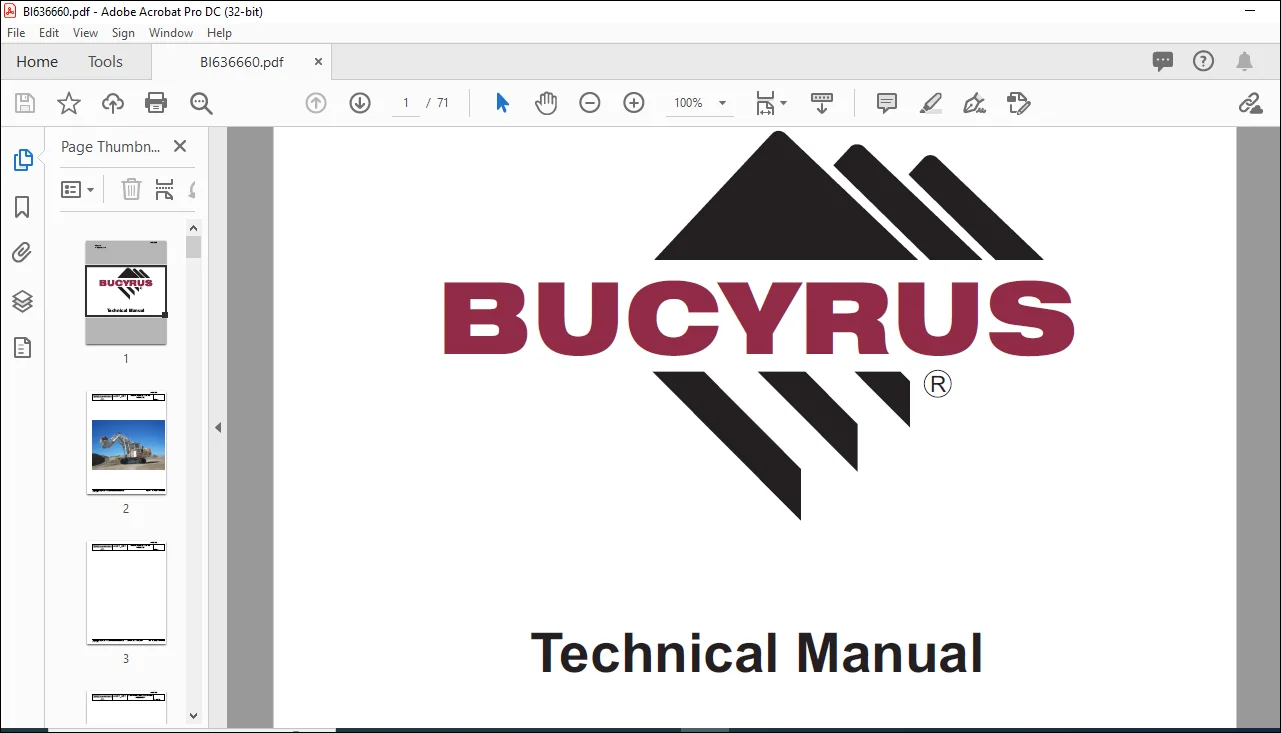

IMAGES PREVIEW OF THE MANUAL:
