Case Multi-Fit S couplers for D series excavators Operator’s Manual _EN_IT_DE_FR_ES(47848479) – PDF DOWNLOAD
DESCRIPTION:
Case Multi-Fit S couplers for D series excavators Operator’s Manual _EN_IT_DE_FR_ES(47848479) – PDF DOWNLOAD
1. SAFETY NOTE
DANGER – Hydraulic Fluid Never use your hands to
search for hydraulic fluid leaks, use a piece of paper
or cardboard. Escaping fluid under pressure can be
invisible and can penetrate the skin and cause serious
injury. If affected, see a doctor at once.
WARNING – Coupler Condition A defective coupler
could injure you or others. Do not operate a coupler
that is defective.
WARNING – Decals To ensure the safe operation of
the quick coupler you must place the coupler decal in
the machine cab where it can be seen clearly. Replace
unreadable or missing decals with new ones before
operating the machine.
WARNING – Modification and Welding
Non-approved modifications can cause injury and
damage, making your coupler unsafe. Please call
Miller for advice and service requirements.
WARNING – Protective Clothing Oil resistant safety
gloves must be worn during installation and
dismantling. Field Service personnel and operators
must be fully conversant with the installation and
operating procedures. If in doubt, seek advice.
WARNING – Smoking Do not smoke whilst working
on the hydraulic system.
WARNING – Lifting Always use the correctly rated
shackle and lifting equipment. Never use worn,
damaged or undersized lifting equipment.
WARNING – Machine Operation Always stop the
machine and shut off the engine when leaving the
machine. Never keep the machine running whilst
installing or servicing the coupler.
! WARNING – Maintenance Work Maintenance work
must only be done by competent personnel.
! WARNING – Manual Handling Take care when
manually handling coupler & components, bucket and
installation pins. Refer to the table on page 6 to
ascertain product weights.
! CAUTION – Metal Splinters Flying metal splinters
can cause injury when driving metal pins in and out.
Use a soft-faced hammer or drift to fit and remove
metal pins. Always wear safety glasses.
! WARNING – Safety Shutdown Procedure Work of any
type on machinery is always more dangerous when
the machine is operating. Before cleaning, lubricating
or servicing this unit, the following Safety Shutdown
Procedure should always be followed:
1 Move the host machines propulsion control
to the neutral position and idle the engine
down.
2 Shut off the hydraulic fluid flow to the
Coupler.
3 Position the coupler so that it is completely
resting on the ground.
4 Engage the host machine’s park brake.
5 Move the host machine’s throttle to slow
idle, shut the engine off and remove the
ignition key.
TABLE OF CONTENTS:
Case Multi-Fit S couplers for D series excavators Operator’s Manual _EN_IT_DE_FR_ES(47848479) – PDF DOWNLOAD
1. SAFETY NOTE
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. KIT CONTENTS & DIAGRAMS
General specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. CASE MULTI-FIT S COUPLER KEY DIMENSIONS
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. SCHEMATICS PER MODELS
Part numbers specific per models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. GENERAL INSTALLATION PROCEDURE
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

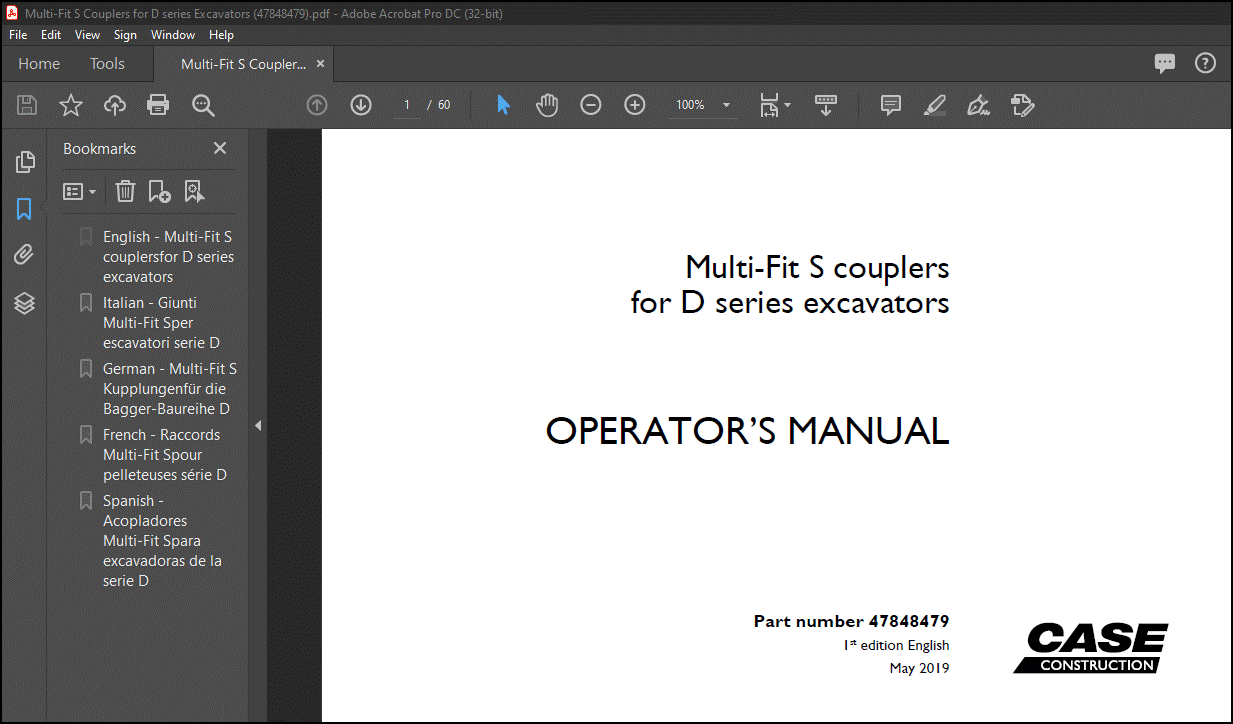

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by dealers to troubleshoot faults in your vehicle. It can be yours in 2 minutes after payment.
- Contact us at [email protected] if you have any questions before your purchase or if you need any other service/repair/parts user manual.
