Case IH Tractor NEF Tier 4A interim and stage IIIB Engine Service Manual
FILE DETAILS:
Case IH Tractor NEF Tier 4A (interim) and stage IIIB Engine Service Manual_48076861
Size : 36.1 MB
Format : PDF
Language : English
Number of Pages : 423 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: NEF Tier 4A (interim) and stage IIIB Engine
Part No: 48076861
VIDEO PREVIEW OF THE MANUAL:

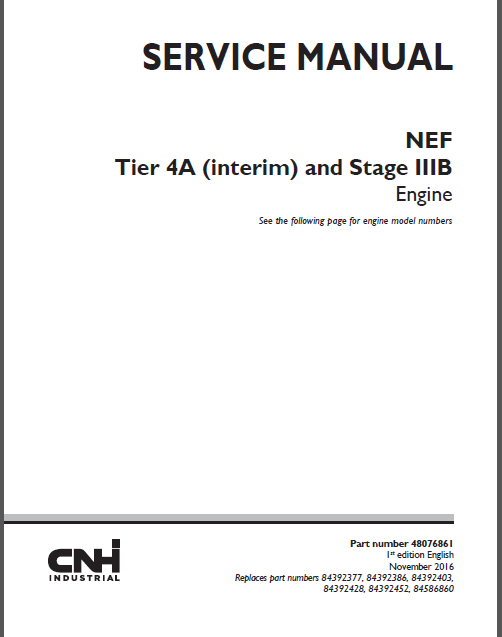

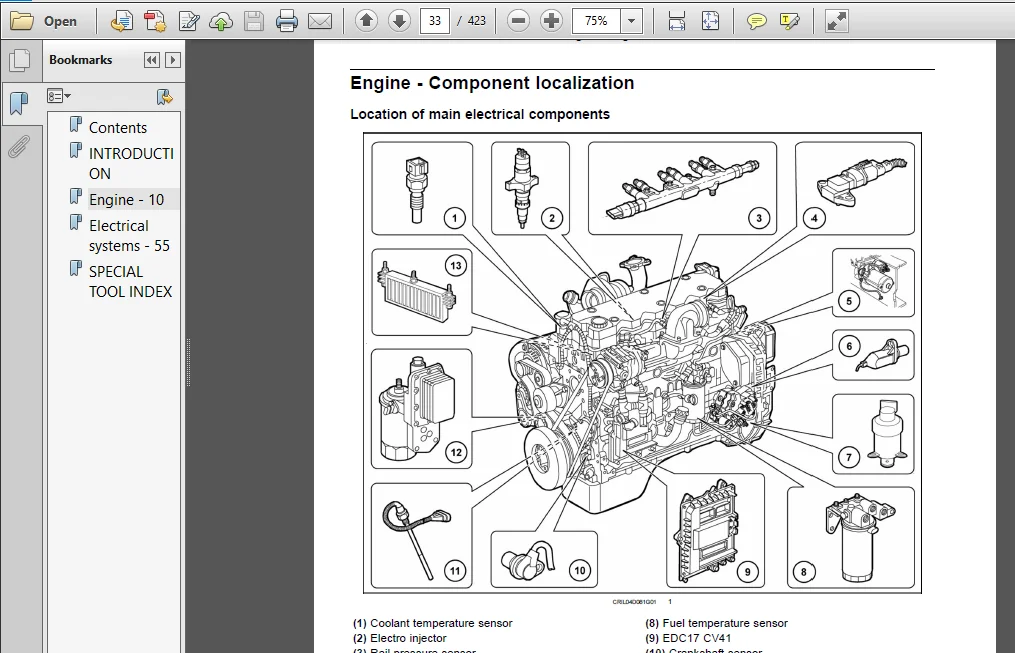

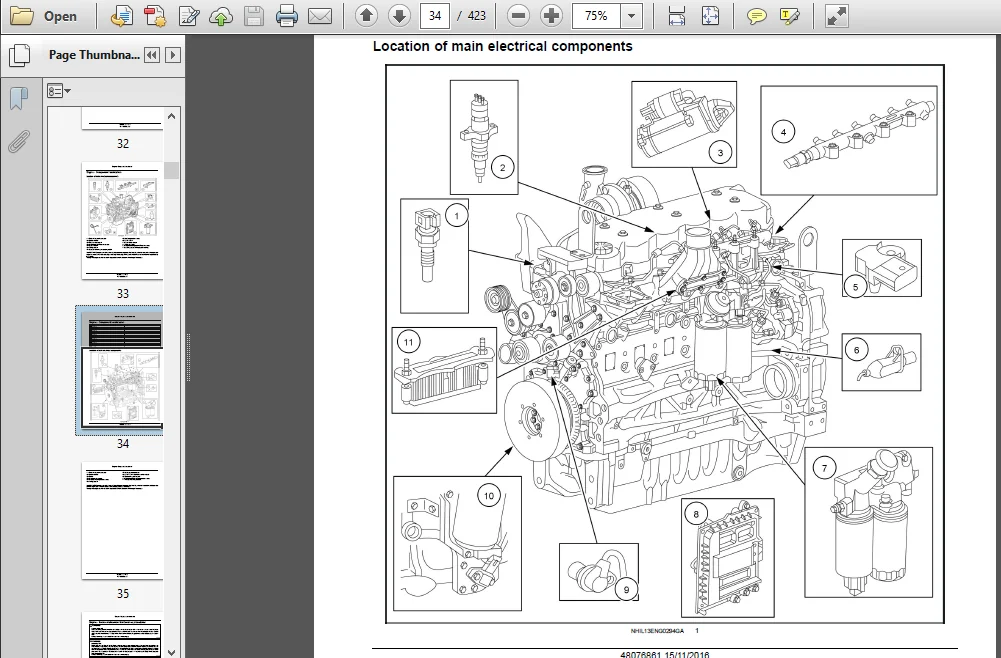

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Case IH Tractor NEF Tier 4A (interim) and stage IIIB Engine Service Manual_48076861
F4DFE413A*A, F4DFE413B*A, F4DFE413C*A, F4DFE413D*A, F4DFE413E*A, F4DFE6132*A, F4DFE613A*A, F4DFE613B*A, F4DFE613C*A, F4DFE613D*A, F4DFE613E*A, F4DFE613F*A, F4DFE613G*A, F4DFE613H*A, F4DFE613J*A, F4DFE613K*A, F4DFE613L*A, F4HFE413A*A005, F4HFE413C*A, F4HFE413D*A008, F4HFE413H*A, F4HFE413J*A, F4HFE413L*A007,F4HFE413M*A005, F4HFE413P*A001, F4HFE6131*A, F4HFE6132*A004, F4HFE6138*A002, F4HFE613F*A002, F4HFE613G*A, F4HFE613H*A, F4HFE613J*A007, F4HFE613J*A, F4HFE613K*A, F4HFE613P*A, F4HFE613R*A, F4HFE613T*A004, F4HFE613T*A005, F4HFE613U*A005, F4HFE613U*A006, F4HFE613V*A003, F4HFE613X*A, F4HFE613Y*A, F4HFE613Z*A005, F4HFE613Z*A006, F4HFE614E*A001.
Foreword:
- Soil, air, and water quality is important for all industries and life in general. When legislation does not yet rule the treatment of some of the substances that advanced technology requires, sound judgment should govern the use and disposal of products of a chemical and petrochemical nature.
- Familiarize yourself with the relative legislation applicable to your country, and make sure that you understand this legislation. Where no legislation exists, obtain information from suppliers of oils, filters, batteries, fuels, anti-freeze, cleaning agents, etc., with regard to the effect of these substances on man and nature and how to safely store, use, and dispose of these substances. Your CNH dealer can also provide assistance.
Helpful hints:
- Avoid the use of cans or other inappropriate pressurized fuel delivery systems to fill tanks. Such delivery systems may cause considerable spillage.
- In general, avoid skin contact with all fuels, oils, acids, solvents, etc. Most of these products contain substances that may be harmful to your health.
- Modern oils contain additives. Do not burn contaminated fuels and or waste oils in ordinary heating systems.
- Avoid spillage when you drain fluids such as used engine coolant mixtures, engine oil, hydraulic fluid, brake fluid, etc. Do not mix drained brake fluids or fuels with lubricants. Store all drained fluids safely until you can dispose of the fluids in a proper way that complies with all local legislation and available resources.
- Do not allow coolant mixtures to get into the soil. Collect and dispose of coolant mixtures properly.
- Do not open the air-conditioning system yourself. It contains gases that should not be released into the atmosphere. Your CNH dealer or air-conditioning specialist has a special extractor for this purpose and can recharge the system properly.
- Repair any leaks or defects in the engine cooling system or hydraulic system immediately.
- Do not increase the pressure in a pressurized circuit as this may lead to a component failure.
Battery recycling:
1)Batteries and electric accumulators contain several substances that can have a harmful effect on the environment if the batteries are not properly recycled after use. Improper disposal of batteries can contaminate the soil, groundwater, and waterways.
2)CNH strongly recommends that you return all used batteries to a CNH dealer, who will dispose of the used batteries or recycle the used batteries properly. In some countries, this is a legal requirement.
Basic instructions – Important notice regarding equipment servicing:
- All repair and maintenance work listed in this manual must be carried out only by qualified dealership personnel, strictly complying with the instructions given, and using, whenever possible, the special tools. Anyone who performs repair and maintenance operations without complying with the procedures provided herein shall be responsible for any subsequent damages.
- The manufacturer and all the organizations of its distribution chain, including – without limitation – national, regional, or local dealers, reject any responsibility for damages caused by parts and/or components not approved by the manufacturer, including those used for the servicing or repair of the product manufactured or marketed by the manufacturer.
- In any case, no warranty is given or attributed on the product manufactured or marketed by the manufacturer in case of damages caused by parts and/or components not approved by the manufacturer. The information in this manual is up-to-date at the date of the publication.
- It is the policy of the manufacturer for continuous improvement. Some information could not be updated due to modifications of a technical or commercial type, or changes to the laws and regulations of different countries. In case of questions, refer to your CNH Sales and Service Networks.
TABLE OF CONTENTS:
Case IH Tractor NEF Tier 4A (interim) and stage IIIB Engine Service Manual_48076861
Engine 10
[10001] Engine and crankcase 101
[10102] Pan and covers102
[10106] Valve drive and gears103
[10101] Cylinder heads 104
[10105] Connecting rods and pistons 105
[10103] Crankshaft and flywheel106
[10110] Balancer and damper107
[10114] Pump drives 108
[10210] Lift pump and lines109
[10206] Fuel filters 1010
[10218] Fuel injection system 1011
[10250] Turbocharger and lines 1012
[10254] Intake and exhaust manifolds and muffler 1013
[10500] Selective Catalytic Reduction (SCR) exhaust treatment 1014
[10400] Engine cooling system1015
[10414] Fan and drive1016
[10304] Engine lubrication system1017
[10408] Oil cooler and lines1018
Electrical systems 55
[55015] Engine control system 551
[55201] Engine starting system 552
[55301] Alternator553
[55202] Cold start aid554
[55010] Fuel injection system555
[55014] Engine intake and exhaust system 556
48076861 15/11/2016
[55988] Selective Catalytic Reduction (SCR) electrical system 557
[55012] Engine cooling system 558
[55013] Engine oil system 559
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
