Case IH Tractor Maxxum Pro 110,115,120,125,130,140 Operator’s Manual
FILE DETAILS:
Case IH Tractor Maxxum Pro 110,115,120,125,130,140 Operator’s Manual_87672065
Size : 5.44 MB
Format : PDF
Language : English
Number of Pages : 378 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Operator’s Manual
Model: Maxxum Pro 110,115,120,125,130,140
Part No: 87672065
VIDEO PREVIEW OF THE MANUAL:
IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:
Case IH Tractor Maxxum Pro 110,115,120,125,130,140 Operator’s Manual_87672065
Electro-magnetic Interference (EMC):
This tractor complies strictly with the European Regulations on electro-magnetic emissions. However, interference may arise as a result of add-on equipment which may not necessarily meet the required standards. As such interference can result in seriousmalfunction of the unit and/or create unsafe situations, youmust observe the following:
• Ensure that each piece of non-Case IH equipment fitted to the tractor bears the CE mark.
• The maximum power of emission equipment (radio, telephones, etc.) must not exceed the limits imposed by the national authorities of the country where you use the tractor.
• The electro-magnetic field generated by the add-on system should not exceed 24 V/m at any time and at any location in the proximity of electronic components. Failure to comply with these rules will render the Case IH warranty null and void.
GENERAL :
- This Manual has been prepared to assist you in the correct procedure for running–in, driving and operating and for the maintenance of your new tractor. Read this Manual carefully. Your tractor is intended for use in normal and customary agricultural applications.
- If at any time you require advice concerning your tractor, do not hesitate to contact your authorised dealer. He has factory trained personnel, genuine manufacturers’ parts and the necessary equipment to carry out all your service requirements.
- Your tractor has been designed and built to give maximum performance, economy and ease of operation under a wide variety of operating conditions. Prior to delivery, the tractor was carefully inspected, both at the factory and by your dealer to ensure that it reaches you in optimum condition.
- To maintain this condition and ensure trouble–free operation, it is important that the routine services, as specified in Section 4 of this Manual, are carried out at the recommended intervals.
OPERATORS MANUAL STORAGE :
A storage pocket for the Operators Manual can be found on the rear of the seat. The manual should be kept in this pocket at all times when not in use.
CLEANING THE TRACTOR:
- Your tractor is a state-of-the-art machine with sophisticated, electronic controls. This should be borne in mind when cleaning the tractor, particularly if using a high pressure washer.
- Even though every precaution has been taken to safeguard electronic components and connections, the pressure generated by some of these machines is such that complete protection against water ingress cannot be guaranteed.
- Whenusing a high pressure washer, do not stand too close to the tractor and avoid directing the jet at electronic components, electrical connections, breathers, seals, filler caps, etc. Never direct a cold water jet at a hot engine or exhaust .
SAFETY:
Pages 1–7 to 1–14 inclusive list the precautions to be observed to ensure your safety and the safety of others. Read the safety precautions and follow the advice offered before operating the tractor.
FIRST 50 HOUR SERVICE:
- In Section 9, at the back of this Manual, you will find the 50–hour service reports. After you have operated the tractor for 50 hours, take your tractor, together with this Manual, to your dealer. He will then perform the factory recommended 50 hour service and complete the service report sheets (pages 9–1 and 9–3).
- The first sheet (page 9–1) is the dealer’s copy and should be removed by the dealer after the service has been carried out. The second sheet (page 9–3) is your copy of the service performed. Ensure that you and the dealer sign both copies.
SERVICE PARTS :
- It should be pointed out that genuine parts have been examined and approved by the Company. The installation and/or use of ‘non-genuine’ products could have negative effects upon the design characteristics of your tractor and thereby affect it’s safety.
- The Company is not liable for any damage caused by the use of ‘non–genuine’ parts and accessories. Only genuine Case IH replacement parts should be used. The use of non-genuine parts may invalidate legal approvals associated with this product.
- It is prohibited to carry out any modifications to the tractor unless specifically authorised, in writing, by the After Sales Service department of the Company.
WARRANTY :
Your tractor is warranted according to legal rights in your country and the contractual agreement with the selling dealer. No warranty shall, however, apply if the tractor has not been used, adjusted and maintained according to the instructions given in the Operator’s Manual.
TABLE OF CONTENTS:
Case IH Tractor Maxxum Pro 110,115,120,125,130,140 Operator’s Manual_87672065
Section 1 — General Information and Safety
To the Owner 1–1
End User Licence Agreement Terms 1–2
Product Identification 1–3
Ecology and the Environment1–6
Safety Precautions1–7

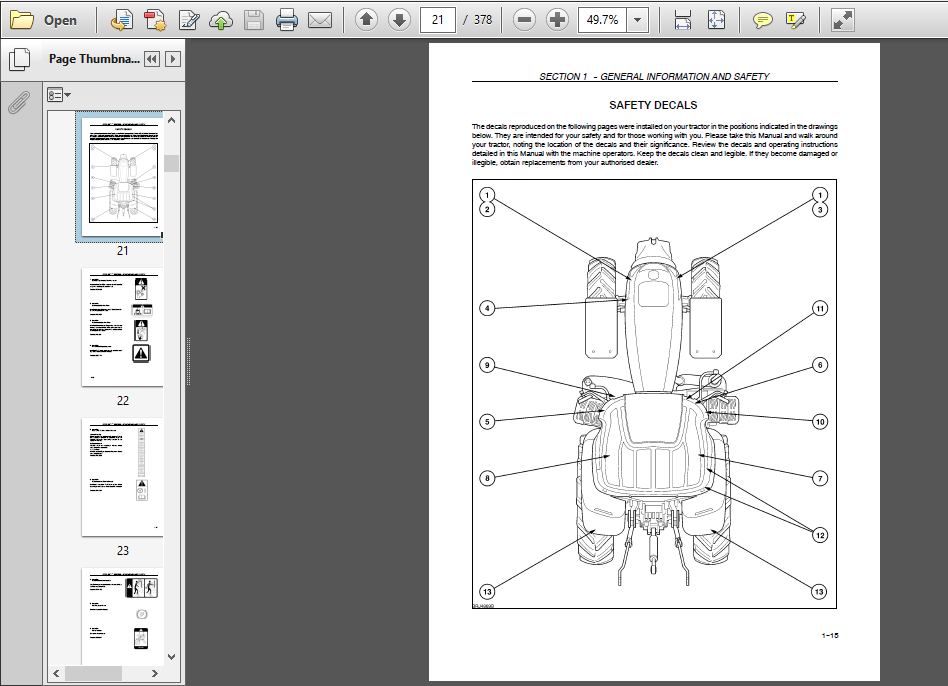

Safety Decals 1–15
International Symbols1–20
Airborne Noise Emission1–21
Section 2 — Controls, Instruments and Operation

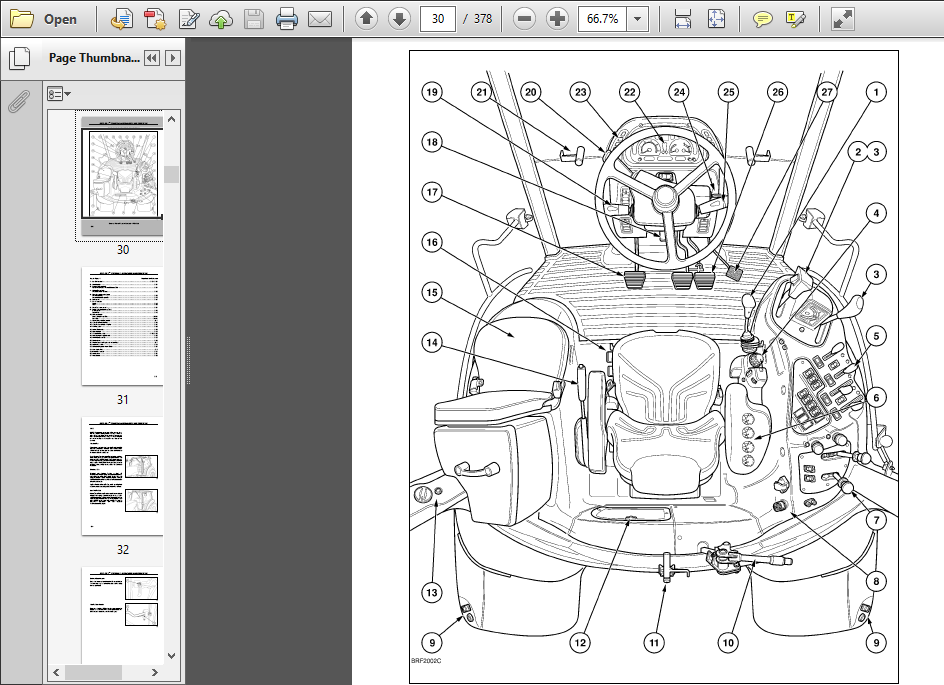

Cab 2–4
Seats 2–25
Handbrake, Throttle and Foot Controls2–30
Instrument Console 2–32
Analogue/Digital Instruments2–35
Semi–Powershift Transmission (16 x 16 and 17 x 16)) 2–64
Differential Lock and Four Wheel Drive2–80
Section 3 — Field Operation
Important Information 3–2
Using Jump Leads (Booster Cables)3–4
Starting the Engine3–5
Stopping the Engine 3–8
Power Management 3–10
Turn Assist3–24
Rear Power Take–Off3–26
Front Power Take–Off and Hydraulic Lift 3–45
Electronic Hitch Control 3–53
Headland Management Control3–13
Remote Control Valves 3–65
Electro–Hydraulic Remote Control Valves 3–75
Three–point Hitch3–89
Quick Hitch3–96
Linkage Stabilisers 3–101
Drawbars and Towing Attachments 3–103
Hydraulic Trailer Brakes3–119
Air-Operated Trailer Brakes3–121
Front Wheel Track Adjustment3–127
Rear Wheel Track Adjustment 3–133
Ballasting and Tyres3–140
Section 4 — Lubrication and Maintenance
General Information 4–1
Guard Removal4–5
Lubrication and Maintenance Chart4–10
Servicing: When Warning Lights Illuminate4–11
10–hour/daily service4–14
50–hour service 4–17
100–hour service 4–27
300–hour service 4–27
600–hour service 4–31
1200–hour/12 month service4–38
1200–hour/24 month service4–43
Every 3 years 4–50
General Maintenance — as required4–51
Section 5 — Fault Finding
Introduction 5–1
Engine 5–2
Transmission — 16 x 16 (17 x 16) Semi–Powershift5–5
Hydraulics 5–6
Rear Three–Point Hitch 5–7
Brakes 5–8
Cab 5–8
Electrical5–9
Section 6 — Vehicle Storage6–1
Section 7 — Accessories
Engine Coolant Immersion Heater 7–2
Transmission Oil Heater 7–2
40 Amp Socket and Cable7–3
Auxiliary Headlights7–3
Battery Isolator Switch7–4
Loader Subframe and Control Valve (Joystick)7–5
Section 8 — Specification
General Dimensions 8–2
Vehicle Weights8–6
Lubricant and Fluid Capacities 8–7
Engine 8–8
Fuel System8–8
Cooling System8–9
Transmission Options 8–9
Brakes 8–10
Rear Power Take-Off8–10
Front Power Take-Off8–11
Steering8–11
Maximum Operating Angle 8–11
Hydraulic System 8–12
Rear Three-Point Hitch 8–12
Remote control valves 8–15
Front Three–Point Hitch 8–15
Front Remote Valves8–16
Electrical Equipment 8–16
Hardware Torque Tables8–17
Section 9 — First 50–hour Service Forms9–1
Section 10 — Index 10–1
