Case IH Tractor MAXXUM 135, 150, 165, 180 Service Manual
FILE DETAILS:
Case IH Tractor MAXXUM 135, 150, 165, 180 Service Manual_8-85007R0
Size : 541 MB
Format : PDF
Language : English
Number of Pages : 2126 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: MAXXUM 135, 150, 165, 180
Part Number: 8-85007R0
VIDEO PREVIEW OF THE MANUAL:

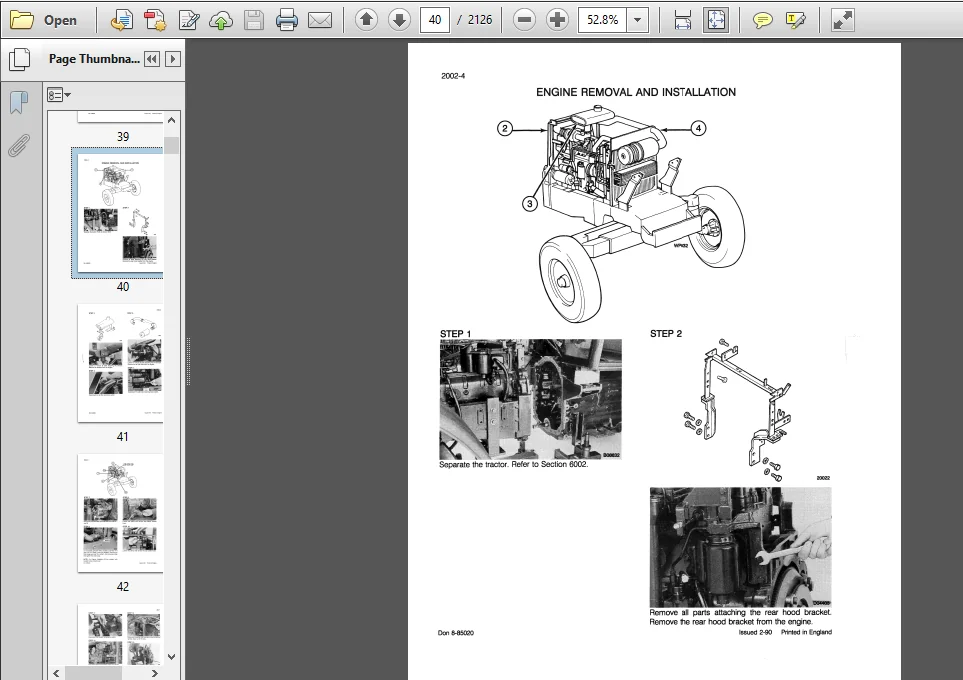

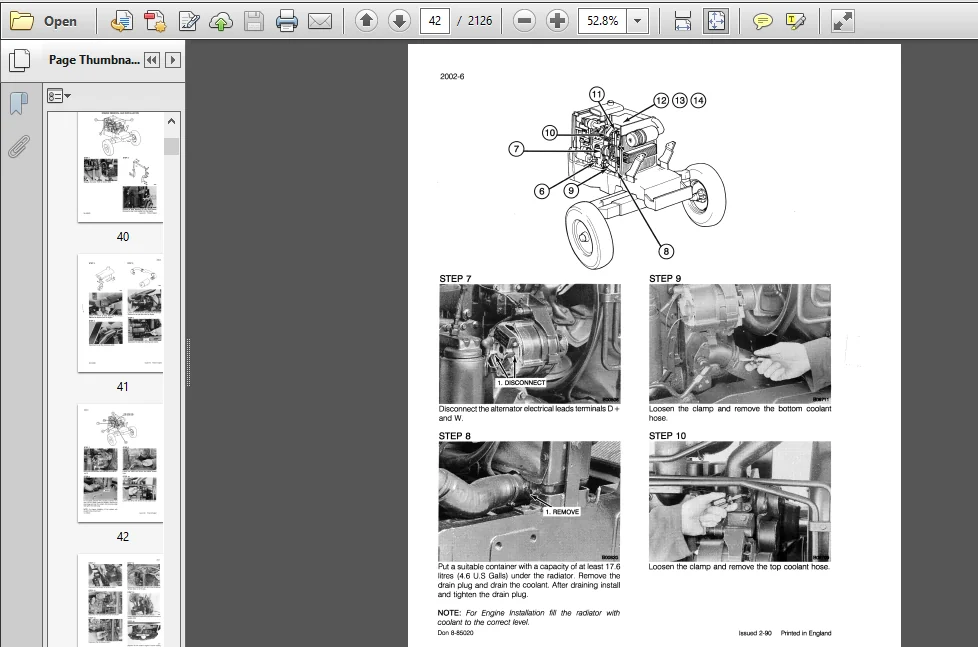

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Case IH Tractor MAXXUM 135, 150, 165, 180 Service Manual_8-85007R0
CLEANING :
Clean all metal parts except bearings. in mineral spirits or by steam cleaning. Do not use caustic soda for steam cleaning. After cleaning dry, and put oil on all pans. Clean oil passages with compressed air. Clean bearings in kerosene, dry the bearings completely and put oil on the bearings.
INSPECTION:
Check all parts when the parts are disassembled. Replace all parts that have wear or damage. Small scoring or grooves can be removed with a bone or crocus cloth Complete visual inspection for indications of wear. pitting and the replacement oI parts necessary will prevent early failures.
BEARINGS:
Check bearings for easy action. If bearings have a loose fit or rough action replace the bearing. Wash bearings with a good solvent or kerosene and permit to air dry. NOT DRY BEARINGS WITH COMPRESSED AIR.
NEEDLE BEARINGS :
Before you press needle bearings in a bore always remove any metal protrusions in the bore or edge of the bore. Before you press bearings into position put petroleum jelly on the inside and outside diameter of the bearings.
GEARS :
Check all gears for wear and damage. Replace gears that have wear or damage. OIL SEALS. O-RINGS AND GASKETS Always install new oil seals. o-rings and gaskets. Put petroleum jelly on seals and o-rings.
SHAFTS:
Check all shafts that have wear or damage. Check the bearing and oil seal surfaces of the shafts for damage.
SERVICE PARTS:
Always install genuine Case service pans. when ordering refer to the Parts Catalog for the correct part number of the genuine Case replacement items. Failures due to the use of other than genuine Case replacement parts are not covered by warranty.
LUBRICATION:
Only use the oils and lubricants specified in the Operator‘s or Service Manual. Failures due to the use of non specified oils and lubricants are not covered by warranty.

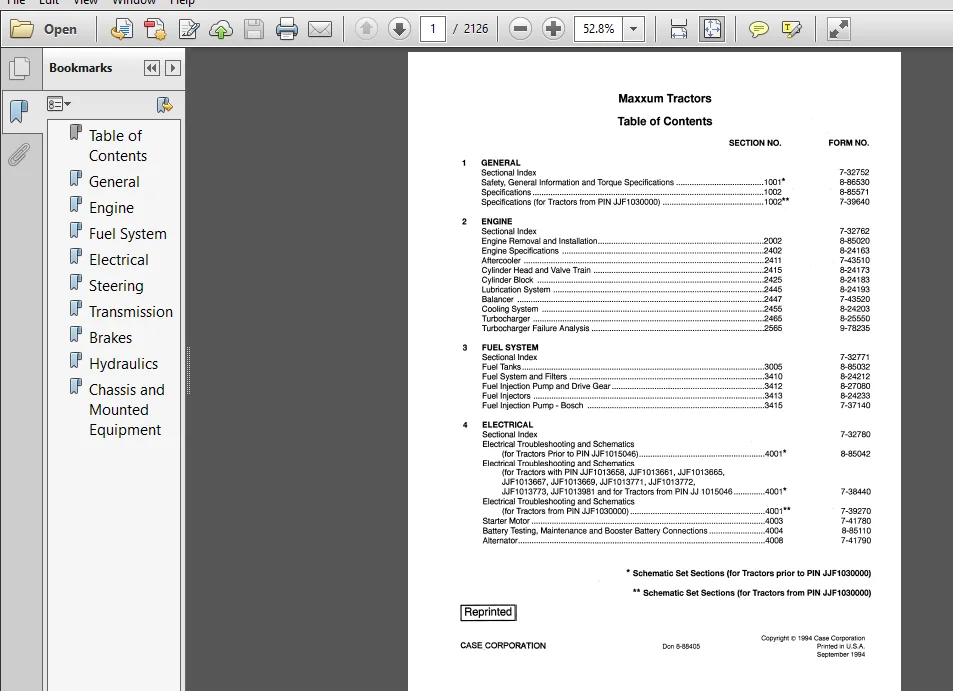

TABLE OF CONTENTS:
Case IH Tractor MAXXUM 135, 150, 165, 180 Service Manual_8-85007R0
GENERAL
Sectional Index
Safety General Information and Torque Specifications
Specifications
Specifications (for Tractors Irom PIN JJF1030000)
ENGINE
Sectional Index
Engine Removal and Installation
Engine Specifications
Aftercooler
Cylinder Head and Valve Train
Cylinder Block
Lubrication System
Cooling System
Turbocharger
Turbocharger Failure Analysis
FUEL SYSTEM
Sectional Index
Fuel System and Filters
Fuel Injection Pump and Drive Gear
Fuel Injectors
Fuel Injection Pump – Bosch
ELECTRICAL
Sectional Index
Electrical Troubleshooting and Schematics(for Tractors Prior to PIN JJF1015046)
Electrical Troubleshooting and Schematic (for Tractors with PIN JJF1013658, JJF1013661 JJF1013665
JJF1013667 JJF1013669 JJF1013771, JJF1013772
JJF1013773 JJF1013981 and for Tractors from PIN JJ 1015046
Electrical Troubleshooting and Schematics
(for Tractors from PIN JJF1030000)
Starter Motor
Battery Testing Maintenance and Booster Battery Connections
Alternator
5 STEERING
Sectional Index
Steering Hand Pump (DANFOSS)
Steering Cylinder 2WD c
Front Axle 2WD a
MFD Steering Cylinder
6 TRANSMISSION
Sectional Index
Separating the Tractor – Engine from Speed Transmission
(for Tractors prior to PIN JJF 1030000)
Separating the Tractor – Engine from Speed Transmission
(for Tractors from PIN JJF 1030000)
Separating the Tractor – Speed Transmission from Range Transmission
Torque Limiter”
Servicing the Synchromesh Transmissions
Servicing the Powershitt Transmrssron
Servicing the Range Transmrssron
Powershift Transmission Troubleshooting Prior to PIN JJF1015046
Powershift Troubleshooting and Schematics
(for Tractors with PIN JJF1013658 JJF1013661 JJF1013665,
JJF1013667 JJF1013669, JJF1013771, JJF1013772
JJF 1013773 JJF 1013981 and for Tractors from PIN JJF1015046
Powershitt Troubleshooting and Schematics
(for Tractors from PIN JJF1030000)
Powershift Valve
Creep Transmissron
Synchronizer Creep Transmission
(for Tractors from PIN JJF1030000)
Differential and Differential Locks»
MFD Drive Shaft
Rear Axle and Planetanes
Hydraulic PTO (Reversible)
MFD Axle
PTO front Drive Shaft and Hydraulic Pump Drive Gear”
BRAKES
Sectional Index
Parking Brake
Brake Cylinders and Controls
HYDRAULICS
Sectional Index
Hydraulic Troubleshooting and Schematics
(for Tractors Prior toPIN JJF1030000
Hydraulic Troubleshooting and Schematics
(for Tractors from PIN JJF1 030000)
Hydraulic Pump (for Tractors Prior to PIN JJF1024468)
Hydraulic Pump(ior Tractors from PIN JJF1 024468)
Charge/Lubrication Pumps”
Hydraulic Lift Cyiinder and Position Sensor
Hitch Adjustments
Remote Valves
Front Hitch
Shuttle Valve
Hydraulic Housing and Filter
Draft Sensing Valve
Shuttle/PTO Valve
CHASSIS
Sectional Index
Pedal and Lever Adjustments
Pedal and Lever Adjustments
(for Tractors from PIN JJF1030000)
Air Conditioning – Troubleshooting
(for Tractors prior to PIN JJF1034500)»
Air Conditioning – Troubleshooting
(for Tractors from PIN JJF1034500 with RFC-134a Refrigerant)
Air Conditioning – Gauges and Testing
(for Tractors prior to PIN JJF1034500)
Air Conditioning – Gauges and Testing
(for Tractors from PIN JJF1034500 with HFC-134a Refrigerant)
Air Conditioning – System Servicing
(for Tractors prior to PIN JJF1034500)
Air Conditioning – System Servicing
(for Tractors from PIN JJF1034500 with HFC-134a Refrigerant)
Air Conditioning – Component Servicing
(for Tractors prior to PIN JJF1034500)
Air Conditioning – Component Servicing
(for Tractors from PIN JJF1034500 with HFC-i 34a Refrigerant)
CHASSIS (Continued) ~
Cab Removal (for Tractors prior to PIN JJF1030000)
Cab Removal (for Tractors from PIN JJF1030000)
Cab Servicmg
Hood and Panels
Operators Seat
Decal Location
Battery Box
Platform Removal
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
