Case IH Tractor Liquid System 610 Applicator Service Manual
VIDEO PREVIEW OF THE MANUAL:

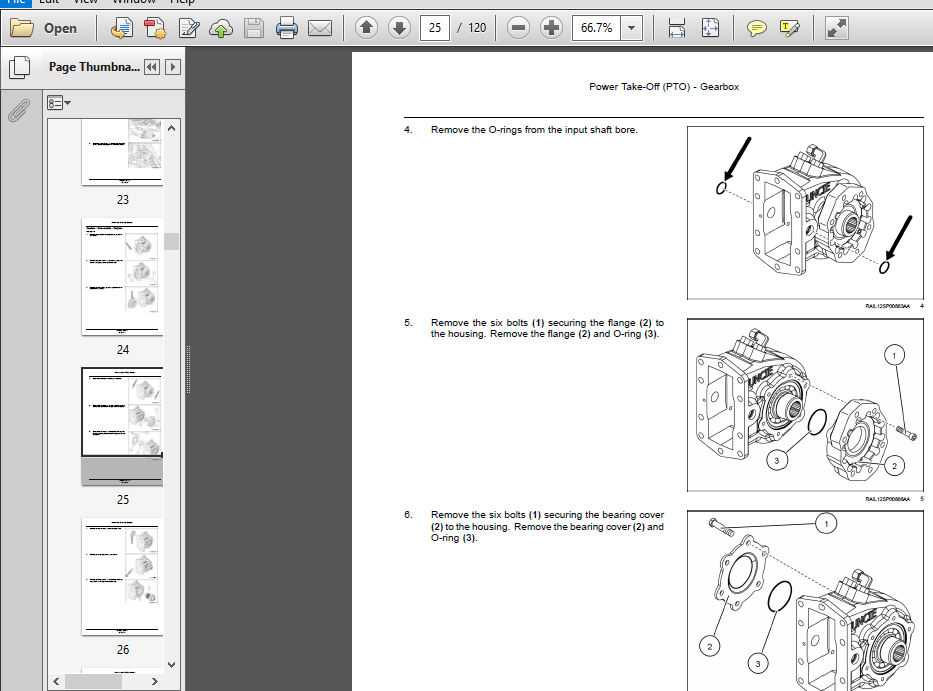

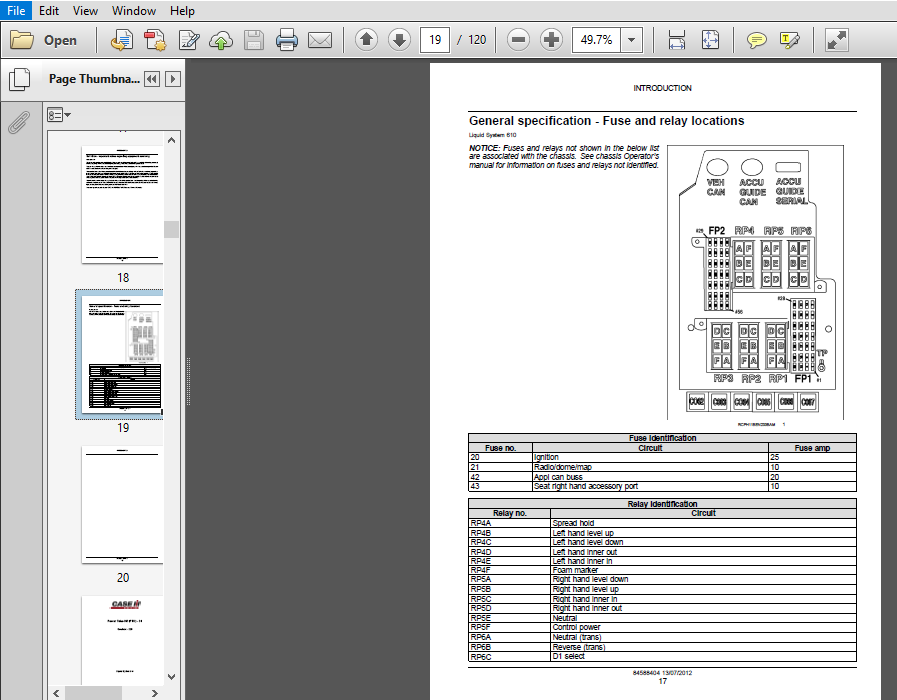

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:
Shimming:
For each adjustment operation, select adjusting shims and measure individually using a micrometer, then add up the recorded values. Do not rely on measuring the entire shimming set, which may be incorrect, or the rated value indicated on each shim.
Rotating shaft seals:
For correct rotating shaft seal installation, proceed as follows:
- Before assembly, allow the seal to soak in the oil it will be sealing for at least thirty minutes.
- Thoroughly clean the shaft and check that the working surface on the shaft is not damaged.
- Position the sealing lip facing the fluid; with hydrodynamic lips, take into consideration the shaft rotation direction and position the grooves so that they will deviate the fluid towards the inner side of the seal.
- Coat the sealing lip with a thin layer of lubricant (use oil rather than grease) and fill the gap between the sealing lip and the dust lip on double lip seals with grease unless instructed otherwise.
- Insert the seal in its seat and press down using a flat punch or seal installation tool. Do not tap the seal with a hammer or mallet.
- While inserting the seal, check that it is perpendicular to the seat; once settled, make sure that it makes contact with the thrust element, if required.
- To prevent damaging the seal lip on the shaft, position a protective guard during installation operations.

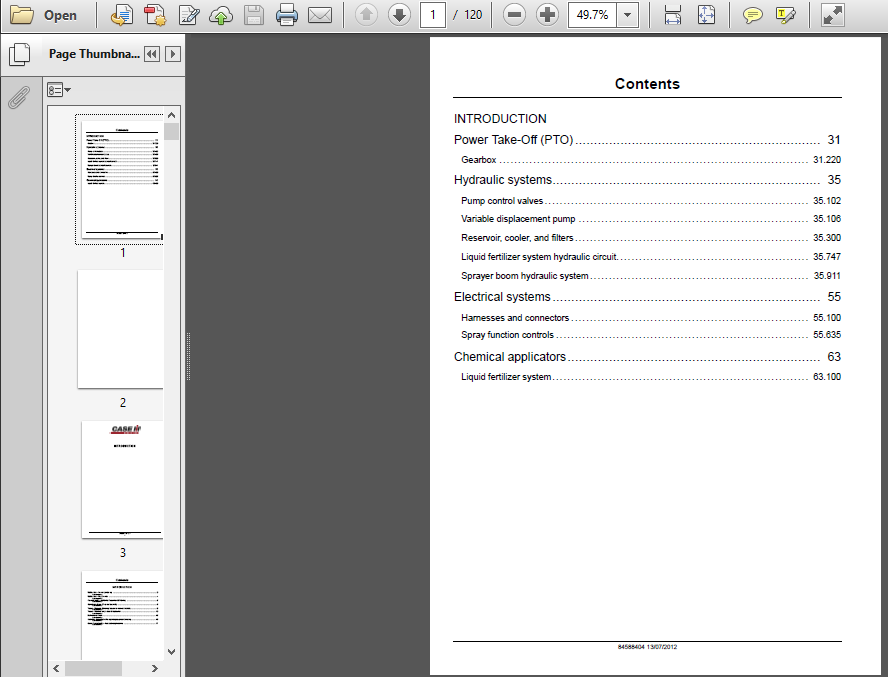

TABLE OF CONTENTS:
Case IH Tractor Liquid System 610 Applicator Service Manual_84588404
INTRODUCTION
Power Take-Off (PTO)31
Gearbox 31220
Hydraulic systems 35
Pump control valves 35102
Variable displacement pump 35106
Reservoir, cooler, and filters 35300
Liquid fertilizer system hydraulic circuit 35747
Sprayer boom hydraulic system 35911
Electrical systems 55
Harnesses and connectors 55100
Spray function controls 55635
Chemical applicators 63
Liquid fertilizer system 63100
84588404 13/
FILE DETAILS:
Case IH Tractor Liquid System 610 Applicator Service Manual_84588404
Size : 10.2 MB
Format : PDF
Language : English
Number of Pages : 120 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: Liquid System 610 Applicator
Part No: 84588404
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
