Case IH Tractor A8000, A8800 Sugar Cane Harvester Service Manual
FILE DETAILS:
Case IH Tractor A8000, A8800 Sugar Cane Harvester Service Manual_48063380
Size : 88.4 MB
Format : PDF
Language : English
Number of Pages : 1759 pages
Brand: Case IH
Type of machine: Tractor
DESCRIPTION:
How to use and navigate through this manual:
- This manual has been produced by a new technical information system. This new system is designed to deliver technical information electronically through web delivery (eTIM), DVD, and paper manuals. A coding system called SAP has been developed to link the technical information to other Product Support functions, e.g., Warranty.
- Technical information is written to support the maintenance and service of the functions or systems on a customer’s machine. When a customer has a concern on their machine it is usually because a function or system on their machine is not working at all, is not working efficiently, or is not responding correctly to their commands. When you refer to the technical information in this manual to resolve that customer’s concern, you will find all the information classified using the SAP coding, according to the functions or systems on that machine.
- Once you have located the technical information for that function or system, you will then find all the mechanical, electrical or hydraulic devices, components, assemblies, and sub assemblies for that function or system. You will also find all the types of information that have been written for that function or system: the technical data (specifications), the functional data (how it works), the diagnostic data (fault codes and troubleshooting), and the service data (remove, install adjust, etc.).
- By integrating SAP coding into technical information, you will be able to search and retrieve just the right piece of technical information you need to resolve that customer’s concern on his machine. This is made possible by attaching 3 categories to each piece of technical information during the authoring process.
TABLE OF CONTENTS:
INTRODUCTION
Engine 10
[10 001] Engine and crankcase 10 1
[10 206] Fuel filters 10 2
[10 202] Air cleaners and lines 10 3
[10 254] Intake and exhaust manifolds and muffler 10 4
[10 400] Engine cooling system 10 5
[10 414] Fan and drive 10 6
Transmission 21
[21 900] Hydraulic pump drive 21 1
Front axle system 25
[25 100] Powered front axle 25 1
[25 122] Axle suspension control 25 2
Rear axle system 27
[27 120] Planetary and final drives 27 1
Hydrostatic drive 29
[29 218] Pump and motor components 29 1
[29 202] Hydrostatic transmission 29 2
Hydraulic systems 35
[35 000] Hydraulic systems 35 1
[35 300] Reservoir, cooler, and filters 35 2
[35 104] Fixed displacement pump 35 3
[35 752] Hydraulic fan drive cooling system 35 4
[35 310] Distributor and lines 35 5
[35 965] Chopper control system 35 6
[35 370] Tracks suspension hydraulic system 35 7
48063380 26/12/2017
[35 670] Topper hydraulic system 35 8
[35 672] Crop divider hydraulic system 35 9
[35 674] Base cutter hydraulic system 35 10
[35 676] Knock-down rollers hydraulic system 35 11
[35 678] Butt lifter roller hydraulic system 35 12
[35 680] Finned roller hydraulic system 35 13
[35 682] Billet elevator hydraulic system 35 14
Steering 41
[41 101] Steering control 41 1
[41 200] Hydraulic control components 41 2
[41 216] Cylinders 41 3
Tracks and track suspension 48
[48 130] Track frame and driving wheels 48 1
[48 100] Tracks 48 2
[48 138] Track rollers 48 3
Cab climate control 50
[50 200] Air conditioning 50 1
Electrical systems 55
[55 100] Harnesses and connectors 55 1
[55 513] Cab transmission controls 55 2
[55 051] Cab Heating, Ventilation, and Air-Conditioning (HVAC) controls 55 3
[55 820] Chopping and cutting control systems 55 4
[55 DTC] FAULT CODES 55 5
Attachments/Headers 58
[58 130] Attachment/Header frame 58 1
Product feeding 60
[60 110] Feeder housing 60 1
48063380 26/12/2017
[60 340] Topper 60 2
[60 350] Crop divider 60 3
[60 360] Knock-down rollers 60 4
[60 370] Basecutter 60 5
[60 380] Butt lifter roller 60 6
[60 390] Conveyor roller train 60 7
Chopping 64
[64 106] Drum 64 1
[64 130] Drum gearbox 64 2
[64 160] Crop processor 64 3
Cleaning 74
[74 130] Fan housing 74 1
[74 200] Upper extractors 74 2
[74 204] Lower extractors 74 3
Platform, cab, bodywork, and decals 90
[90 150] Cab 90

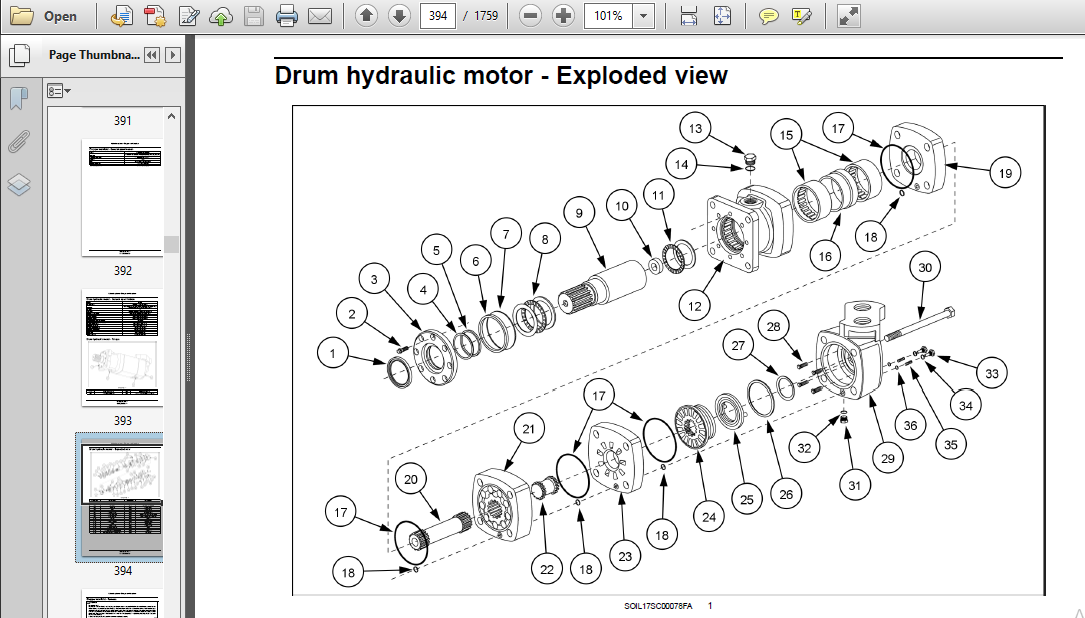

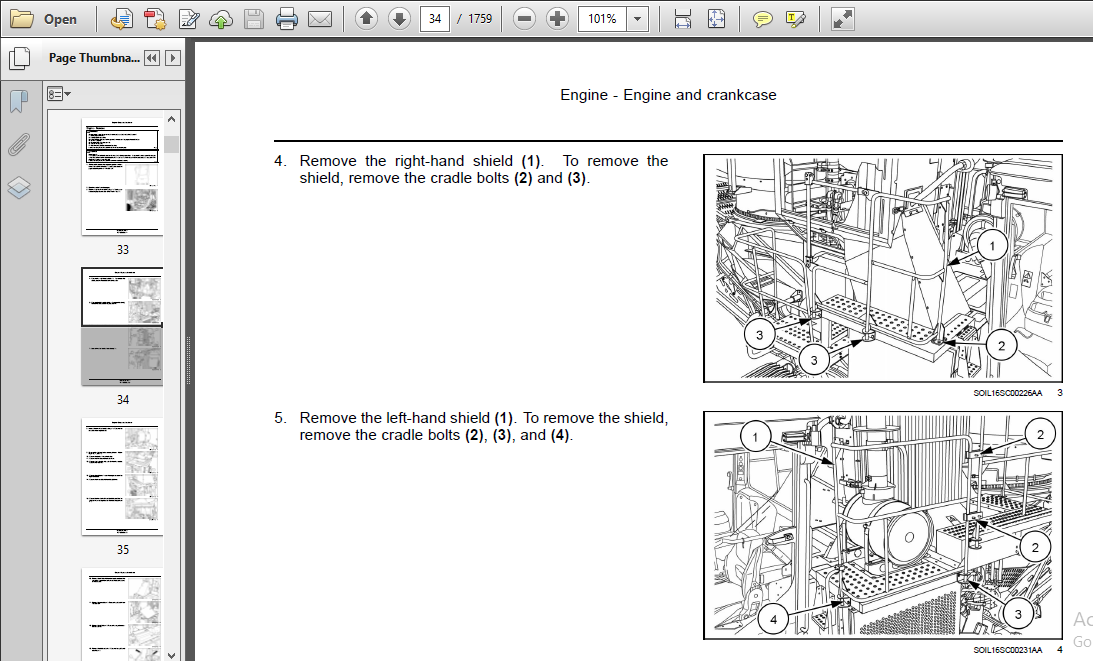

SCREENSHOT OF THE MANUAL:
