Case IH Tractor 3200 and 4200 Series Service Manual 7-69124
SAMPLE PAGE FROM THE MANUAL:
- The air conditioner system contains five major components: Compressor. condenser. receiver drier. expansion valve and evaporator. These components are connected by tubes and hoses and operate as a closed system. The air conditioner system Is charged with RFC-134a refrigerant. The compressor receives the refrigerant as a low pressure gas.
- The compressor then compresses the refrigerant and sends it in the form of a high pressure high temperature gas to the condenser. The airflow through the condenser then removes the heat from the refrigerant. As the heat is removed the refrigerant changes to a high pressure liquid The high pressure refrigerant liquid then flows from the condenser to the receiver-drier.
- The receiver-drier is a container filled with moisture removing material. which removes any moisture that may have entered the air conditioner system in order to prevent corrosion of the internal components of the system.

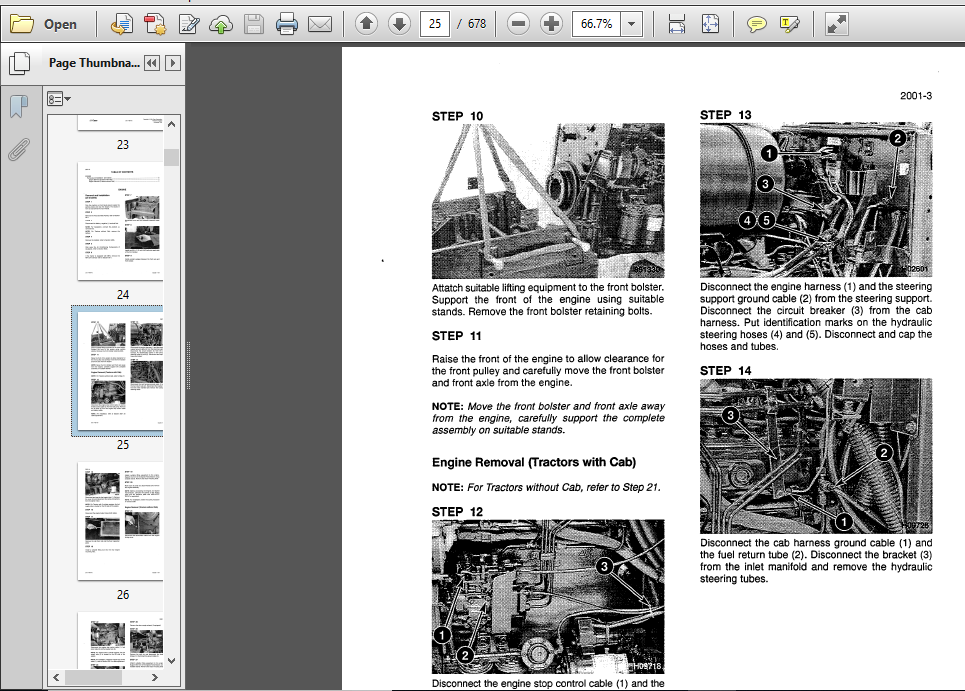

SCREENSHOT OF THE MANUAL:

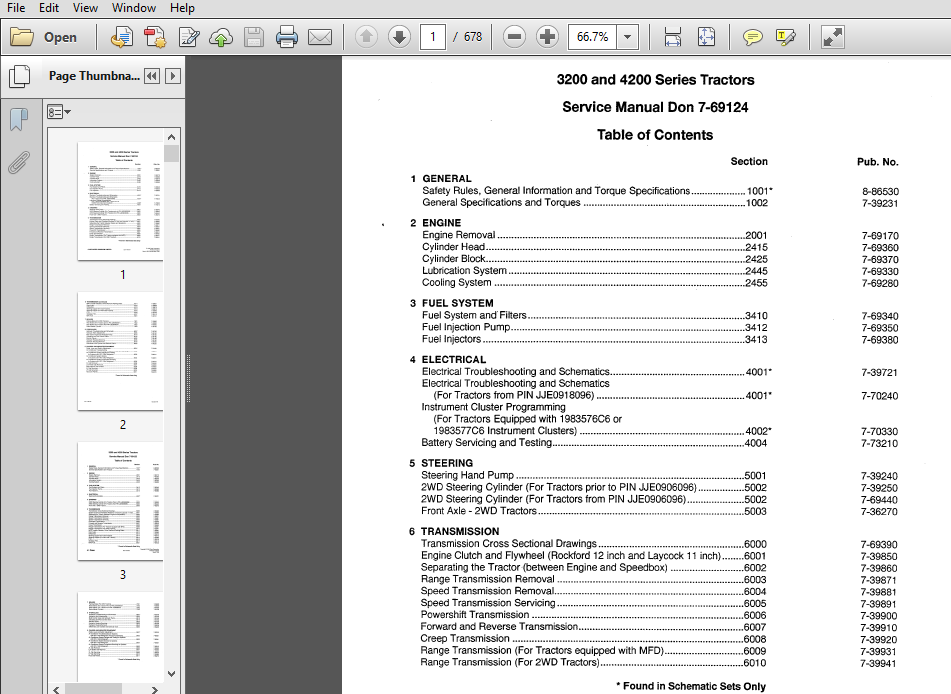

TABLE OF CONTENTS:
1 GENERAL
Safety Rules, General Information and Torque Specifications
General Specifications and Torques
2 ENGINE
Engine Removal
Cylinder Head
Cylinder Block
Lubrication System
Cooling System
3 FUEL SYSTEM
Fuel System andFilters
Fuel Injection Pump
Fuel Injectors
4 ELECTRICAL
Electrical Troubleshooting and Schematics
Electrical Traubleshooting and Schematics
Instrument Cluster Programming
Battery Servicing and Testingna
5 STEERING
Steering Hand Pump
2WD Steering Cylinder (For Tractors prior to PIN JJE0905096)
2WD Steering Cylinder (For Tractors from PIN JJE0906096)
Front Axle – 2WD Tractor
6 TRANSMISSION
Transmission Cross Sectional Drawings
Engine Clutch and Flywheel (Rockford 12 inch and Layccck 11 inch)
Separating the Tractorjbetween Engine and Speedbox)
Range Transmission Removal am
Speed Transmission Removals
Speed Transmission Servicing new
Powershiit Transmission –
Forward and Reverse Transmissron
Creep Transmission «a
Range Transmission (For Tractors equipped with MFD)
Flange Transmission (For 2WD Tractors)
MFD Transfer Gearbox, Drive Shaft and Parking Brake
Rear Axles
Differential
Steering Support (For Cab Tractors)
Steering Support (For Non-Cab Tractors)
Shiftable PTOnc
MFD Axle
7 BRAKES
Parking Brake (For 2WD Tractors) –
Rear Brakes (For Tractors prior to PIN JJE0908037)
Rear Brakes (For Tractors from PIN JJ50908037)
Brake Master Cylinders
8 HYDRAULICS
Hydraulic Troubleshooting and Schematic
Hydraulic Hitch Adjustments «a
Muiti Control Valve and Hydraulic Pump
Unloading and Flow Control Valve
Remote Valve scmcaa
Hydraufic Housing Servicing
Hydraulic Housing Removal
Differential Lock Cylinder and Solenoid Valve
9 CHASSIS AND MOUNTED EQUIPMENT
Pedal Lever and Switch Adjustments
Air Conditioner Troubleshooting
for Systems with RFC-134a Refrigerant (Visual and Operating)
Air Conditioner System Gauges and Testing
for Systems with RFC-134a Refrigerant –
Air Conditioner System Service
for Systems with HFC-134a Refrigerant
Air Concfitioner System Component Servicing
for Systems with HFC-1343 Refrigerant
XL Cab Removal as
Low Profile Cab Removal
Seat Platform and Fenders
XL Cab Servicing
LP Cab Servicing
Hood and Panels
VIDEO PREVIEW:
FILE DETAILS:
Case IH Tractor 3200 and 4200 Series Service Manual_7-69124
Size : 74.8 MB
Format : PDF
Language : English
Number of Pages : 678 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: 3200 and 4200
Part No: 7-69124
PLEASE NOTE:
⦁ This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
⦁ You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
⦁ Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
