Case IH Tractor 1190,1290,1390,1194,1294,1394 Tractor COMPLETE Service Manual_8-23963R0
SAMPLE PAGE FROM THE MANUAL:
- 1.Put the sensing tube ofthe expansion valveinwater at 125°F (52°C).
- 2. Turn the container of R-12 refrigerant top side down to make sure that liquid refrigerant will get to the expansion valve. Open the container valve.
- 3. Open the high pressure valve of the gauge manifold and adjust the valve until the pressure gauge reads 70 PSI (483 kPa).
- 4. Pressme onthe low pressure gauge mustbe43 to 55 PSI (296 to 379 kPa).
- A. A pressure below 43 PSI (296 kPa) is an indication that the expansion valve is not getting enough refrigerant.
- B. A pressure above 55 PSI (379 kPa) is an indication that the expansion valve is getting too much refrigerant.
- 5. Close the high pressure valve of the gauge manifold and do the minimum flow test.
SCREENSHOT OF THE MANUAL:

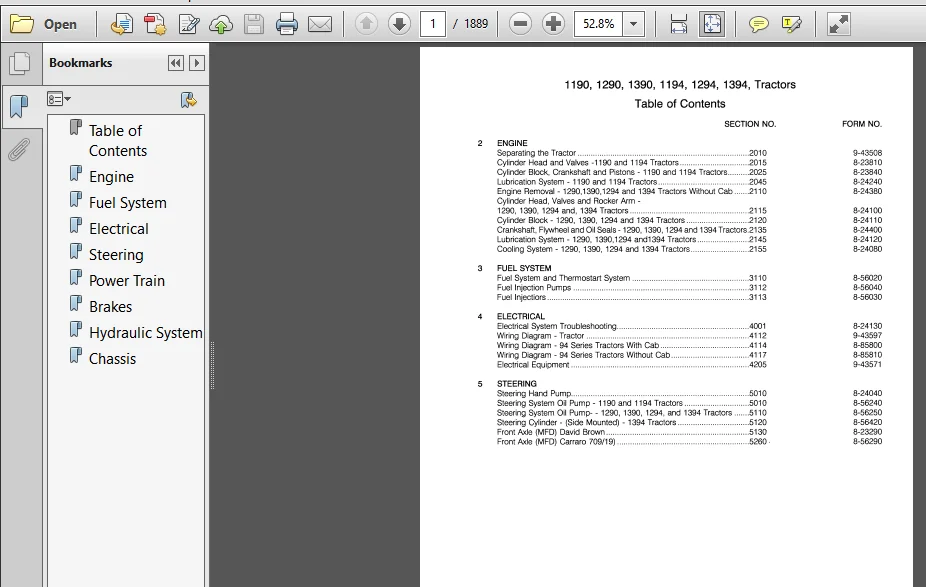

TABLE OF CONTENTS:
- Case IH Tractor 1190,1290,1390,1194,1294,1394 Tractor COMPLETE Service Manual_8-23963R0
ENGINE
Separating the Tractor
O/Iinder Head and Valves -1190 and 1194 Tractors
Cylinder Block Crankshaft and Pistons – 1190 and 1194 Tractors
Lubrication System – 1190 and 1194 Tractors
Engine Removal – 1290 1390 1294 and 1394 Tractors Without Cab
Cylinder Head Valves and Rocker Arm –
1290, 1390 1294 and 1394 Tractors
Cylinder Block – 1290 1390 1294 and 1394 Tractors
Crankshalt Flywheel and Oil Seals – 1290 1390 1294 and 1394 Tractors
Lubrication System -1290 1390,1294 and1394 Tractors
Cooling System – 1290 1390 1294 and 1394 Tractors
FUEL SYSTEM
Fuel System and Rtermoslart system
Fuel Injection Pumps
Fuel Injectiors
ELECTRICAL
Electrical System Troubleshooting
Wiring Diagram – Tractor
Vifiring Diagram – 94 Series Tractors umn Cab
Wuing Diagram – 94 Series Tractors Without Cab
Electrical Equipment
STEERING
Steering System Oil Pump – 1190 and 1194 Tractors
Steering System Oil Pump- – 1290 1390 1294, and 1394 Tractors
Steering (Minder – (Side Mounted) – 1394 Tractors
Front Axle (MFD) David Brown
Front Axle (MFD) Carraro 709/19)
POWER TRAIN
Troubteshooting the Powershiit Transmission
Continuouse Clutch (Borg and Beck) 1190 and 1194 Tractors
Synchromesh Transmtssron
Single Speed PTO – 1190 1290 1194 and 1294 Tractors
Difterental
Final Drives – Synchromesh Transmission
Synchromesh Transmission – 1394 Tractor PIN 11139846 and after
12/12 Inch Independent Clutch (Laycock)
Transfer Gearbox (David Brown) -1290 and 1390 Tractors
Transier Gearbox – Mechanical Front Drive
Separating the Tractor to Service the Front of the Transmission
Powershift Hydraulic Pump
Powershrft
Powershift Control Valve
Powershift Sequence Valves
Three Speed Transmission – Powershtft
Reversrble PTO Shaft – 1390 and 1394 Tractors
Difierental Powershift Transmtssron
Creeper Gearbox – 1394 Tractors
Multi Speed PTO – 1394 Tractors
BRAKES
Brakes — Drum Shoes and Adjustments
HYDRAUUC SYSTEM
Filters, Pumps and Relief Valves
Rockershait Lift Cylinder and removal of the
Selectamatic Control Valve —1194 1294 and1394 Tractors
Selector Dial Mechanism
Draft Sensing Units
Remote Valves and Couplers
Hydraulic Adjustments
Hydraulic System Specifications How It Works and Fault finding
Selectamatlc Valve
CHASSIS
Rear Platform and Fenders
Air Conditioning Troubleshooting and System Chocks
Air Conditioning System Sen/Ice
VIDEO PREVIEW:
FILE DETAILS:
Case IH Tractor 1190,1290,1390,1194,1294,1394 Tractor COMPLETE Service Manual_8-23963R0
Size : 1.08 GB
Format : PDF
Language : English
Number of Pages : 1889 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: 1190,1290,1390,1194,1294,1394 Tractor COMPLETE
Part No: 8-23963R0
