Case 721F Tier 4 Wheel Loader Service Manual – PDF DOWNLOAD

Description

Case 721F Tier 4 Wheel Loader Service Manual – PDF DOWNLOAD

FILE DETAILS:

Case 721F Tier 4 Wheel Loader Service Manual – PDF DOWNLOAD

PN 84487558

Language : English
Pages : 1013
Downloadable : Yes
File Type : PDF

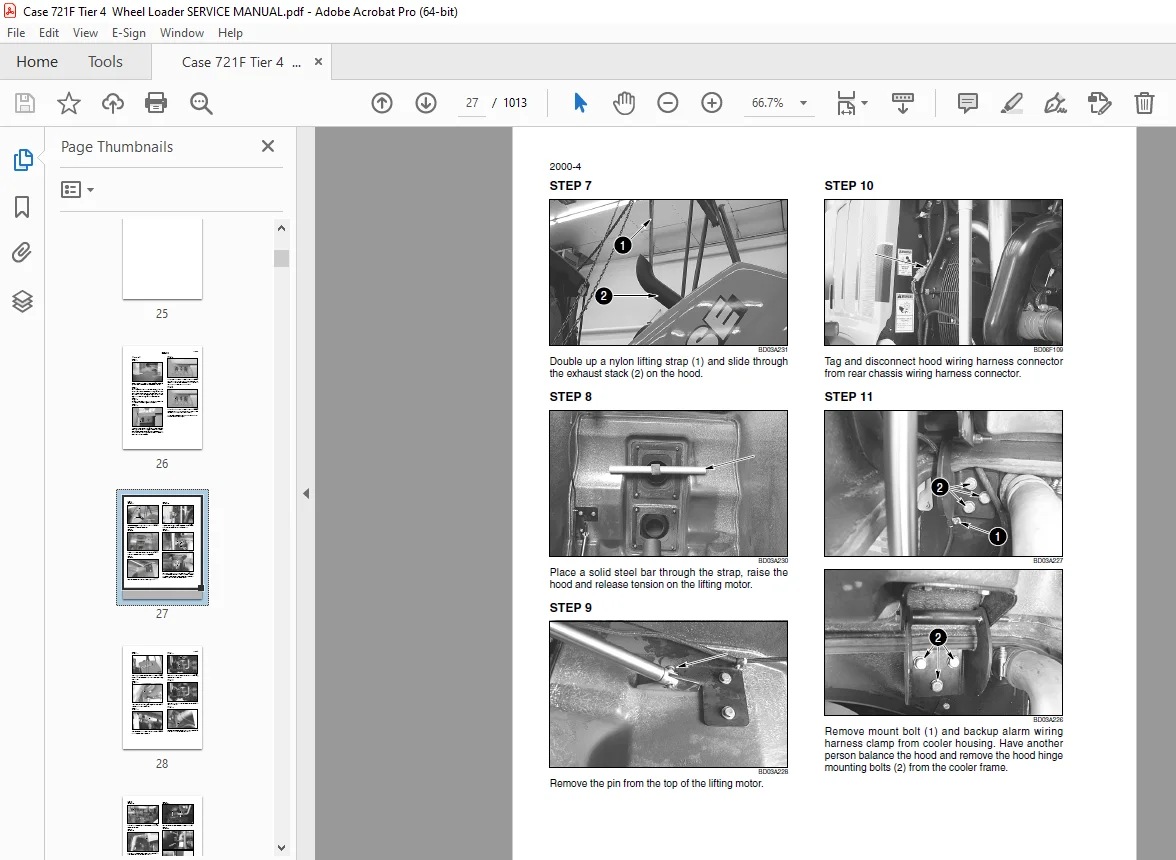

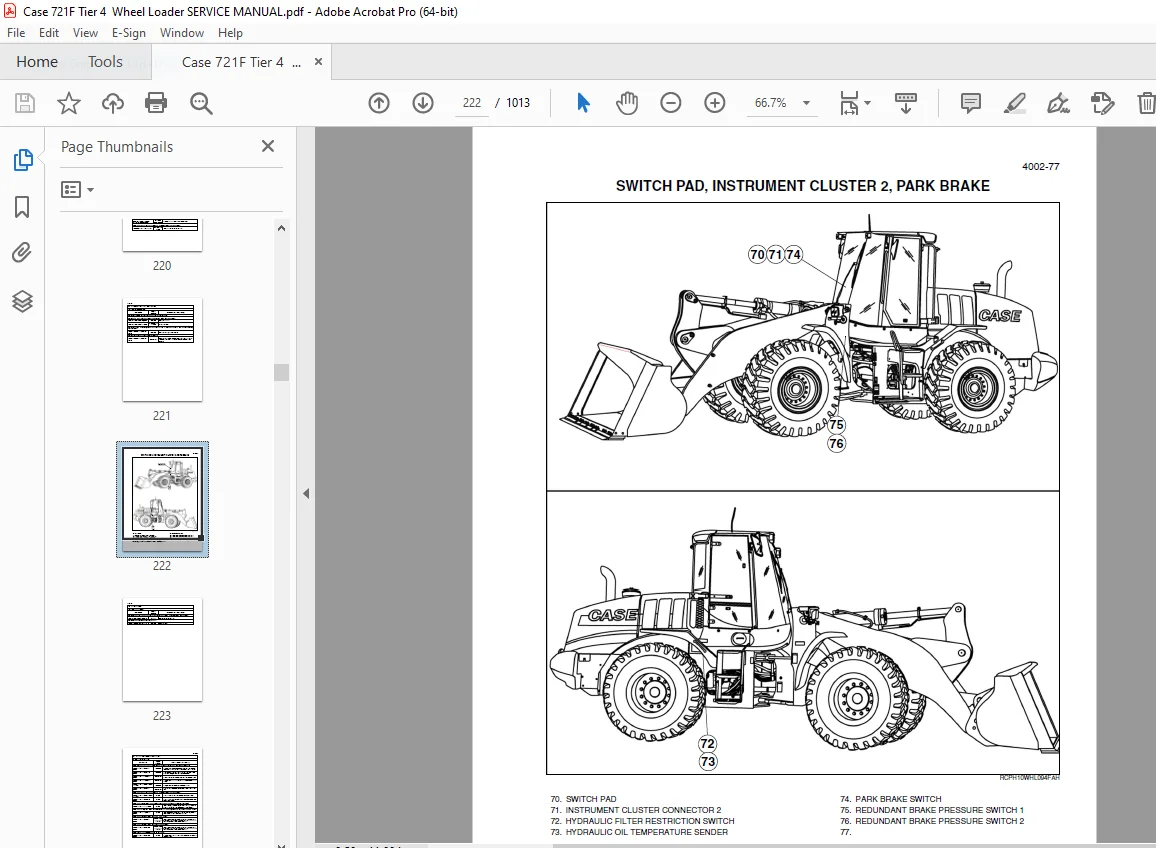

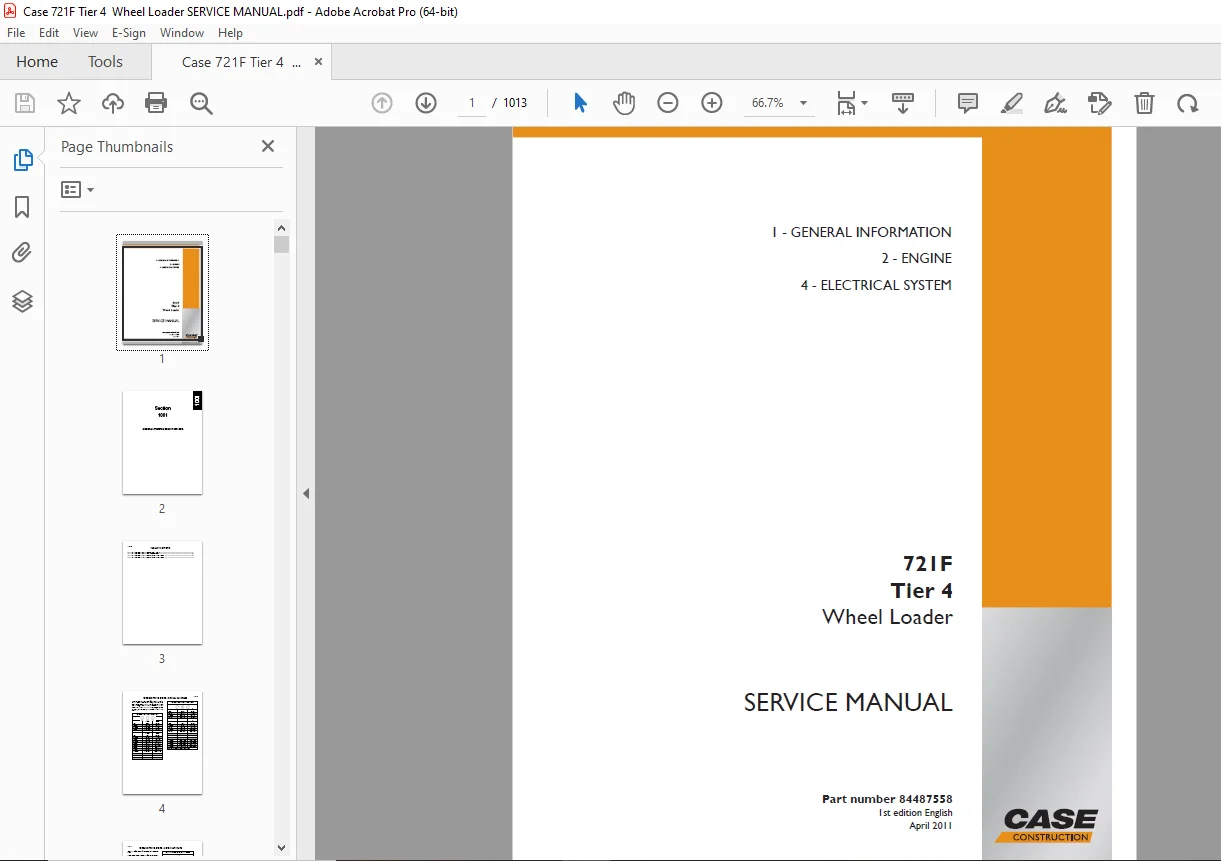

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Case 721F Tier 4 Wheel Loader Service Manual – PDF DOWNLOAD

PN 84487558

721tier41-31
Section1001-GENERALTORQUESPECIFICATIONS2
Section1002-FLUIDSANDLUBRICANTS8
Section1003-METRICCONVERSIONCHART20
Section2000-ENGINEANDRADIATORREMOVALANDINSTALLATION24
Section2002-STALLTEST46
Section2003-AFTERCOOLER56
Section2010-ENGINEINTAKEAIRFILTRATION64
Section2020-SCRSYSTEMSENSORS70
Section2030-SCRCATALYST80
Section2040-ENGINEINTAKETEMPERATURE/HUMIDITYSENSOR88
Section2050-DEF/ADBLUEHEATERCONTROLVALVE94
Section2060-DEF/ADBLUEDNOxSUPPLYMODULE100
Section2070-DEF/ADBLUEDOSINGINJECTOR108
Section2080-DEF/ADBLUESUPPLYTANK114
Section2090-DEF/ADBLUESUPPLYTANKLEVELAND TEMPERATURESENSOR/PICK-UPANDHEATER122
Section2100-DEF/ADBLUESUPPLYFILTERS128
Section4001-REMOVALANDINSTALLATIONOFSTARTERAND ALTERNATOR138
Section4002-ELECTRICALSPECIFICATIONSAND TROUBLESHOOTING146
Section4003-BATTERIES358
Section4003a-JUMPPOSTOPTION366
Section4005-INSTRUMENTCLUSTER370
721ftier45-6446
Section5001-REMOVALANDINSTALLATIONOFSTEERING COMPONENTS447
Section5002-STEERINGSPECIFICATIONS,PRESSURECHECKS, ANDTROUBLESHOOTING465
Section5005-STEERINGCYLINDERS475
Section5006-CENTERPIVOT481
Section5008-AUXILIARYSTEERINGMOTORANDPUMP491
Section5009-JOYSTICKSTEERINGSYSTEM (JSS)497
Section6001-REMOVALANDINSTALLATIONOFPOWERTRAIN COMPONENTS545
Section6002-TRANSMISSIONSPECIFICATIONS,PRESSURE CHECKS,ANDTROUBLESHOOTING569
Section6003-4&5SPEEDTRANSMISSION591
Section6004-MULTITRACMT-L3075II/3085II/3095IIAXLES681
Section6005-DRIVESHAFTS,CENTERBEARING,ANDUNIVERSAL JOINTS733
Section6006-WHEELSANDTIRES747
721ftier47-9751
Section7001-REMOVALANDINSTALLATIONOFBRAKE COMPONENTS752
Section7002-HYDRAULICBRAKETROUBLESHOOTING764
Section7003-BRAKEPUMP776
Section7004-BRAKEACCUMULATORS780
Section7008-PARKINGBRAKE784
Section8001-REMOVALANDINSTALLATIONOFHYDRAULIC COMPONENTS790
Section8002-HYDRAULICSPECIFICATIONS,TROUBLESHOOTING, ANDPRESSURECHECKS822
Section8003-CLEANINGTHEHYDRAULICSYSTEM846
Section8004-HYDRAULICPUMP854
Section8005-LOADERCONTROLVALVE870
Section8006-CYLINDERS888
Section8007-COUPLERSOLENOIDLOCKINGVALVE900
Section8013-RIDECONTROLACCUMULATOR904
Section8014-RIDECONTROLVALVE912
Section9002-AIRCONDITIONINGTROUBLESHOOTINGANDSYSTEM CHECKSFORSYSTEMSWITHHFC-134A REFRIGERANT916
Section9003-AIRCONDITIONERSYSTEMSERVICE942
Section9004-REMOVALANDINSTALLATIONOFAIRCONDITIONING ANDHEATERCOMPONENTS952
Section9006-LOADER974
Section9007-ROLLOVERPROTECTIVESTRUCTURE(ROPS) CABSTRUCTURALFRAME(CSF)984
Section9010-CABGLASSINSTALLATION1000
Section9020-REARVIEWCAMERAINSTALLATIONANDREMOVAL1006
