Cagiva Alazzurra 350-650 Parts Manual – PDF DOWNLOAD

Description

Cagiva Alazzurra 350-650 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Cagiva Alazzurra 350-650 Parts Manual – PDF DOWNLOAD

PN 48532

Language : English, German, French,  Italian
Pages : 58
Downloadable : Yes
File Type : PDF

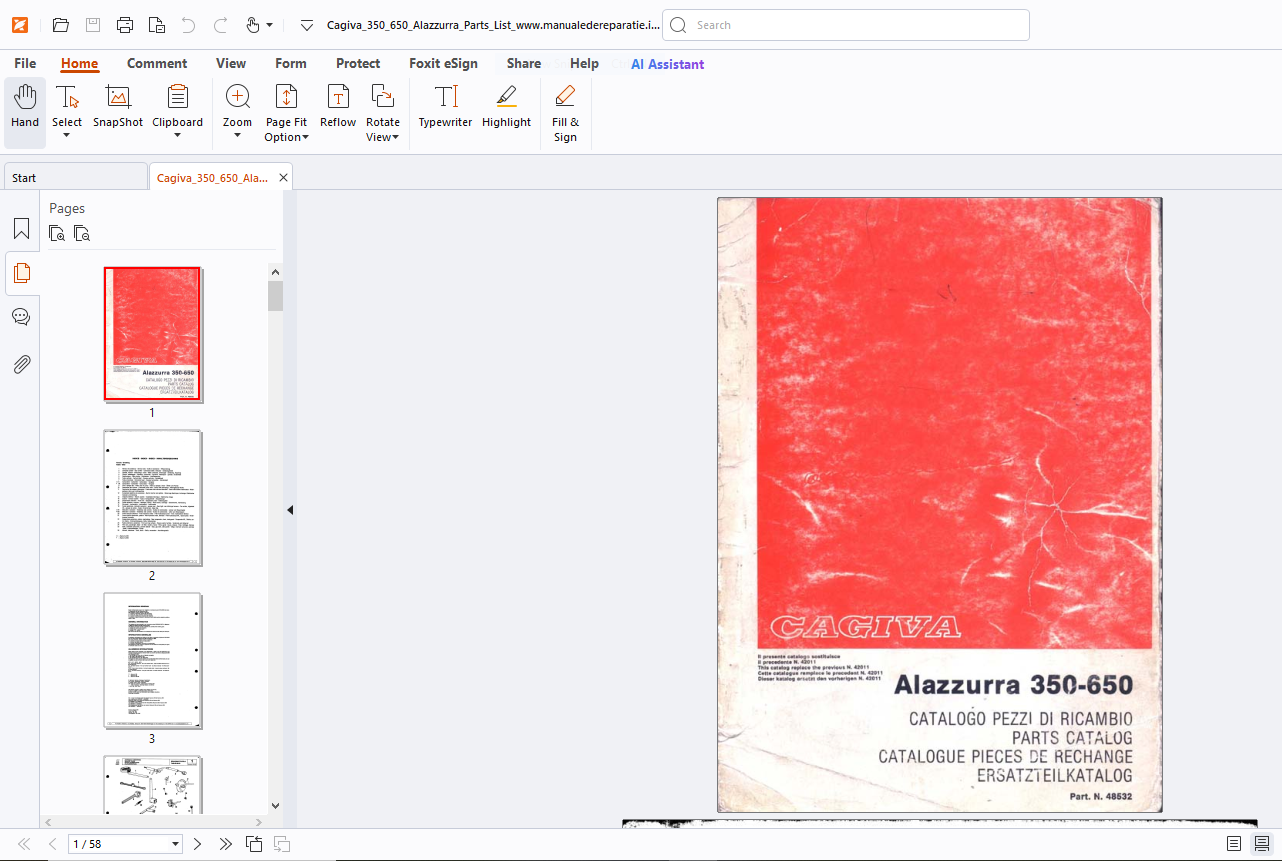

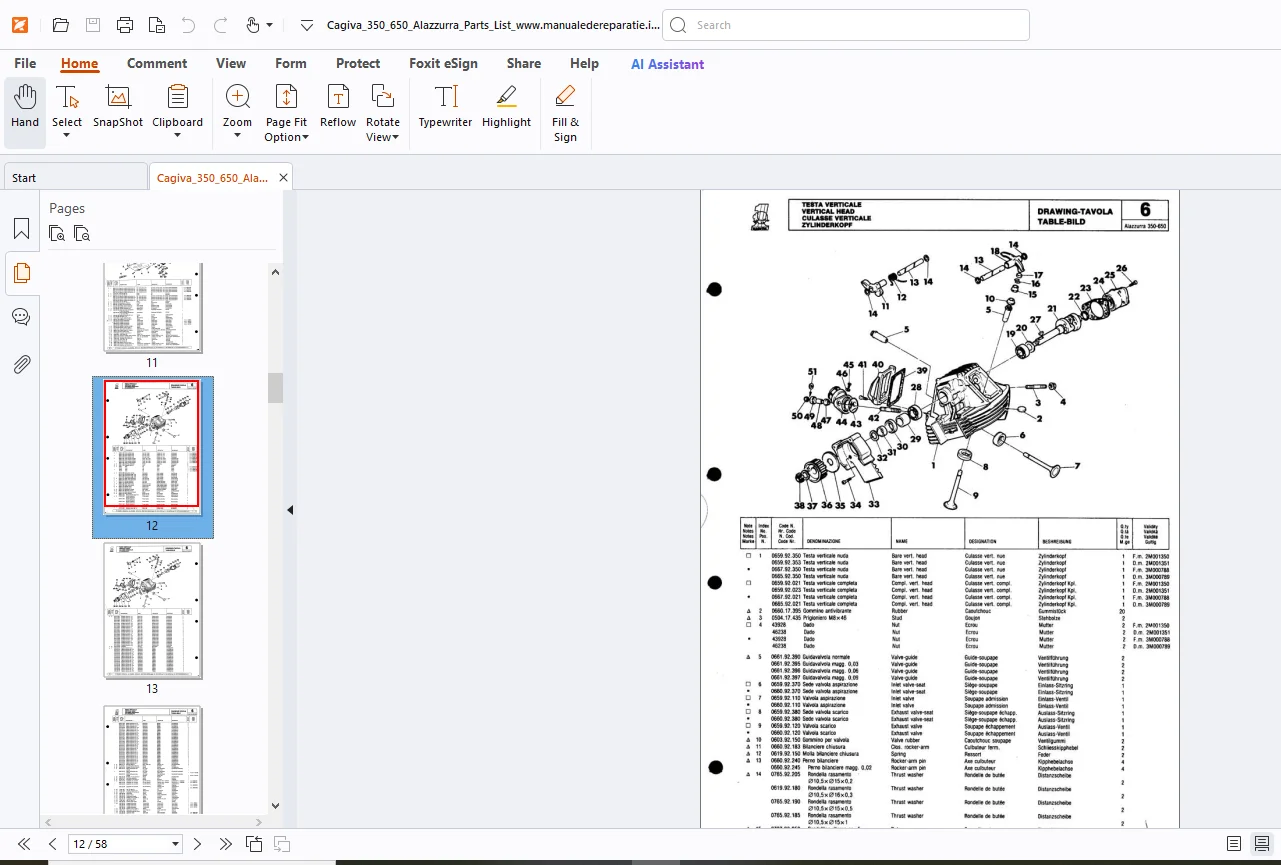

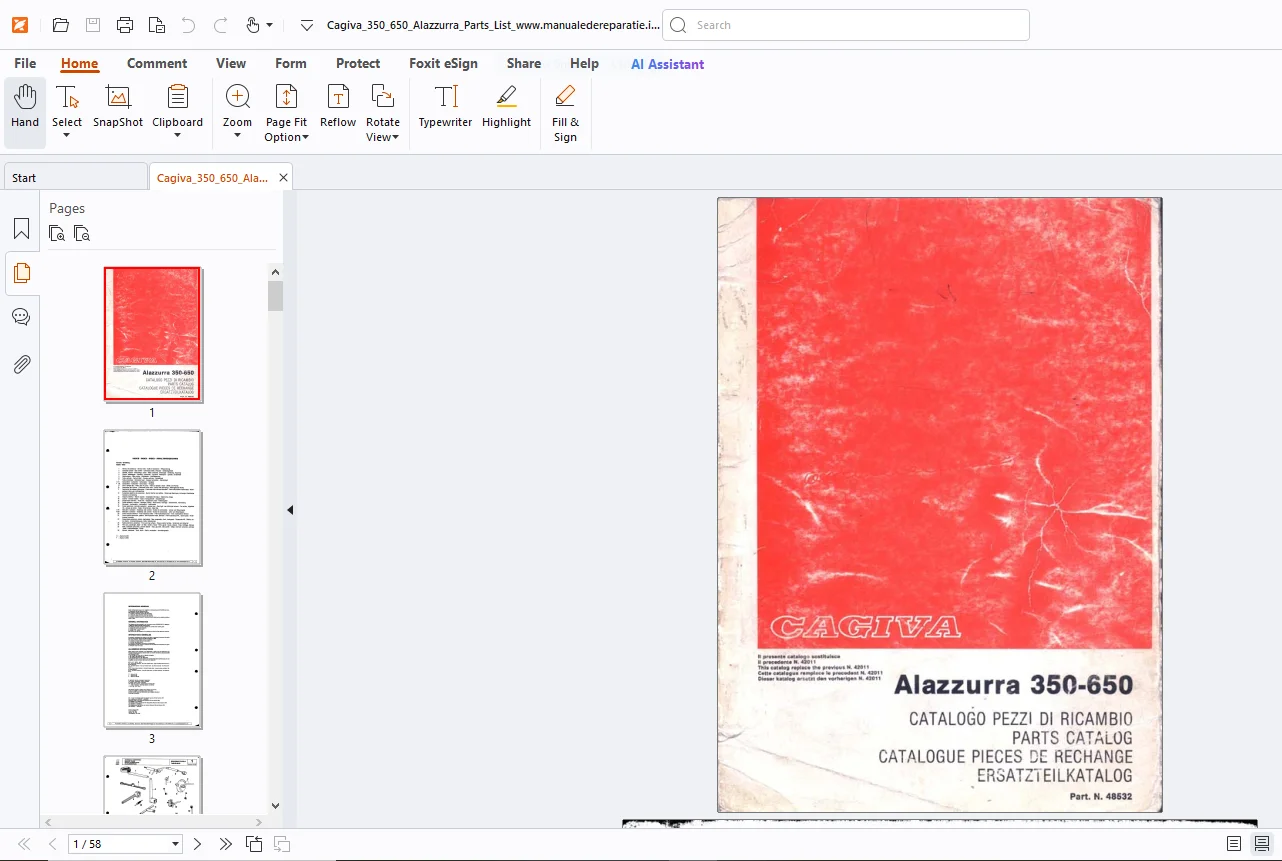

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Cagiva Alazzurra 350-650 Parts Manual – PDF DOWNLOAD

PN 48532

Attrezzi di assistenza – Service tools – Outils d’assistance – Hilfausrüstung 6
Comando cambio – Gear shifter – Commande boîte à vitesses – Schaltungshebel 7
Cambio, frizione – Gearchange, clutch – Boite à vitesses, embrayage – Schaltung, Kupplung 8
Cilindri, imbiellaggio – Cylinders, crankshaft – Cylindres, vilebrequin – Zylinder, Kurbelwelle 9
Distribuzione – Valve timing – Distribution – Ventilsteuerung 10
Testa verticale – Vertical head – Culasse verticale – Zylinderkopf 11
Testa orizzontale – Horizontal head – Culasse horizontale – Zylinderkopf 12
Carburatore – Carburetor – Carburateur – Vergaser 13
Filtri e pompa olio – Filters and oil pump – Filtres et pompe à huile – Olfilter und Pumpe 14
Semicarter lato frizione – Crankcase clutch side – Carter côté embrayage – Motorgehäuse Rechts 15
Semicarter lato catena e alternatore – Crankcase chain side and alternator – Carter côté chaîne et alternateur – Motorgehäuse Links und Lichtmaschine 16
Avviamento elettrico ed accensione – Electric starter and ignition – Démarrage électrique et allumage – Elektrischer Zündung 17
Impianto elettrico – Electric system – Installation électrique – Elektrische Anlage 18
Scarico – Exhaust system – Tuyau d’échappement – Auspuffanlage 19
Sospensione anteriore – Front fork – Suspension avant – Teleskopgabel 19A
Fanale anteriore, cupolino – Headlight, fairing – Phare avant, carénage – Scheinwerfer, Verkleidung 20
Strumenti – Instruments – Instruments – Instrumente 21
Fanale posteriore, indicatori posteriori gruppo cavi – Rear light, rear blinkings harness – Feu arrière, clignotant AR., groupe de câbles – Kabel, Hinterblinker, Kabel Kpl. 22
Attrezzi, dotazione – Tools, stock – Outils, nécessaire – Ausrüstungsteile 23
Manubrio e comandi – Handlebar and controls – Guidon et commandes – Lenker und Steuerorgane 24
Freno idraulico anteriore – Front hydraulic brake – Frein hydraulique avant – Vord. hydraulische Bremse 25
Freno idraulico posteriore, pedane – Rear hydraulic brake, footrests – Frein hydraulique AR., repose-pieds – Hinterbremse, Fußraste 26
Sospensione posteriore, catena, copricatena – Rear suspension, chain, chainguard – Suspension AR., chaîne, carter chaîne – Hinteraufhängung, Kette, Kettenschutz 27
Ruote anteriore e posteriore – Front and rear wheels – Roues avant et arrière – Vorderrad und Hinterrad 28
Filtro aria, parafanghi, telaio – Air filter, fenders, frame – Filtre, garde-boues, chassis – Filter, Kotflügel, Rahmen 29
Sella, serbatoio carburante, pannelli laterali – Seat, gas tank, side panels – Siège, réservoir carburant, panneau – Sattel, Kraftstoffbehälter, Paneel 30

DESCRIPTION:

Cagiva Alazzurra 350-650 Parts Manual – PDF DOWNLOAD

PN 48532

GENERAL INFORMATION:
This catalogue has been prepared for your convenience when ORDERING PARTS for Alazzur- ra 350 and Alazzurra 650 motorcycles.
The following instructions should be followed very carefully when ordering parts:
1) Indicate part number and description;
2) Indicate colour for painted parts:
3) indicate V.I.N. number.
Right side and left side indicated in this catalogue are referred to rider seating on motorcycle.

G.B 17/03/25
