BT Prime Mover WSX-OS Electric Walkie Straddle Order Selector Parts Manual PDF

Description

BT Prime Mover WSX-OS Electric Walkie Straddle Order Selector Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime Mover WSX-OS Electric Walkie Straddle Order Selector Parts Manual – PDF DOWNLOAD

Language : English
Pages : 111
Downloadable : Yes
File Type : PDF

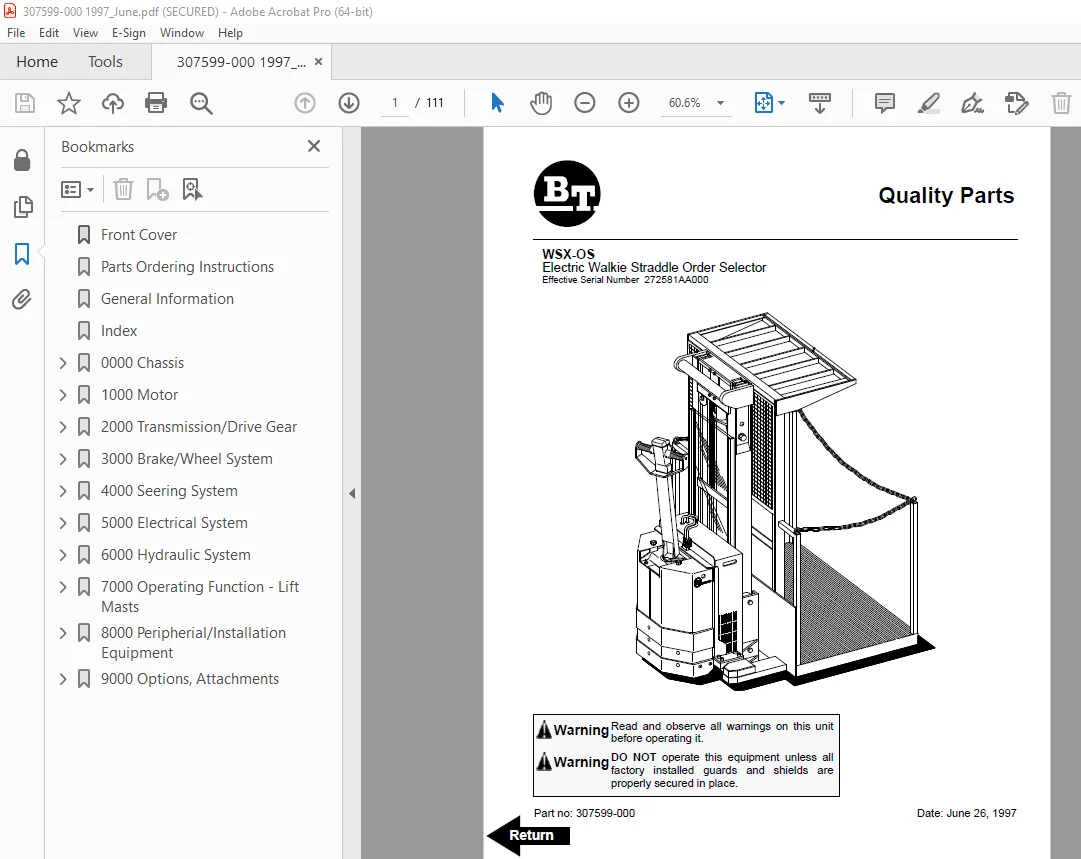

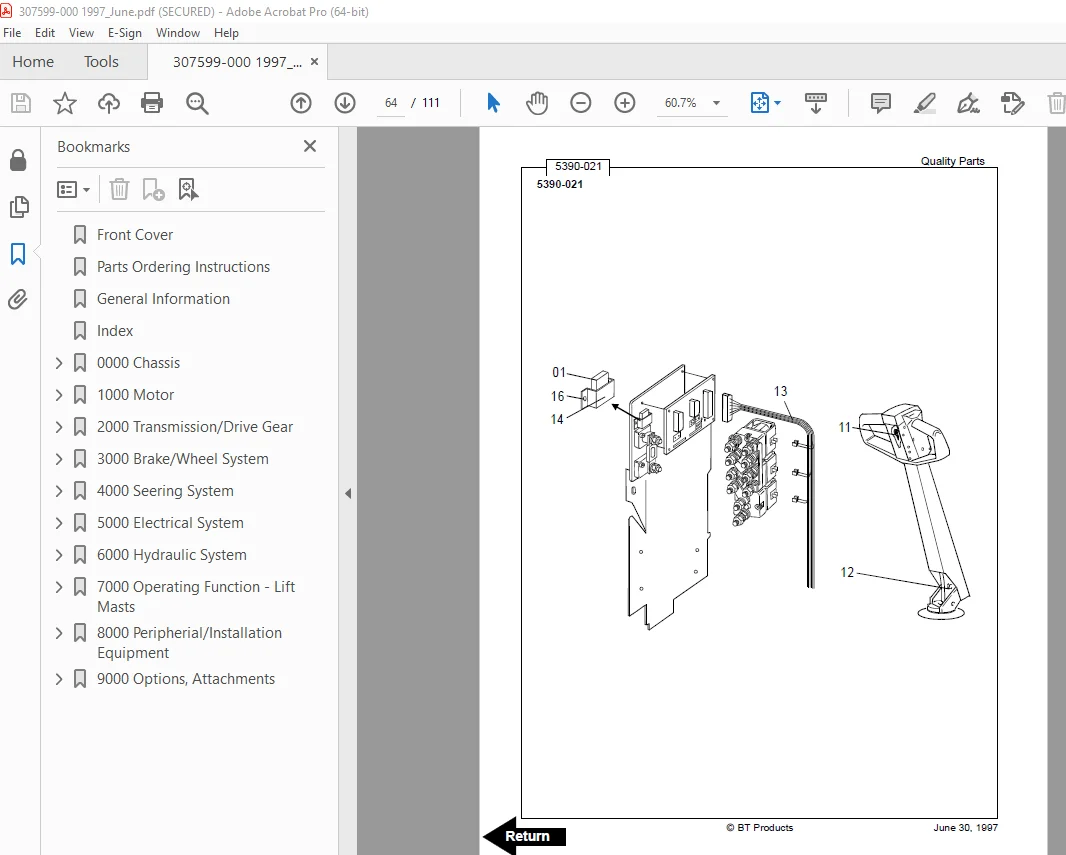

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime Mover WSX-OS Electric Walkie Straddle Order Selector Parts Manual – PDF DOWNLOAD

Manual Parts Number 307599-000
Effective Serial Number 272581AA000

Front Cover 1
Parts Ordering Instructions 2
General Information 3
Index 5
0000 Chassis 8
0340-015 Inspection, Covers 9
0350-007 Support / Stabilization Arms 11
0400-007 Frame / Chassis Component 13
0560-002 Platform and mounting points 15
0640-014 Driver controls (Mechanical) 17
0820-017 Finger / toe guards (Windshield) 19
0820-019 Finger / Toe Guards (Toe guards) 21
0840-010 Driver protection 23
0850-011 Decals, Warnings (Main truck) 25
0850-012 Decals, Warnings (Platform) 27
1000 Motor 28
1700-015 Electrical Drive Motor 29
2000 Transmission/Drive Gear 30
2550-007 Mechanical drive gear unit 31
3000 Brake/Wheel System 32
3160-008 Brake drum / Disc assembly 33
3530-006 Drive Wheel 35
3550-016 Fork / Support arm wheels (Load Wheel) 37
4000 Seering System 38
4110-031 Steering arm / wheel / lever 39
4180-000 Steering bearing, Radial bearing 41
5000 Electrical System 42
5110-005 Battery (24 Volt GNB battery pack) 43
5160-009 General alarm signal 45
5190-008 Battery cut out contactor / plug (Battery connector) 47
5190-024 Battery cut out contactor / plug (Line contactor) 49
5230-009 Voltage / battery indicator 51
5290-001 Hourmeter / speedometer 53
5310-015 Start / stop switch 55
5310-023 Start / stop switch (Emergency stop) 57
5330-010 Speed control 59
5360-003 Relay, electrical modules (Relay) 61
5380-000 Micro switch 63
5390-021 Control cables / harnesses 65
5400-003 Electrical drive motor system 67
5430-022 Motor cable, resistor 69
5440-004 Direction contactors 71
5460-013 Transistor panel 73
5510-014 Micro switches 75
5590-004 Control cables, harness 77
5610-001 Pump contactor 79
5710-003 PCBs logic card / box 81
5750-000 Safety / position / switches / sensors 83
5750-034 Safety / position / switches / sensors 85
5790-005 Control cables / harnesses 87
5810-003 Pump motor assembly 89
6000 Hydraulic System 90
6100-015 Hydraulic Unit (Electric lifting) 91
6120-005 Hoses and pipes, connections, fixation 93
6125-038 Hoses, pipes, connections, mounting points 95
7000 Operating Function – Lift Masts 96
7110-017 Mast section 97
7170-006 Lifting gear 99
7310-024 Lift cylinder 101
8000 Peripherial/Installation Equipment 102
8340-001 Battery charger (24 Volt GNB battery pack) 103
8520-002 Access, safety equipment (Safety belt, tether) 105
8520-003 Access, safety equipment (Key pad) 107
9000 Options, Attachments 108
9370-008 Warning lights / alarm 109
9999-000 Special tools and lubrications 111

DESCRIPTION:

BT Prime Mover WSX-OS Electric Walkie Straddle Order Selector Parts Manual – PDF DOWNLOAD

Manual Parts Number 307599-000
Effective Serial Number 272581AA000

HOW TO ORDER:

When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.

• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER :Always order parts from the dealer who sold you your BT. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
