BT-Prime Mover WRX 30 Electric Straddle Reach Stacker Truck Parts Manual PDF

Description

BT-Prime Mover WRX 30 Electric Straddle Reach Stacker Truck Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT-Prime Mover WRX 30 Electric Straddle Reach Stacker Truck Parts Manual – PDF DOWNLOAD

Language : English
Pages : 144
Downloadable : Yes
File Type : PDF

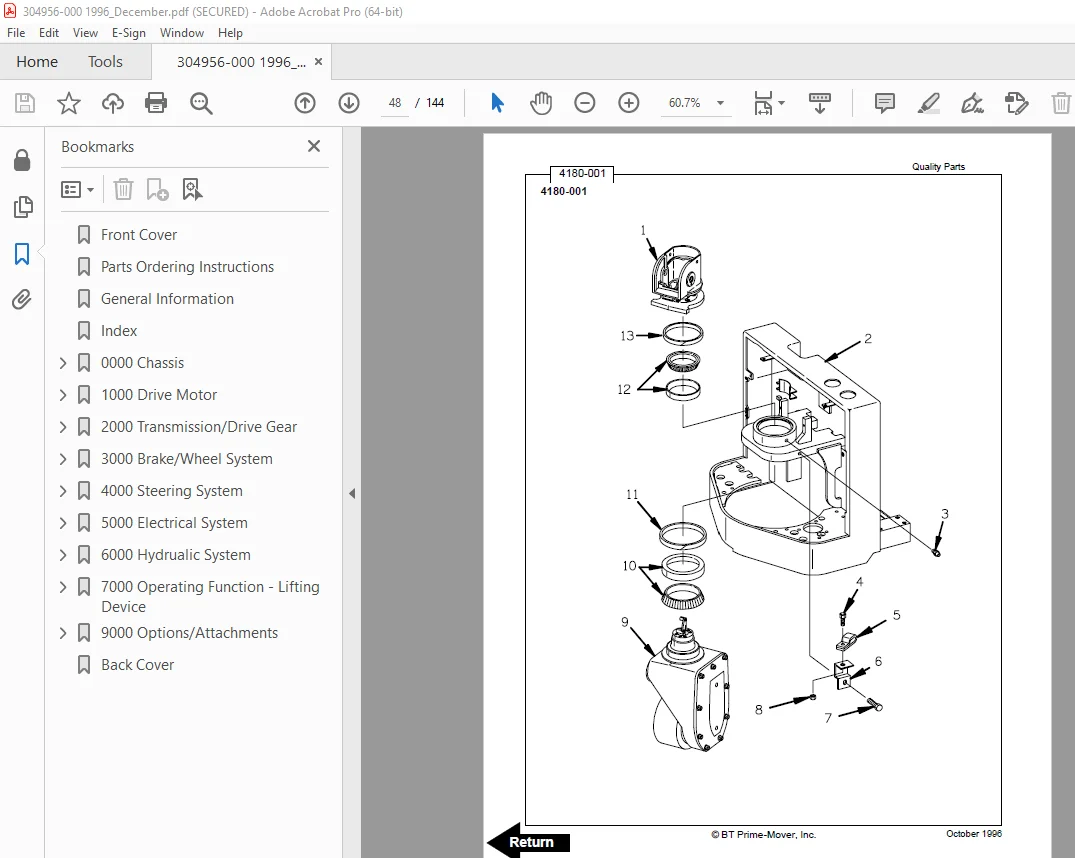

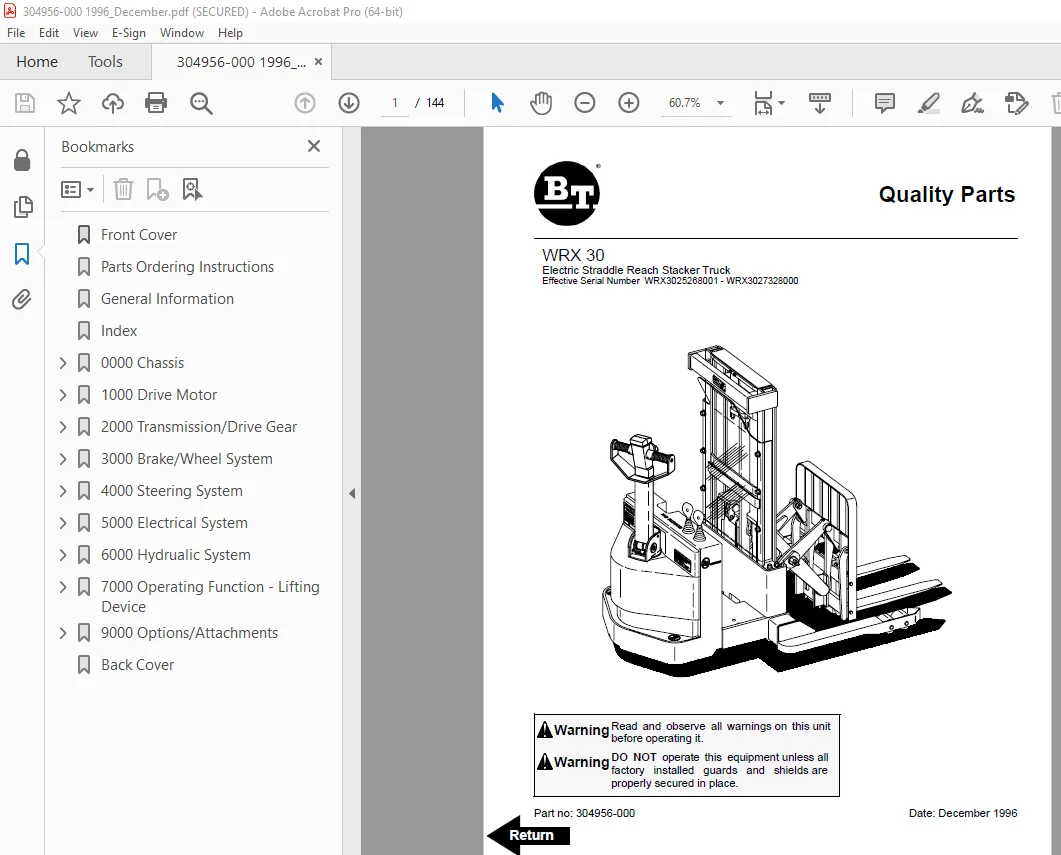

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT-Prime Mover WRX 30 Electric Straddle Reach Stacker Truck Parts Manual – PDF DOWNLOAD

Manual Part no: 304956-000
Effective Serial Number WRX3025268001-WRX3027328000

Front Cover 1
Parts Ordering Instructions 2
General Information 3
Index 5
0000 Chassis 8
0300-001 Frame / Chassis 9
0340-002 Inspection covers (“EE” electrical box) 13
0370-000 Counter balance weight 15
0390-001 Battery compartment parts (13 3” battery) 17
0640-004 Drivers controls (two spool valve handle) 19
0640-016 Drivers controls (speed & direction) 21
0820-002 Finger / toe guards 23
0840-012 Driver protection 25
0850-000 Signs, warnings 27
1000 Drive Motor 28
1700-003 Electrical drive motor (200AMP traction s 29
2000 Transmission/Drive Gear 30
2550-001 Mechanical drive gear unit 31
3000 Brake/Wheel System 34
3300-000 Parking brake system (200AMP traction sys 35
3360-000 Brake drum/disc assembly 37
3530-001 Drive wheel 39
3540-001 Support / swivel wheel 41
3550-002 Fork / support arm wheels 43
3560-001 Stabilizer wheel 45
4000 Steering System 34
4110-019 Steering arm / wheel 47
4180-001 Steering / radial bearing 49
5000 Electrical System 50
5160-011 General alarm signal 51
5180-000 Current collector, cable drum 55
5190-009 Battery cut out contactor / plug (battery 57
5190-010 Battery cut out contactor / plug (200AMP 59
5230-002 Voltage / battery indicator 61
5290-001 Hourmeter / speedometer 63
5310-017 Start / stop switch 65
5330-011 Speed controls 67
5390-001 Control cables / harnesses 69
5430-012 Motor cables, resistors (200AMP traction 71
5460-013 Transistor panel (200AMP traction system) 73
5510-010 Micro switches 75
5550-001 RRX35 / RRX45 / RDX30 Electromagnetic val 77
5590-000 Control cables, harness (two stage mast) 79
5590-001 Control cables, harness (three stage mast 81
5610-001 Pump contactor 83
5810-003 Pump motor 85
6000 Hydrualic System 86
6100-001 Hydraulic pump (Model # DM-1006) 87
6110-001 Hydraulic tank 89
6120-003 Hoses, pipes, connections, mounting point 91
6125-005 Hoses, pipes, connections, mounting point 93
6125-006 Hoses, pipes, connections, mounting point 95
6125-007 Hoses, pipes, connections mounting point 97
6125-008 Hoses, pipes, connections, mounting point 99
6125-009 Hoses, pipes, connections, mounting point 101
6125-010 Hoses, pipes, connections, mounting point 103
6125-011 Hoses, pipes, connections, mounting point 105
6125-012 Hoses, pipes, connections, mounting point 107
6160-002 Control valve (two spool control valve) 109
6170-001 Pressure / flow control valve 111
7000 Operating Function – Lifting Device 112
7110-004 Mast section (two stage mast) 113
7110-005 Mast section (three stage mast) 115
7130-003 Reach unit 117
7170-003 Lifting gear (Two/three stage mast) 119
7210-001 Sideshifter / fork spreader 121
7310-000 Lift cylinder (two stage mast) 123
7310-005 Lift cylinder (three stage mast freelift 125
7310-006 Lift cylinder (three stage mast staging c 127
7320-002 Tilt cylinder (Single reach) 129
7330-002 Reach cylinder assembly (Single reach) 131
7410-002 Fork, carpet boom, hook 133
9000 Options/Attachments 134
9370-003 Warning lights / alarm 135
9390-000 Positioning equipment 137
9500-009 Extra mechanical equipment 139
9660-000 Electrical heater 141
9910-000 Electrical controllers (Handset) 143
Back Cover 144

DESCRIPTION:

BT-Prime Mover WRX 30 Electric Straddle Reach Stacker Truck Parts Manual – PDF DOWNLOAD

Manual Part no: 304956-000
Effective Serial Number WRX3025268001-WRX3027328000

S.V 11/01/2025
